PostPosted: Tue Mar 12, 2013 11:05 pm    Post subject: 63 Squareback Found? Reply with quote

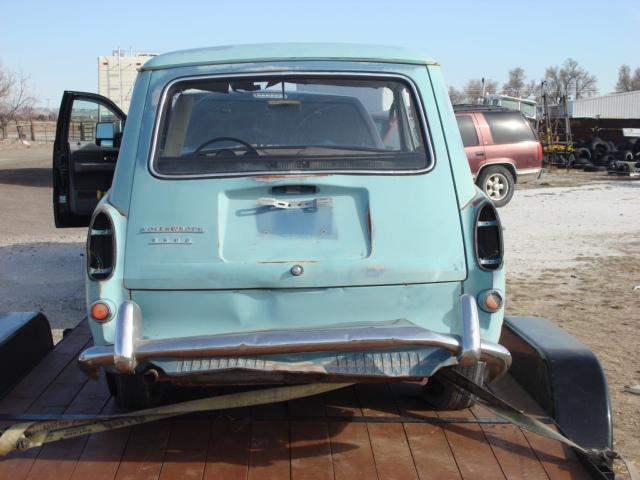

For the past few weeks I had been contemplating getting this square. I had pulled some parts off of it and sold them without realizing that at some point I was going pick this car up. My initial intent was to part this car out but after reading other threads and looking over pics or other members starting point, I re-thought the parting out part adn more on saving the car. Today I made a trip to get a some parts and with trailer in tow, pick up the square at the same time. Last time I was out, I failed to get the VIN number off this car. This time, my first stop was to get the VIN and try to determine the age of this car. I knew Squares weren't made until 1963 but the VIN number stumped me as I had to call my friend for help. I checked the body VIN against the pan, 0187041. I didn't see any number on the engine case but it's dirty. It's got dual port heads on it and as it was pointed out if this is an early square, it would have had a side single draft carb (I think that's what it's called) setup. Maybe the PO changed the heads out? Not sure but will be looking for the VIN in the AM.

The car has been repainted as the original color seems to be sea Blue. Not usre about the red though, maybe factory primer? The underside of the hood is the same color as the other areas inside the car. I'll take the shop vac to it as well as put the pieces I took off of it back on. I feel bad I sold off a few pieces but that's ok, lesson learned. I'm not ready to deal with this square just yet as I'm working on the 67 so It's going into storage. I'll post more pics but with the ones I have here, A few for now...
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

I'd appreciate any info you can pass along regarding the age, etc.
_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tram
Samba Socialist


Joined: May 02, 2003
Posts: 21815
Location: Still Feelin' the Bern- Once you've felt it you can't un- feel it.
Tram is offline

PostPosted: Tue Mar 12, 2013 11:20 pm    Post subject: Reply with quote

VIN indicates a very early May, 1963 build date. This would have been a single side draft 1500 car. The dual carb cars didn't start until 1964, and Type 3s got a bigger engine compartment to accommodate the twin carb engine, so don't be surprised to find some hackery in there.

Dual port didn't start till 1967, so it's likely got a later engine.
No Sea Blue until 1964 model year, so it was likely a Gulf Blue car. Interior would have been salt 'n' pepper.

No beak trim, no beltline trim, high mounted side markers, bullet turn sigs and reflectors painted body color are all pre '64 attributes. taillight lenses should be the flat ones. Post 1963 "S" and "Deluxe" cars got the common ones you always see.

The '1500' on the hatch indicates North American delivery, as they weren't allowed to call them 'Variant' because of the Plymouth Valiant in North America. It was likely delivered in Canada, which tells me the original taillight lenses were flat, all red.

Wheels look correct! Beginning in '64, they were "smoothies" until 4 lug with front disc in '66.
_________________
Give A Pal a Hand!
www.happytrailsfarm.org

vwfye wrote:
Oh the joy of custom things...



RIPRW

"I'm very fond of long walks, especially when taken by those who annoy me."- Fred Allen
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ataraxia
Samba Member


Joined: March 19, 2010
Posts: 4052
Location: Illinois
ataraxia is offline

PostPosted: Wed Mar 13, 2013 6:17 am    Post subject: Reply with quote

Sure looks like a 63 to me...

Nice find!

Very Happy
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Erik G
Samba Member


Joined: October 16, 2002
Posts: 10965
Location: Tejas!
Erik G is offline

PostPosted: Wed Mar 13, 2013 7:12 am    Post subject: Reply with quote

nice save, glad you did so
_________________
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Facebook Instagram Gallery Classifieds Feedback
notchboy
Samba Member


Joined: April 27, 2002
Posts: 19432
Location: Escondido CA
notchboy is offline

PostPosted: Wed Mar 13, 2013 7:49 am    Post subject: Reply with quote

Nice save - early squares are hard to find.
_________________
t3kg wrote:

OK, this thread is over. You win.

Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1974 Westfalia Hardtop Campmobile
1977 Westfalia Camper pop-top
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
rustyfastback
Samba Member


Joined: July 31, 2002
Posts: 774
Location: Georgia
rustyfastback is offline

PostPosted: Wed Mar 13, 2013 10:18 am    Post subject: Reply with quote

Glad to see you bought that '63. Can't wait to see some more photos. Congrats on the project. You can never own just one squareback Cool
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 62130
Location: Phoenix, AZ
EverettB is offline

PostPosted: Wed Mar 13, 2013 10:40 am    Post subject: Reply with quote

It's pretty much covered above so:
Yes, it's a '63.
Yes, Gulf Blue.
Yes, it should have a single side-draft motor.
The engine # should be in the top center of the engine.

Quote:
I knew Squares weren't made until 1963

1962 but any 62-63 is uncommon.

I'm interested in interior photos please.
Post a photo of the engine too, we can provide some engine feedback.

It looks pretty good, how are the floorpans?
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1944
Location: South Dakota
MonT3 is offline

PostPosted: Wed Mar 13, 2013 10:57 am    Post subject: Reply with quote

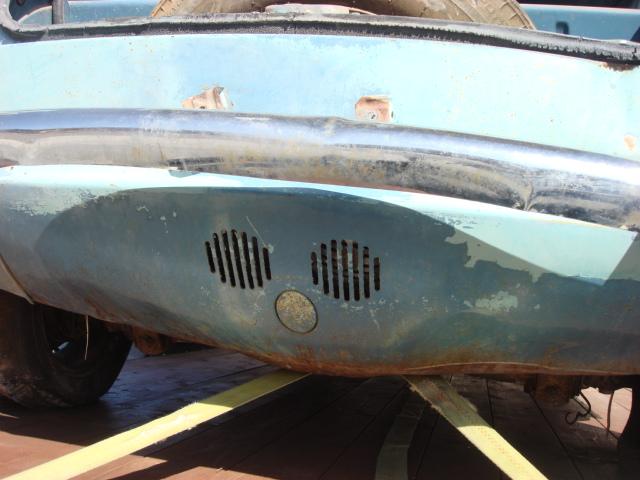

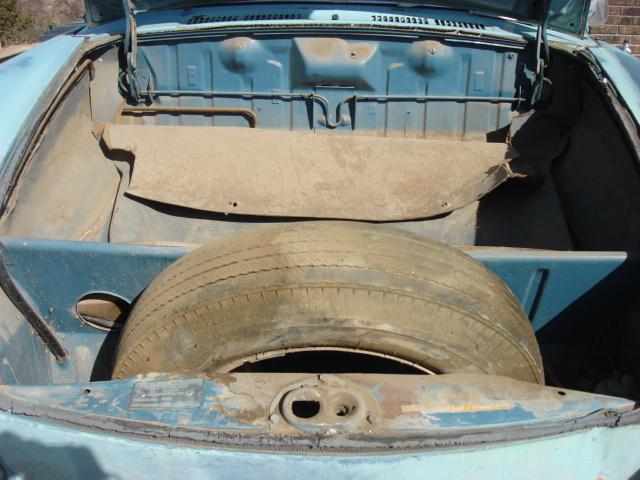

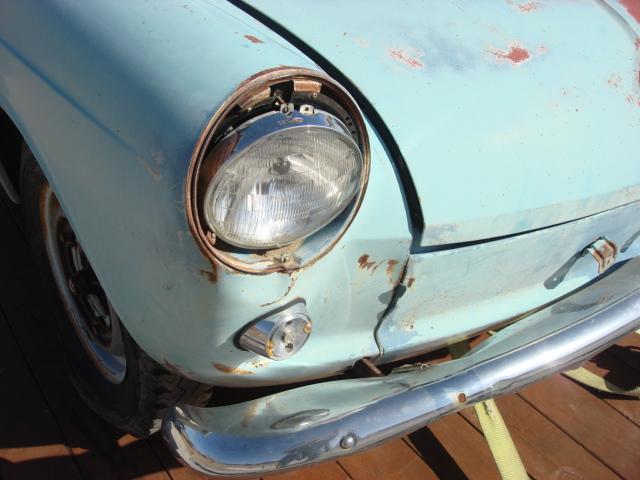

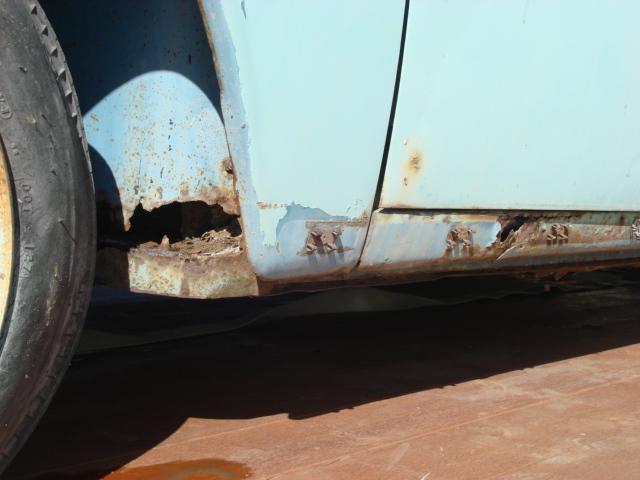

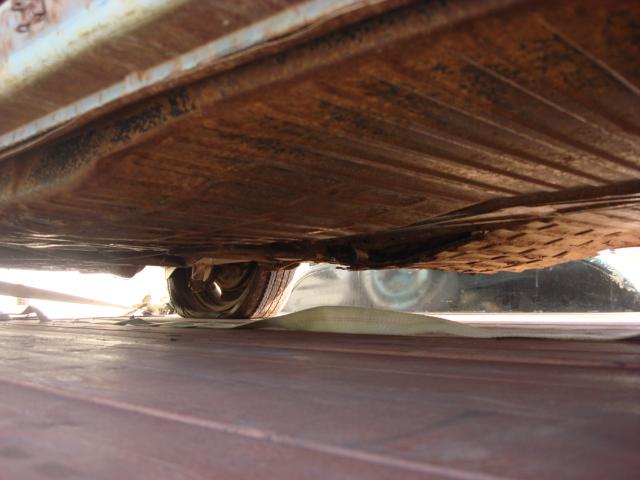

This morning my son was pushing me out of bed to get outside to take a look at "his" new car (he's 5yrs old). So I drug myself out of bed, showered and got outside took some more pics. The engine is a universal and as the pics show is missing some pieces to it. Would have been nice to have had the mathcing case but after being told of the dual port head, I didn;t think it may be there but was hoping it caould have been.

Tram, thanks for the info on this car. It'll come in handy when I start to take inventory of what it'll take aside from alot of work to get it back on the road.

If this engine was universal and a dual port, would it have been converted over to 12V? I didn't check the relays on the car yet but was wondering about that. Either way, would be nice to bring it back as a stock square. I've attached more pics or rust, holes,and dirt. Enjoy...
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Here's some hackery. THis Sapphire I was in the car with a long threaded stud with a bent/folded up license plate piece at the bottom to hold it together
Image may have been reduced in size. Click image to view fullscreen.

I'll post some interior pics soon.
_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Erik G
Samba Member


Joined: October 16, 2002
Posts: 10965
Location: Tejas!
Erik G is offline

PostPosted: Wed Mar 13, 2013 11:07 am    Post subject: Reply with quote

why do you say its a universal case? I can see the number in the top of the case, indicating it's a type 3 case

Image may have been reduced in size. Click image to view fullscreen.

_________________
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Facebook Instagram Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1944
Location: South Dakota
MonT3 is offline

PostPosted: Wed Mar 13, 2013 11:29 am    Post subject: Reply with quote

Erik G wrote:
why do you say its a universal case? I can see the number in the top of the case, indicating it's a type 3 case

Image may have been reduced in size. Click image to view fullscreen.


This was next to where the fuel pump and base of the oil breather are
Image may have been reduced in size. Click image to view fullscreen.

Would have been nice to have had that number match. I'm making this assumption it's universal based off the number as it doesn't match the body and pan VIN.
_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tram
Samba Socialist


Joined: May 02, 2003
Posts: 21815
Location: Still Feelin' the Bern- Once you've felt it you can't un- feel it.
Tram is offline

PostPosted: Wed Mar 13, 2013 11:43 am    Post subject: Reply with quote

It's an early 1969 fuel injected engine.
_________________
Give A Pal a Hand!
www.happytrailsfarm.org

vwfye wrote:
Oh the joy of custom things...



RIPRW

"I'm very fond of long walks, especially when taken by those who annoy me."- Fred Allen
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Yooyenkoo
Samba Member


Joined: August 22, 2006
Posts: 279
Location: Nebraska
Yooyenkoo is offline

PostPosted: Wed Mar 13, 2013 11:44 am    Post subject: Reply with quote

If the number on the case starts with a U at the beginning then it is a universal case and of course not original to the car.
_________________
"84 Vanagon
"81 Vanagon "Mini truck"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tram
Samba Socialist


Joined: May 02, 2003
Posts: 21815
Location: Still Feelin' the Bern- Once you've felt it you can't un- feel it.
Tram is offline

PostPosted: Wed Mar 13, 2013 11:49 am    Post subject: Reply with quote

Yooyenkoo wrote:
If the number on the case starts with a U at the beginning then it is a universal case and of course not original to the car.


No, the U case indicated fuel injection.
_________________
Give A Pal a Hand!
www.happytrailsfarm.org

vwfye wrote:
Oh the joy of custom things...



RIPRW

"I'm very fond of long walks, especially when taken by those who annoy me."- Fred Allen
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bobnorman Premium Member
Samba Newfoundlander


Joined: August 09, 2010
Posts: 1305
Location: Newfoundland
bobnorman is offline

PostPosted: Wed Mar 13, 2013 11:53 am    Post subject: Reply with quote

Nice find! Glad to hear you're thinking of bringing it back to stock. Looks like a fun project. Smile

Last edited by bobnorman on Wed Mar 13, 2013 8:17 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tram
Samba Socialist


Joined: May 02, 2003
Posts: 21815
Location: Still Feelin' the Bern- Once you've felt it you can't un- feel it.
Tram is offline

PostPosted: Wed Mar 13, 2013 12:02 pm    Post subject: Reply with quote

For reference, engine number likely would have been in the range of 0 212 222 to 0 227 033, although an earlier engine number than the first one wouldn't be unusual, as they always built more engines than cars and I've seen engines in cars that were produced a month or more earlier than the car they went in.

Get a "birth certificate" on this bitch!! Smile
_________________
Give A Pal a Hand!
www.happytrailsfarm.org

vwfye wrote:
Oh the joy of custom things...



RIPRW

"I'm very fond of long walks, especially when taken by those who annoy me."- Fred Allen
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1944
Location: South Dakota
MonT3 is offline

PostPosted: Wed Mar 13, 2013 2:55 pm    Post subject: Reply with quote

Tram wrote:
For reference, engine number likely would have been in the range of 0 212 222 to 0 227 033, although an earlier engine number than the first one wouldn't be unusual, as they always built more engines than cars and I've seen engines in cars that were produced a month or more earlier than the car they went in.

Get a "birth certificate" on this bitch!! Smile


Has anyone thought of running a thread on case numbers? HAHAAA! It would be intersting to read about someone owning an engine that someone else had the car with matching VIN. HAAHA! I'll get one ordered. Need to read the thread on getting one.
_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tram
Samba Socialist


Joined: May 02, 2003
Posts: 21815
Location: Still Feelin' the Bern- Once you've felt it you can't un- feel it.
Tram is offline

PostPosted: Wed Mar 13, 2013 2:56 pm    Post subject: Reply with quote

I think I remember seeing a "case exchange" thread in the Split Bus forums years ago. A case exchange thread might be a good idea here.
_________________
Give A Pal a Hand!
www.happytrailsfarm.org

vwfye wrote:
Oh the joy of custom things...



RIPRW

"I'm very fond of long walks, especially when taken by those who annoy me."- Fred Allen
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1944
Location: South Dakota
MonT3 is offline

PostPosted: Wed Mar 13, 2013 3:19 pm    Post subject: Reply with quote

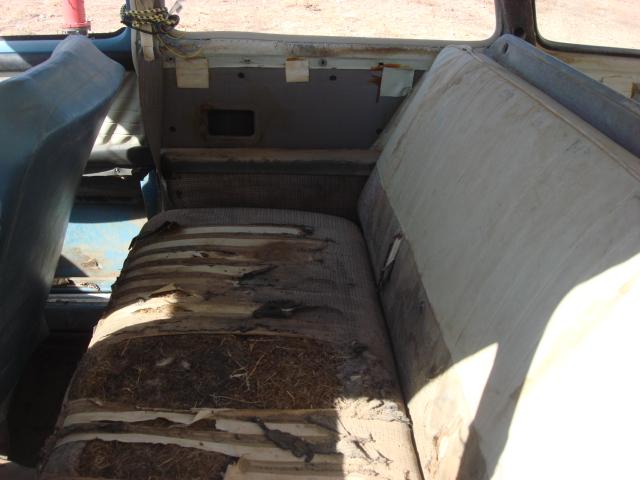

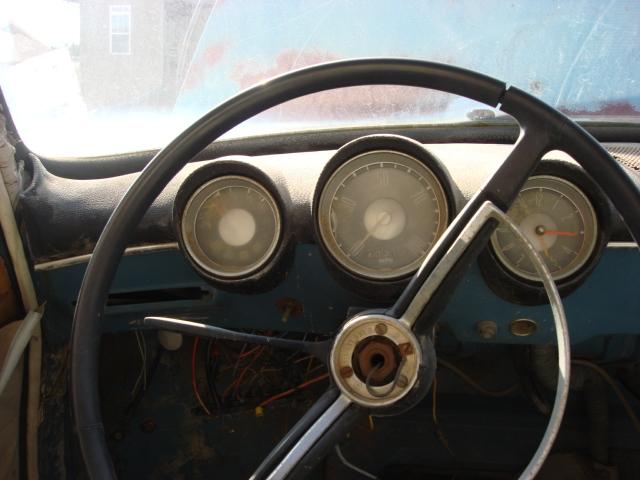

Here are some interior pics. Not much to see.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

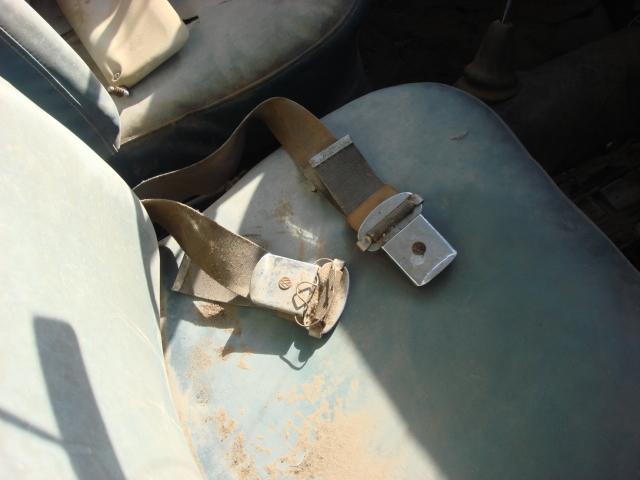

These seat belts look incomplete. There's the inside tunnel piece and a piece that's bolted to the lower pillar (sp?)
Image may have been reduced in size. Click image to view fullscreen.

My guess is these gauges may not be original, or at least one. Any thoughts or insight? Not sure about the toggle and push button. I guess since it didn't have the ignition, maybe power and push-button start?
Image may have been reduced in size. Click image to view fullscreen.

Notice the seat belt going down the pillar
Image may have been reduced in size. Click image to view fullscreen.

The're a little damage from the dent on the apron. Nothing too bad that can't be corrected
Image may have been reduced in size. Click image to view fullscreen.

Not sure if these were part of the cars original tool kit...
Image may have been reduced in size. Click image to view fullscreen.

_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tram
Samba Socialist


Joined: May 02, 2003
Posts: 21815
Location: Still Feelin' the Bern- Once you've felt it you can't un- feel it.
Tram is offline

PostPosted: Wed Mar 13, 2013 3:24 pm    Post subject: Reply with quote

Rear seat material is the original.

Euro cars got a two point shoulder belt with no lap belt, and I think those were acceptable in Canada also. USA mandated lap belts only until 1968- then 3 point shoulder/lap belts with high back seats.
_________________
Give A Pal a Hand!
www.happytrailsfarm.org

vwfye wrote:
Oh the joy of custom things...



RIPRW

"I'm very fond of long walks, especially when taken by those who annoy me."- Fred Allen
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1944
Location: South Dakota
MonT3 is offline

PostPosted: Wed Mar 13, 2013 3:32 pm    Post subject: Reply with quote

I have the lower door panel but dammit, I sold off the others. That's ok, lesson learned. Same goes for the push-button console. Embarassed d'oh!
_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Type 3 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
