PostPosted: Thu Sep 10, 2015 9:35 pm    Post subject: An Allstate rebuild Reply with quote

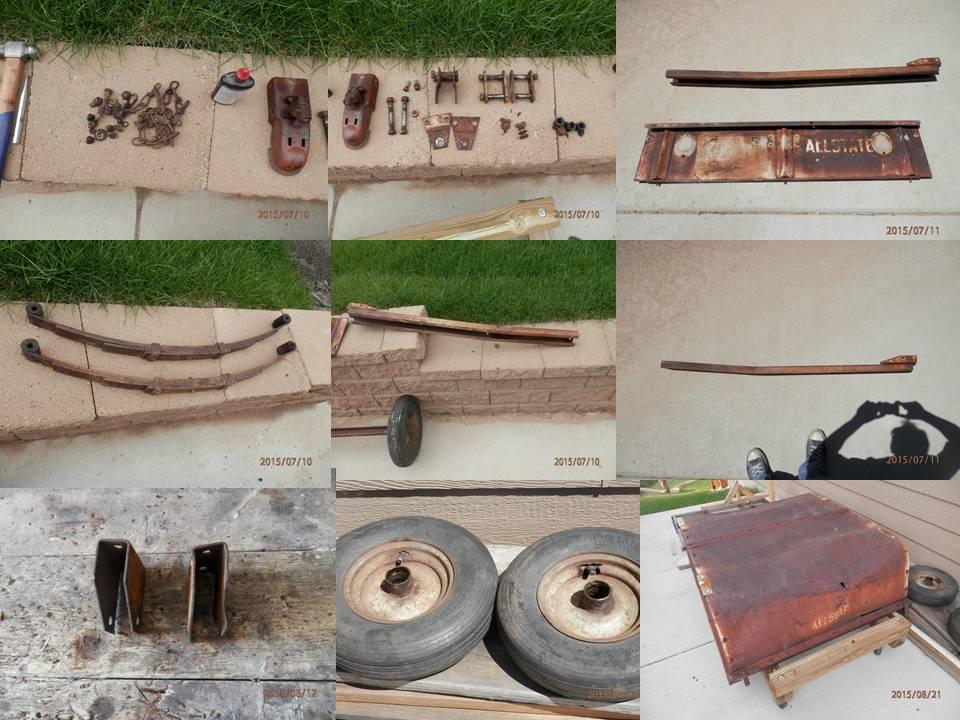

Thought I'd start this thread as I've been in the process of rebuilding my trailer while I have some time from rebuilding my 67 Squareback. This trailer was in poor condition as the floor and subframe was rotted in different areas. The first order of business was to removed and inspect parts taken off to See what was salvageable and what was going to the scrap heap. After disassembling the suspension, having the spot weld areas blasted, I was able to remove the floor and salvage the cross-members. I ended up with some pieces to work with and some pieces I need to source. The wheels were rotted in places so I elected to do an upgrade of them by adding 5lug hubs. In doing so, I needed to upgrade the size of the spindle (from 3/4" to 1 1/16")as well.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

The side walls were ok with a little welding that needed to be done to fill in some small holes. My plan is to spray raptor liner on the inside of the bed so the pitting that's in there will get covered up.
Image may have been reduced in size. Click image to view fullscreen.

Here's what I had to start with in my rebuild of the bed of the trailer. Took the floor with the attached subframe to the metal shop and asked them if they could replicate the pieces. They provided exactly what I needed...
Image may have been reduced in size. Click image to view fullscreen.

3/8in holes where drilled about every 4in so I could weld the floor and side walls together. The welds were later ground flush to accommodate the floor being put in place.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

The leaf spring mounting point on the original frame piece had a section of pipe welded in the subframes channel. I found a piece of pipe with nice wall thickness at Ace Hardware in the electrical section. The piece was cut to length inside the channel and welded in. I took it a step further and welded the outside edge too the subframe as well. Since the leaf spring tubing has been completed, I'm working on welding in the cross-members. then mock out the suspension. I have my 4.8 x 4 wheels on order and they're on their way from Eastern Marine. More to follow.
_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vintagevwnut
Samba Member


Joined: November 25, 2007
Posts: 175
Location: Plainfield, Il
vintagevwnut is offline

PostPosted: Mon Sep 14, 2015 9:07 pm    Post subject: Reply with quote

Wow that's some crazy work. Nice job.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1988
Location: South Dakota
MonT3 is offline

PostPosted: Sat Jun 04, 2016 8:59 pm    Post subject: Re: An Allstate rebuild Reply with quote

Had a little time today to finish welding my floor in. Will do some grinding and prep for primer. My clam top is being shaped at the metal shop and will hopefully be picking it up. I can then send the top pieces along with the tongue and leaf springs off to get blasted. Look forward to getting back to this project as my square is almost done.
Image may have been reduced in size. Click image to view fullscreen.

_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
easy e
Samba Member


Joined: May 28, 2008
Posts: 3930
Location: 1 hr north of Santa Barbara
easy e is offline

PostPosted: Tue Jun 07, 2016 7:09 am    Post subject: Re: An Allstate rebuild Reply with quote

Lookin' good! Nice work!
_________________
aka: Evan
Spreadsheet for Bus RPM, based on gearing & tire size (Excel format)
Searchable, click-navigable 1958 Bus Parts List
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1988
Location: South Dakota
MonT3 is offline

PostPosted: Wed Jun 15, 2016 8:05 am    Post subject: Re: An Allstate rebuild Reply with quote

Last couple of days were spent prepping my parts for some epoxy primer, After getting the pieces from the blaster, I hand sanded the bed that will get paint with 80 Grit to get the roughness off the metal. The remainder was left as is so the Raptor would grab hold. Here are some shots of my progress thus far.
Fresh epoxy sprayed to seal up the metal...
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

After a couple of hours in the sun, I ran some seam sealer on the underside...
Image may have been reduced in size. Click image to view fullscreen.

And lastly, yesterday afternoon, I used a bottle of raptor on the underside...
Image may have been reduced in size. Click image to view fullscreen.

I'm letting it dry and will be spraying the inside of the bed when I get off work this evening, Progress is going on it!
_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild


Last edited by MonT3 on Sat Jun 25, 2016 6:19 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1988
Location: South Dakota
MonT3 is offline

PostPosted: Wed Jun 22, 2016 8:31 am    Post subject: Re: An Allstate rebuild Reply with quote

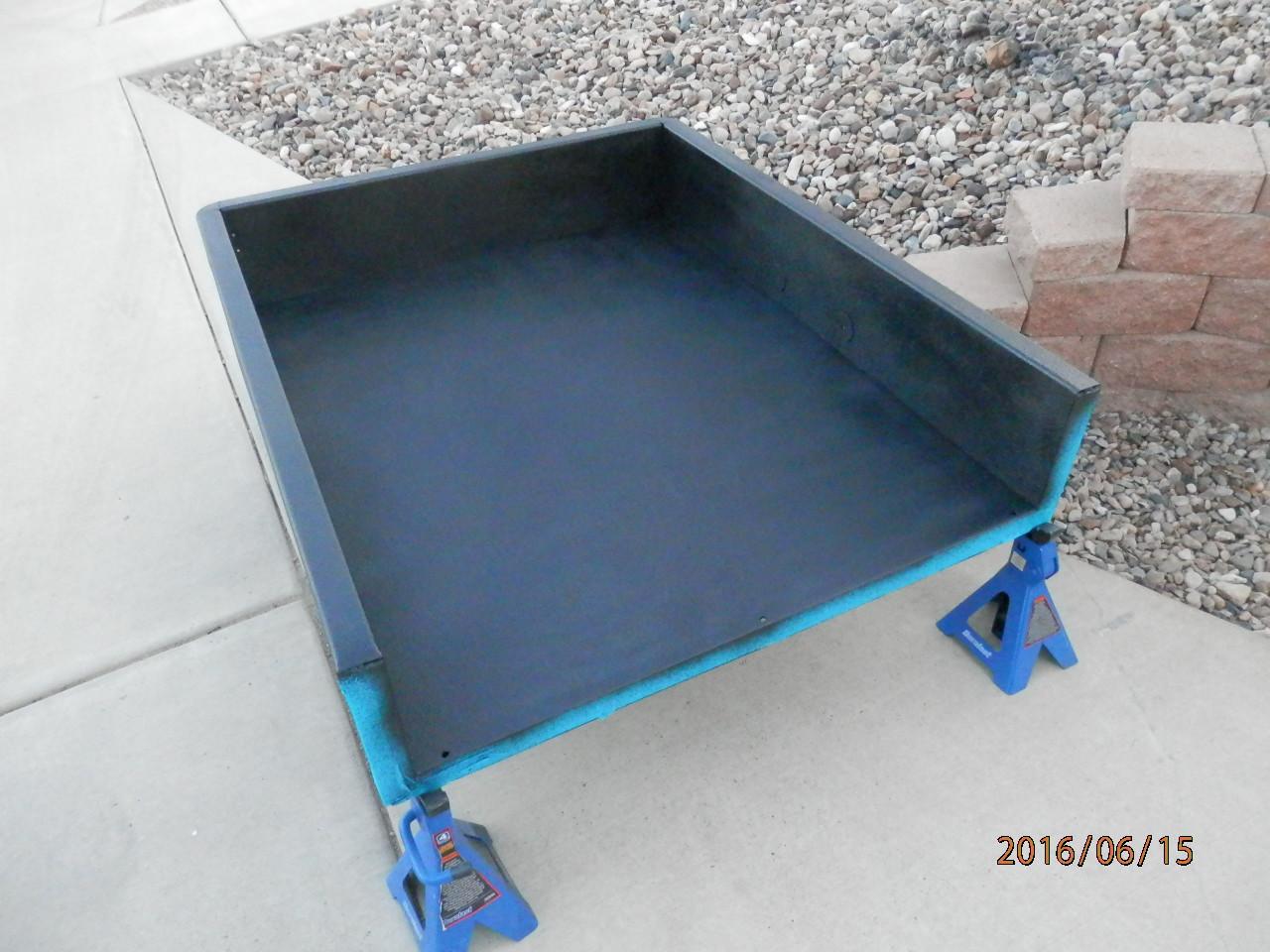

Last week I had sprayed some raptor on the inside of my trailer. The stuff sprays on so nice. I used a whole liter bottle on it.
Image may have been reduced in size. Click image to view fullscreen.

This week I masked off the area where I'm going to spray some color and added three coats of primer to it as well as the shell sides and frame.
Image may have been reduced in size. Click image to view fullscreen.

I have some sanding to do and there's some metal pitting so I may be using a lite coat of glaze in some areas. Hope to have this part done on my next few days off.

I've been playing around with a roof rack for this trailer as well. Kinda made it to match my roof rack on my square. I'm happy with it.
Image may have been reduced in size. Click image to view fullscreen.

The new axle spindles have been welded in place and is at the powder coater along with the leaf springs and tongue. I haven't done anything with the fenders and tailgate as well as the new shell cover. Instead of using a two piece setup, I opted for a one piece and asked the fab guys to make it 22 gauge. It's coming together pretty nicely. Looking forward to getting back at it next weekend.
_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild


Last edited by MonT3 on Sat Jun 25, 2016 6:20 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Typ3nut
Samba Member


Joined: October 08, 2002
Posts: 1188
Location: MI, MotorCity ManCave
Typ3nut is offline

PostPosted: Thu Jun 23, 2016 11:55 am    Post subject: Re: An Allstate rebuild Reply with quote

Awesome Job on the Allstate Restoration.
I mainly use my Allstate Trailer for all of my camping equipment, EZ-UP, Tent, base camp set-up.
I too opted to install a Luggage Rack on the top. Great place to put more Luggage and Coolers.
Keep up the good work !
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1988
Location: South Dakota
MonT3 is offline

PostPosted: Thu Jun 23, 2016 8:17 pm    Post subject: Re: An Allstate rebuild Reply with quote

Typ3nut wrote:
Awesome Job on the Allstate Restoration.
I mainly use my Allstate Trailer for all of my camping equipment, EZ-UP, Tent, base camp set-up.
I too opted to install a Luggage Rack on the top. Great place to put more Luggage and Coolers.
Keep up the good work !

Thanks for the compliment on the trailer. I'm working on it in between the square and work. I have just about everything except the tires and a spare tire mount that I need to fab up. I hope to get some sanding done before I head back to work. I like your trailer a lot as you did a killer job on it.
_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vintagevwnut
Samba Member


Joined: November 25, 2007
Posts: 175
Location: Plainfield, Il
vintagevwnut is offline

PostPosted: Fri Jun 24, 2016 6:52 am    Post subject: Re: An Allstate rebuild Reply with quote

Killer work
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1988
Location: South Dakota
MonT3 is offline

PostPosted: Sat Jun 25, 2016 6:24 am    Post subject: Re: An Allstate rebuild Reply with quote

vintagevwnut wrote:
Killer work

Thanks vintagevwnut.
_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Red Fau Veh
Samba Member


Joined: September 07, 2012
Posts: 3037
Location: Prescott Az.
Red Fau Veh is offline

PostPosted: Mon Jun 27, 2016 2:12 pm    Post subject: Re: An Allstate rebuild Reply with quote

It looks great and I always keep an eye out for them when they pop up. Check out this one on craigslist that someone must have refinished. Cool
http://rmn.craigslist.org/for/5637682354.html

Image may have been reduced in size. Click image to view fullscreen.

_________________
1971 Deluxe Sunroof Bay 1905 stroker, dual idf40's, 74mm Scat forged crank, engle 110 cam. CB 044 heads, AutoCraft rockers, chromoly push rods
1973 Orange transporter stock type 4 with dual 40 Dellortos and Empi single quiet pack
1969 Adventurewagen blue whale Gene Berg 1776 built by Dave Kawell dual 36 DRLA's, Vintage Speed exhaust, Bosch 019 screamer
1961 Swivel Seat camper, L345 grey
Touch Nicks Thing wrote:
Swivel Seat panels are for people with no friends Crying or Very sad
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1988
Location: South Dakota
MonT3 is offline

PostPosted: Wed Jun 29, 2016 6:19 am    Post subject: Re: An Allstate rebuild Reply with quote

Red Fau Veh wrote:
It looks great and I always keep an eye out for them when they pop up. Check out this one on craigslist that someone must have refinished. Cool
http://rmn.craigslist.org/for/5637682354.html


That's a nice trailer and by the looks of it the owner may have upgraded a few things. Looks like I'll have to wait to get my clam top mocked out to fab up my tire mount as that's the same location where I'd like to place my spare but didn't think the clam shell would rub but it looks like it might. I've searched and asked in another thread is anyone had a pic of the mount to get an idea of that they look like as I seen any references. I've been debating folding some metal up to make a bracket or buying the HF one and modifying it meet what I'm after. Still have some time to ponder that. Thanks for sharing the link!
_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1988
Location: South Dakota
MonT3 is offline

PostPosted: Wed Jul 06, 2016 6:15 am    Post subject: Re: An Allstate rebuild Reply with quote

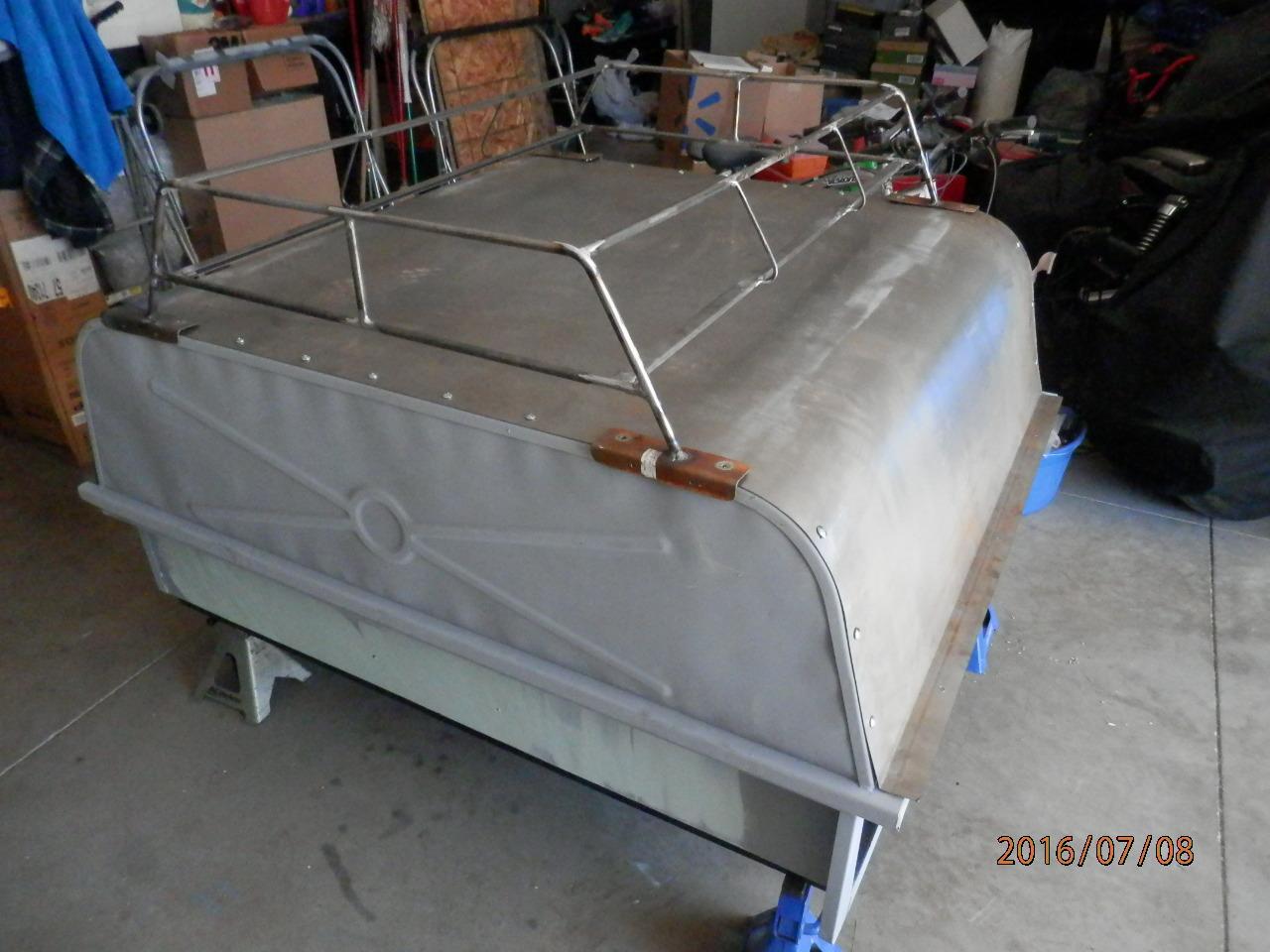

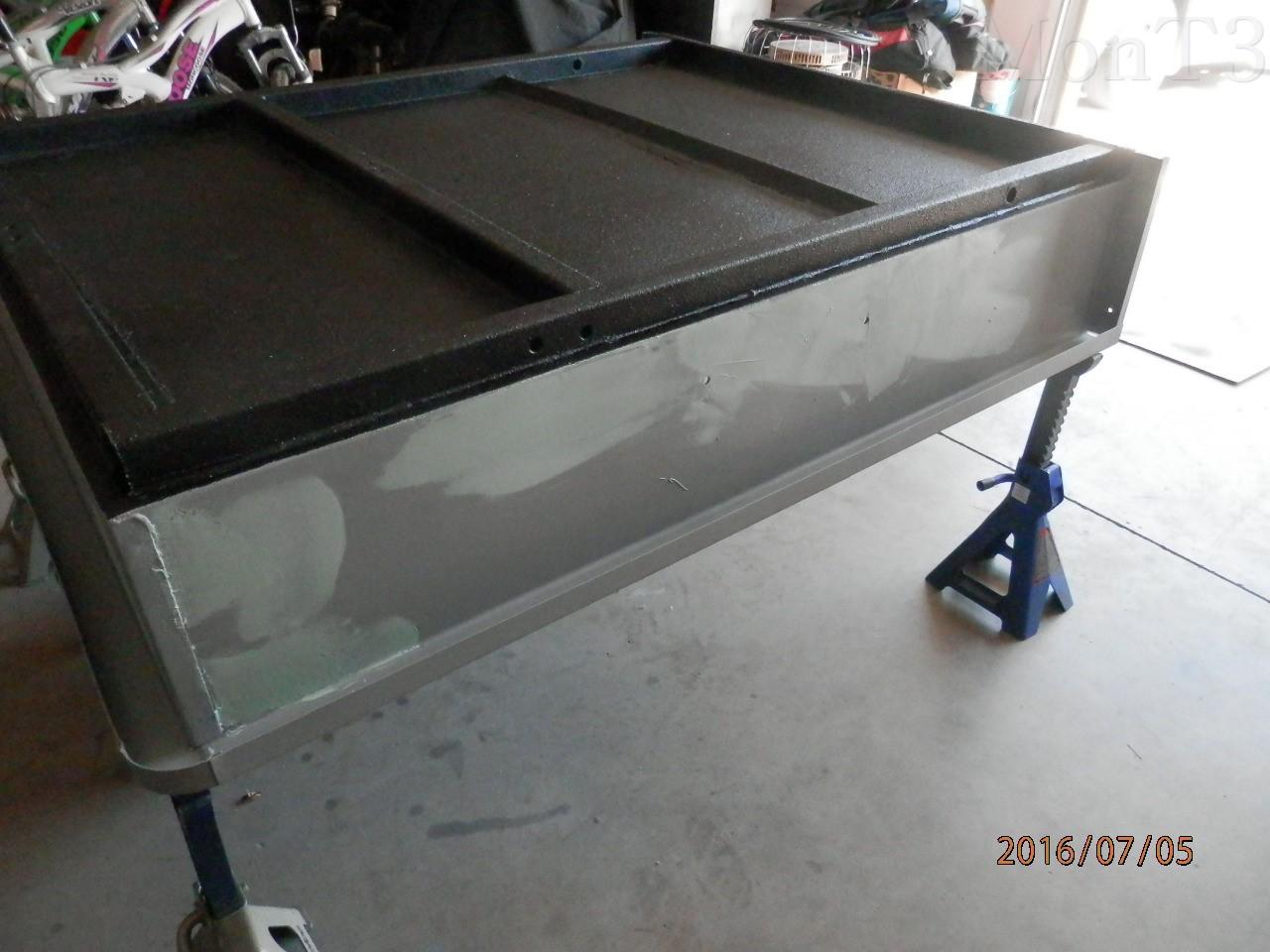

Did a little bodywork and a little mock up work on the shell to mark the holes I'll need to drill...
Image may have been reduced in size. Click image to view fullscreen.

The side walls of the cover a ripples and I decided to leave them as they are just like the factory did...
Image may have been reduced in size. Click image to view fullscreen.

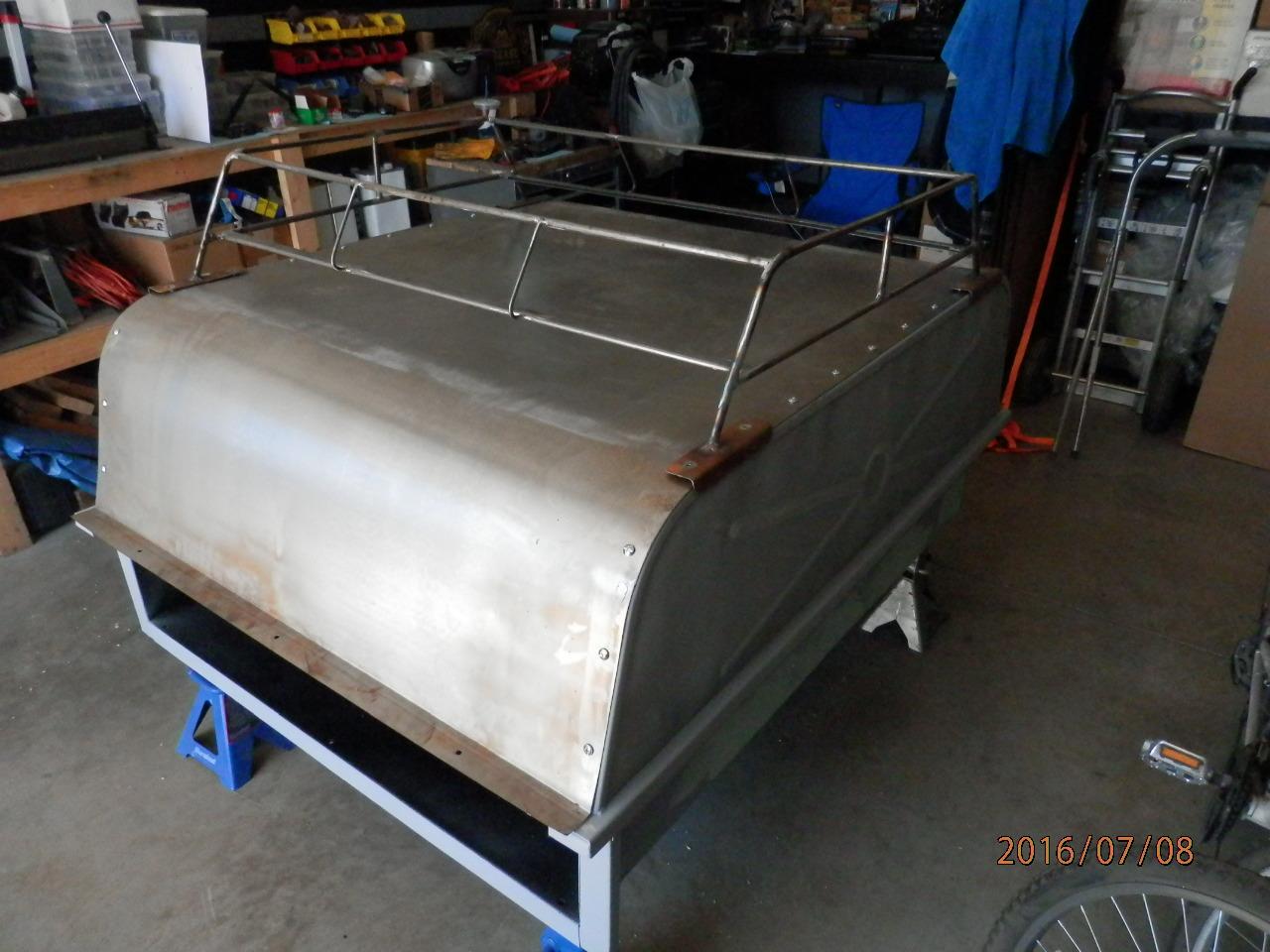

I opted for the one piece top. It's a little challenging to handle but I'll get to it possibly tonight...
Image may have been reduced in size. Click image to view fullscreen.

_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mike Fisher
Samba Member


Joined: January 30, 2006
Posts: 17961
Location: Eugene, OR
Mike Fisher is offline

PostPosted: Wed Jul 06, 2016 8:51 am    Post subject: Re: An Allstate rebuild Reply with quote

Trailer rebuild is coming together very nice! I have seen those X indentations on the sides of the top painted/pin striped with a contrasting color. Cool
_________________
https://imgur.com/user/FisherSquareback/posts
69 FI/AT square Daily Driver
66 sunroof,67,70,71,71,71AT,72,72AT,73 Parts
two 57 oval ragtops sold
'68 Karmann Ghia sold

Society is like stew. If you don't keep it stirred up you end up with a lot of scum on the top! - Russ_Wolfe/Edward Abbey
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
Typ3nut
Samba Member


Joined: October 08, 2002
Posts: 1188
Location: MI, MotorCity ManCave
Typ3nut is offline

PostPosted: Wed Jul 06, 2016 1:24 pm    Post subject: Re: An Allstate rebuild Reply with quote

MonT3 wrote:
Red Fau Veh wrote:
It looks great and I always keep an eye out for them when they pop up. Check out this one on craigslist that someone must have refinished. 8)
http://rmn.craigslist.org/for/5637682354.html


That's a nice trailer and by the looks of it the owner may have upgraded a few things. Looks like I'll have to wait to get my clam top mocked out to fab up my tire mount as that's the same location where I'd like to place my spare but didn't think the clam shell would rub but it looks like it might. I've searched and asked in another thread is anyone had a pic of the mount to get an idea of that they look like as I seen any references. I've been debating folding some metal up to make a bracket or buying the HF one and modifying it meet what I'm after. Still have some time to ponder that. Thanks for sharing the link!



MonT3,

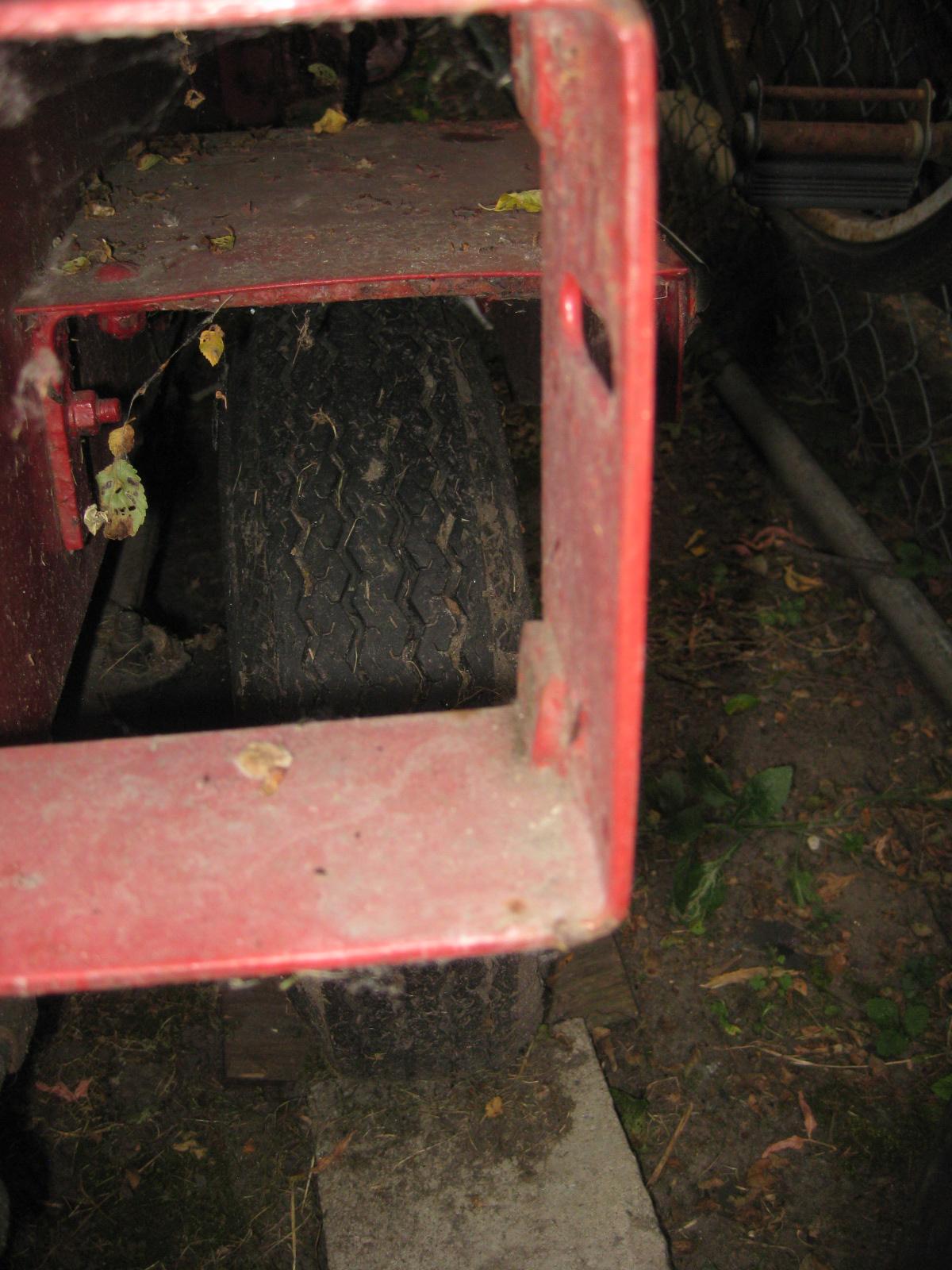

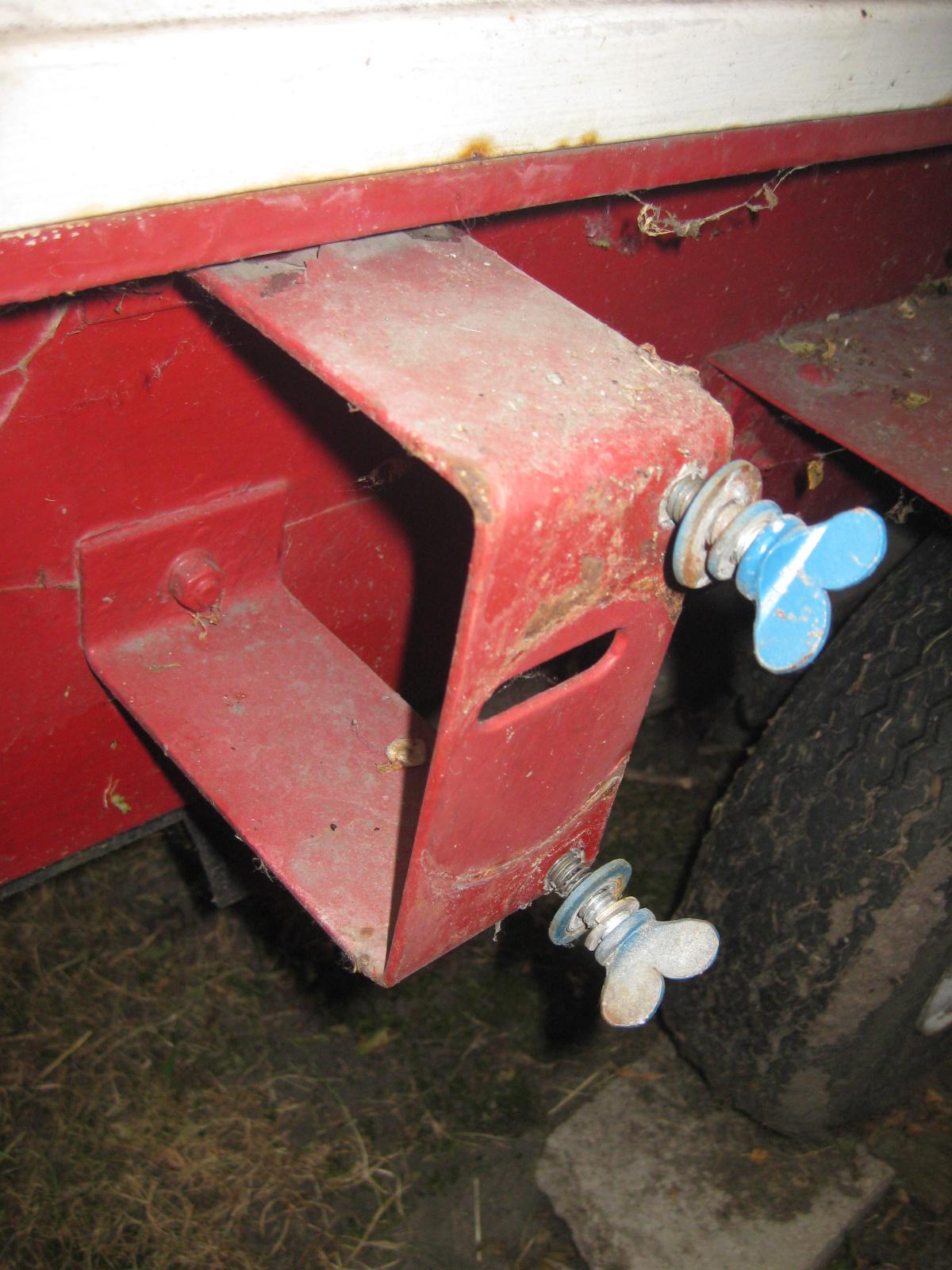

Here's a few photo's from my 1971 Allstate Trailer with Spare Tire Mount.
Measurements seem to be around 5 1/4" Square and Tire mounts thru Lugnut holes.
Spare Tire does come close to Clam Shell Top when closing and Close to the Fender.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1988
Location: South Dakota
MonT3 is offline

PostPosted: Wed Jul 06, 2016 6:42 pm    Post subject: Re: An Allstate rebuild Reply with quote

Typ3nut wrote:
MonT3 wrote:
Red Fau Veh wrote:
It looks great and I always keep an eye out for them when they pop up. Check out this one on craigslist that someone must have refinished. Cool
http://rmn.craigslist.org/for/5637682354.html


That's a nice trailer and by the looks of it the owner may have upgraded a few things. Looks like I'll have to wait to get my clam top mocked out to fab up my tire mount as that's the same location where I'd like to place my spare but didn't think the clam shell would rub but it looks like it might. I've searched and asked in another thread is anyone had a pic of the mount to get an idea of that they look like as I seen any references. I've been debating folding some metal up to make a bracket or buying the HF one and modifying it meet what I'm after. Still have some time to ponder that. Thanks for sharing the link!



MonT3,
Here's a few photo's from my 1971 Allstate Trailer with Spare Tire Mount.
Measurements seem to be around 5 1/4" Square and Tire mounts thru Lugnut holes.
Spare Tire does come close to Clam Shell Top when closing and Close to the Fender.



Thanks for posting those pics type3nut!. That gives me a good image of what it looks like as well as the dimensions. I have access to some 2" wide flat stock I'm planning on using. I have some errands to run in the AM and will be looking for a suitable wing nut sub if not I'll fab up some. Thanks again!
_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1988
Location: South Dakota
MonT3 is offline

PostPosted: Sat Jul 09, 2016 12:20 pm    Post subject: Re: An Allstate rebuild Reply with quote

Yesterday I placed the shell top on and measured the thing up, drilled the holes and screwed it down. It fits really nice. I did have to trim a little as there seemed to be alot play on the bottom frame once assembled. The top hung over about 1/2 inch on the sides. I trimmed the inner frames to close the gap. I need to trim the ends of the shells lip at the front and rear to flush it up. Then it's sanding time and get some flat stock to make a spare tire mount (Thanks again for the pics Typ3nut!). Here's my mocked up trailer minus the top cross-member but with my rack sitting in place but not screwed down...
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

One thing I want to do is to Fab up a nice set of arms for the brake/turn signals like Glenn As trailer. Maybe if it cools down I can get back out there and start sanding that thing down.
_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1988
Location: South Dakota
MonT3 is offline

PostPosted: Thu Oct 20, 2016 9:27 pm    Post subject: Re: An Allstate rebuild Reply with quote

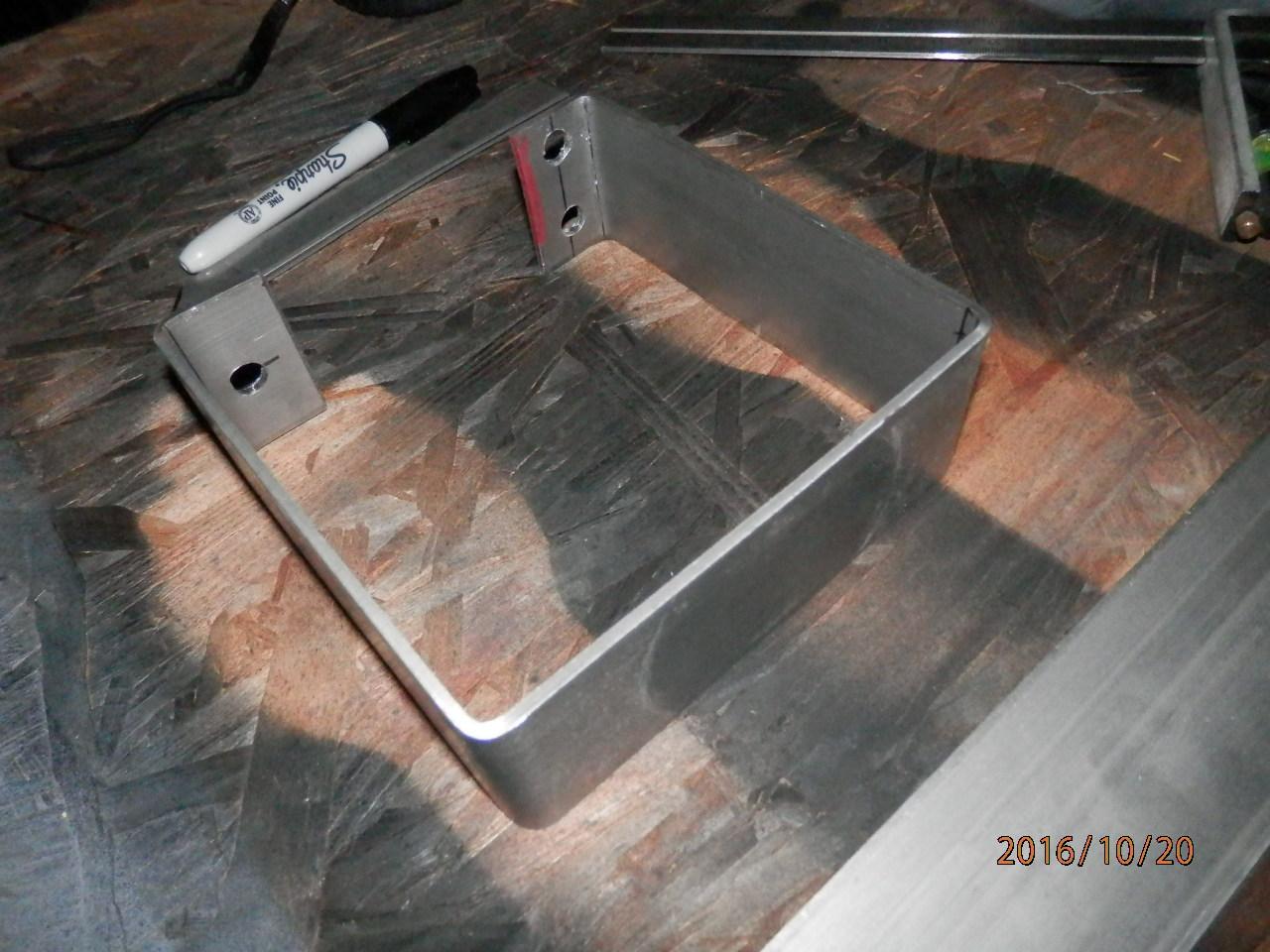

This evening I finished off two separate projects. One of which was to make a spare tire mount for the trailer. Using the measurements provided by Typ3nut (thanks again man!), I used some 1/8" thick x 2in wide flat stock to make my bracket. Using 5 1/4" as the overall length to all the sides, I measured 1" at the mount points following the pics provided. Being my rim has a 5-bolt pattern, I'll need to make a mod to the lower portion to bolt the rim to the bracket. I need to drill those holes. Will be making a trip to the local hardware store tomorrow to pick up some nuts and bolts. Last portion will be to come up with a way to lock in place. Here's a few pic...
Image may have been reduced in size. Click image to view fullscreen.

Not bad for my first attempt at my spare tire bracket ...
Image may have been reduced in size. Click image to view fullscreen.

_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1988
Location: South Dakota
MonT3 is offline

PostPosted: Wed Feb 22, 2017 8:05 pm    Post subject: Re: An Allstate rebuild Reply with quote

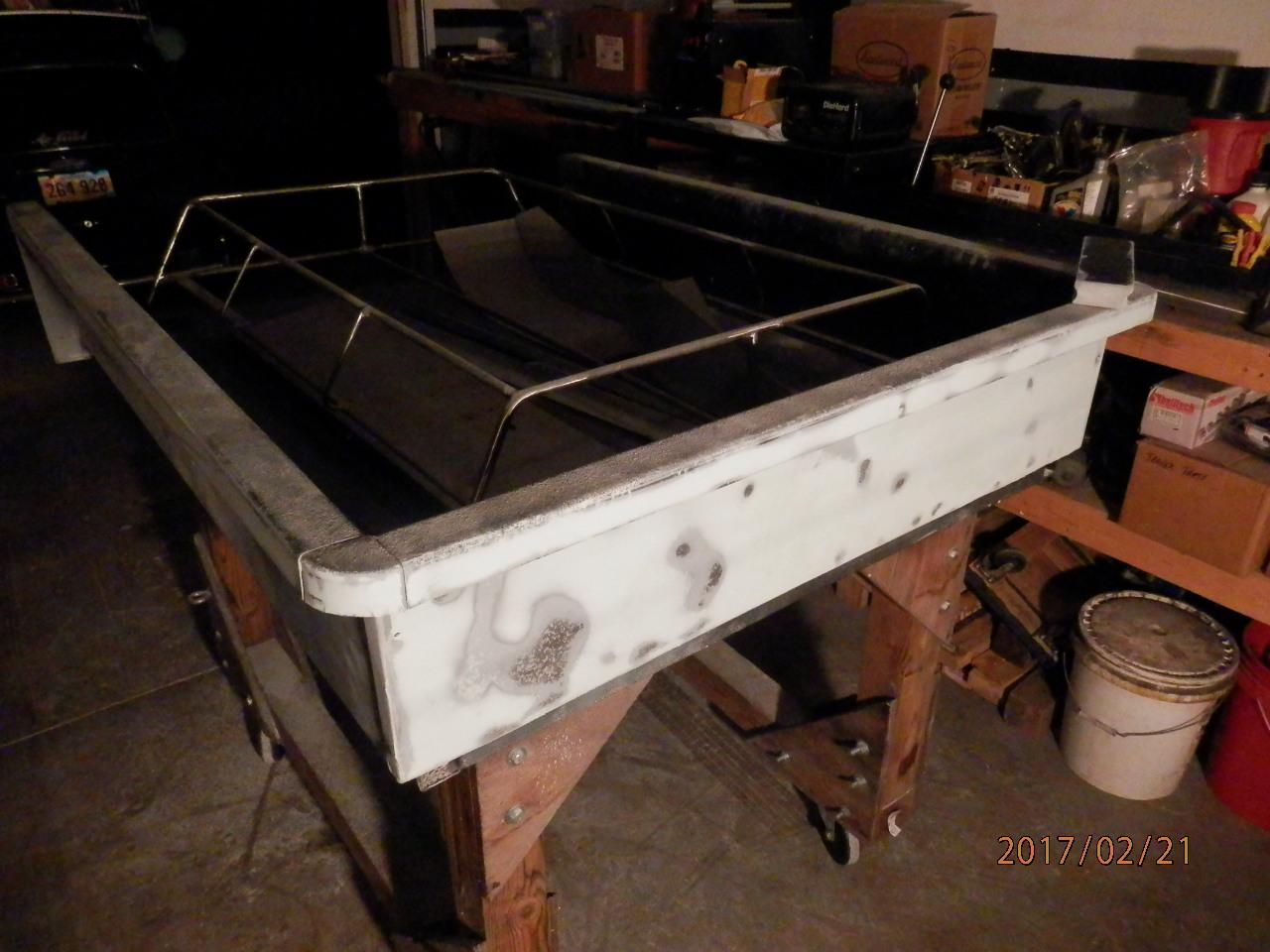

Builds been going a little slow but has gained some momentum. Glazing over some of the pitting. One more day of sanding then a few coats of primer. Need to mock the mounting of the spare tire bracket. Hope to have this piece painted by the end of the month.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MonT3
Samba Member


Joined: January 07, 2012
Posts: 1988
Location: South Dakota
MonT3 is offline

PostPosted: Tue Feb 28, 2017 9:05 pm    Post subject: Re: An Allstate rebuild Reply with quote

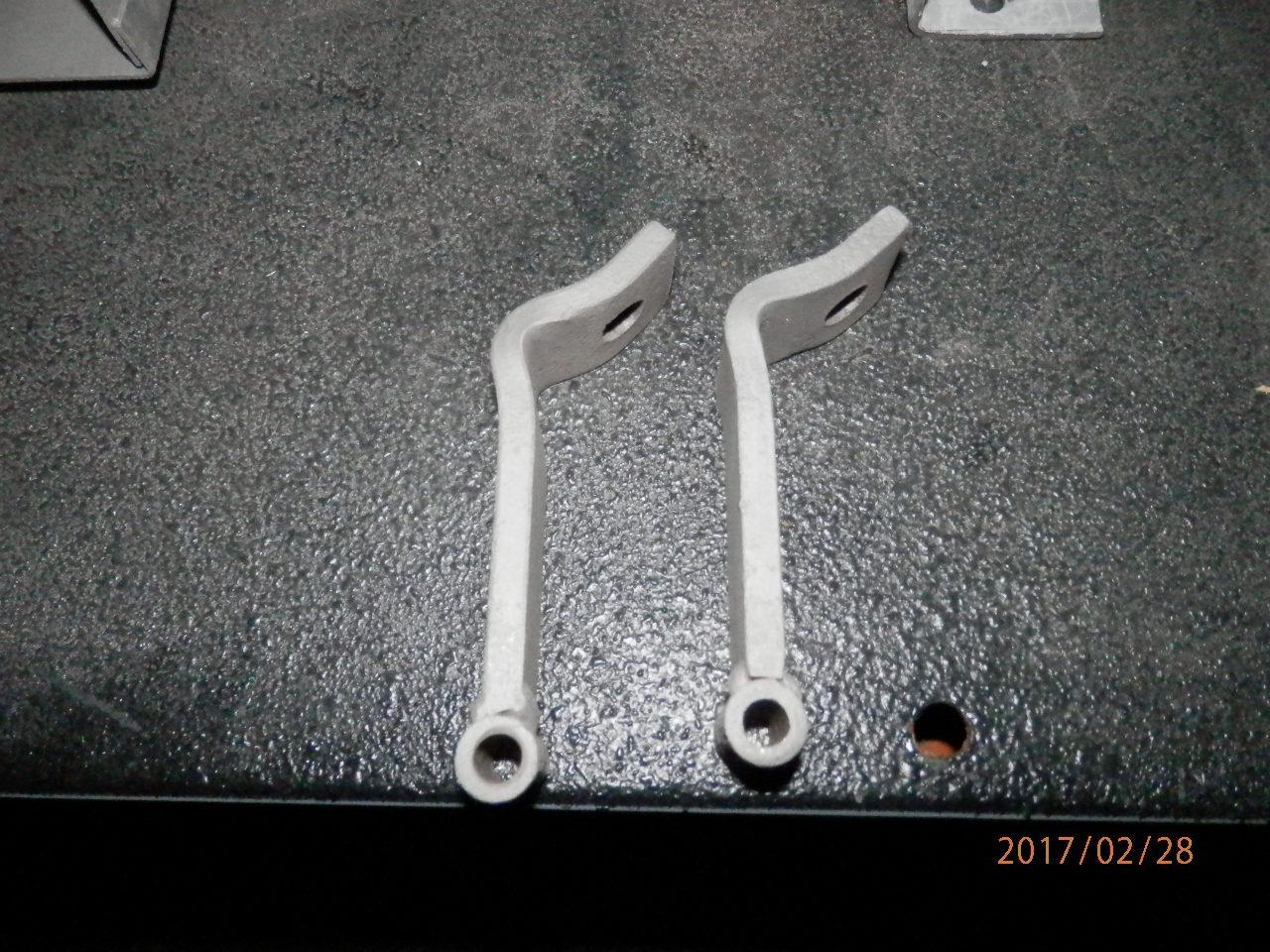

Needing some help from Allstate owners. I getting my small bits ready for some paint and came across these hinge arms. I'd like to know if these have been stressed and need to be massaged back into shape...
Image may have been reduced in size. Click image to view fullscreen.

I believe they need to be at a 90 degree angle but not sure. Any assistance is greatly appreciated.
_________________
MonT3
67 Squareback
64 Squareback
63 Squareback
Engine rebuild
Trailer rebuild
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Accessories/Memorabilia/Toys All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
