PostPosted: Sat Sep 17, 2016 12:56 pm    Post subject: Ignition/Steering Lock ID T2 Reply with quote

To link to this post
Code:
[url=http://www.thesamba.com/vw/forum/viewtopic.php?t=663815&start=0&postdays=0&postorder=asc&highlight=]Ignition/Steering Lock ID T2[/url]


As always thanks to all the posted information!

This should be used as reference material only. Inspect your parts to make sure they match. The information out there is sparse and the parts books leave a lot to be desired.
-----------------------------------------------------------------------------------------------
Ignition/Steering Lock ID

Let's start with the parts descriptions. Between the parts and repair manuals, it seems VW could not make up their minds on what to call these parts. So I am using the parts manual descriptions. The following parts can be found by them self's or in a number of combinations.
1. Ignition/Steering Lock Housing
2. Steering Lock
3. Ignition Starter Switch
4. Lock Cylinder with keys
-------------------------------------------------------------------------------------------------------------------
IGNITION/STEERING LOCK HOUSING (steering column)
I was unable to locate part numbers for these.
Image may have been reduced in size. Click image to view fullscreen.

Note: the later housing came with either one or two set screws to hold the steering lock in place.
Image may have been reduced in size. Click image to view fullscreen.

1975-79 Steering lock housing with plastic cover. Note the half round and square ends on the white ignition switch.
Image may have been reduced in size. Click image to view fullscreen.

-------------------------------------------------------------------------------------------------------------------
STEERING LOCK (ignition barrel)
1968-69 Steering lock
211 905 889 - Non-locking Intermediate housing: note square portion that changes to round, this has no lock pin to engage in the steering shaft.
Image may have been reduced in size. Click image to view fullscreen.

1968-69 Steering lock
211 905 887 - Note: square portion that changes to round with lock pin protruding from the end of it.
Image may have been reduced in size. Click image to view fullscreen.


1970 only Steering lock
211 905 887 A - Note: door buzzer wire connection, tapered cylinder with lock pin.
Image may have been reduced in size. Click image to view fullscreen.


1971 Steering lock
211 905 859 B
No Pic?

1971-? Steering lock
211 905 887 C - Note: I could not find any information on this. Seen some pix of it in 1971? It is listed by Vendors as fitting 71-74?
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



1972-M74 Steering lock
211 905 887 D - Note: (71 to 74 ch.#164 059) will fit 1971 with some modification to the Steering lock housing.
Image may have been reduced in size. Click image to view fullscreen.


M74-79 Steering lock
211 905 851 BH - Note: (74 from ch.#164 060 to 1979)
Image may have been reduced in size. Click image to view fullscreen.

-------------------------------------------------------------------------------------------------------------------
IGNITION STARTER SWITCH (ignition switch)(electrical part)

1968-70 Ignition switch
311 905 865 A - Three wire ignition switch
Image may have been reduced in size. Click image to view fullscreen.


1970 Ignition switch
311 905 865 B - 70 only Four wire ignition switch with buzzer contact, non-locking column

1971-M74 Ignition switch
111 905 865 F - (71 to 74 ch.#164 059)
Image may have been reduced in size. Click image to view fullscreen.



M74-79 Ignition switch
111 905 865 L - Note: (from 74 ch.#164 060 to 79) ignition switch note the little half round boot on the bottom
Image may have been reduced in size. Click image to view fullscreen.

--------------------------------------------------------------------------------------------------------------------------------
LOCK CYLINDER WITH KEYS

1968-70 Lock cylinder
211 905 855 - Note: with "L" profile keys
Image may have been reduced in size. Click image to view fullscreen.

211 905 853 A - Note: with "L" profile keys
Image may have been reduced in size. Click image to view fullscreen.


1971-72 Lock cylinder
211 905 855 B - Note: with "R" profile keys
Image may have been reduced in size. Click image to view fullscreen.



1973-79 Lock cylinder
211 905 855 C - Note: with "R" profile keys
Image may have been reduced in size. Click image to view fullscreen.


-----------------------------------------------------------------------------------------------

COMBINATIONS

1968-69
211 905 851 L- Steering, housing, lock, switch
Image may have been reduced in size. Click image to view fullscreen.


67-69
211 905 851 F - Steering Housing Complete
Image may have been reduced in size. Click image to view fullscreen.


1968-69
211 905 859 - Steering, housing, lock
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


1970
211 905 859 A - Steering, housing, lock
Image may have been reduced in size. Click image to view fullscreen.


1973-74
211 905 851 AL - Steering, housing, lock, switch
Image may have been reduced in size. Click image to view fullscreen.


1968-72
T2 Steering column decal
Image may have been reduced in size. Click image to view fullscreen.


Last edited by Tcash on Fri Aug 25, 2017 9:00 am; edited 2 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
hazetguy
Samba Member


Joined: April 06, 2001
Posts: 10650

hazetguy is offline

PostPosted: Thu Oct 13, 2016 6:44 am    Post subject: Re: Ignition/Steering Lock ID Reply with quote

Welcome to TheSamba, Bay Window Bus Forum!

Every Type IV engine owner should know this!!!

If you over tighten the Oil Strainer bolt, you will brake the engine case!
Image may have been reduced in size. Click image to view fullscreen.


There is a Oil strainer in there.
TORQUE THE STRAINER BOLT TO NO MORE THAN 9 FT. LBS.

Here is a little information. Good Luck

Pictures would be cool.
How to post photos/How to post a photo in the Forums

Pronunciation (Samba) English

I am thinking of buying a VW van
Cleaning+Rodents+Hantavirus
Up in smoke... Bus fires... don't let it happen to you!
M-Plate Location
M-Plate Decoder Volkswagen Type 2 Bus
Bus VIN / Chassis Numbers
Type 2/Bus Owner's Manuals
Bus repair manuals
Bus parts manuals
Early Baywindow Bus Parts Book
Late Baywindow Bus Parts Fiche
Type 2 Wiring Diagrams
Model and Year Variations
Type 4: Secrets Revealed
Distributor Parts & Specifications
PARTS INTERCHANGE MANUAL
Youtube Videos

There is a ton of information located at the top of the Forum section.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RixiesRide
Samba Member


Joined: August 31, 2005
Posts: 708
Location: Stockton, CA
RixiesRide is offline

PostPosted: Sat Feb 24, 2018 12:34 pm    Post subject: Re: Ignition/Steering Lock ID T2 Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

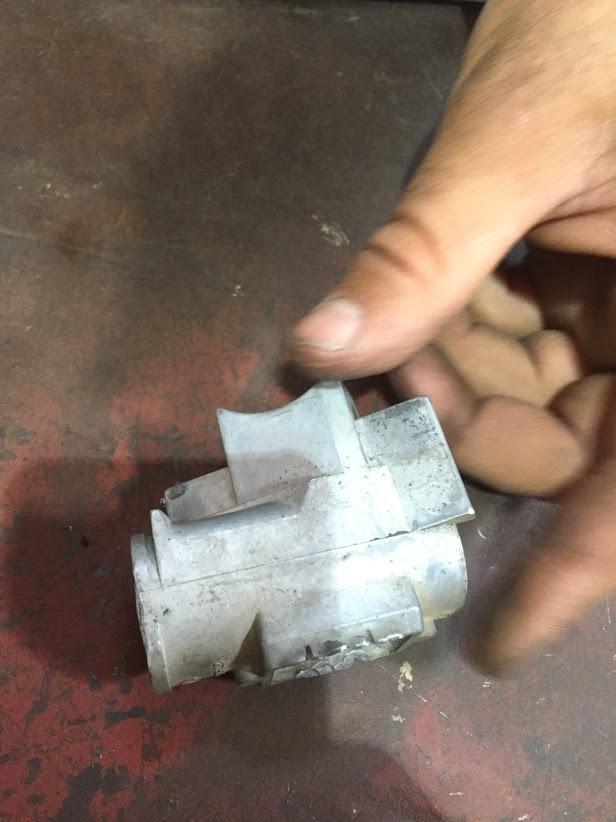

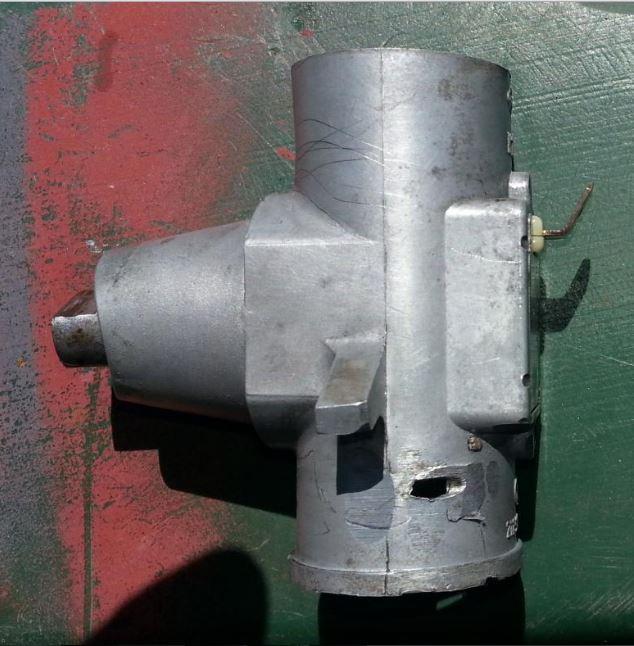

Can someone please verify what year(s) this goes to?

I was told it came out of a '71 bus. Looking at the above pictures it looks like a '68-69.

I do know it won't fit a '73.

Thank you!
