PostPosted: Sun Nov 17, 2019 7:39 pm    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

^^^^. Perfect! Can you give info or a link to the fuel pump mod?
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

Join the Vanagon Rescue Squad on the VanAlert app.
http://vanalert.com/

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rmcd
Samba Member


Joined: October 29, 2010
Posts: 1085
Location: PNW - its a dry rain.
rmcd is offline

PostPosted: Sun Nov 17, 2019 7:57 pm    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

I have been trying to figure out how to tie the 2- 2.5mm I.D. diesel pump fuel line into my 5/16 nominal (3/8 I.D.) vitron fuel line.

I have searched for a tee fitting or even a hose barb reduction mender that might get me close. 2 mil is tiny! Ive tried to build all manner of hardware store brass fittings to cobble together some kind of Frankenstein 3/8x3/8x2mm tee fitting.

Im stumped. How are others tying into their existing fuel lines? Anyone know of a means todo this?
TIA.
_________________
Syncro panel van camper build
http://www.thesamba.com/vw/forum/viewtopic.php?t=575458&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
beach_creature
Samba Member


Joined: April 11, 2014
Posts: 486

beach_creature is offline

PostPosted: Sun Nov 17, 2019 8:16 pm    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

What if you just used a non reducing T. Then get a straight reducer off the T.
_________________
84 Westy
1.9TD AAZ
5spd manual with Locking Peloquin TBD
Back to top
View user's profile Send private message Gallery Classifieds Feedback
BCgee
Samba Member


Joined: February 22, 2012
Posts: 51
Location: Montana
BCgee is offline

PostPosted: Sun Nov 17, 2019 9:10 pm    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

rmcd wrote:
I have been trying to figure out how to tie the 2- 2.5mm I.D. diesel pump fuel line into my 5/16 nominal (3/8 I.D.) vitron fuel line.

I have searched for a tee fitting or even a hose barb reduction mender that might get me close. 2 mil is tiny! Ive tried to build all manner of hardware store brass fittings to cobble together some kind of Frankenstein 3/8x3/8x2mm tee fitting.

Im stumped. How are others tying into their existing fuel lines? Anyone know of a means todo this?
TIA.

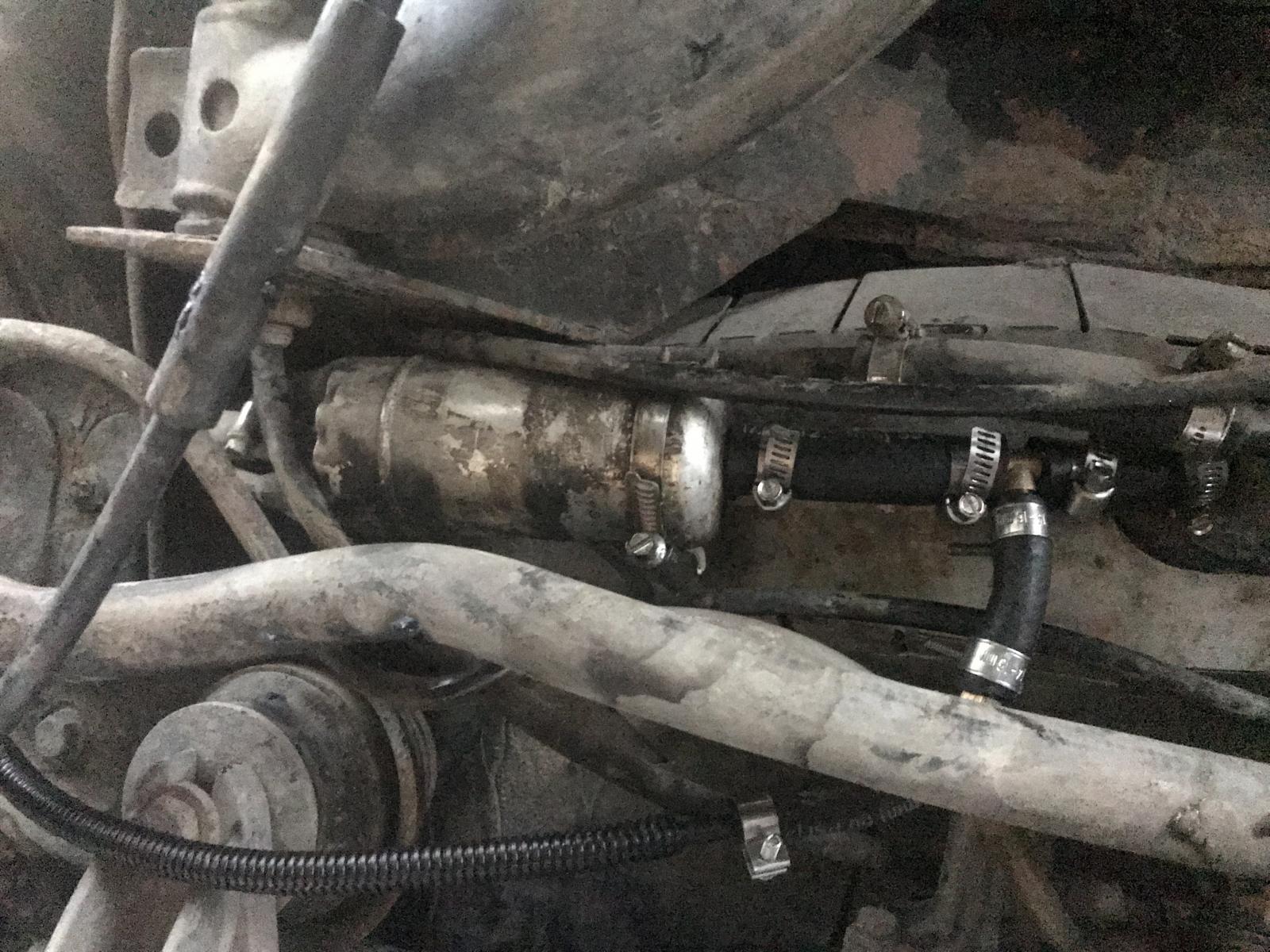

Brass barb fittings worked for my fuel line splice going to an Espar B4 pump.
-1x 1/2 x 5/16 x 1/2 Tee
-1x 5/16 x 5/32 reducer
- 5/16 & 5/32 fuel hose, good clamps

The B4 came with a thicker black plastic fuel line that slid into the 5/32 hose and into the fuel hose connecting to the heater fuel pump. Then, the even smaller white plastic fuel line from the pump to heater uses two rubber hoses sections that came with the Espar unit.

I love my B4 and only managing one primary fuel source.

Hope this helps.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1987 SVX Syncro Hightop
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shagginwagon83
Samba Member


Joined: February 07, 2016
Posts: 2634
Location: VA/TN
shagginwagon83 is offline

PostPosted: Sun Nov 17, 2019 9:18 pm    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

Awesome statement about the white noise! I don't think we are 'scared' of gas heaters here. I came very close to buying the petrol airtop 2000. Very awesome it just taps into the fuel tank.
_________________
Brandon
"Jo Ann" - 1983.5 Ivory Westfalia 1.9L 2wd
120aH aux, 200w rooftop solar, 130w portable
Dometic CFX50W fridge
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
RoryGirl
Samba Member


Joined: October 14, 2016
Posts: 357
Location: WestWorld Nanaimo BC
RoryGirl is offline

PostPosted: Sun Nov 17, 2019 9:27 pm    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

https://www.ebay.com/itm/Espar-Eberspacher-heater-...3032149565
_________________
1991 Double door pop top conversion
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
rmcd
Samba Member


Joined: October 29, 2010
Posts: 1085
Location: PNW - its a dry rain.
rmcd is offline

PostPosted: Sun Nov 17, 2019 9:35 pm    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

Thanks. Guess there are some options out there I hadnt found.

I need to mic the plastic fuel hose to rubber hose transition.
_________________
Syncro panel van camper build
http://www.thesamba.com/vw/forum/viewtopic.php?t=575458&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
TopBud
Samba Member


Joined: February 28, 2004
Posts: 924
Location: Flagstaff AZ
TopBud is offline

PostPosted: Sun Nov 17, 2019 9:39 pm    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

Phishman- can you provide the links for the 90 degree angles for the fuel filter. I have been wanting to pull the trigger on a heater and would love a gas powered one rather than diesel of propane
_________________
86 SYNCRO
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
shagginwagon83
Samba Member


Joined: February 07, 2016
Posts: 2634
Location: VA/TN
shagginwagon83 is offline

PostPosted: Sun Nov 17, 2019 9:49 pm    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

rmcd wrote:
Thanks. Guess there are some options out there I hadnt found.

I need to mic the plastic fuel hose to rubber hose transition.


Yeah not a fan of that witchcraft myself. I plan to use only one size tubing for the setup.
_________________
Brandon
"Jo Ann" - 1983.5 Ivory Westfalia 1.9L 2wd
120aH aux, 200w rooftop solar, 130w portable
Dometic CFX50W fridge
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
vwwestyman
Samba Member


Joined: April 24, 2004
Posts: 4582
Location: Manhattan, Kansas, USA
vwwestyman is offline

PostPosted: Mon Nov 18, 2019 4:41 am    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

I guess I don't know what size fuel inlet there is for the heater pump, but you only need to use that small diameter, hard plastic fuel line between the pump and heater. You should be able to feed the pump with rubber hose.

But however you get fuel TO the pump, you NEED to use the plastic line between the pump and heater. That is how it pulses fuel into the heater; rubber would absorb the pulses too easily and it wouldn't meter properly.
_________________
Dave Cook
Stuartzickefoose wrote:
I'm gonna punch vwwestyman then shake his hand when I meet him.

notchboy wrote:
Ill just punch you in the face. Wink

1978 Champagne Edition Westy, repowered to '97 Jetta TDI
1973 Wild Westerner
My Thing
www.thefosterdads.com
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
kguarnotta Premium Member
Samba Member


Joined: April 01, 2004
Posts: 422
Location: Jamaica Plain, MA
kguarnotta is offline

PostPosted: Mon Nov 18, 2019 7:01 am    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

One note or question about all these heater options - when folks say they heat the bus great for camping, please let us know if this is with the pop-top up or down - or for that matter if you even have a pop-top.

Phishman 068 - I am thinking of going the same way as you - a webasto that runs on the regular gasoline. Which type of controller are you using?

Afterburner question - is there a thread that discusses using these? and would they work with a gasoline Webasto? I would think it would, but i don't fully understand how they work yet.
_________________
-Kevin
Jamaica Plain, MA

'86 Triple Knob Syncro w/EJ22
'78 Westy
'69 Single Cab
'65 Kombi - EZ-Camper
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
vwwestyman
Samba Member


Joined: April 24, 2004
Posts: 4582
Location: Manhattan, Kansas, USA
vwwestyman is offline

PostPosted: Mon Nov 18, 2019 7:12 am    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

I've got a pop-top and camp with it up whenever possible.

I made a layer of reflectix insulation that just press-fits on the inside that I put up in cold weather. That seems to help cut the draftiness from the canvas. I'm sure it is still cooler up there (my wife and I sleep downstairs) but the heater still helps take the chill off, for sure. Others who have slept up there haven't complained.

Sometimes I'll set a small battery powered fan blowing upwards to help get some warm air to circulate into the upper berth.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Dave Cook
Stuartzickefoose wrote:
I'm gonna punch vwwestyman then shake his hand when I meet him.

notchboy wrote:
Ill just punch you in the face. Wink

1978 Champagne Edition Westy, repowered to '97 Jetta TDI
1973 Wild Westerner
My Thing
www.thefosterdads.com
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
rmcd
Samba Member


Joined: October 29, 2010
Posts: 1085
Location: PNW - its a dry rain.
rmcd is offline

PostPosted: Mon Nov 18, 2019 2:35 pm    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

vwwestyman wrote:
I guess I don't know what size fuel inlet there is for the heater pump, but you only need to use that small diameter, hard plastic fuel line between the pump and heater. You should be able to feed the pump with rubber hose.

But however you get fuel TO the pump, you NEED to use the plastic line between the pump and heater. That is how it pulses fuel into the heater; rubber would absorb the pulses too easily and it wouldn't meter properly.
.


Great point! Thanks.
_________________
Syncro panel van camper build
http://www.thesamba.com/vw/forum/viewtopic.php?t=575458&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
vwwestyman
Samba Member


Joined: April 24, 2004
Posts: 4582
Location: Manhattan, Kansas, USA
vwwestyman is offline

PostPosted: Mon Nov 18, 2019 2:44 pm    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

rmcd wrote:
vwwestyman wrote:
I guess I don't know what size fuel inlet there is for the heater pump, but you only need to use that small diameter, hard plastic fuel line between the pump and heater. You should be able to feed the pump with rubber hose.

But however you get fuel TO the pump, you NEED to use the plastic line between the pump and heater. That is how it pulses fuel into the heater; rubber would absorb the pulses too easily and it wouldn't meter properly.
.


Great point! Thanks.


And to add to that a little, you just use small bits of the rubber hose to join the plastic hose to the pump and heater. You should shove them all together so there is little to no space between the plastic and heater/fuel pump nipples, then clamp down on the rubber to join it all together.
_________________
Dave Cook
Stuartzickefoose wrote:
I'm gonna punch vwwestyman then shake his hand when I meet him.

notchboy wrote:
Ill just punch you in the face. Wink

1978 Champagne Edition Westy, repowered to '97 Jetta TDI
1973 Wild Westerner
My Thing
www.thefosterdads.com
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
rmcd
Samba Member


Joined: October 29, 2010
Posts: 1085
Location: PNW - its a dry rain.
rmcd is offline

PostPosted: Mon Nov 18, 2019 10:03 pm    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

vwwestyman wrote:
rmcd wrote:
vwwestyman wrote:
I guess I don't know what size fuel inlet there is for the heater pump, but you only need to use that small diameter, hard plastic fuel line between the pump and heater. You should be able to feed the pump with rubber hose.

But however you get fuel TO the pump, you NEED to use the plastic line between the pump and heater. That is how it pulses fuel into the heater; rubber would absorb the pulses too easily and it wouldn't meter properly.
.


Great point! Thanks.


And to add to that a little, you just use small bits of the rubber hose to join the plastic hose to the pump and heater. You should shove them all together so there is little to no space between the plastic and heater/fuel pump nipples, then clamp down on the rubber to join it all together.


Gonna bump this again cause I thought the plastic hose setup was a nightmare waiting to happen so I have been thinking about how to all this without it. Thanks again.

Great note.
_________________
Syncro panel van camper build
http://www.thesamba.com/vw/forum/viewtopic.php?t=575458&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
epbiggs
Samba Member


Joined: September 19, 2014
Posts: 149
Location: CO
epbiggs is offline

PostPosted: Mon Nov 18, 2019 11:38 pm    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

westyventures wrote:
epbiggs wrote:
I sure wish there was a way to tell how much propane is left in my tank, but that's just the way it is, I guess.

The main issue I have is with the thermostat. When I'm winter camping I can stay toasty sleeping in my -20 down bag, but would like to keep the van above 32 degrees to keep the water tank and other stuff from freezing overnight. At the lowest setting, it keeps the van at around 50ish degrees, which is warmer than I need for sleeping and if I'm out for a couple of weeks, I worry about running out of propane. Does anyone know of any hacks to adjust the standard thermostat to maintain a lower temperature, or do i need to spend the $80 to get the Propex digital thermostat (Van Cafe/RMW has them, so I can pick it up locally), which I assume would solve the issue, but may require a new wiring harness. Does anyone have any experience with the Propex digital thermostat version?


Boil a pot of water and throw it against the tank, it will show a frost line at the propane level.

There is a thread re: 'hacking' the older thermostat to a lower range. I'm sure you can find that with a little searching, or someone reading here can find it.

The new style thermostat (2-knob) has a freeze setting of 40, but the heating range if 60-80 beyond that. The digital thermostat / timer recently introduced has a 32-86 degree set range, and also gives you the option of setting a timer to turn it on 1-16 hours later. Both of the newer versions require the newer harness which uses 6 wires vs 5 as well as different plugs on both ends. I (the importer) sell all.

Thanks for the info! I'll give the hot water trick on the tank. To confirm, the new digital thermostat is doable with the new 6 pin wiring harness? And the 6 pin harness plug is compatible with the "older" HS2800? How much is the harness? The new 2 knob version with the "freeze setting" sounds great, but it seems to me if I were to upgrade, I might as well go with the digital version for more precise control and the timer feature. I'll also search for the hack you mentioned. Thanks again!
_________________
EPBiggs
1986 Syncro Westy
Previous:
1983 Westy
1981 Westy
1965 Bug
1959 Bug
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2121
Location: South central Oregon
westyventures is offline

PostPosted: Tue Nov 19, 2019 12:12 am    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

epbiggs wrote:

Thanks for the info! I'll give the hot water trick on the tank. To confirm, the new digital thermostat is doable with the new 6 pin wiring harness? And the 6 pin harness plug is compatible with the "older" HS2800? How much is the harness? The new 2 knob version with the "freeze setting" sounds great, but it seems to me if I were to upgrade, I might as well go with the digital version for more precise control and the timer feature. I'll also search for the hack you mentioned. Thanks again!


Yes, and you can find pricing and such through the web link in my signature.
_________________
Karl Mullendore
www.westyventures.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
epbiggs
Samba Member


Joined: September 19, 2014
Posts: 149
Location: CO
epbiggs is offline

PostPosted: Tue Nov 19, 2019 12:22 am    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

westyventures wrote:
epbiggs wrote:

Thanks for the info! I'll give the hot water trick on the tank. To confirm, the new digital thermostat is doable with the new 6 pin wiring harness? And the 6 pin harness plug is compatible with the "older" HS2800? How much is the harness? The new 2 knob version with the "freeze setting" sounds great, but it seems to me if I were to upgrade, I might as well go with the digital version for more precise control and the timer feature. I'll also search for the hack you mentioned. Thanks again!


Yes, and you can find pricing and such through the web link in my signature.

Is it the Thermostat Cable for $30? That was the only cable product I could find on your site in one of the drop downs, but it didn't say how many pins. Also, I think I found the hack you mentioned and just started reading about changing a resistor. Unfortunately, all the pictures are blurred out by photobucket but I think I can still figure it out. Thanks
_________________
EPBiggs
1986 Syncro Westy
Previous:
1983 Westy
1981 Westy
1965 Bug
1959 Bug
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
danfromsyr
Samba Member


Joined: March 01, 2004
Posts: 12681
Location: Syracuse, NY
danfromsyr is offline

PostPosted: Tue Nov 19, 2019 7:00 am    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

that really depends on many personal factors.
personal comfort levels
actual air/wind exposure/impacts
BTU capability of your heat source.

I've camped in cold, in snow with my propex 2800 2.5kw ~9k BTU) heater in temps in the low teens, in an 8in snowfall @ 8,oooft in Yellowstone and with blankets been quite comfy, the Ms comfy as well.

my camper is a ASI Riviera and I sleep in the top bunk. girl and the dog get the lower bed.

kguarnotta wrote:
One note or question about all these heater options - when folks say they heat the bus great for camping, please let us know if this is with the pop-top up or down - or for that matter if you even have a pop-top.
.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
dobryan
Samba Member


Joined: March 24, 2006
Posts: 11684
Location: Brookeville, MD
dobryan is offline

PostPosted: Tue Nov 19, 2019 7:11 am    Post subject: Re: Heater Showdown - Propex, Chinese diesel heater, Espar, Buddy Reply with quote

Westy with pop top up, no insulation.

Propex HS2000, 32 degrees in Moab over night. No problem keeping warm. Only needed a blanket even in top bunk.
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

Join the Vanagon Rescue Squad on the VanAlert app.
http://vanalert.com/

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, 4, 5, 6  Next
Page 5 of 6


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
