Special Service Tools - 700-799
Click on the thumbnail for larger image and model application details
Submissions of tool photos, missing tool numbers, and scans are welcomed
Note that the tools on this page may be from non-VW catalogs and the numbers may differ,
Please see the Local Manufacture of Tools page for the "official" 600-799 listings

Tools Listing Information
Page 1 (100 series) | Page 2 (200-249) | Page 3 (250-299) | Page 4 (300 series) | Page 5 (400 series)
Page 6 (500 series) | Page 7 (600 series) | Page 8 (700-999) | Page 9 (1000-up) | Page 10 (Other)
Local Manufacture of Tools (600-799) | 8/70 Spare Parts

Number Designation and Application Tool Photo

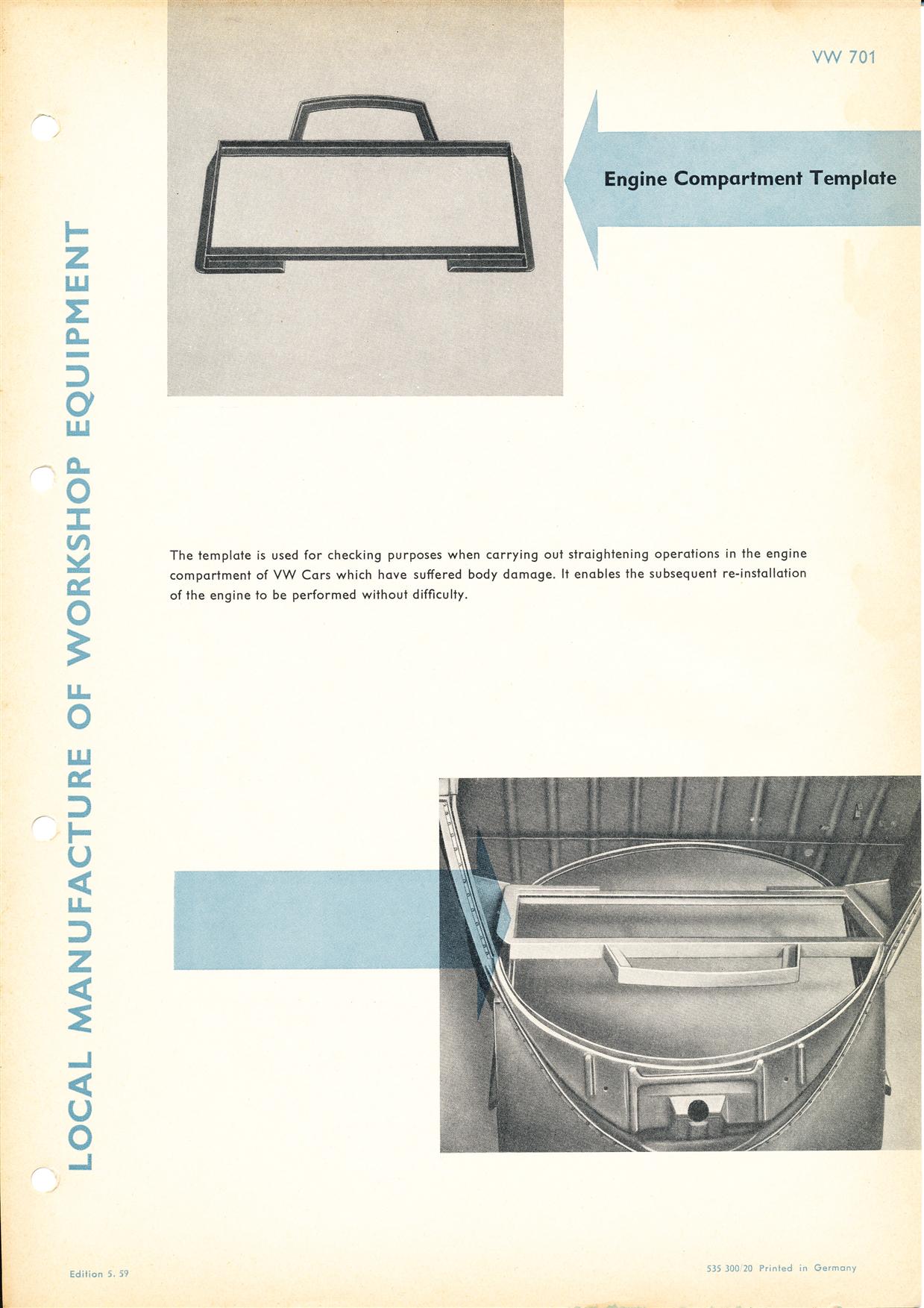

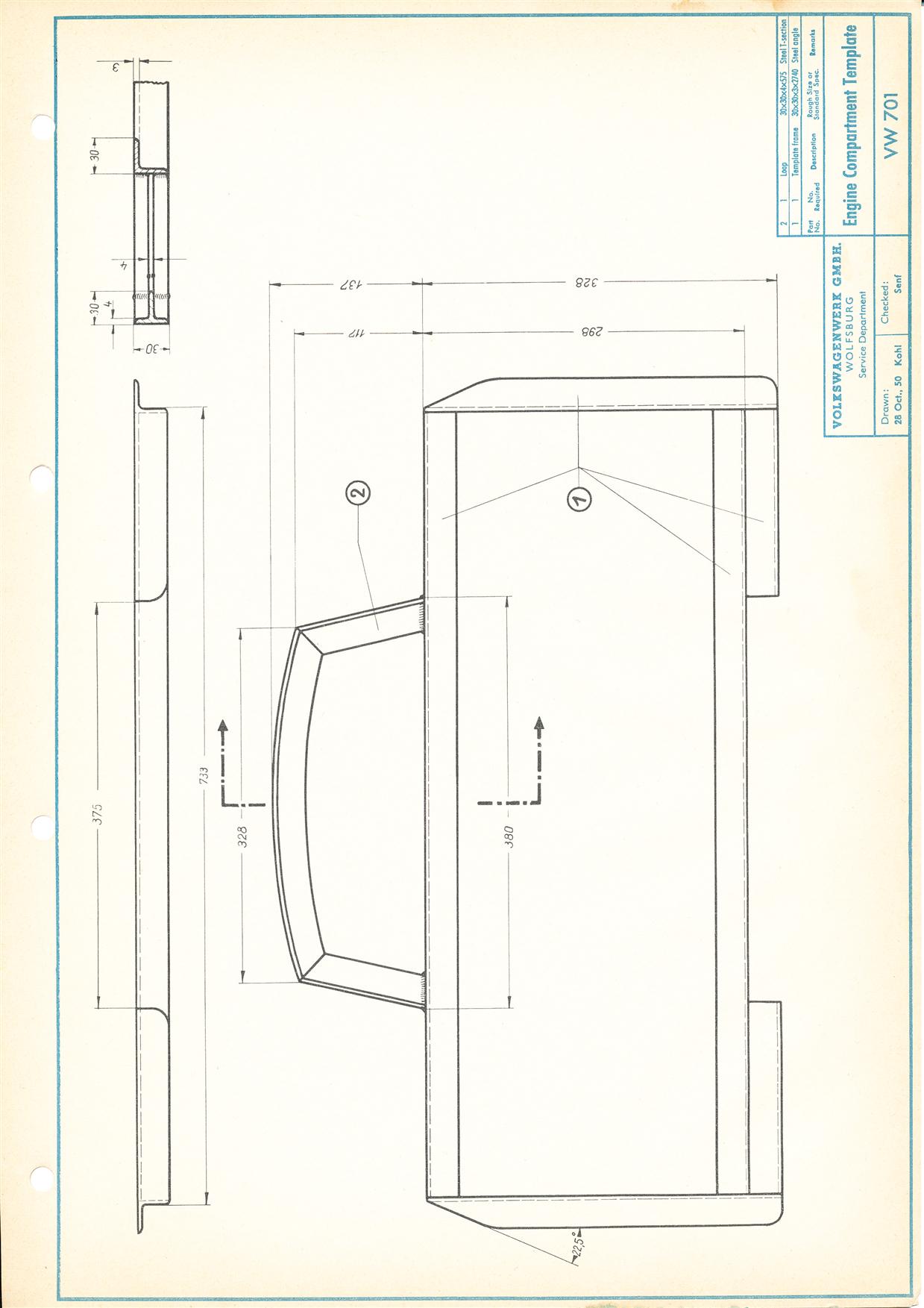

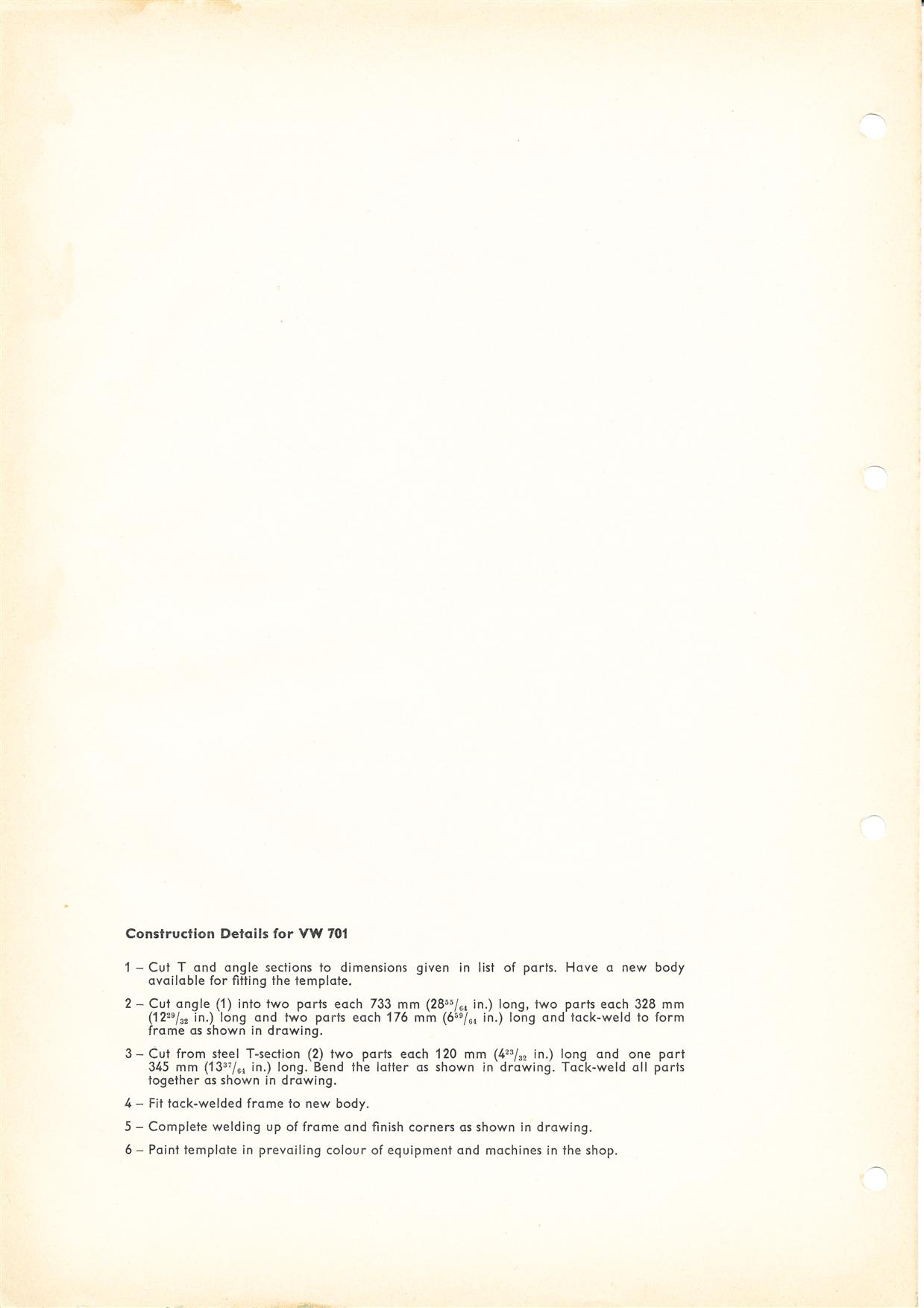

701Engine Compartment Template
For straightening engine compartment

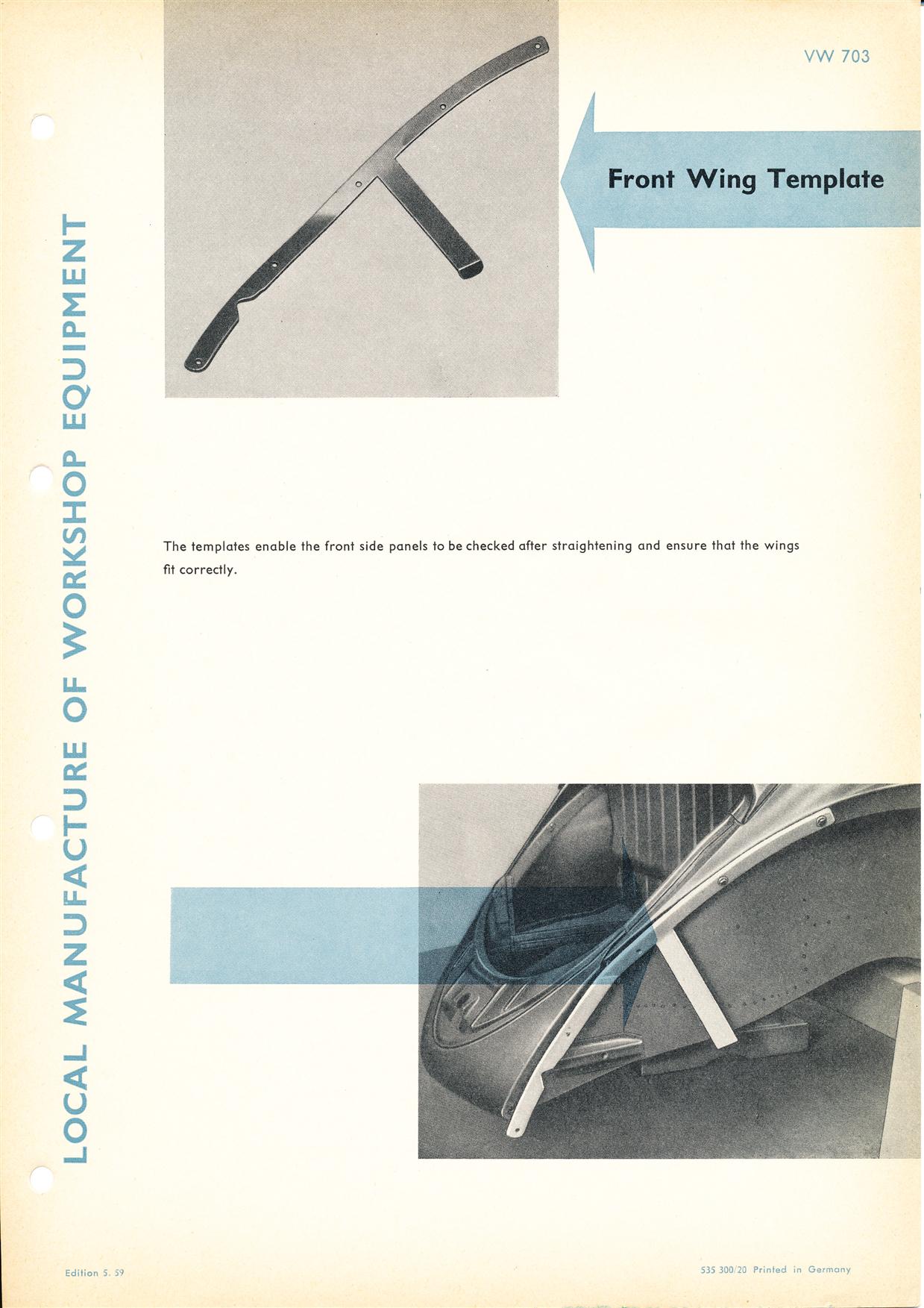

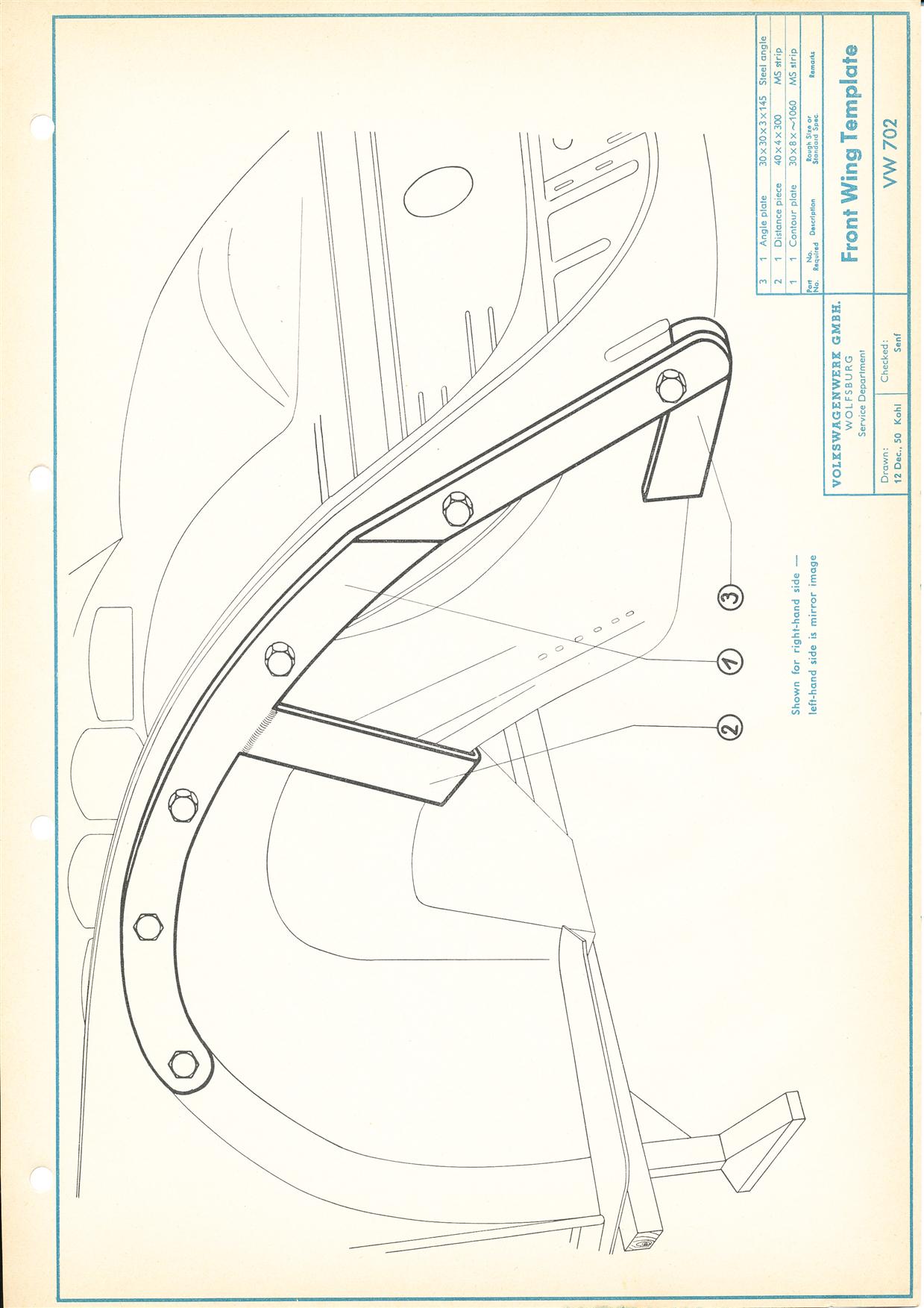

702Front Wing Template
For straightening front side panels

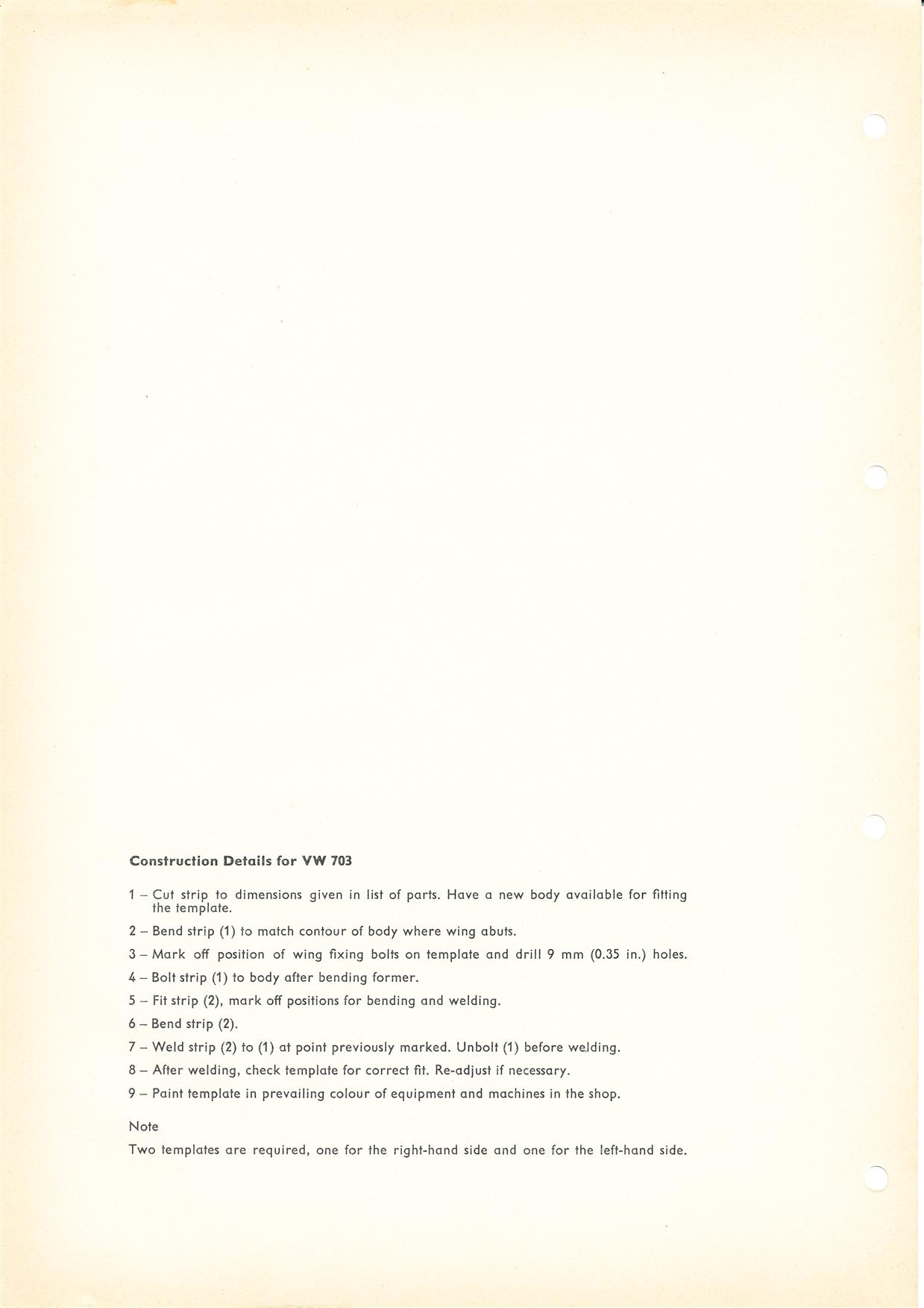

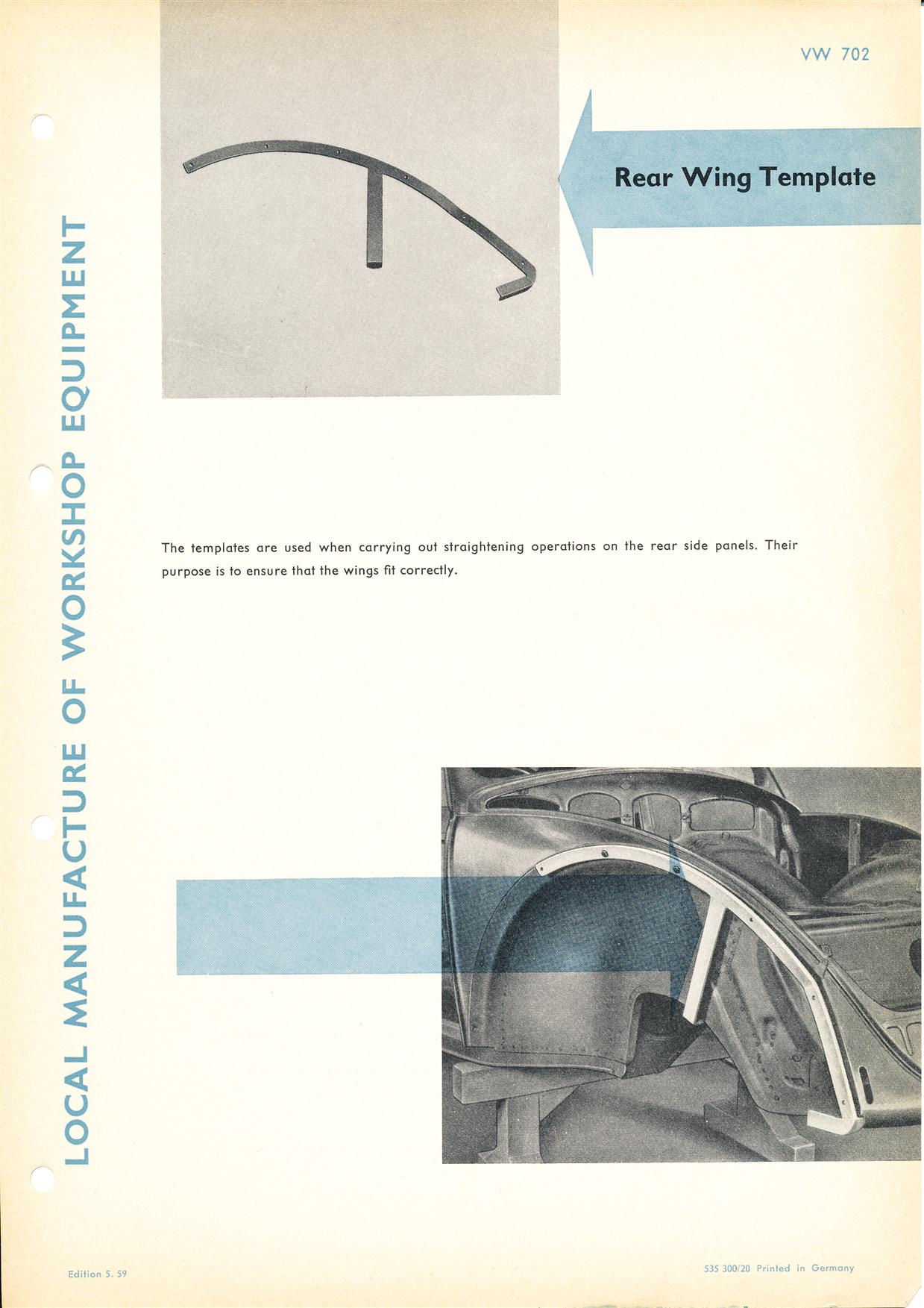

703Rear Wing Template
For straightening rear side panels

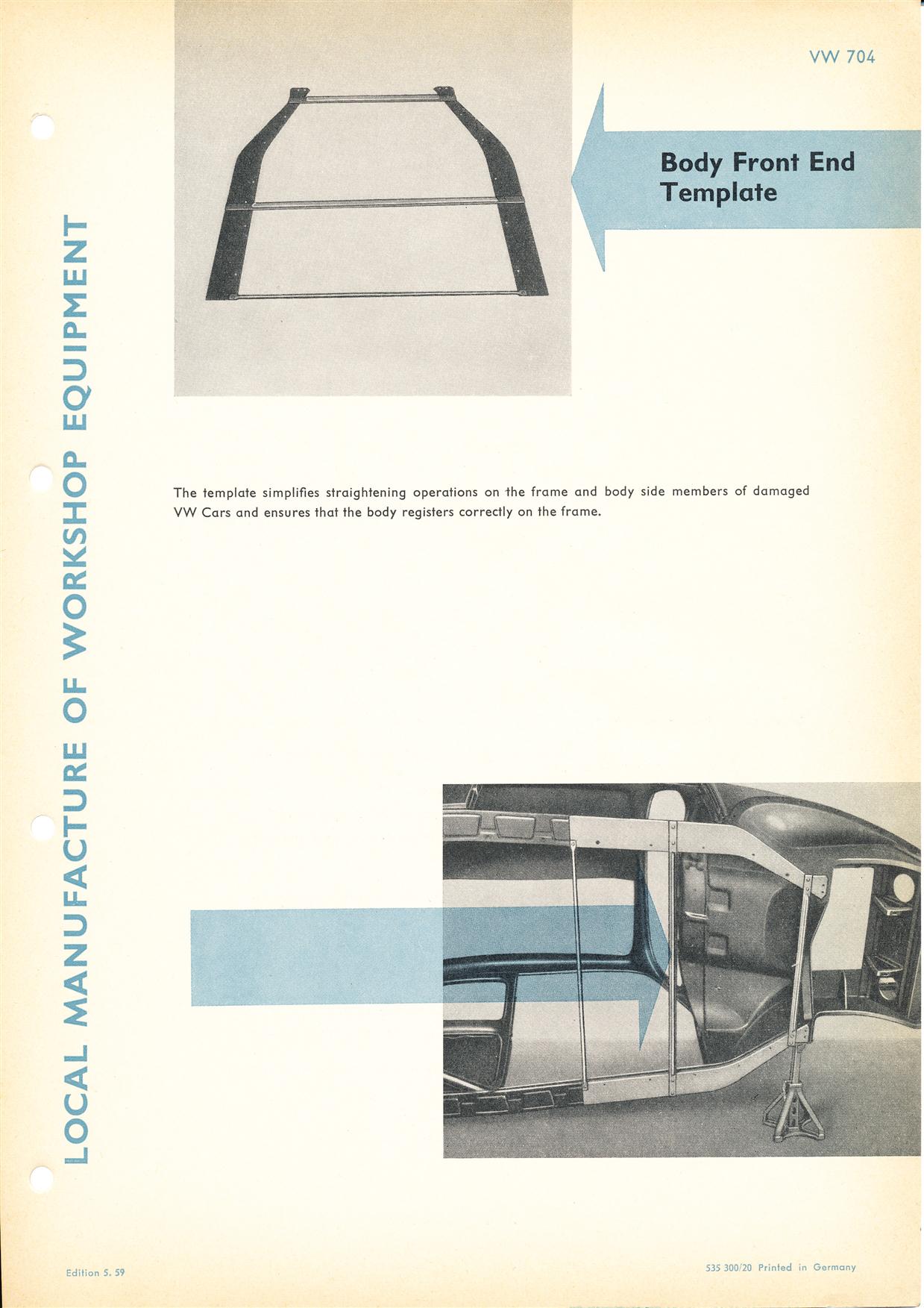

704Body Front End Template
For straightening frame and body sides

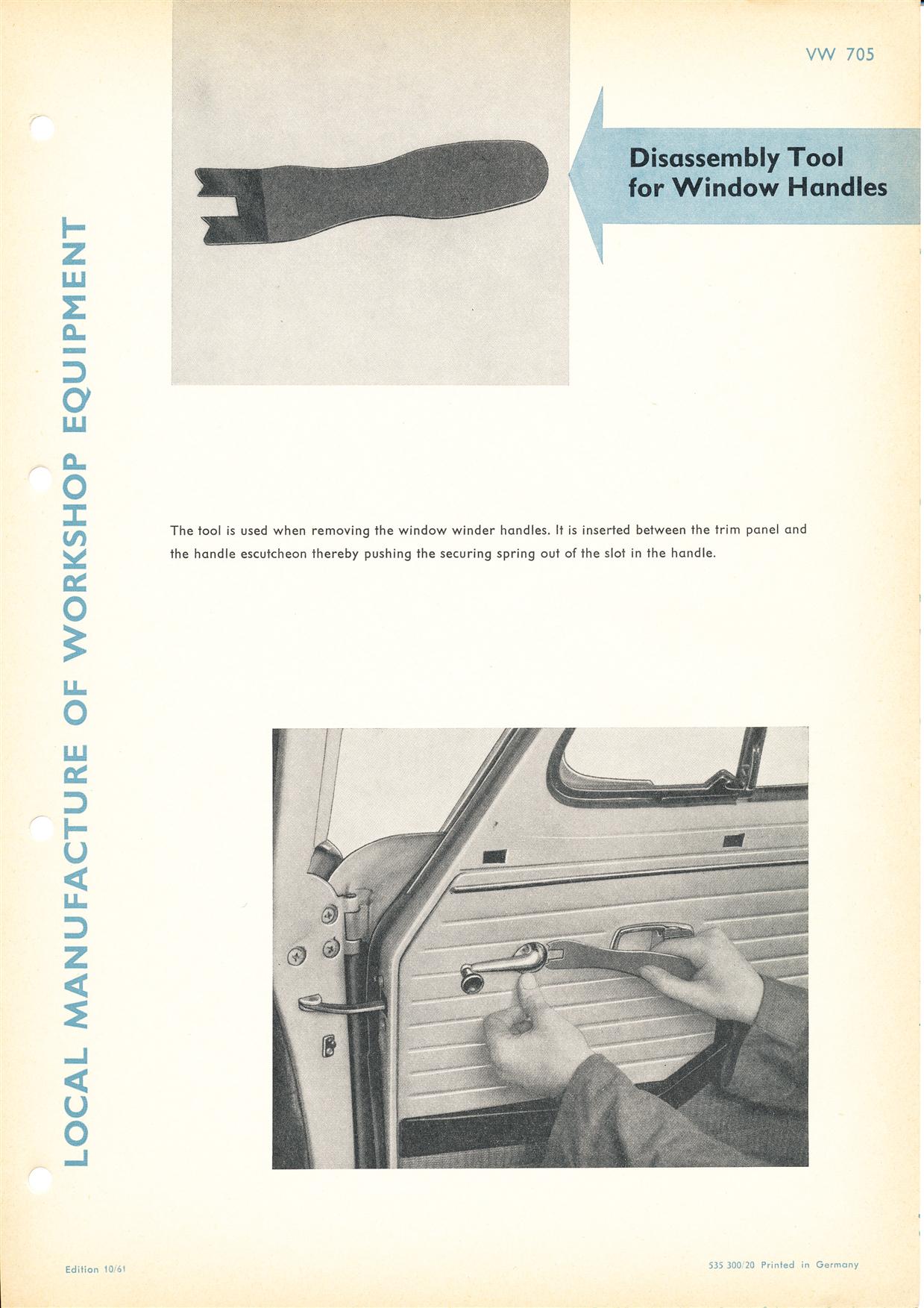

705Disassembly Tool for Window Handles
For removing window handles from interior

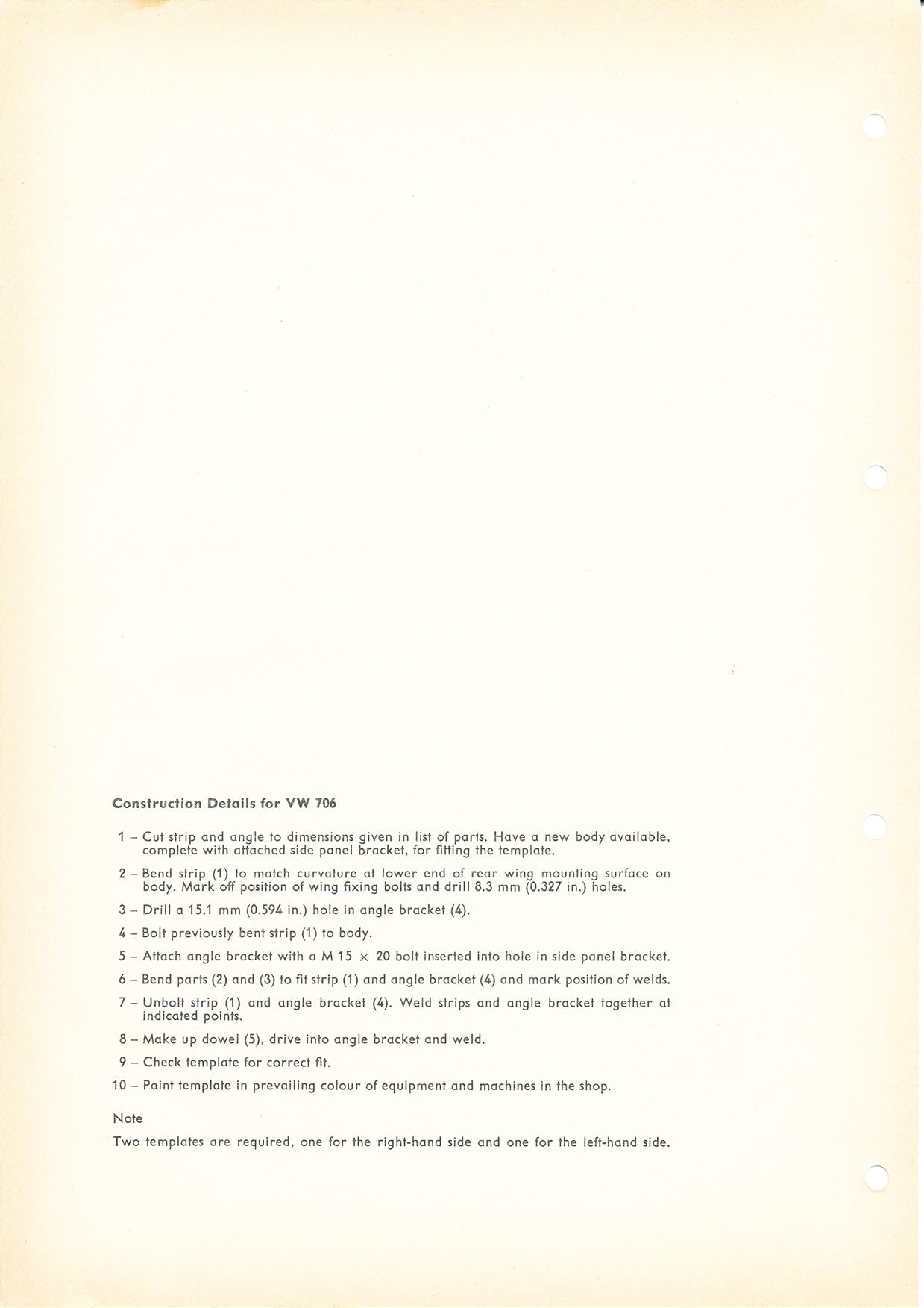

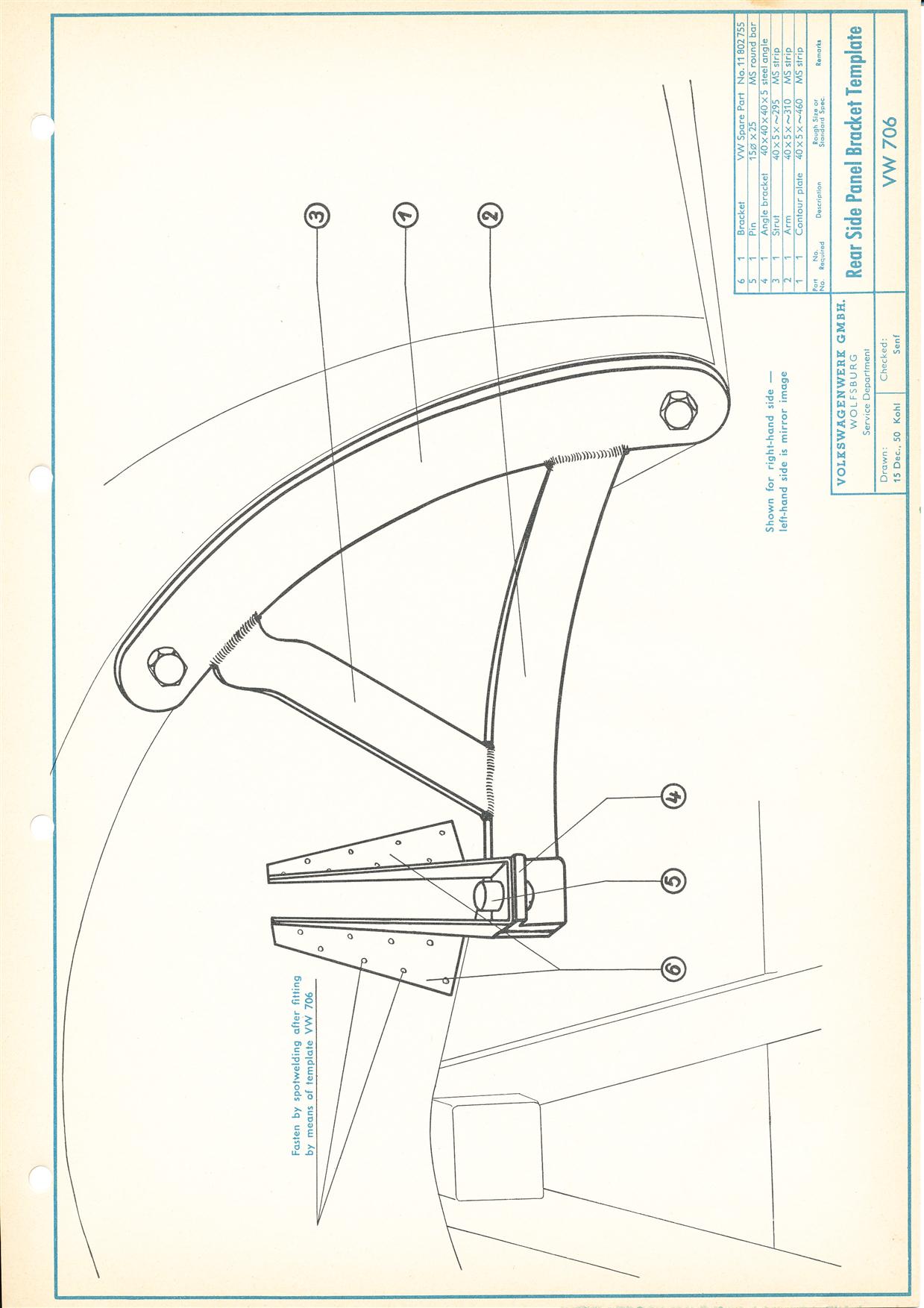

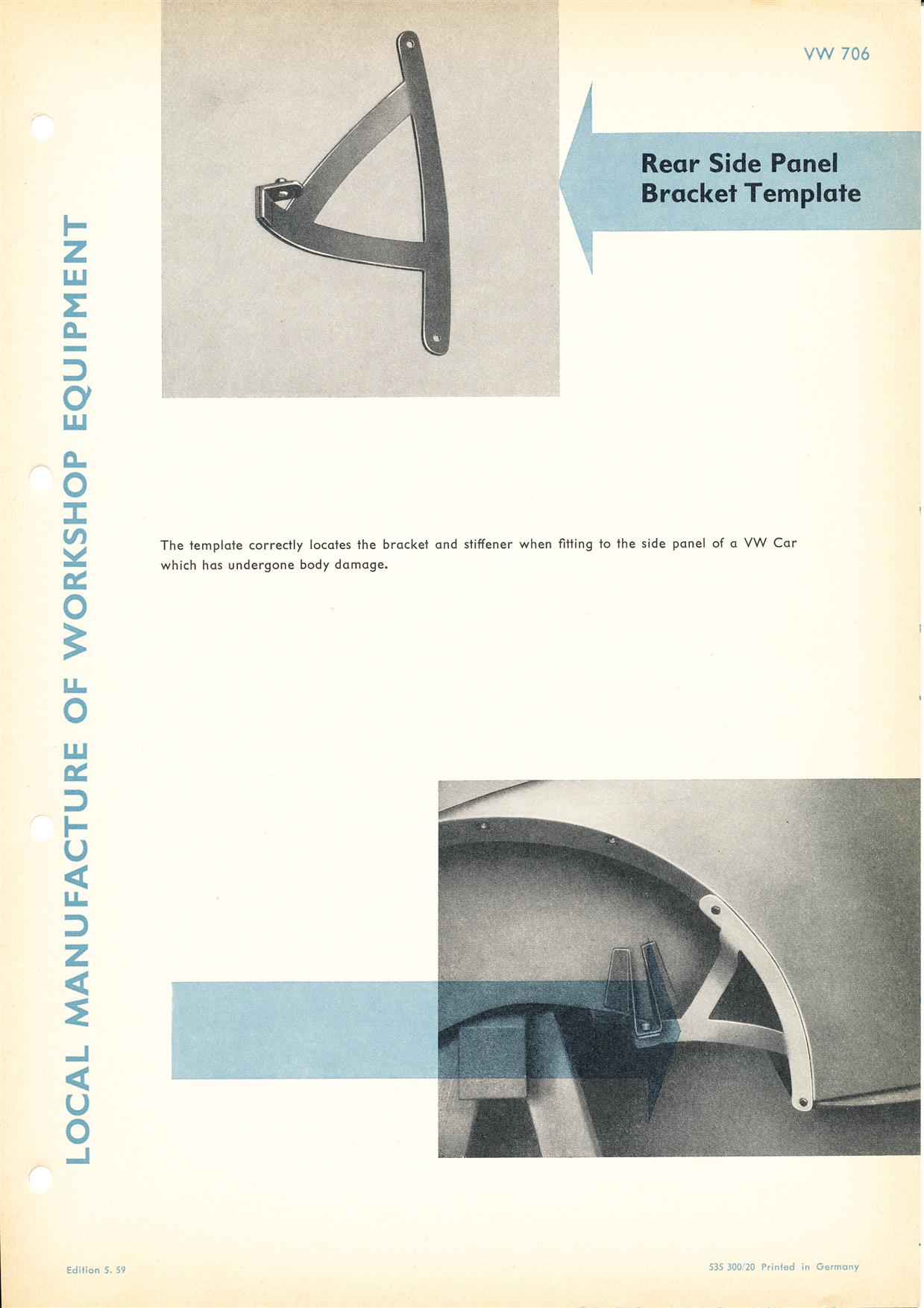

706Rear Side Panel Bracket Template
For locating bracket and stiffener on side panels

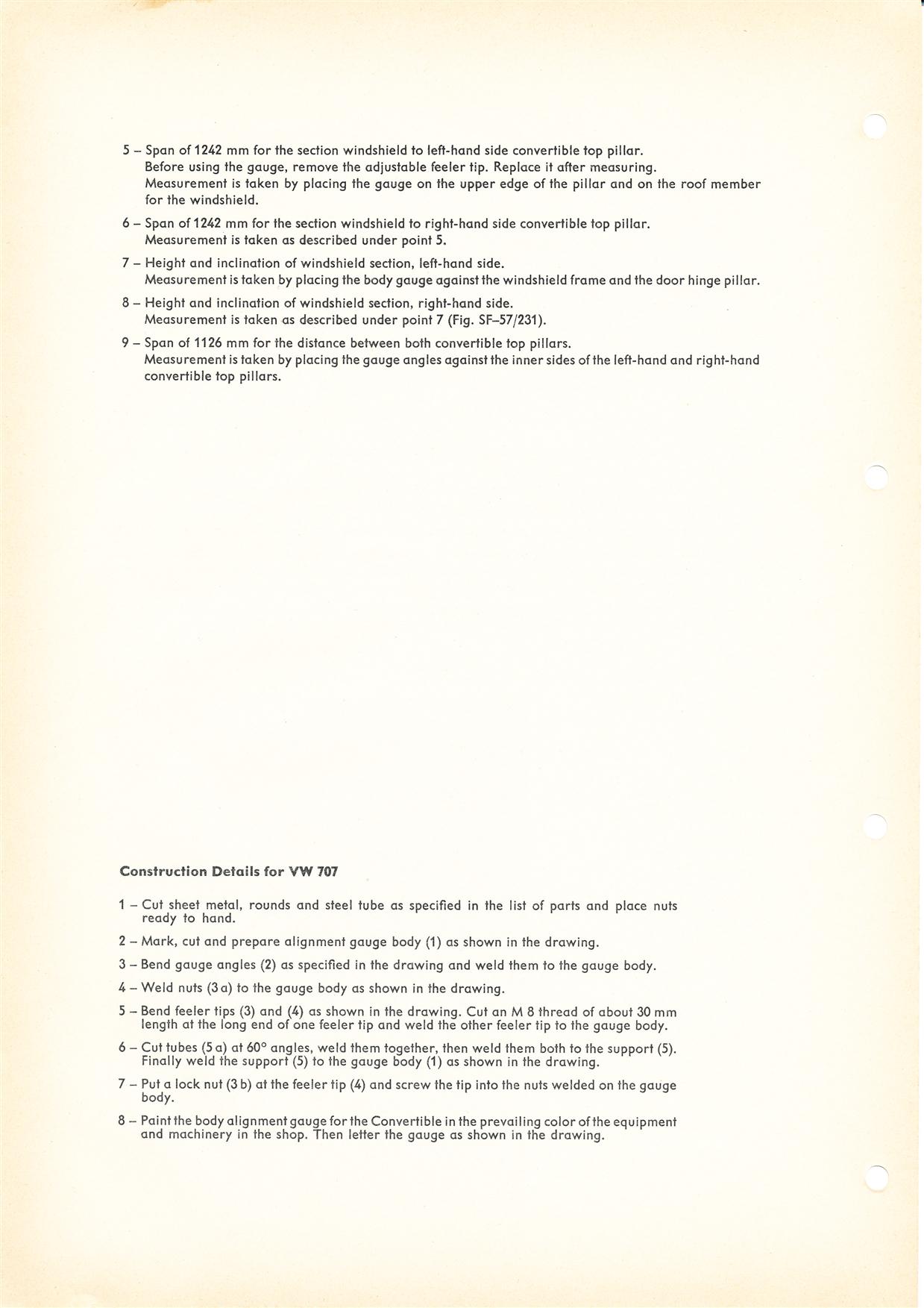

707Body Alignment Gauge for Convertible
For repair and adjustment of front and rear wheel arcs
708Unknown
708/2

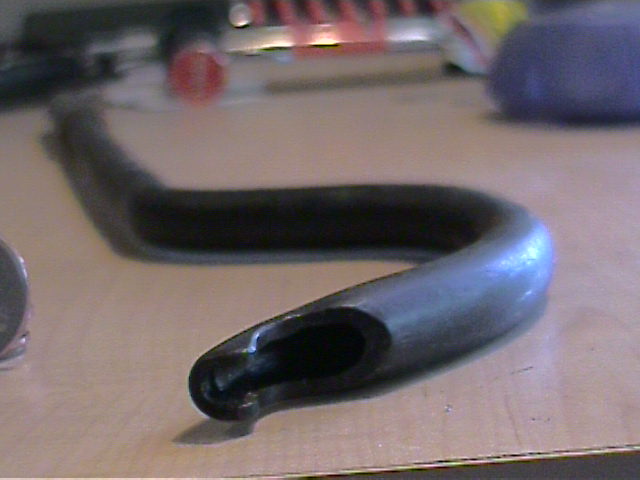

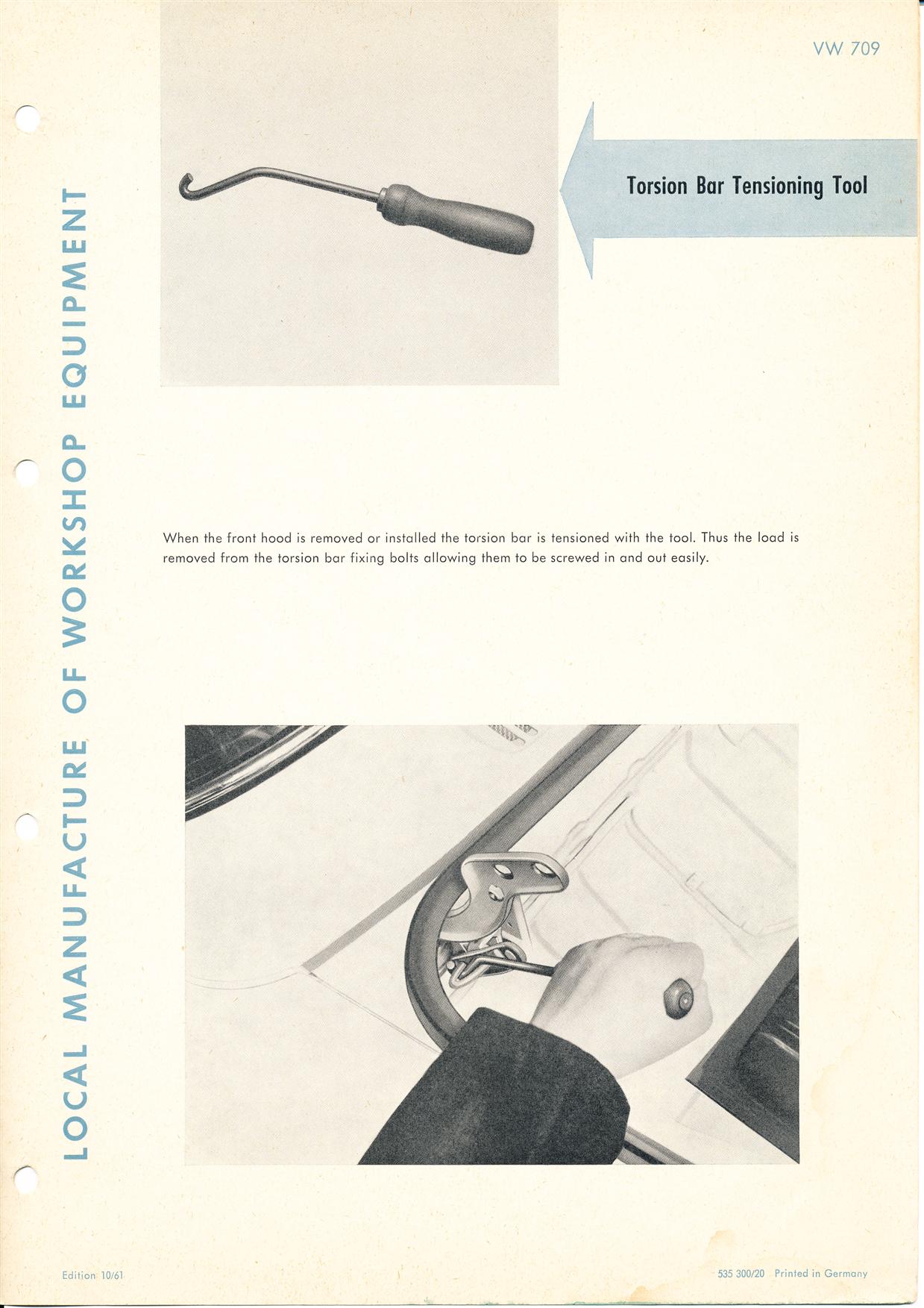

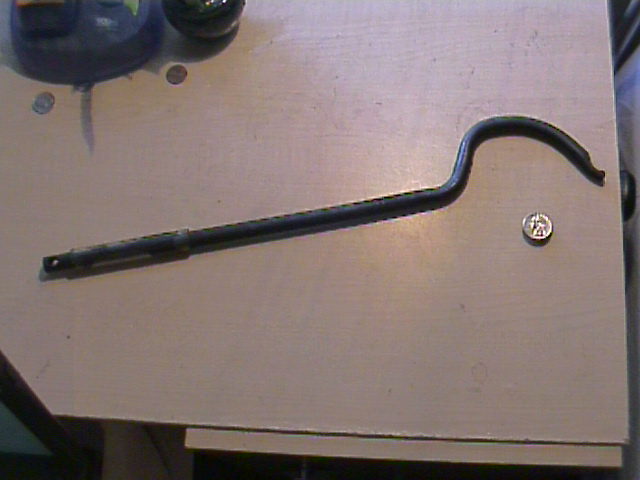

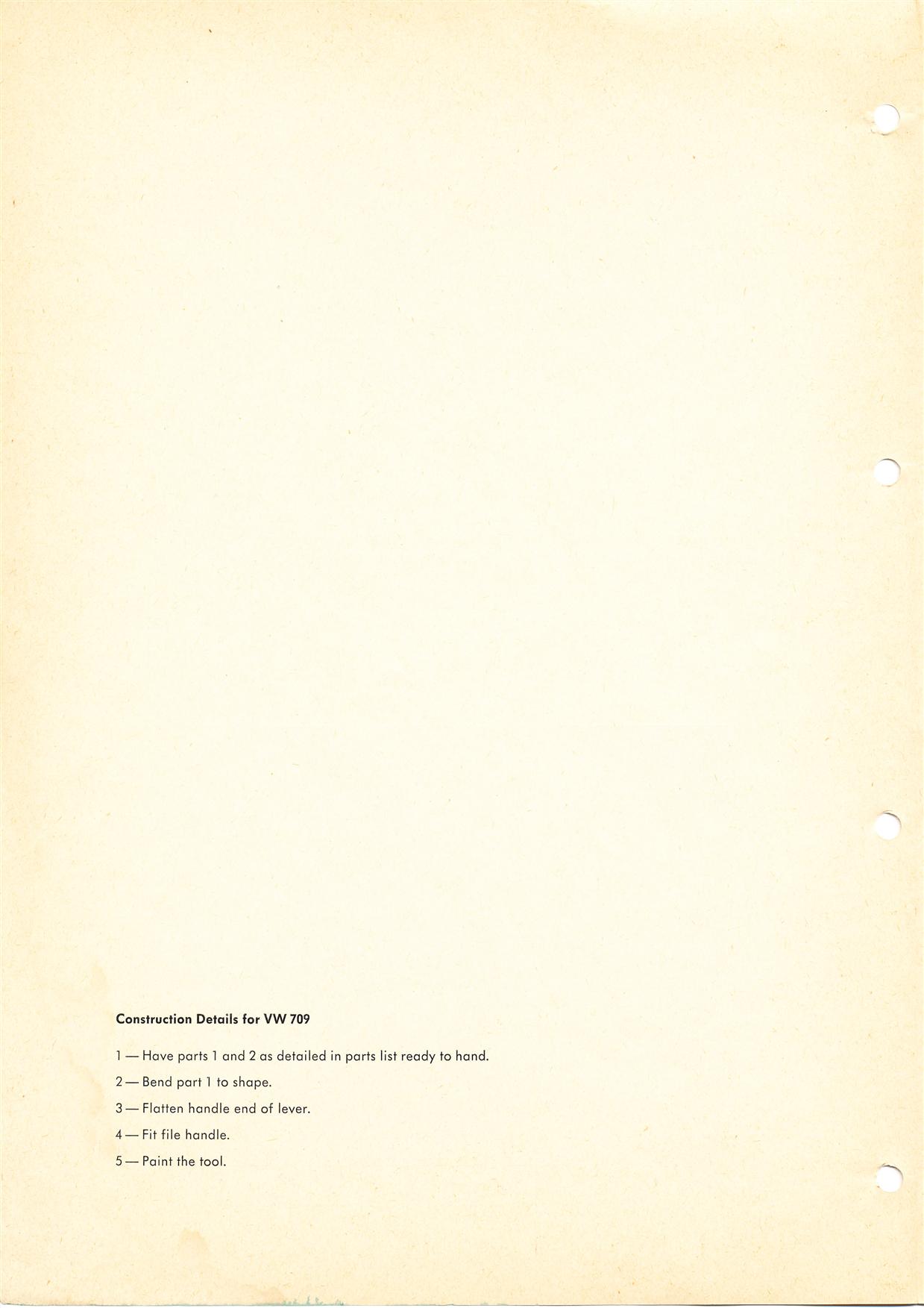

709Torsion Bar Tensioning Tool
For installing the hood springs on the Type 3


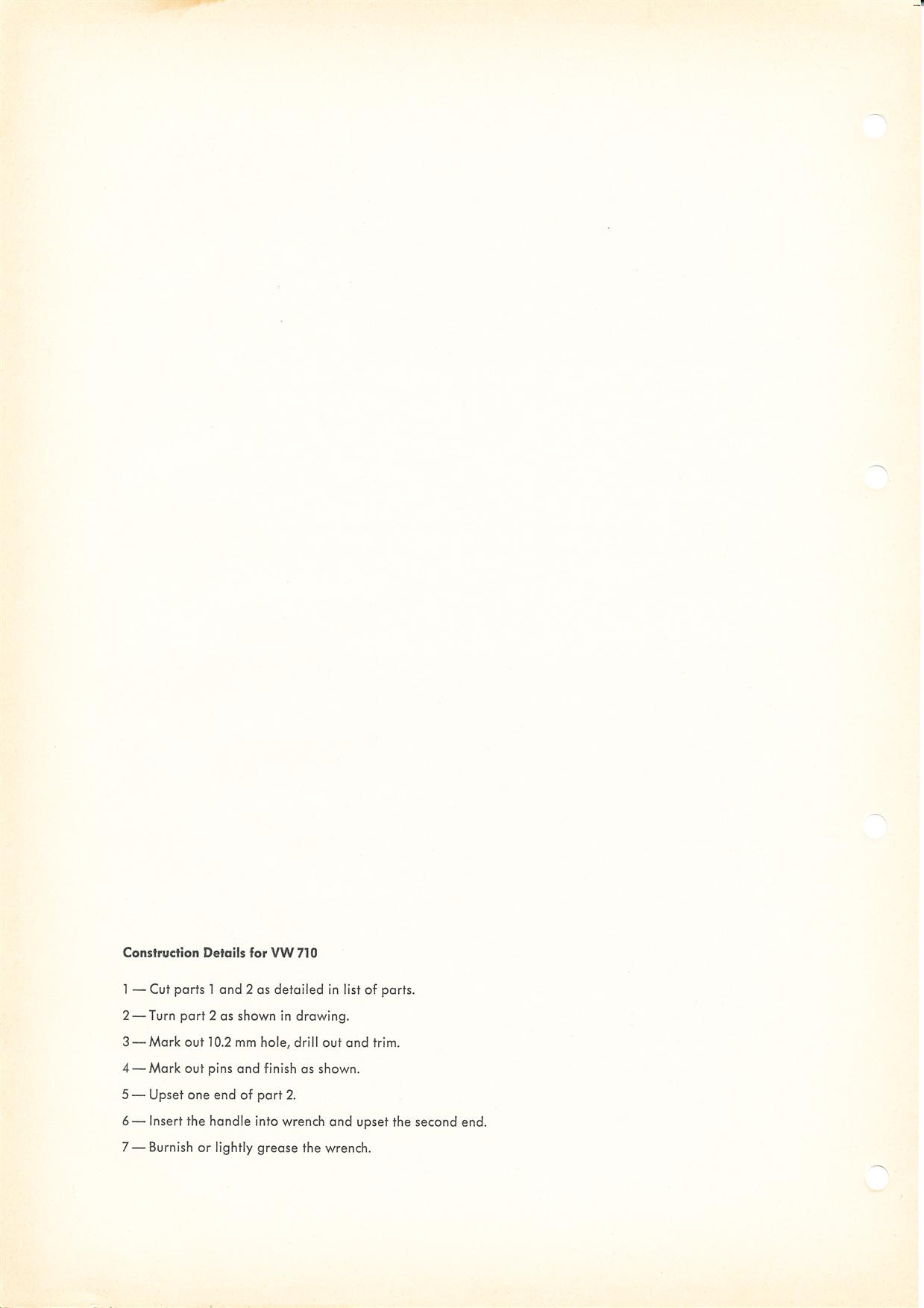

710Assembly Wrench for Glove Compartment Lid Lock
For installing or removing lock

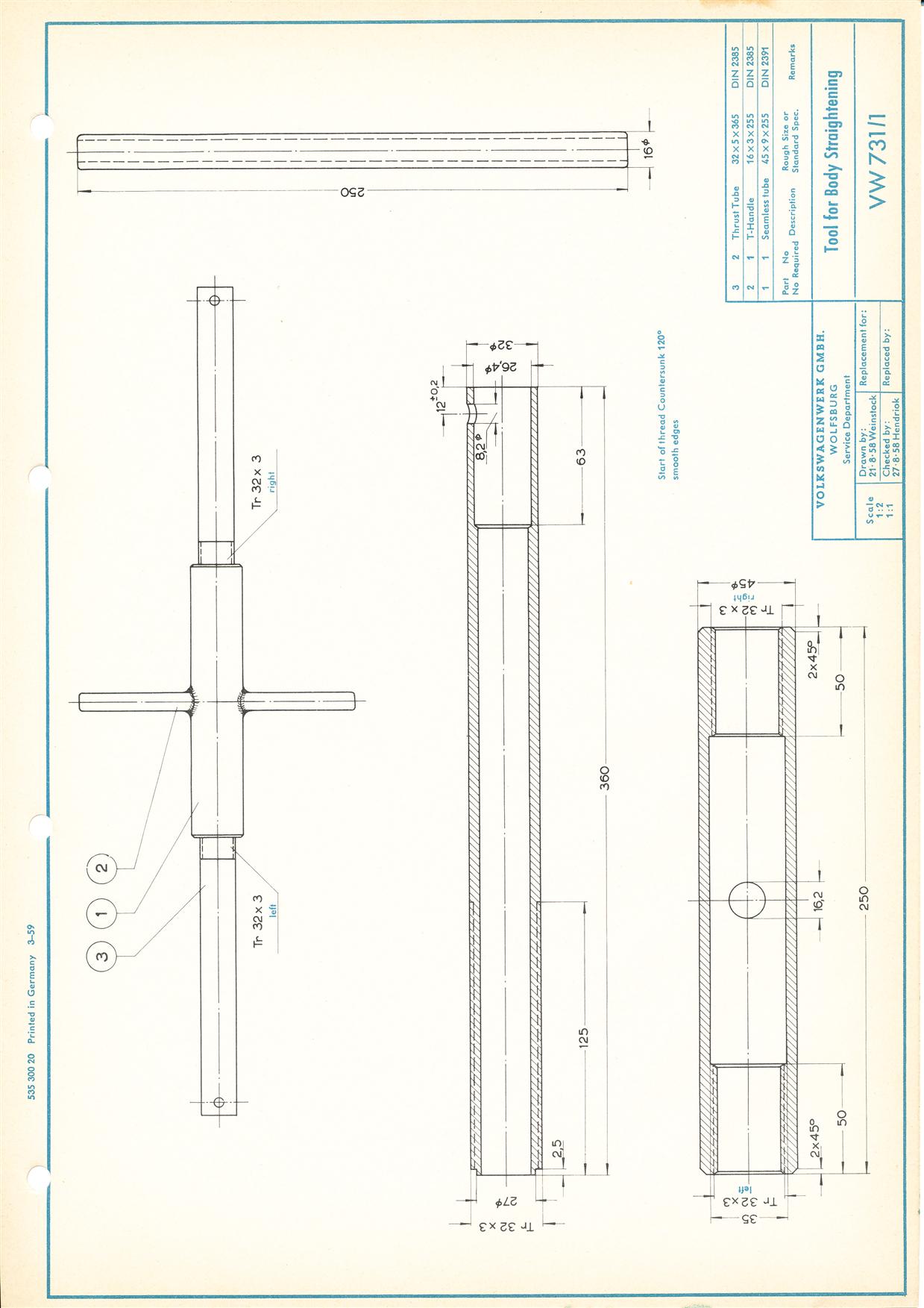

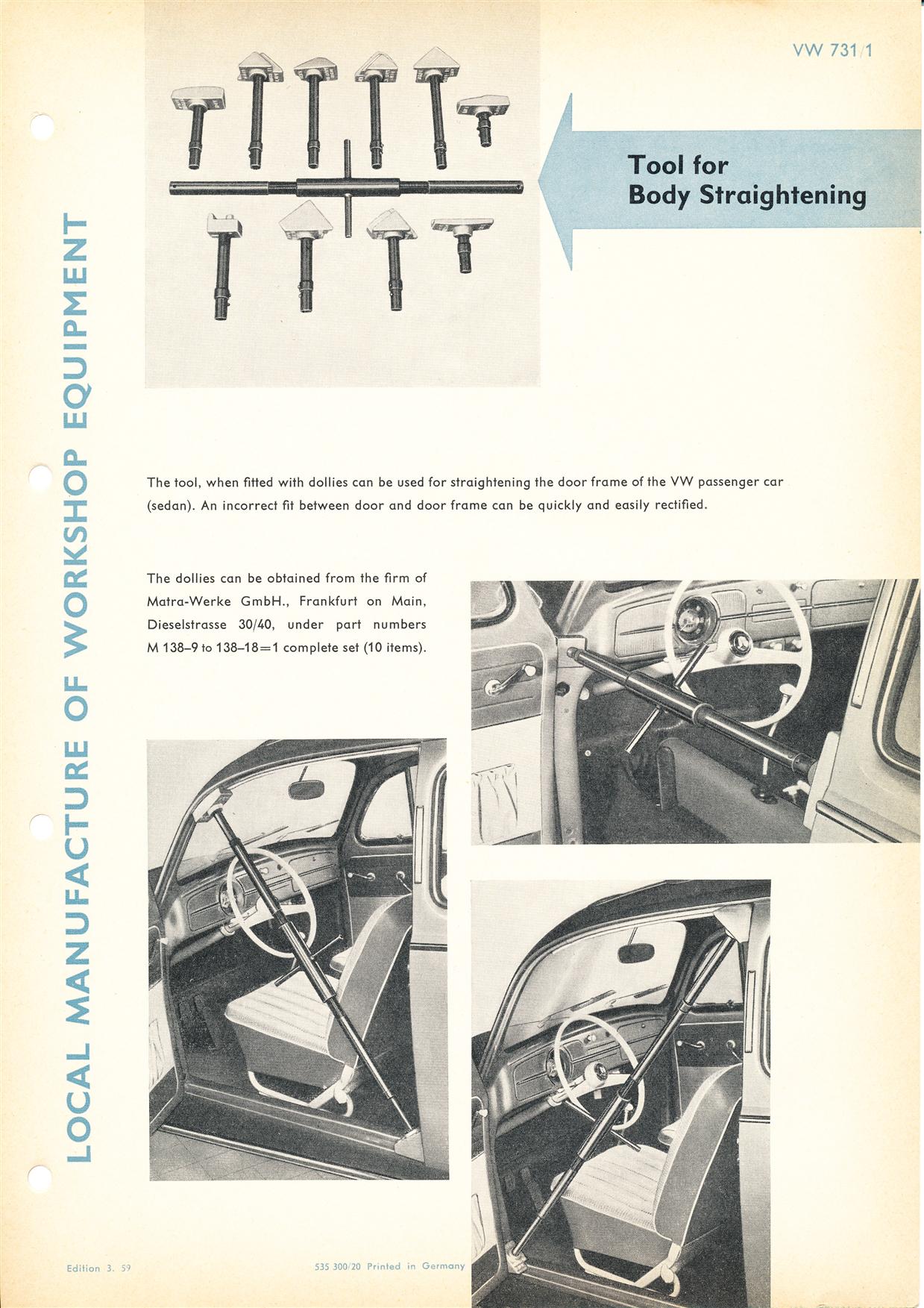

731/1Tool for Body Straightening
For straightening door frame of sedan

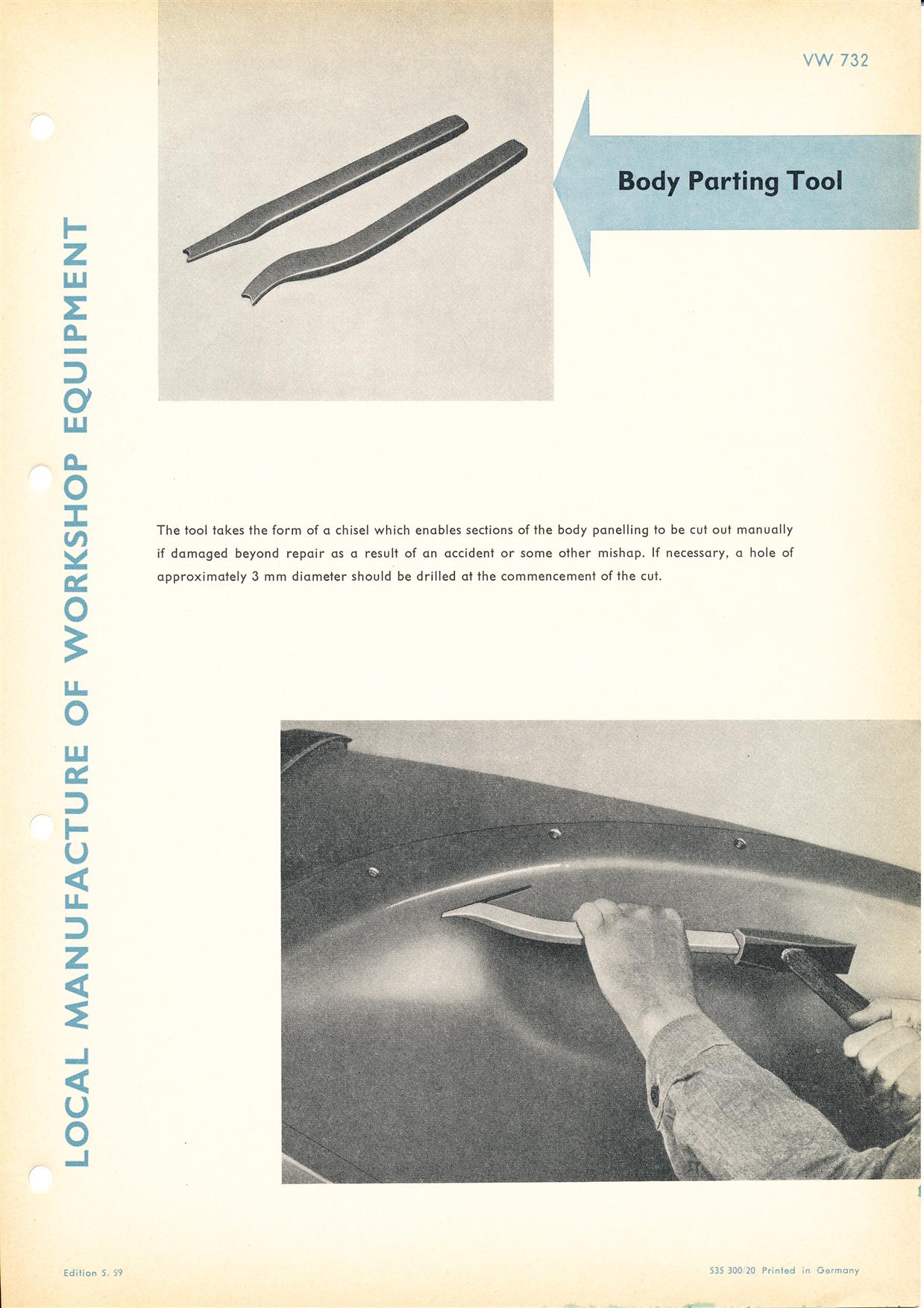

732Body Parting Tool
For manually cutting out damaged body sections

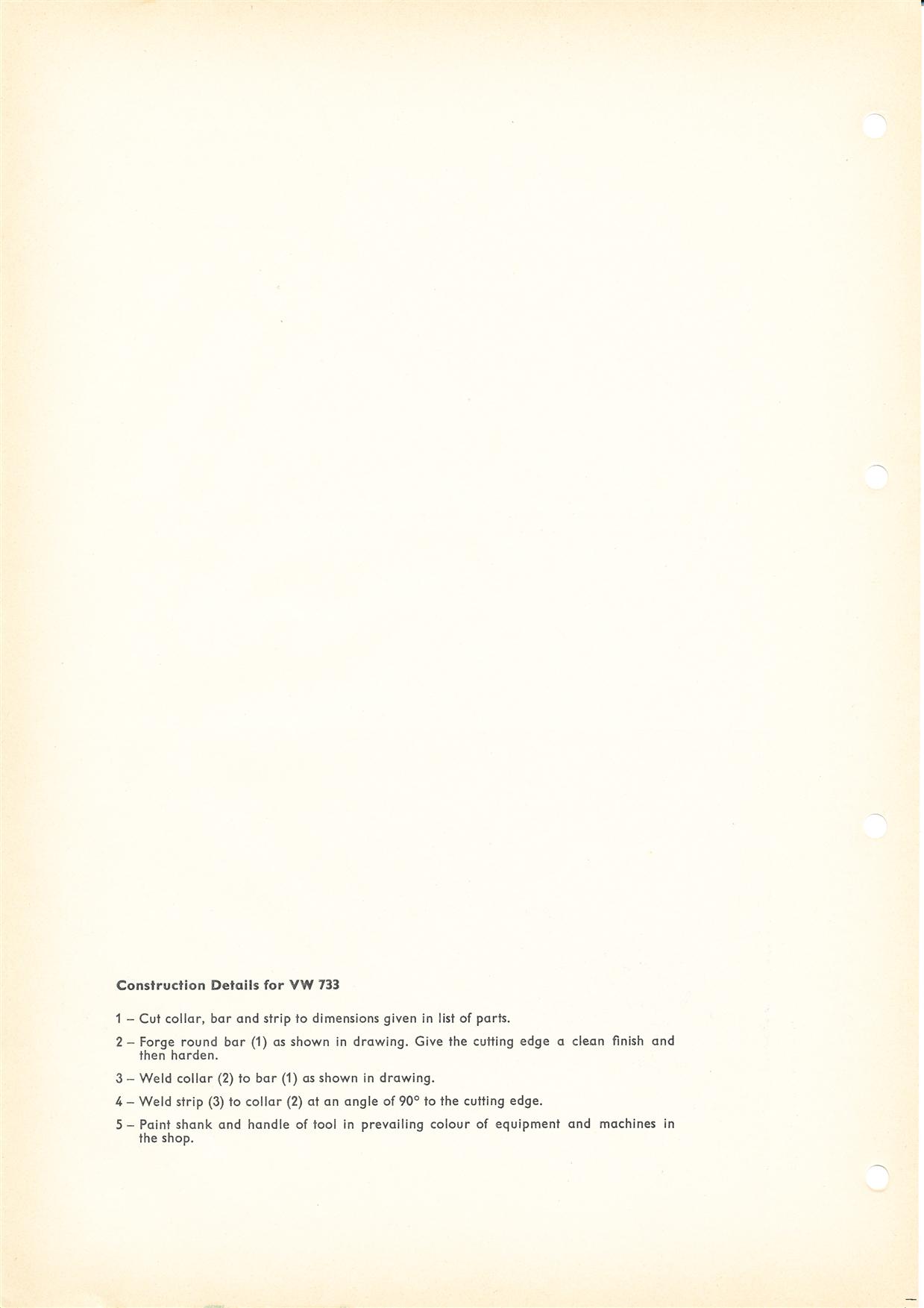

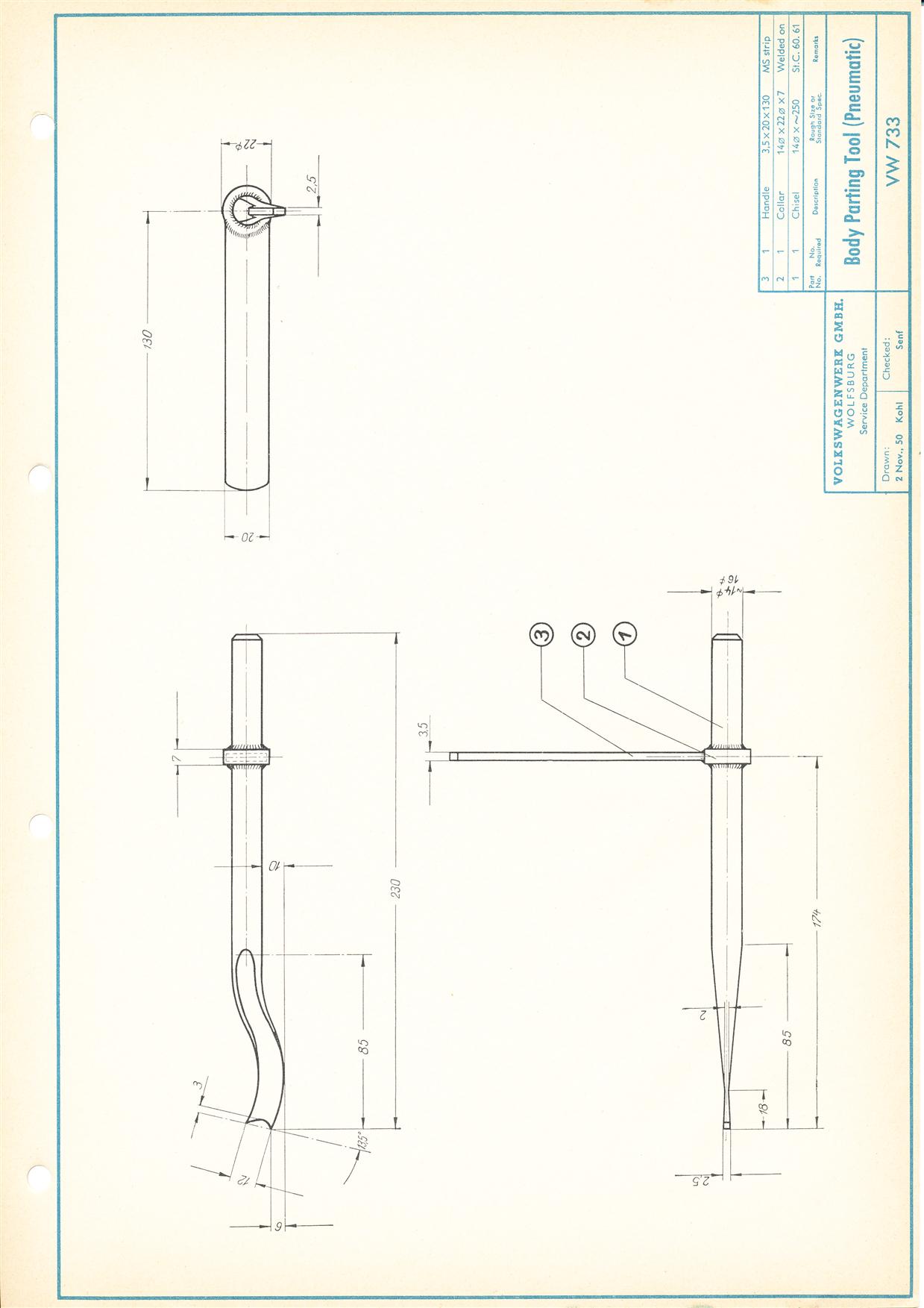

733Body Parting Tool - Pneumatic
For cutting out damaged body sections; used in conjunction with pneumatic hammer
734Rain Drip Mould Deflanging Tool
For removing roof

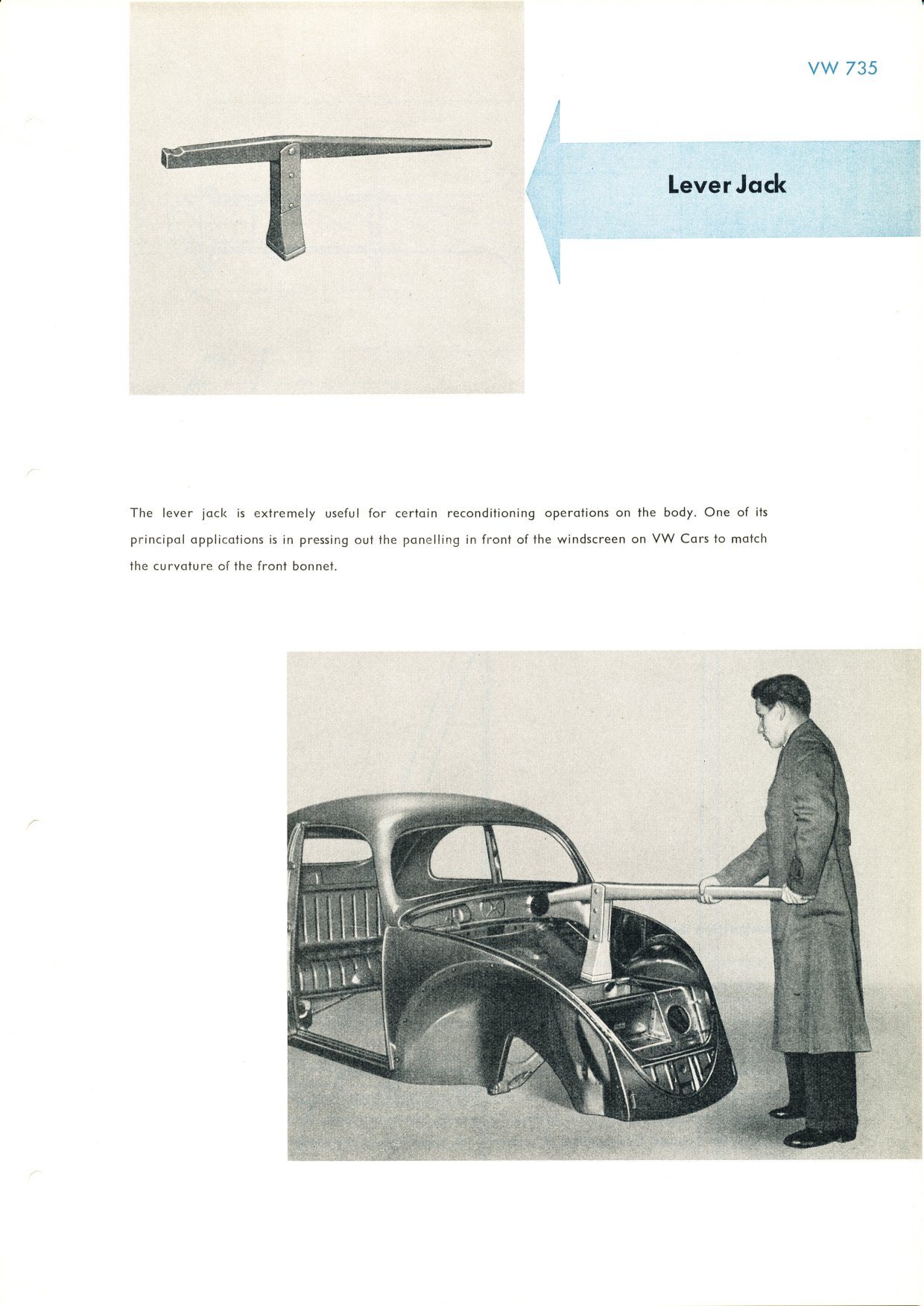

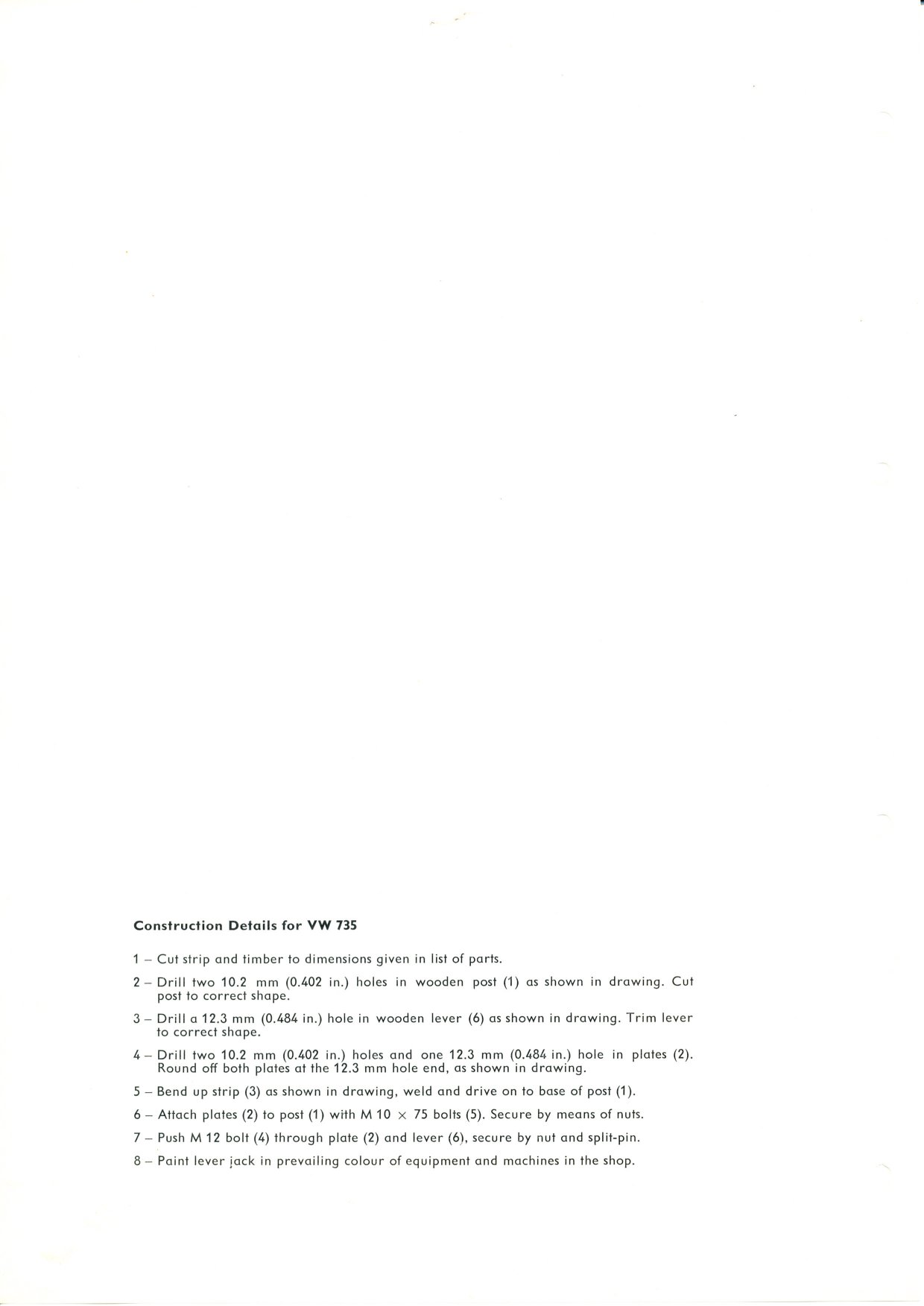

735Lever Jack

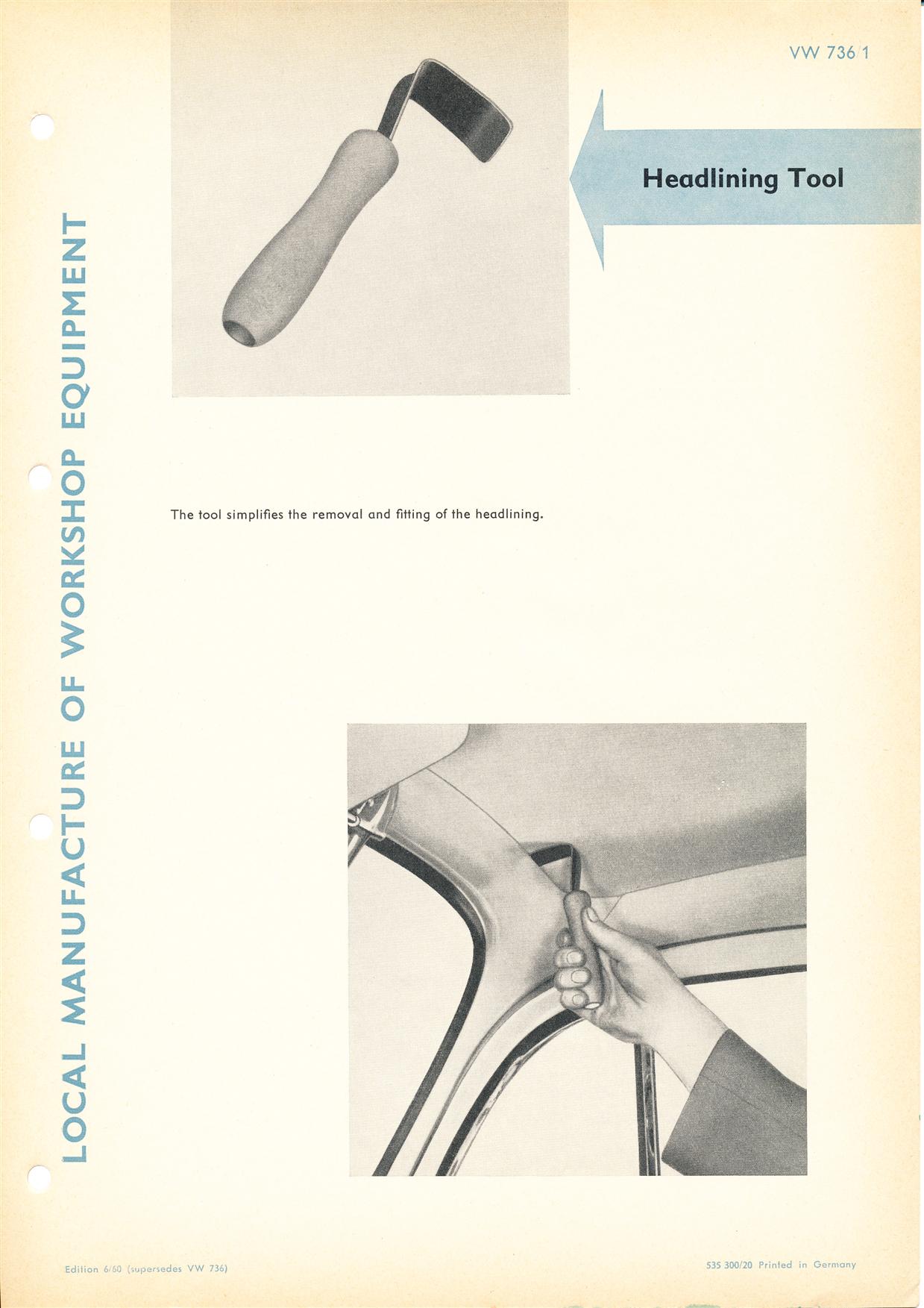

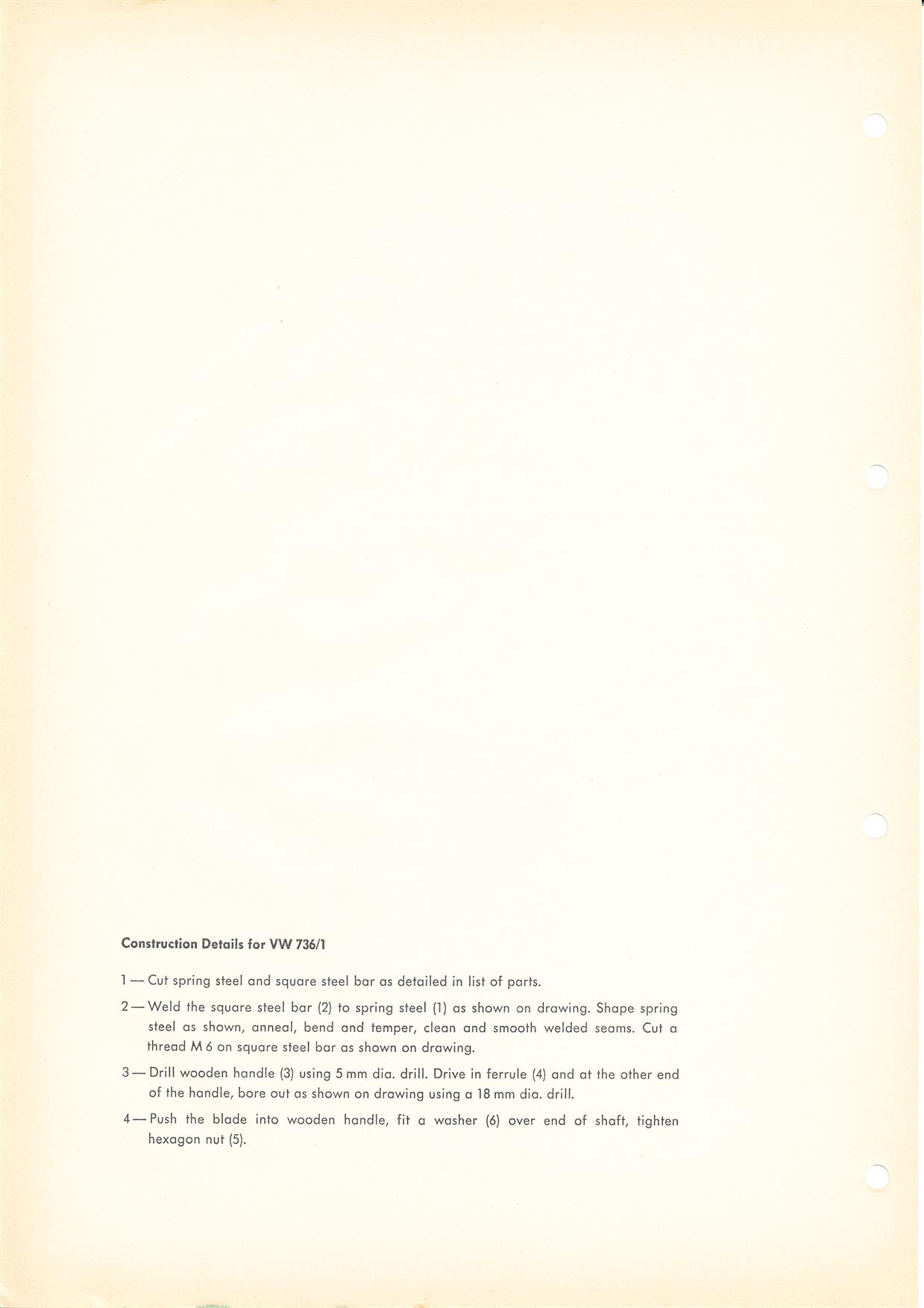

736/1Headlining Tool
For removal and fitting of headliner
737Tool for Installing and Removing Vent Wing Glass
For Types 1, 2, and 3

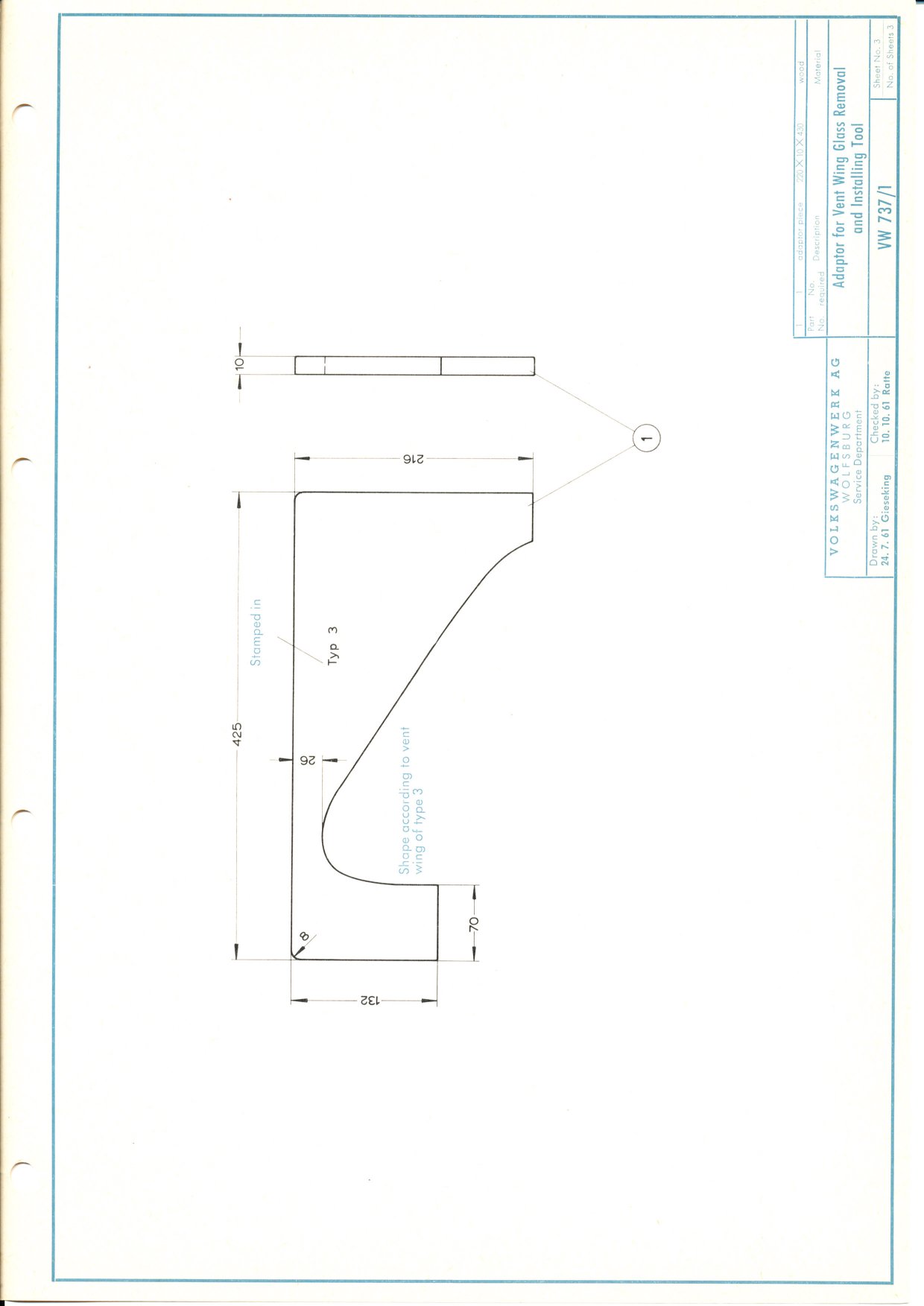

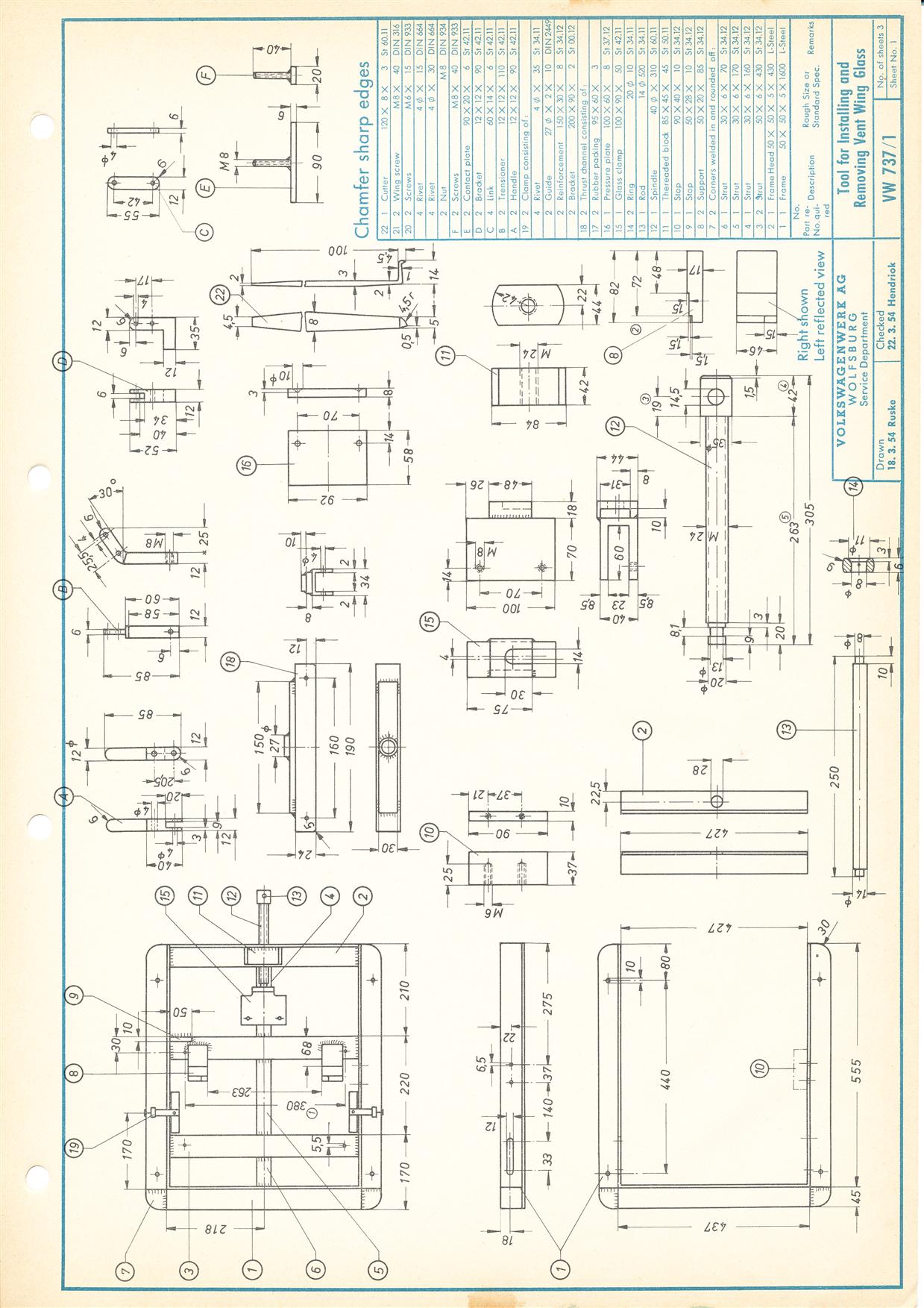

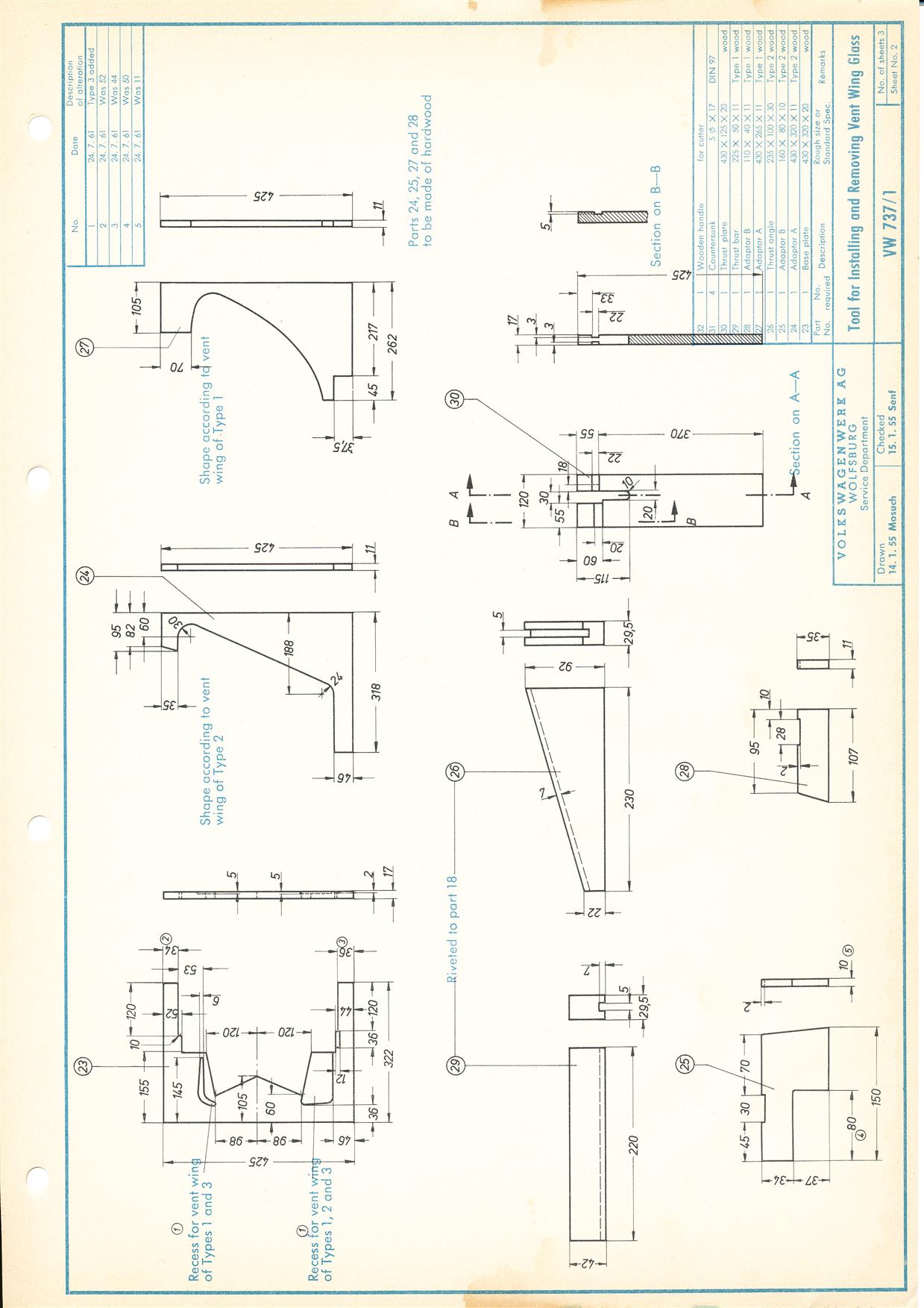

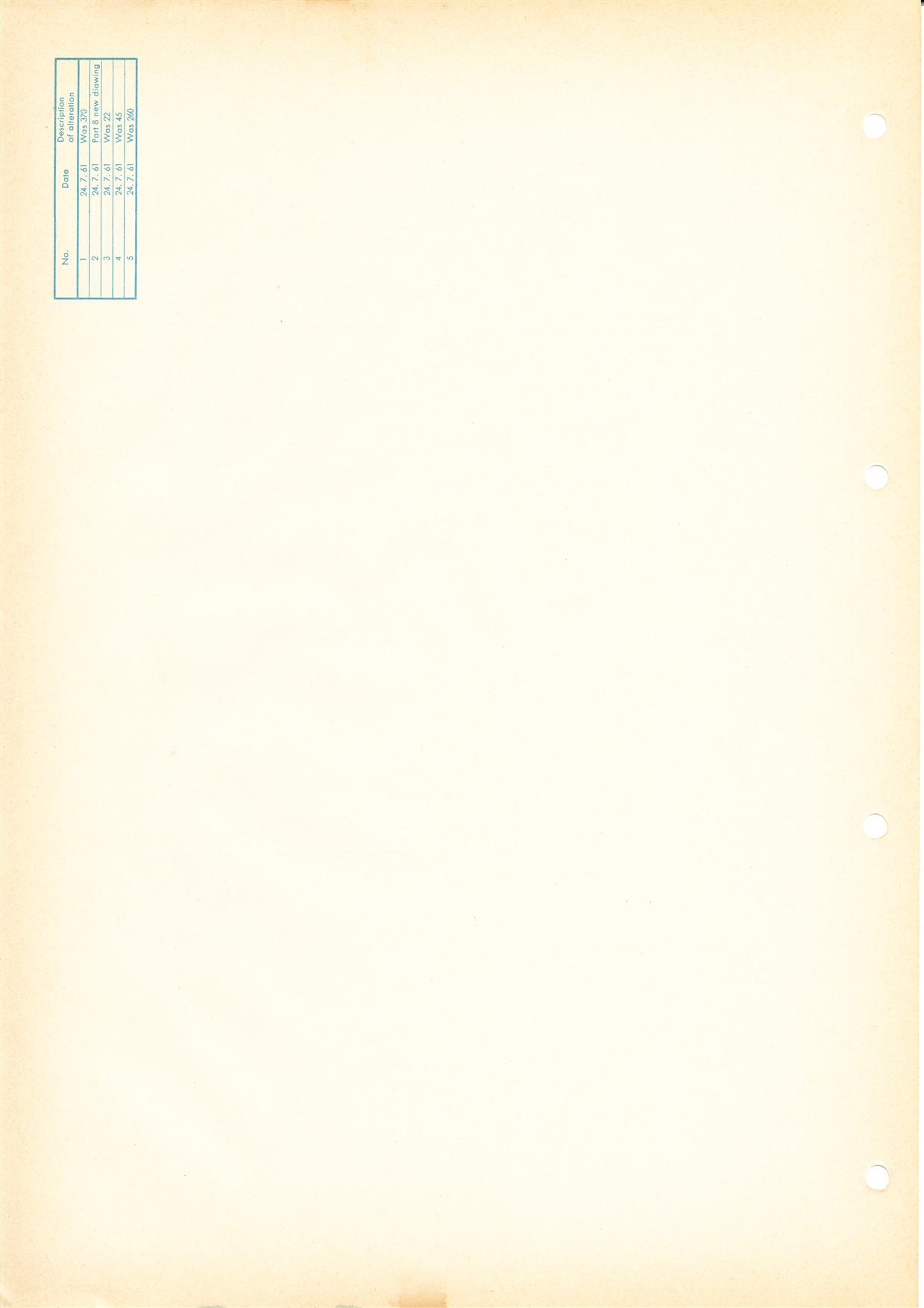

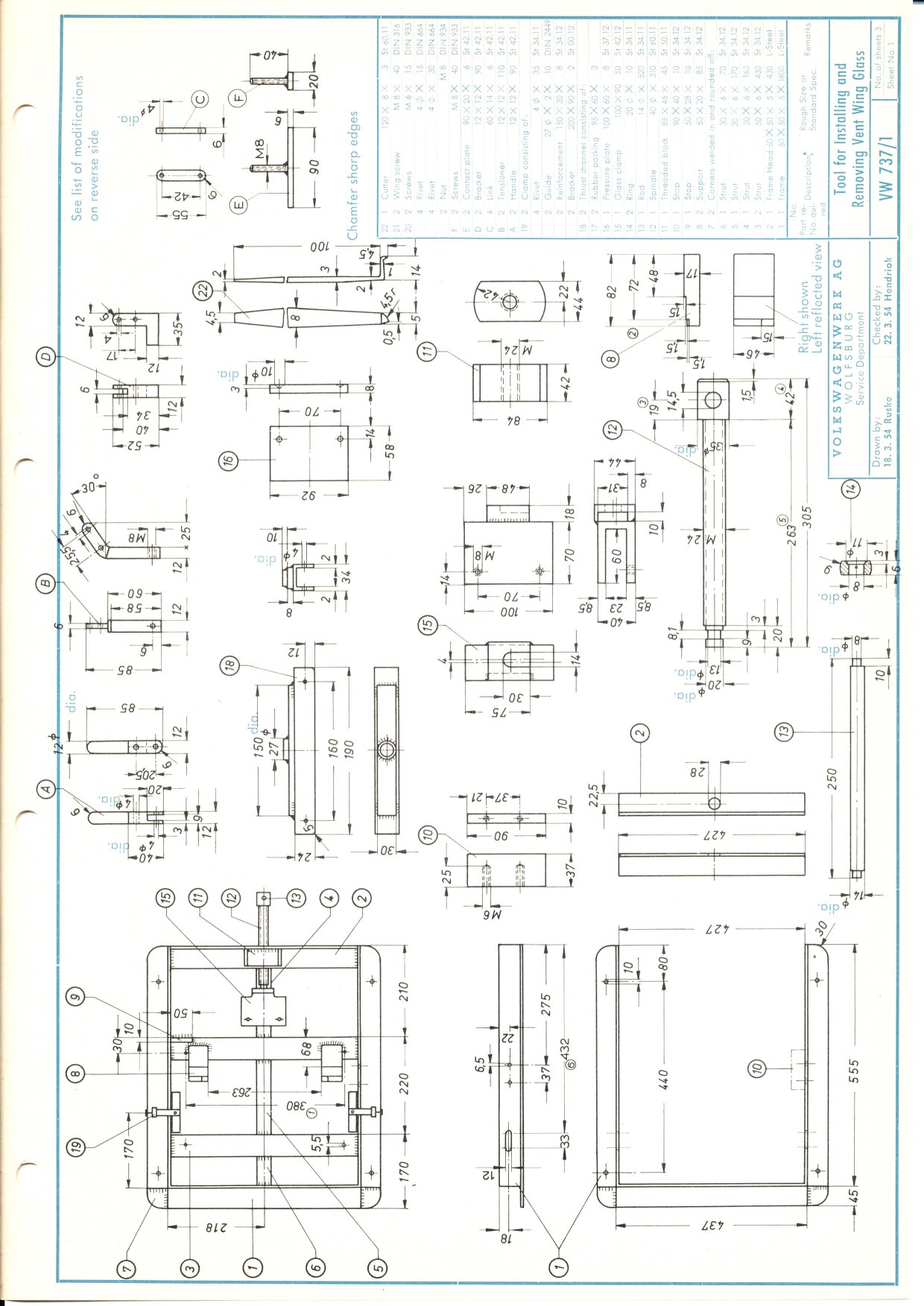

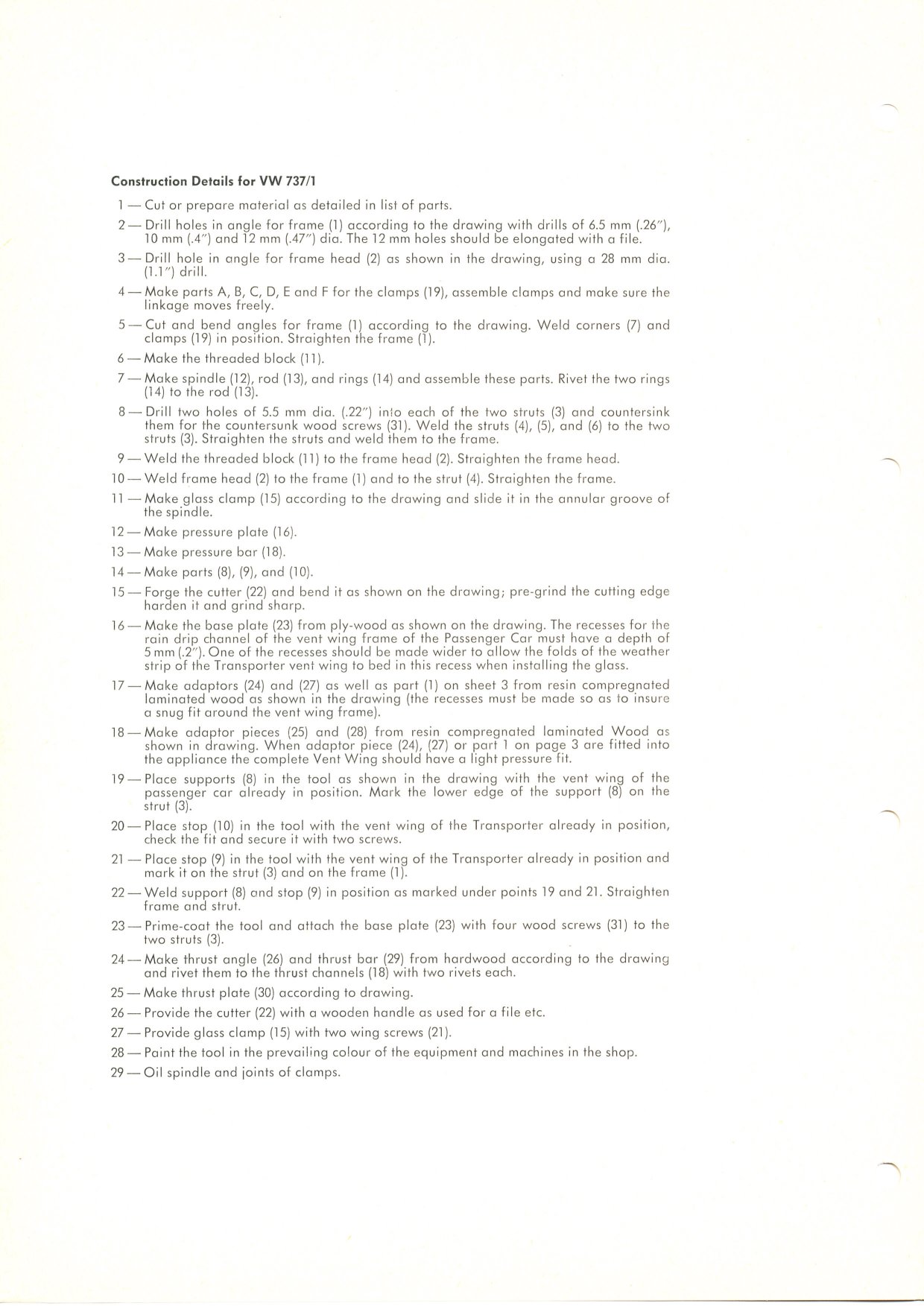

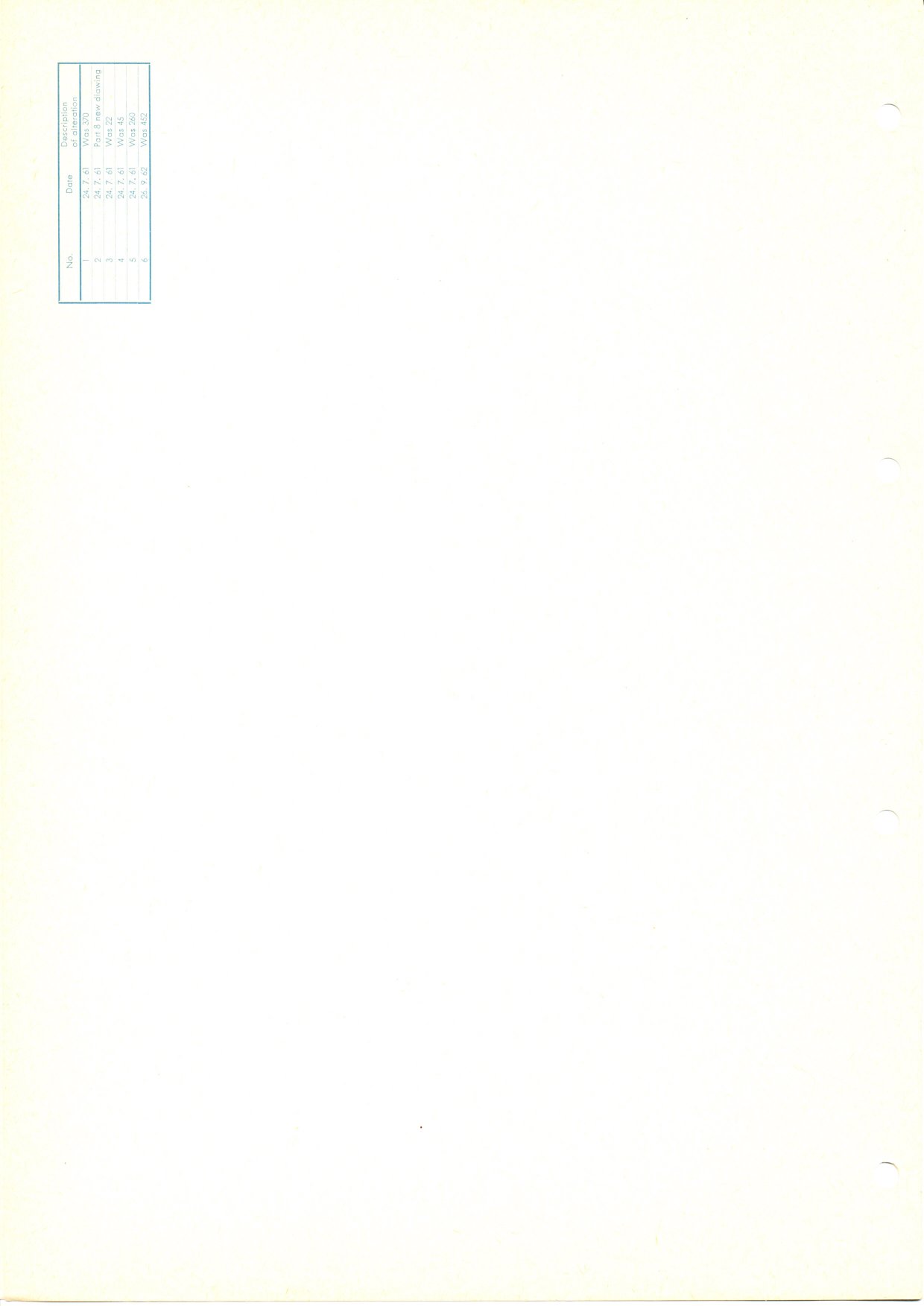

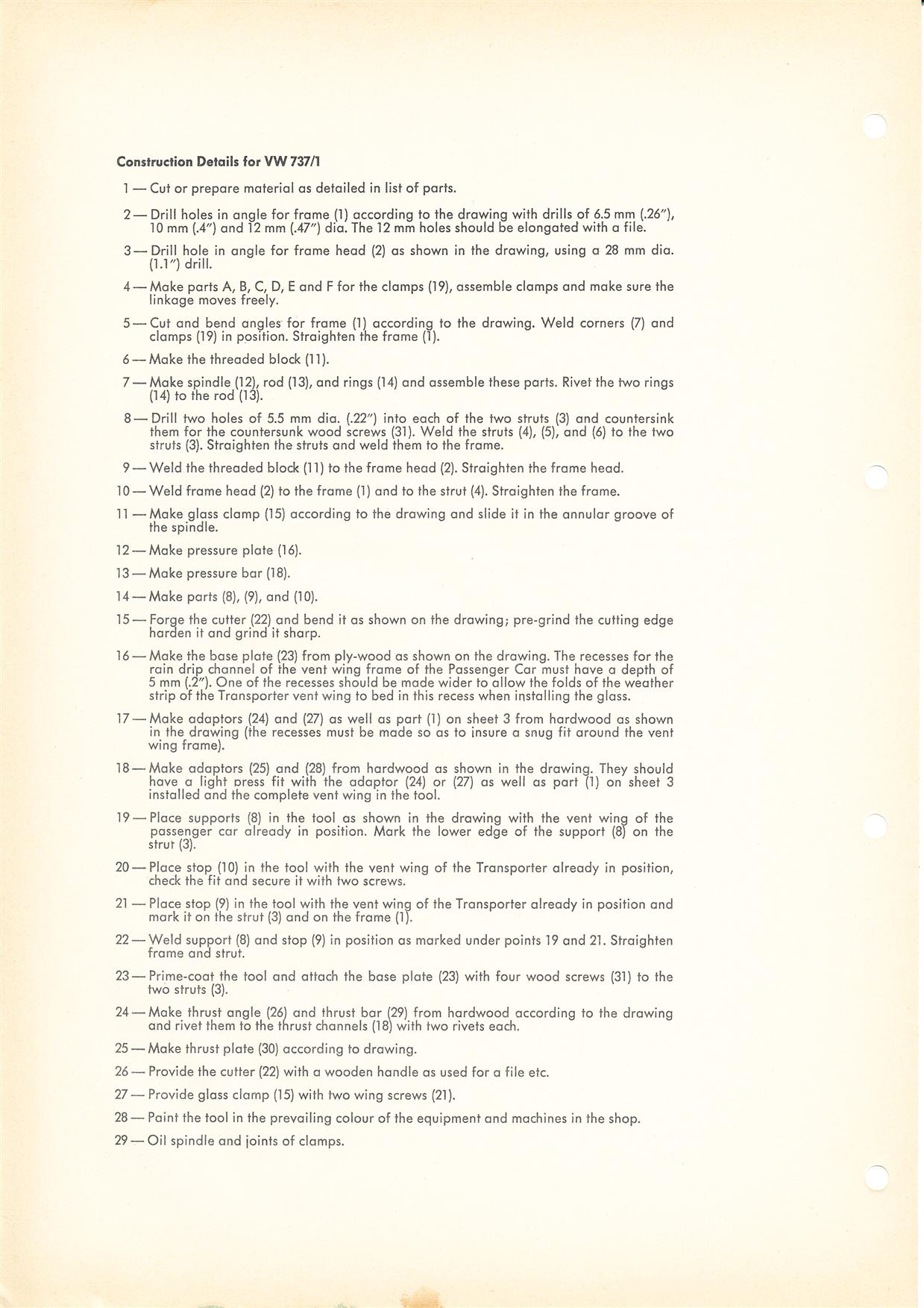

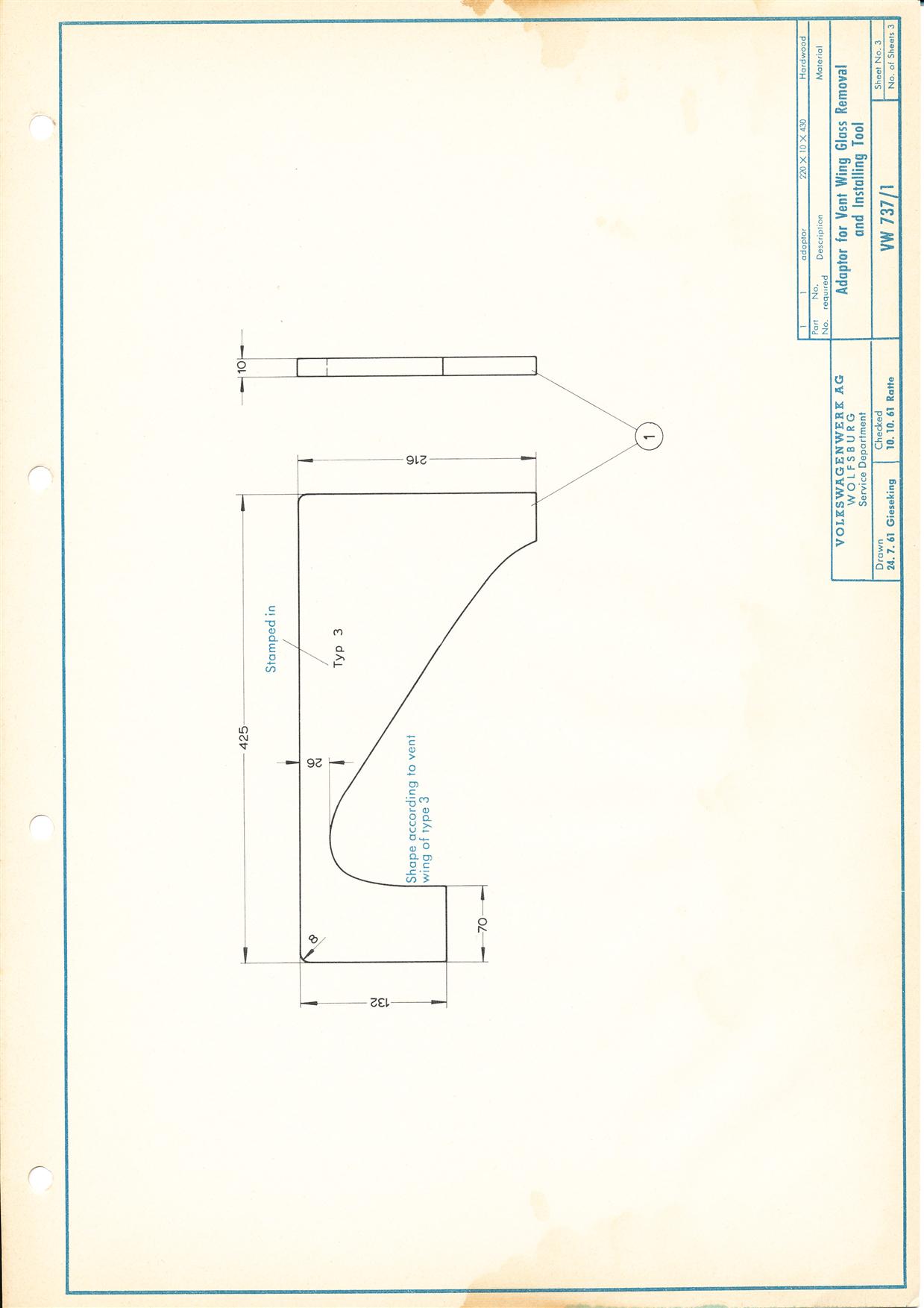

737/1Tool for Installing and Removing Vent Wing Glass
For Types 1, 2, and 3

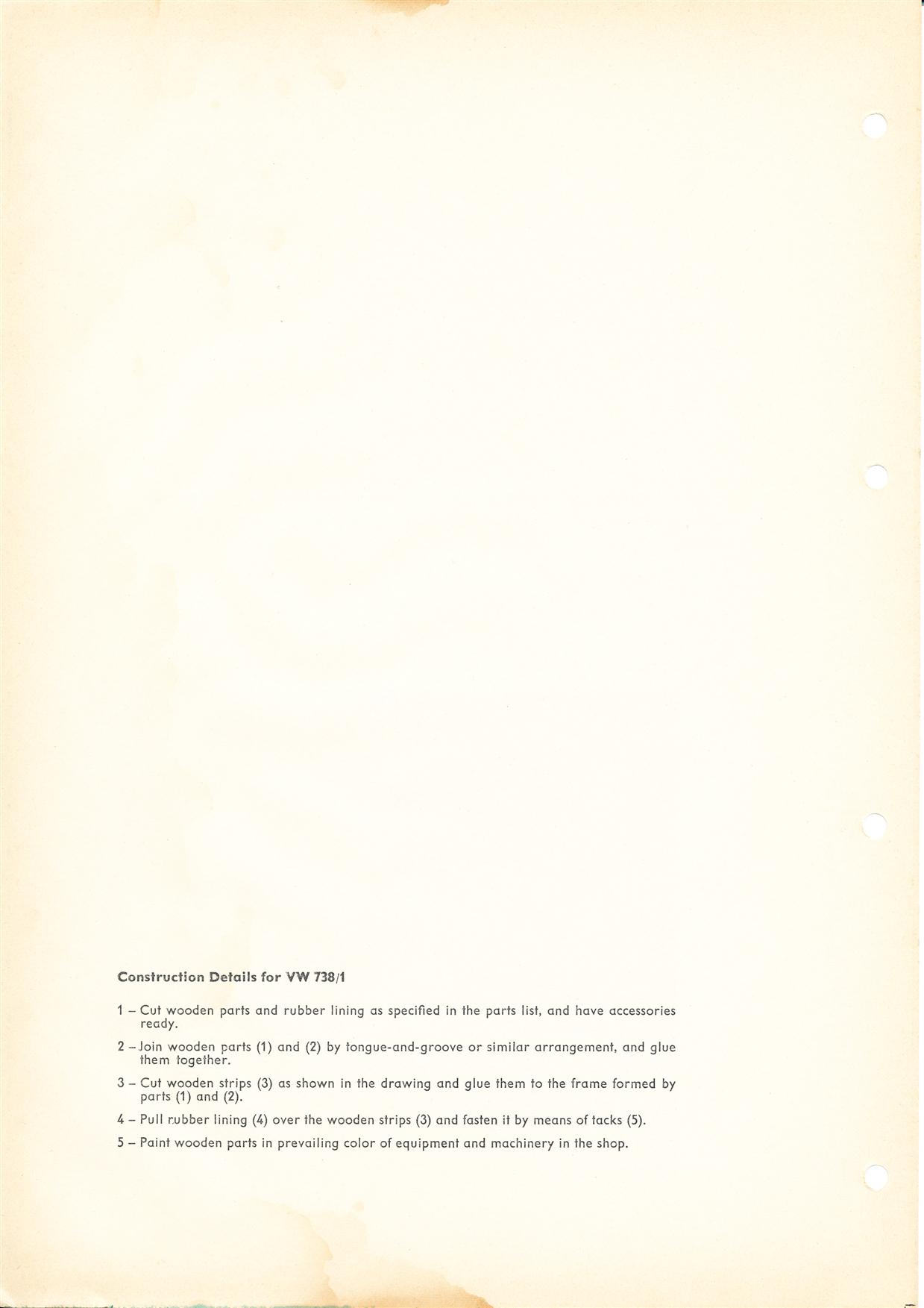

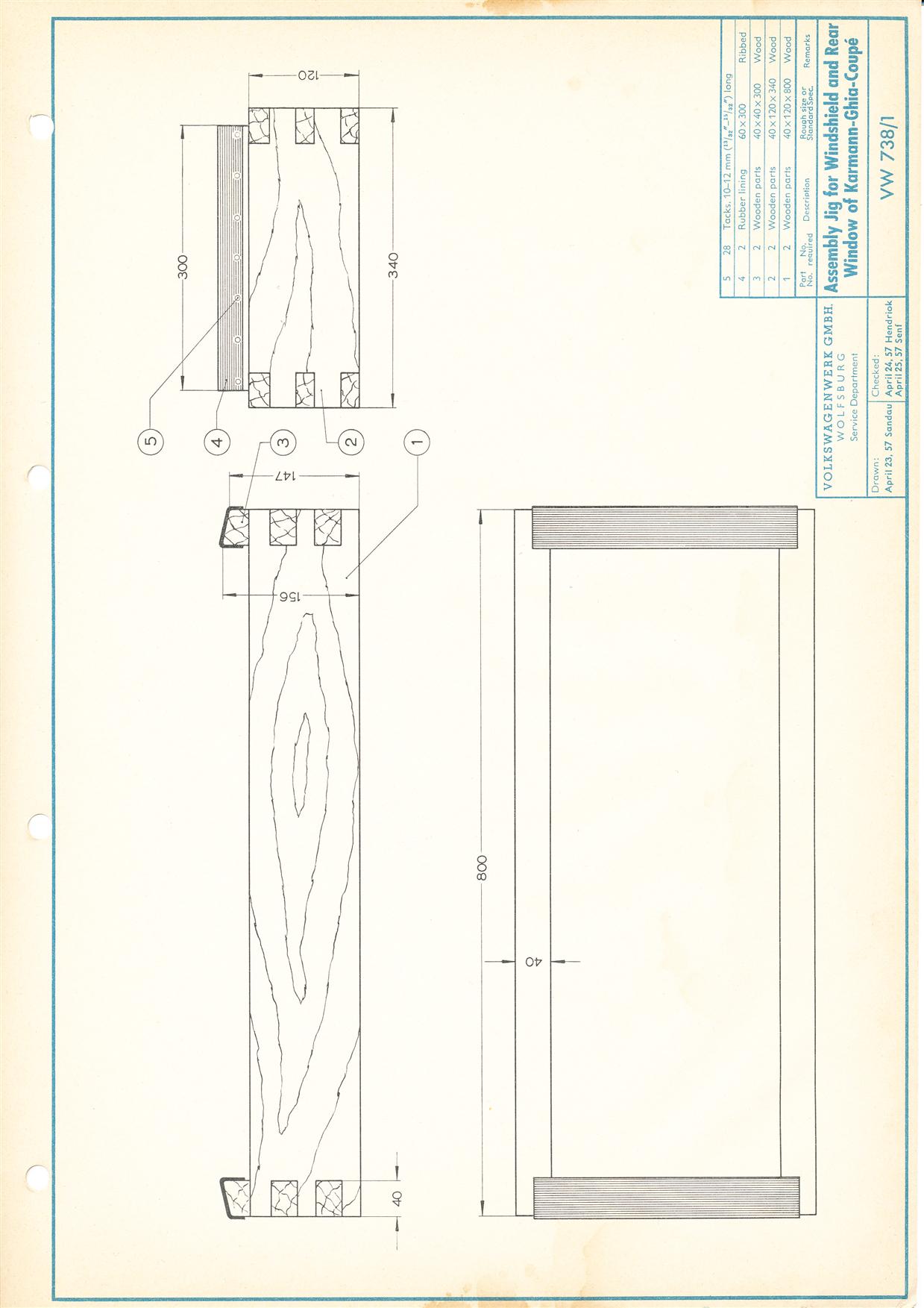

738/1Assembly Jig for Windshield and Rear Vent Window
For installation of rubber and garnish moldings on Karmann Ghia Coupe

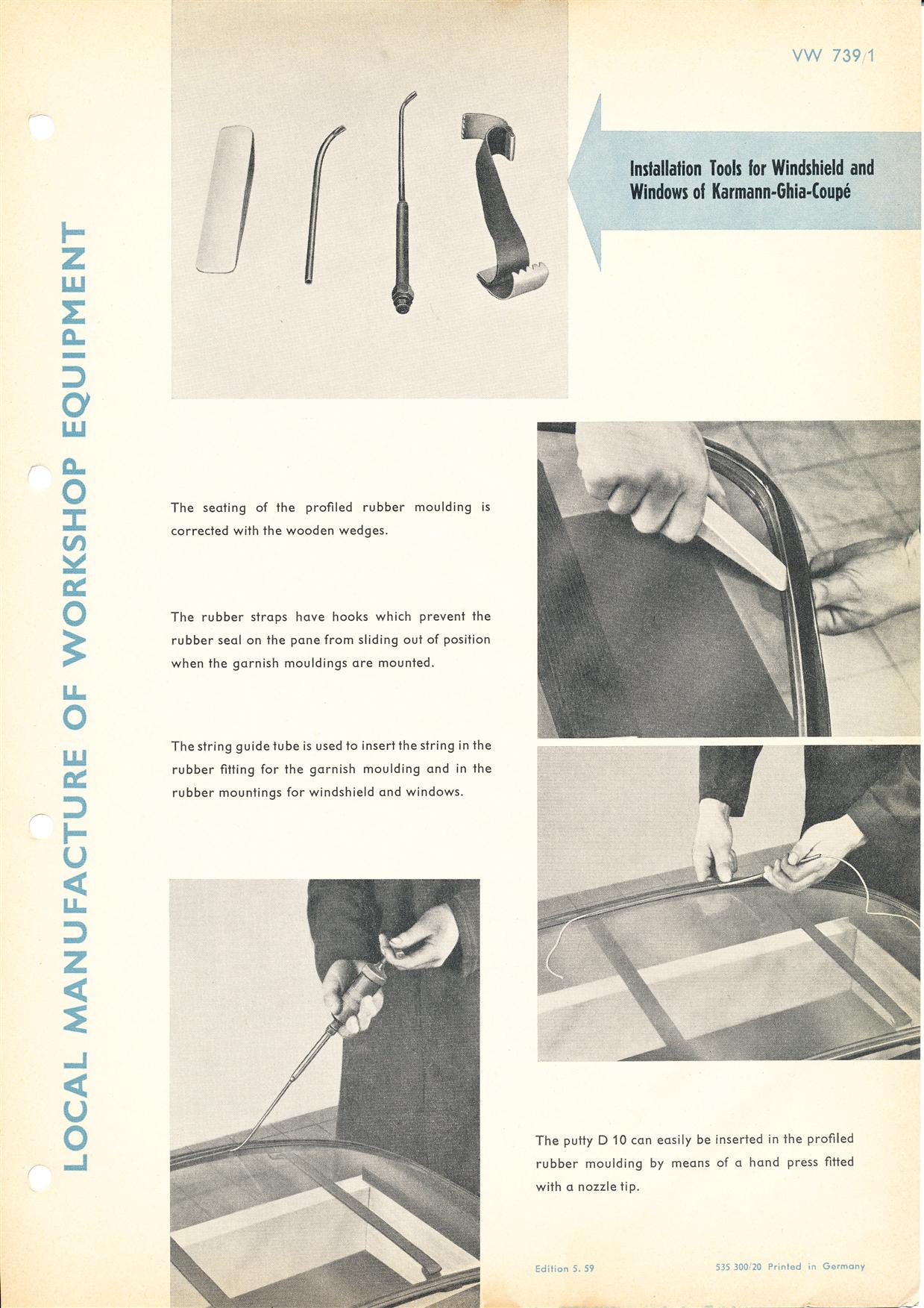

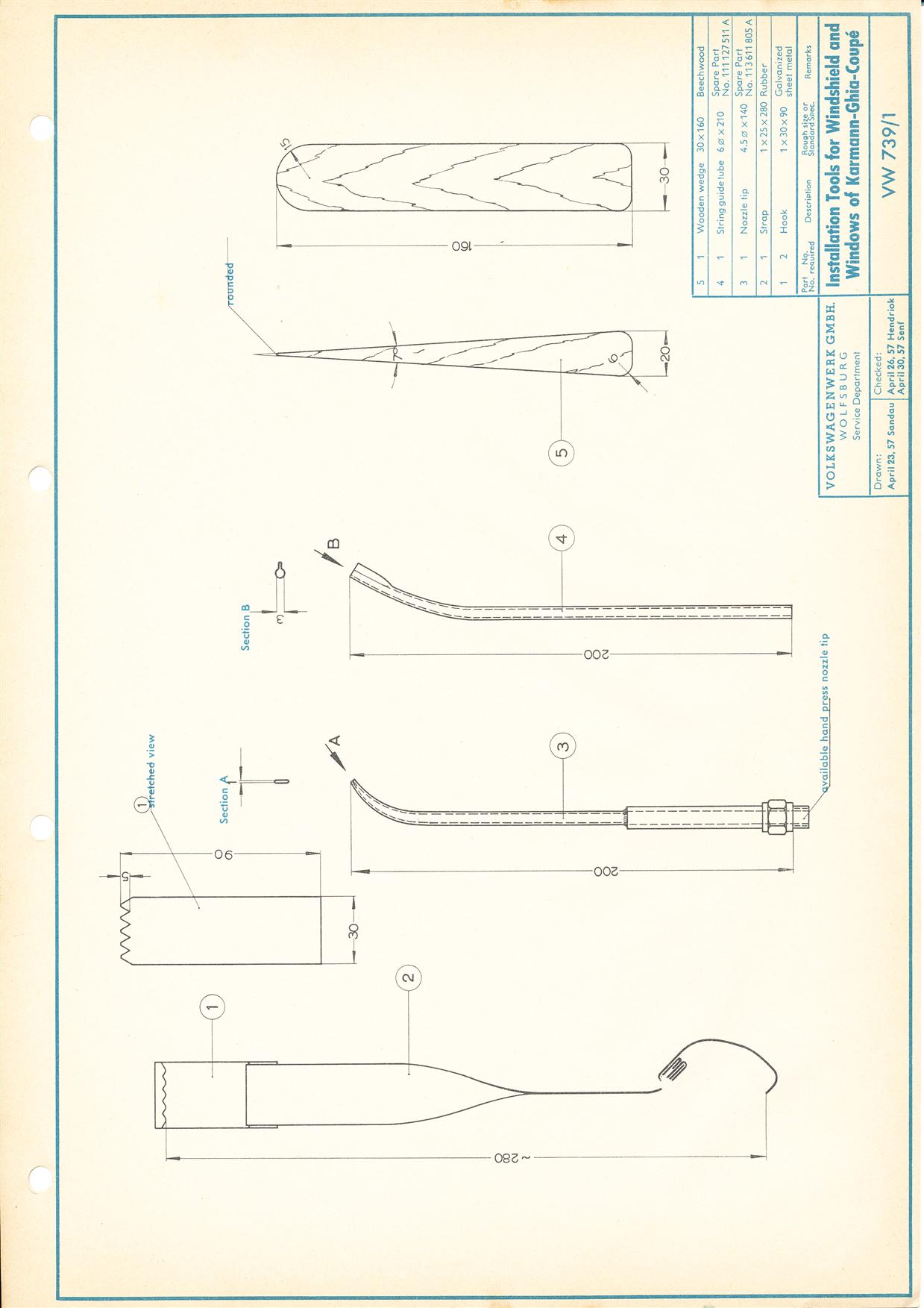

739/1Installation Tools for Windshield and Windows
For seating molding on Karmann Ghia Coupe

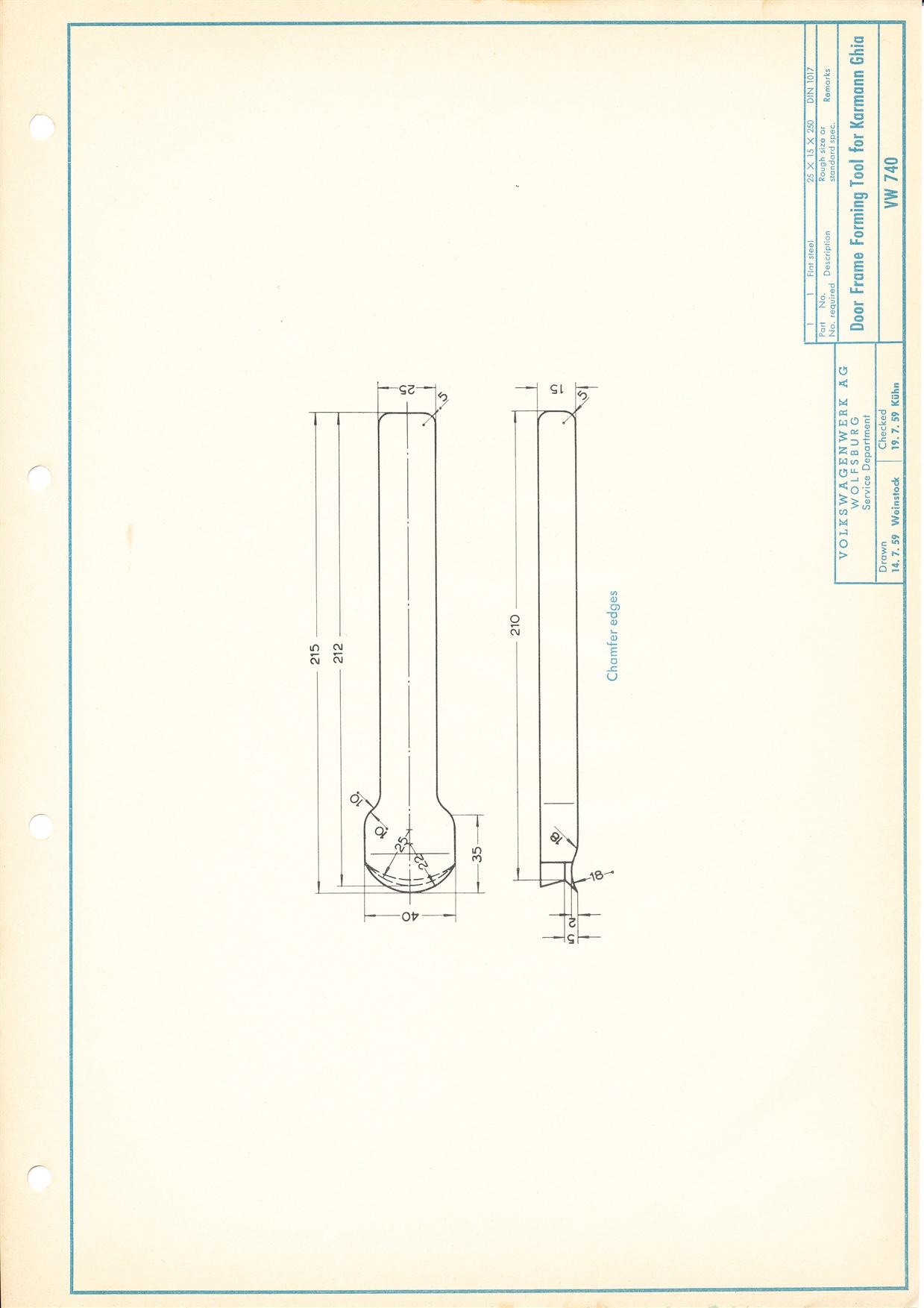

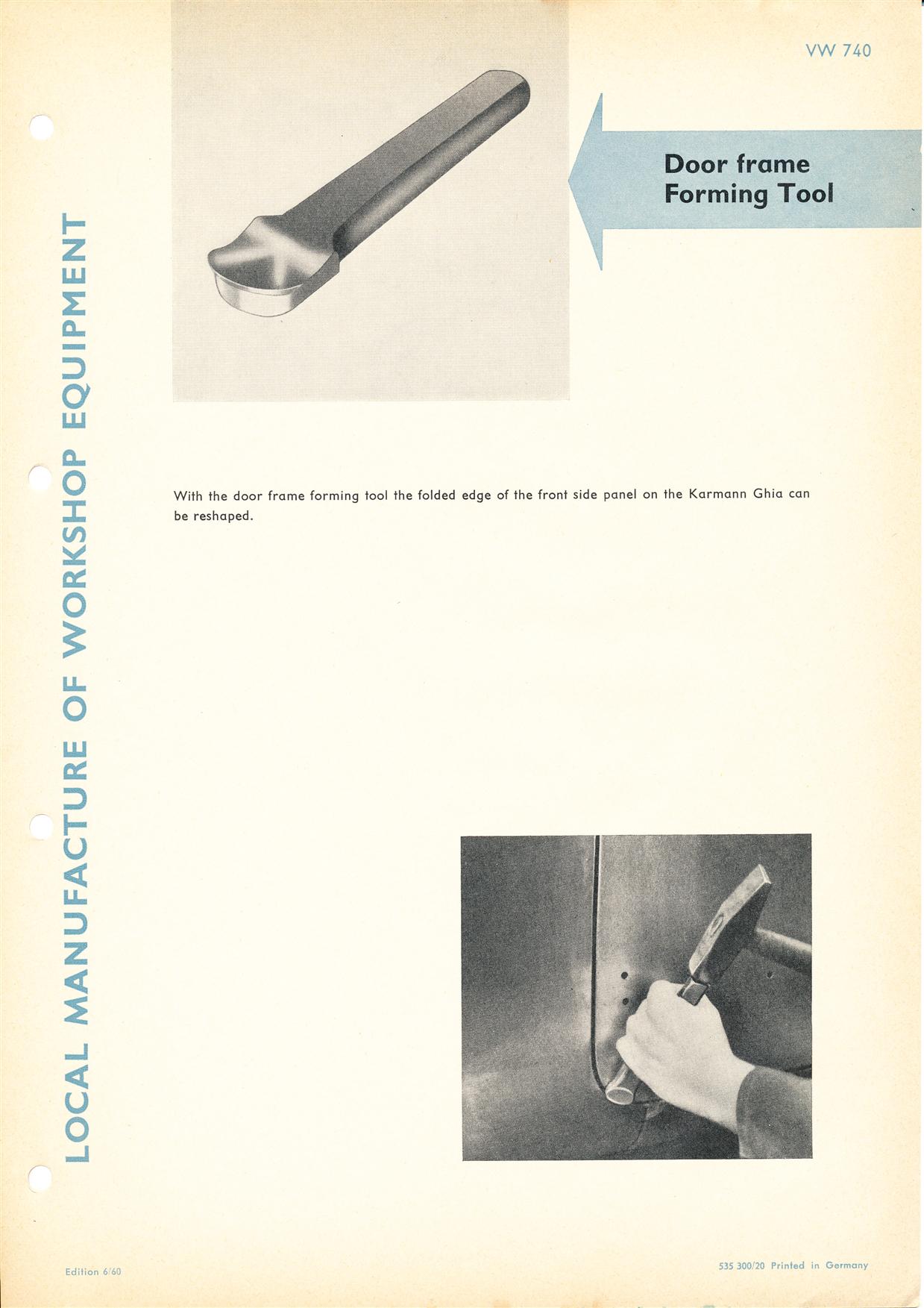

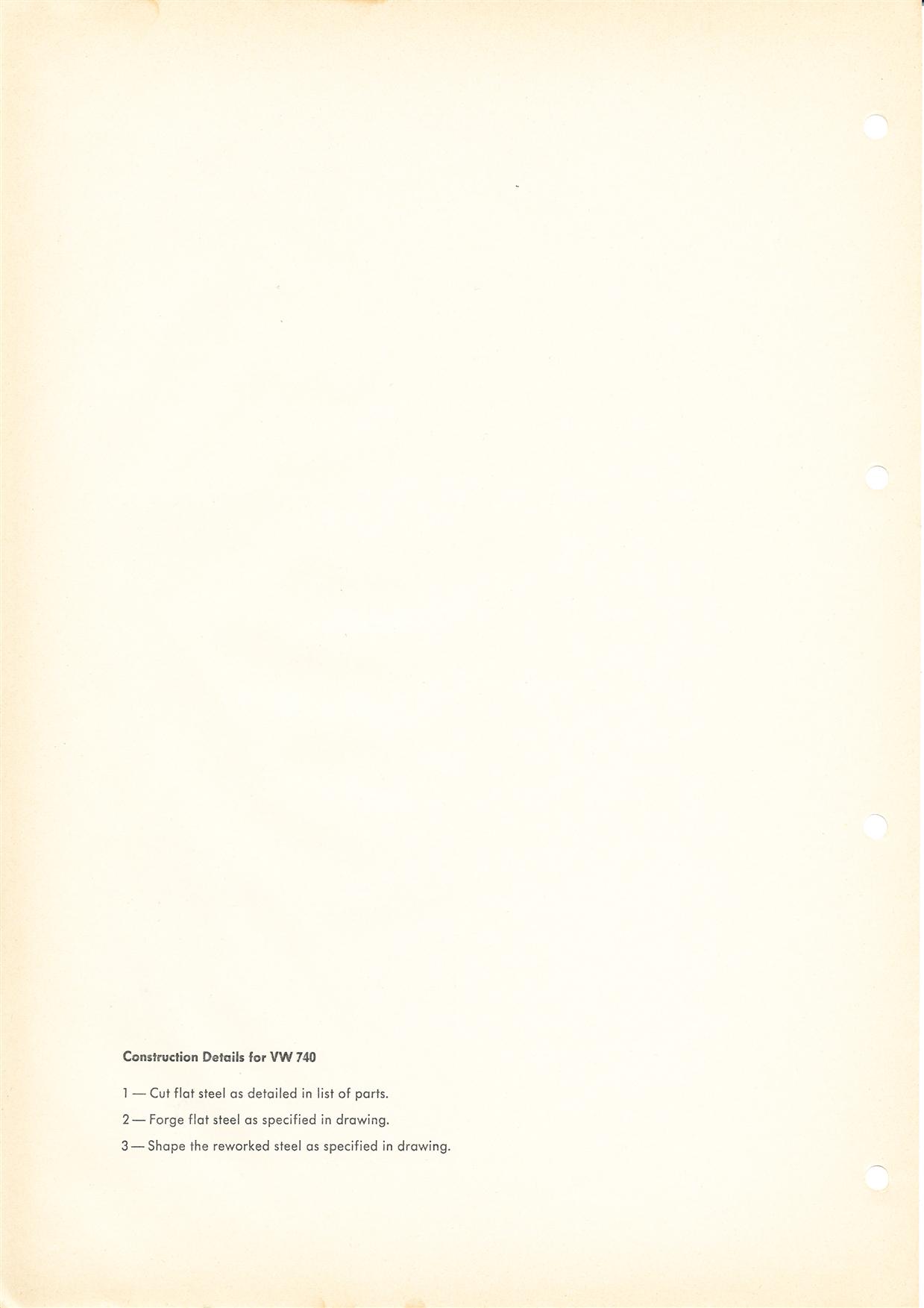

740Door Frame Forming Tool
For reshaping folded edge of front side panel on Karmann Ghia

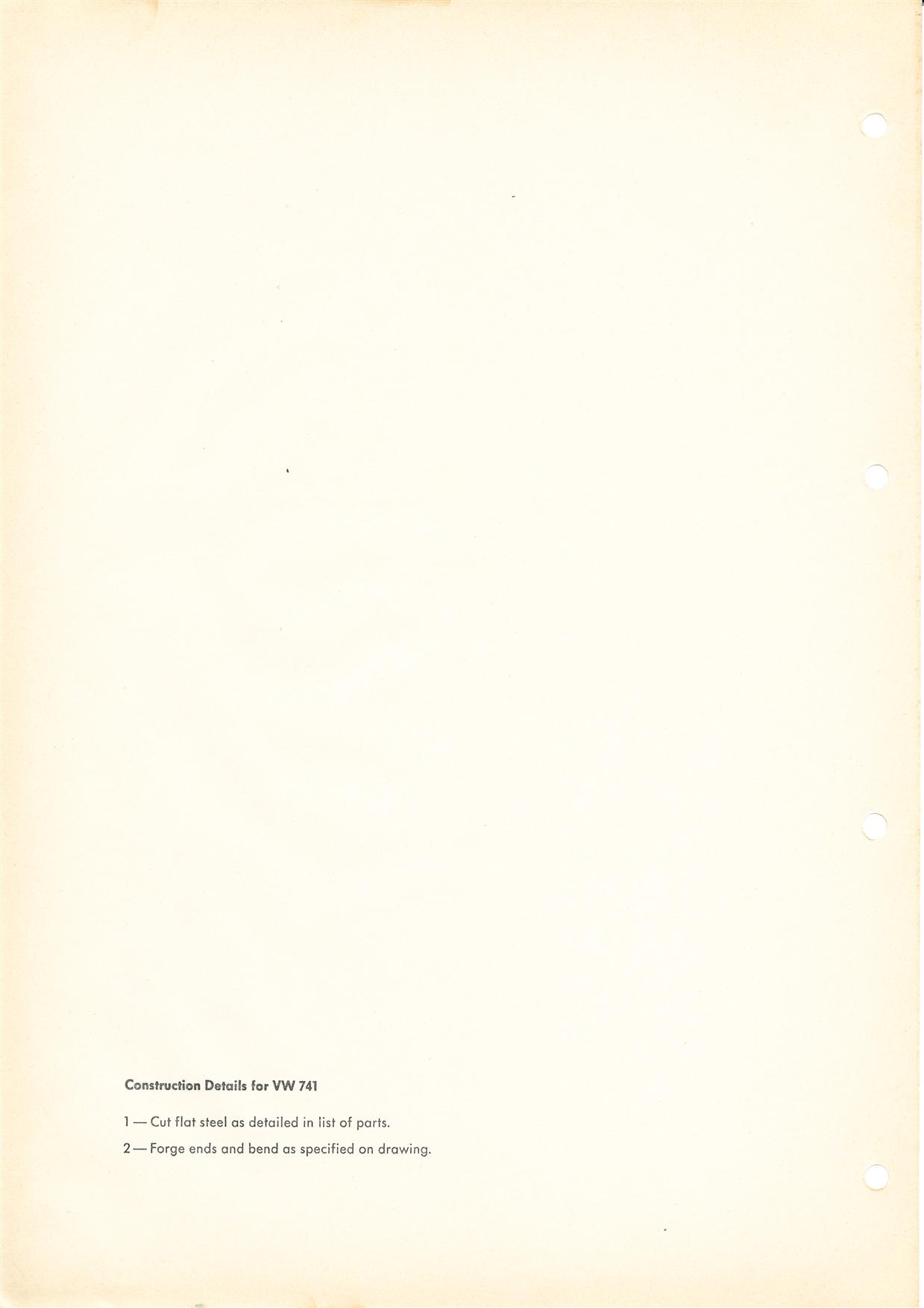

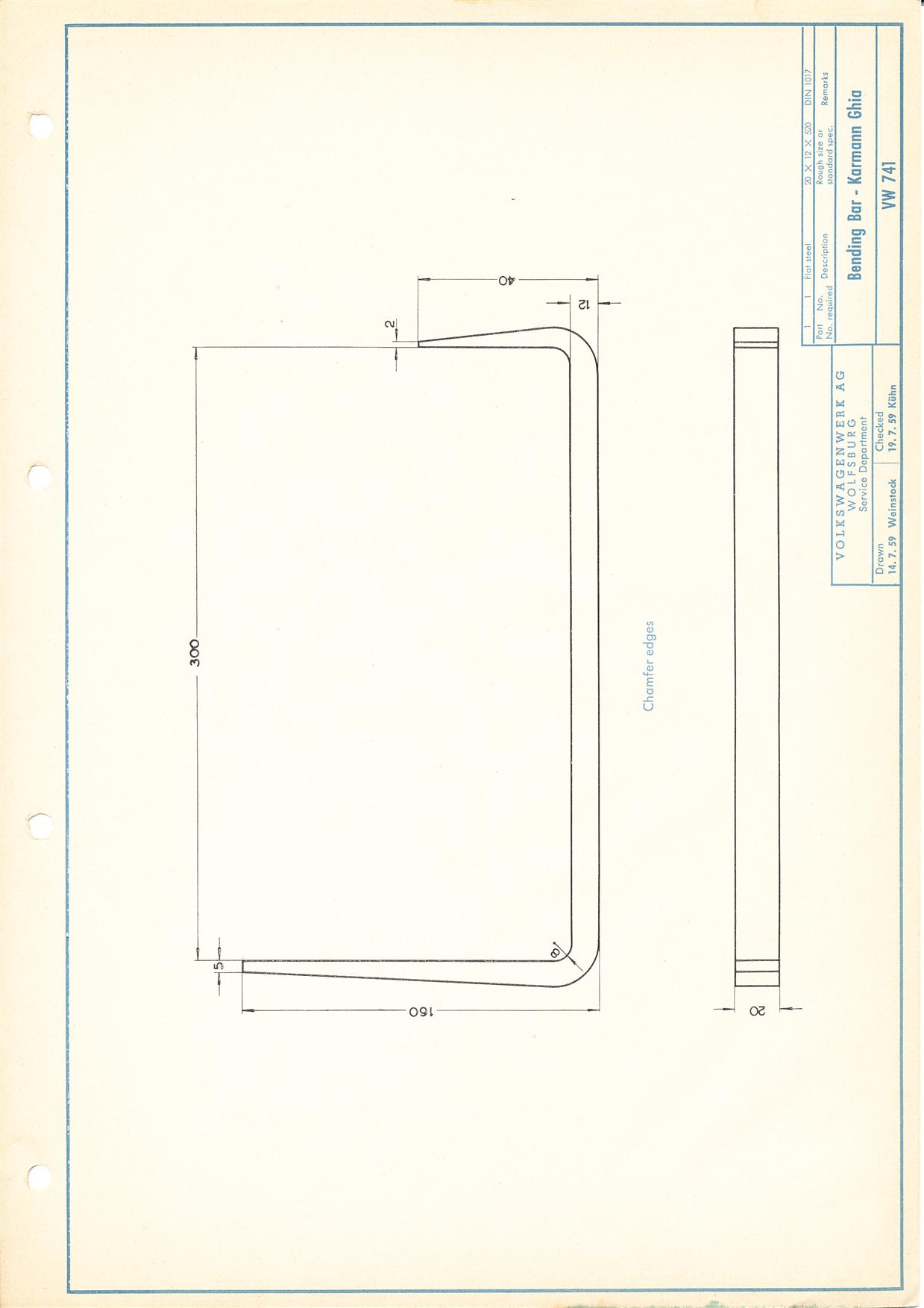

741Bending Bar
For pulling front side panel adjacent to door opening on Karmann Ghia

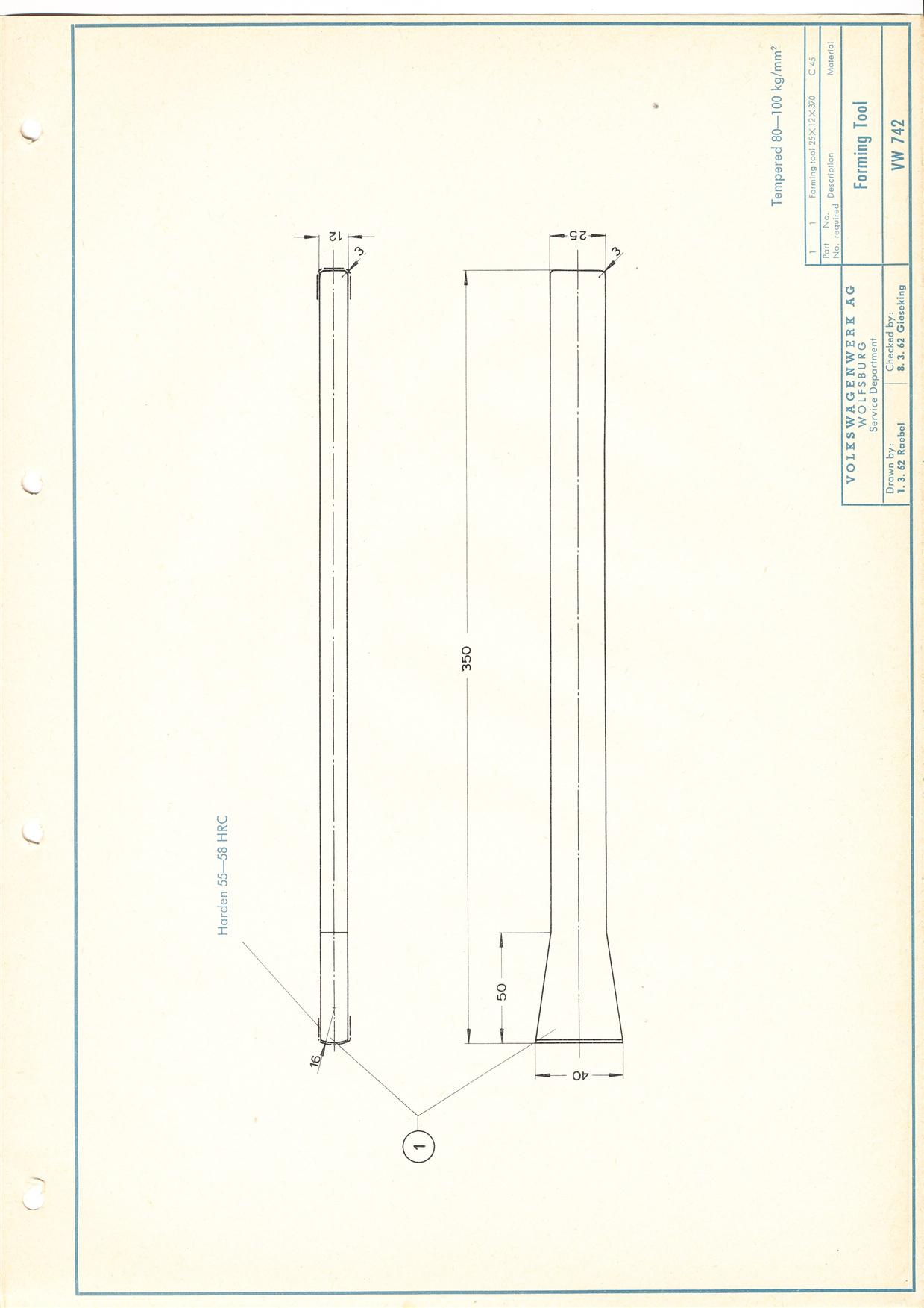

742Forming Tool
For various straightening work on Types 1, 2, and 3

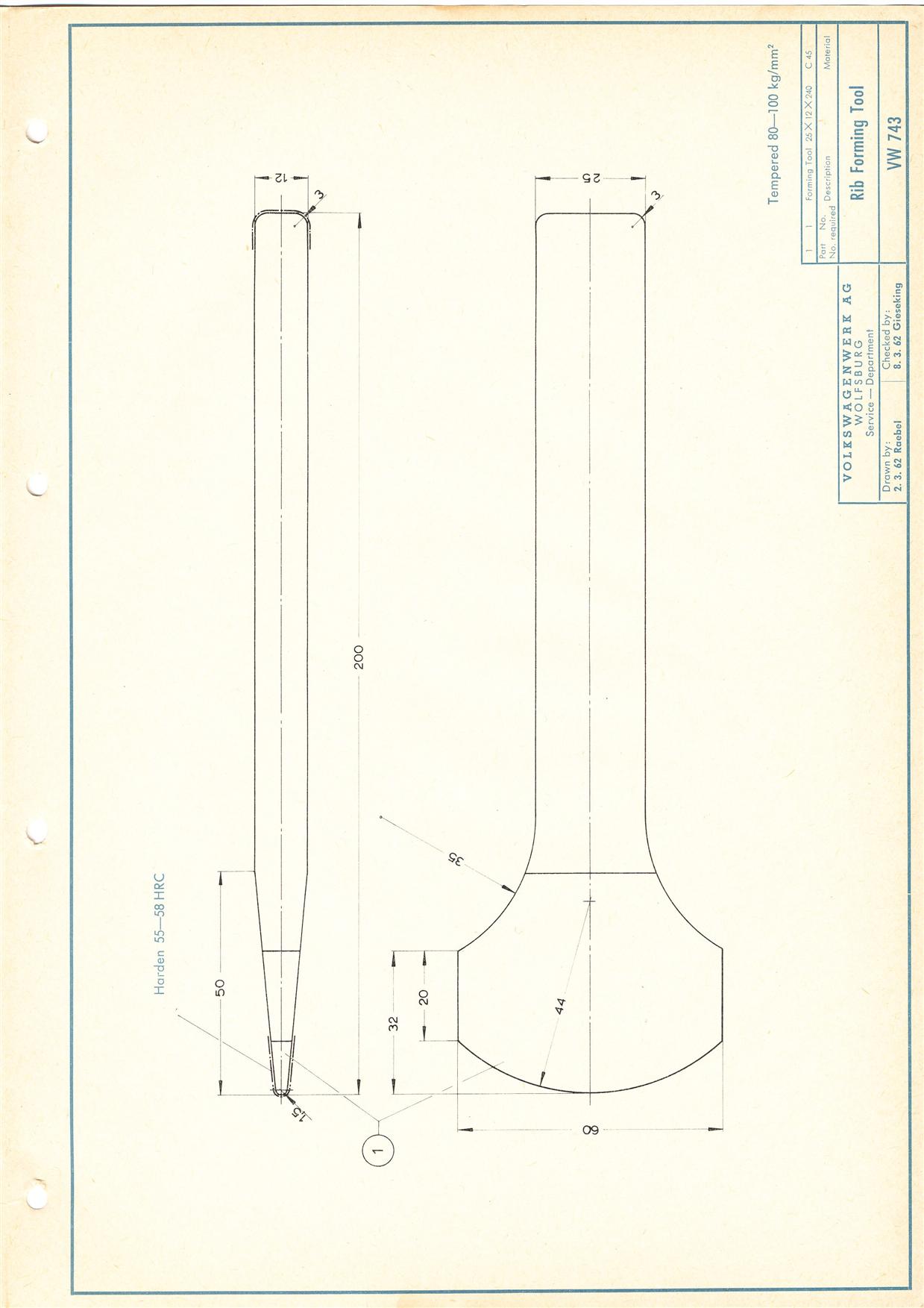

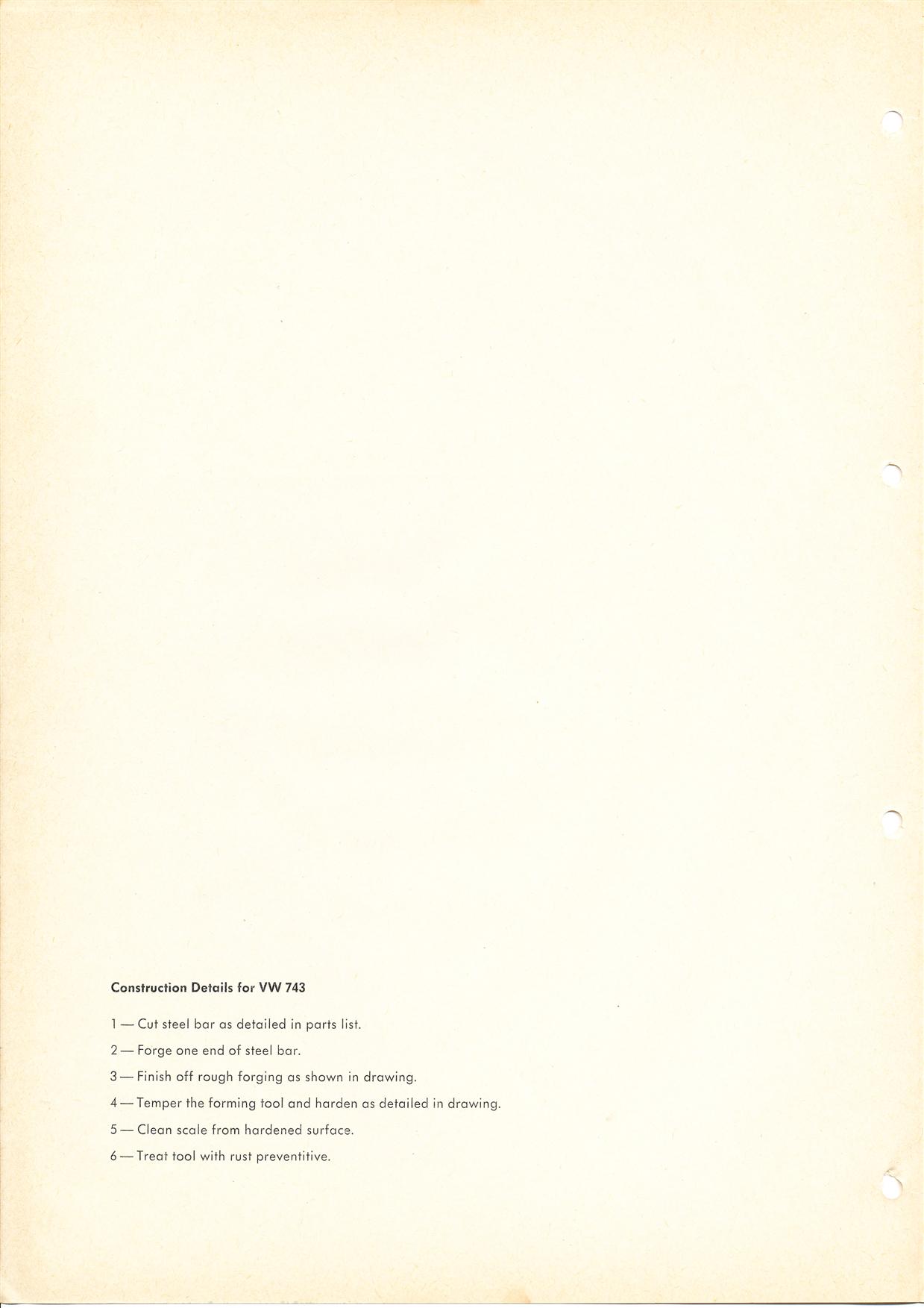

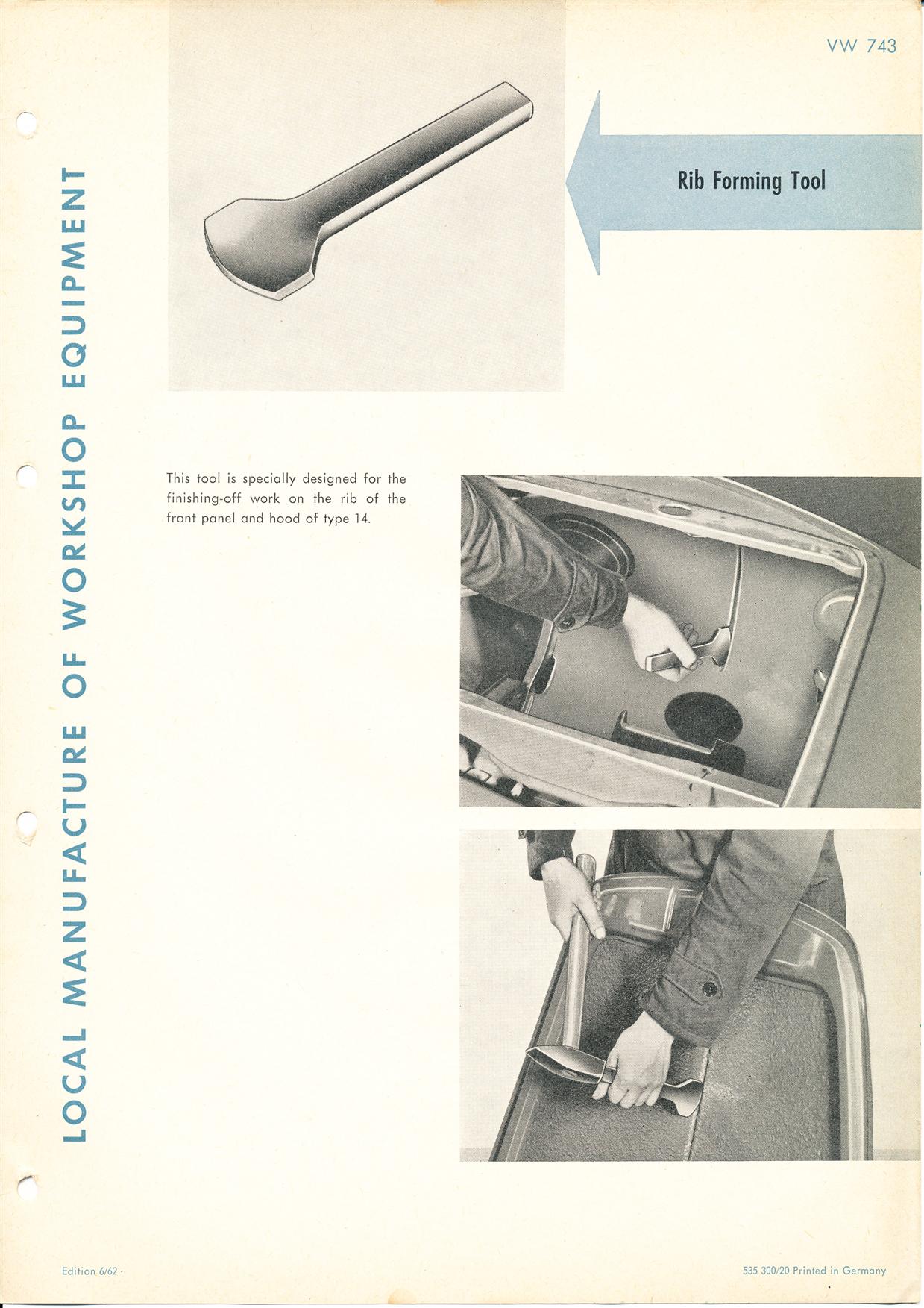

743Rib Forming Tool
For finishing off work on rib of front panel and hood on Karmann Ghia

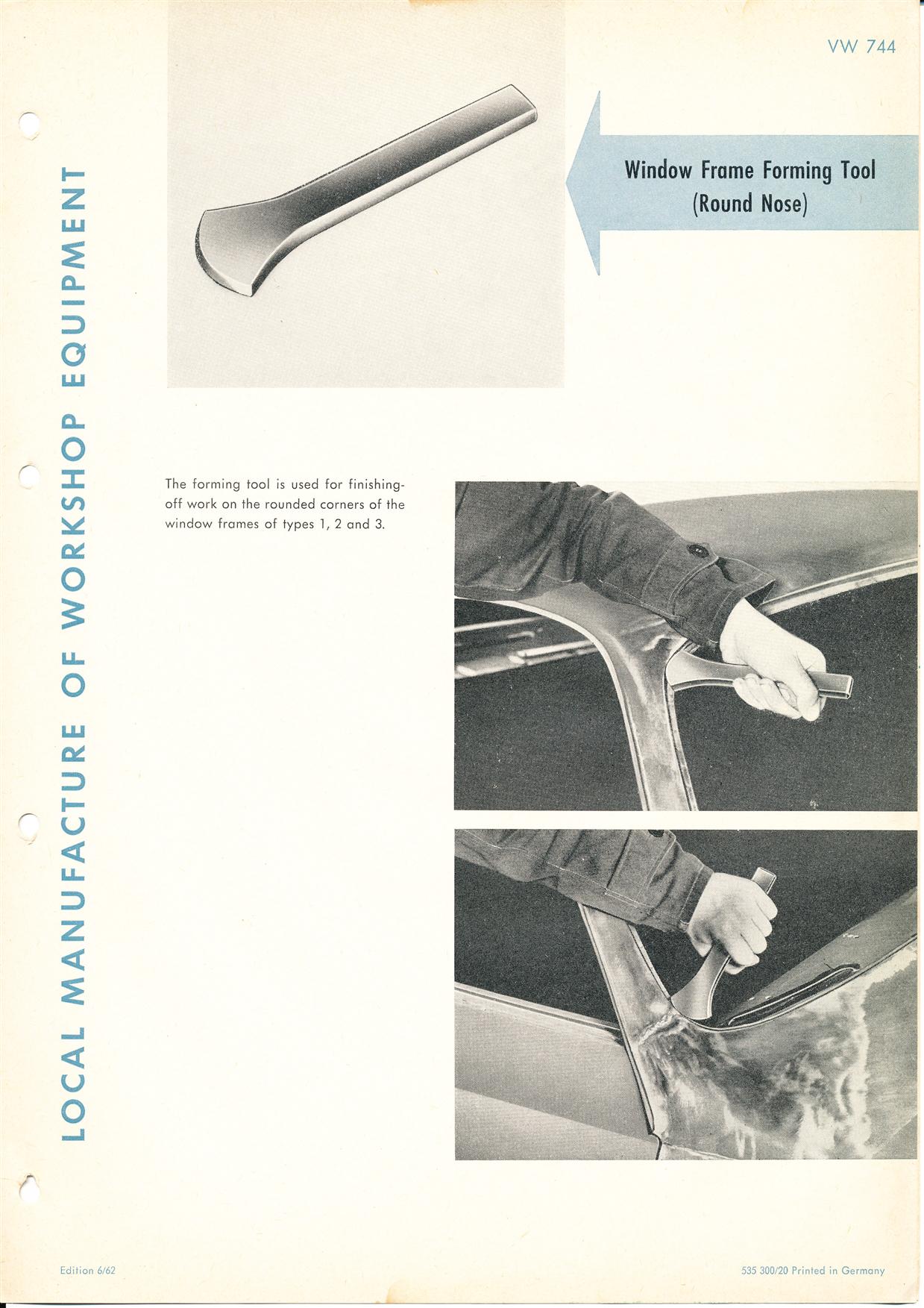

744Window Frame Forming Tool - Round Nose
For finishing off work on rounded window frame corners on Types 1, 2, and 3

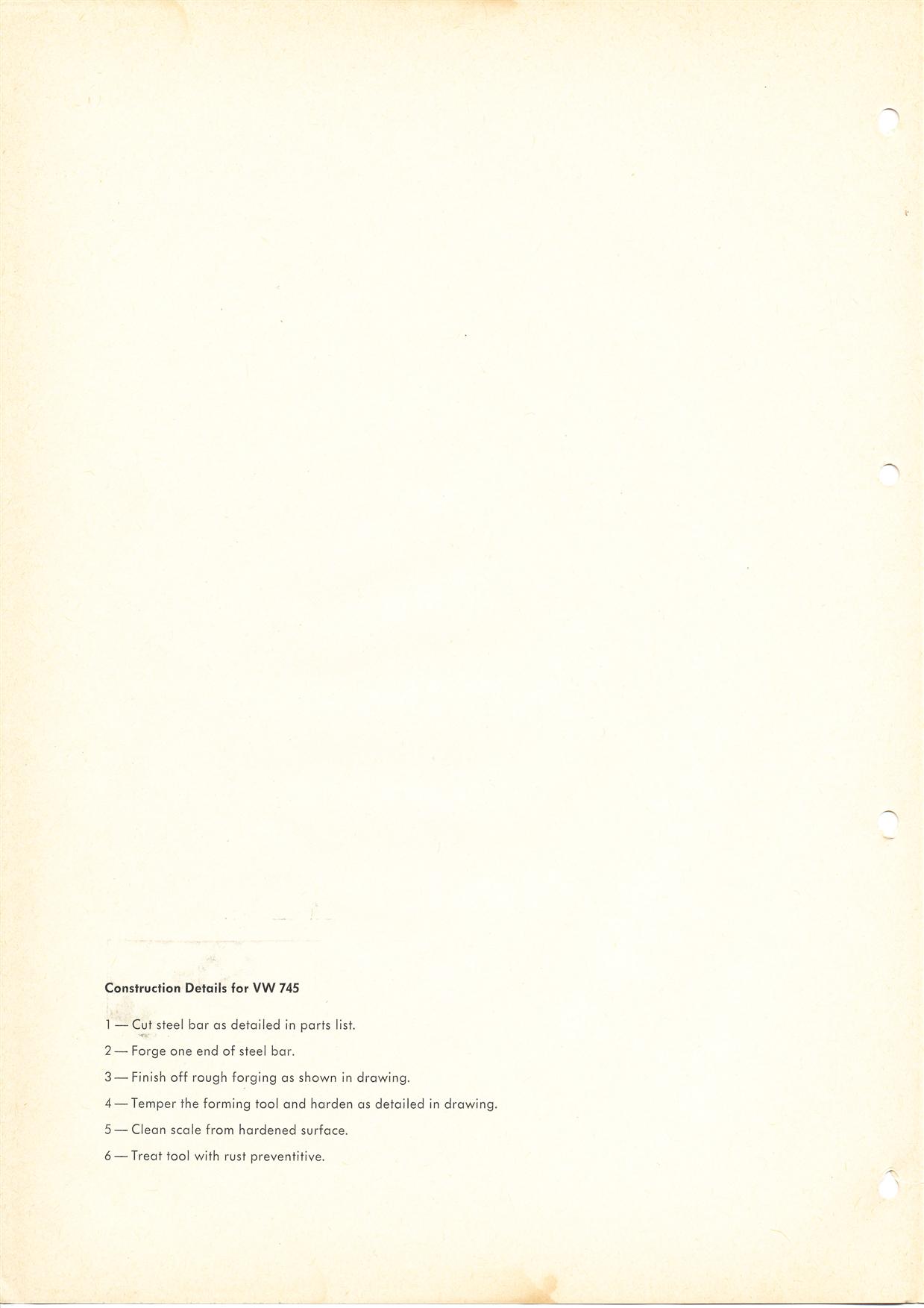

745Window Frame Forming Tool - Straight Nose
For straightening window frames on Types 1, 2, and 3

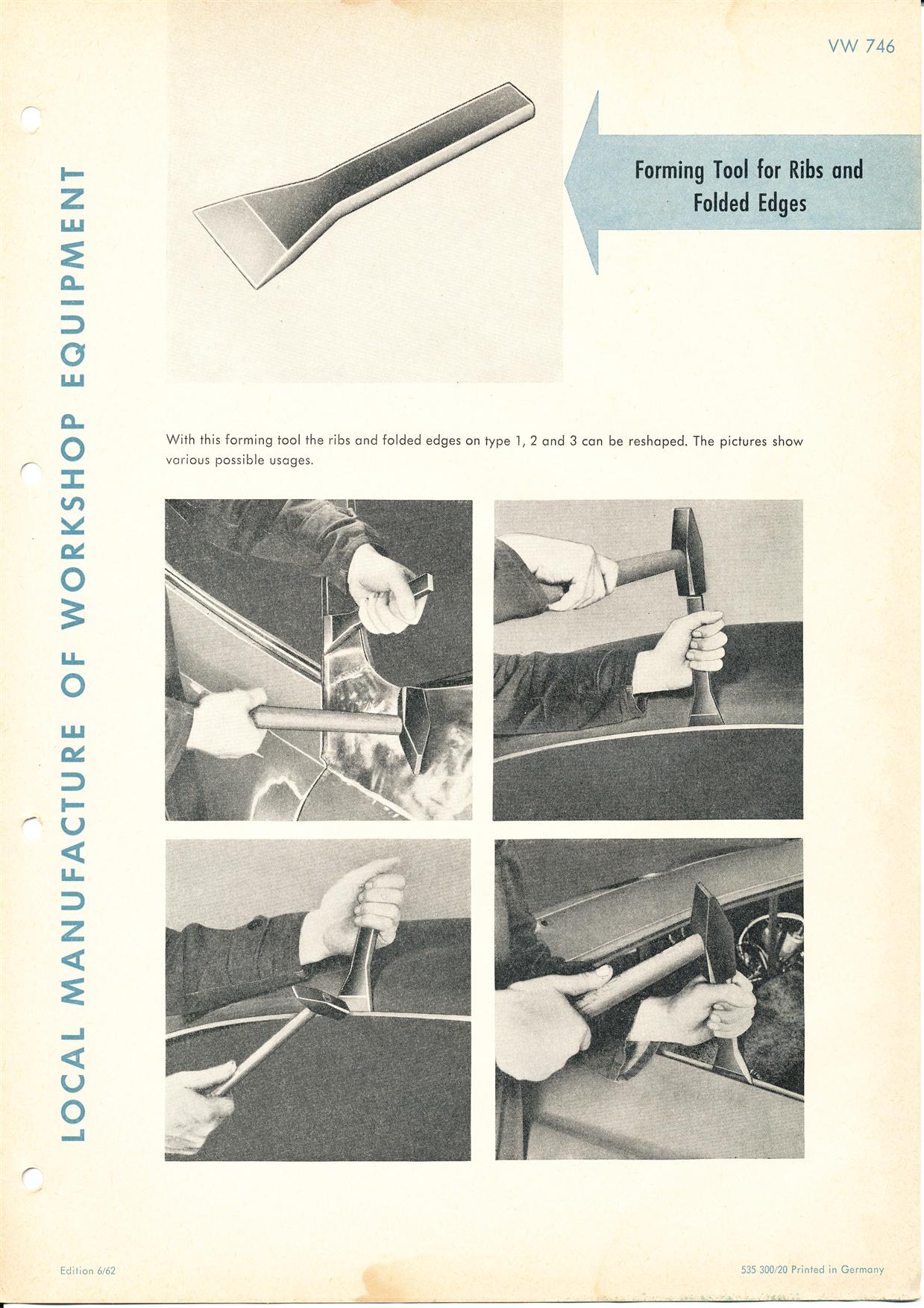

746Forming Tool for Ribs and Folded Edges
For reshaping ribs and folded edges on Types 1, 2, and 3
747Bending Iron
For body work on hollow parts such as door side panels and wheel housings on Types 1, 2, and 3

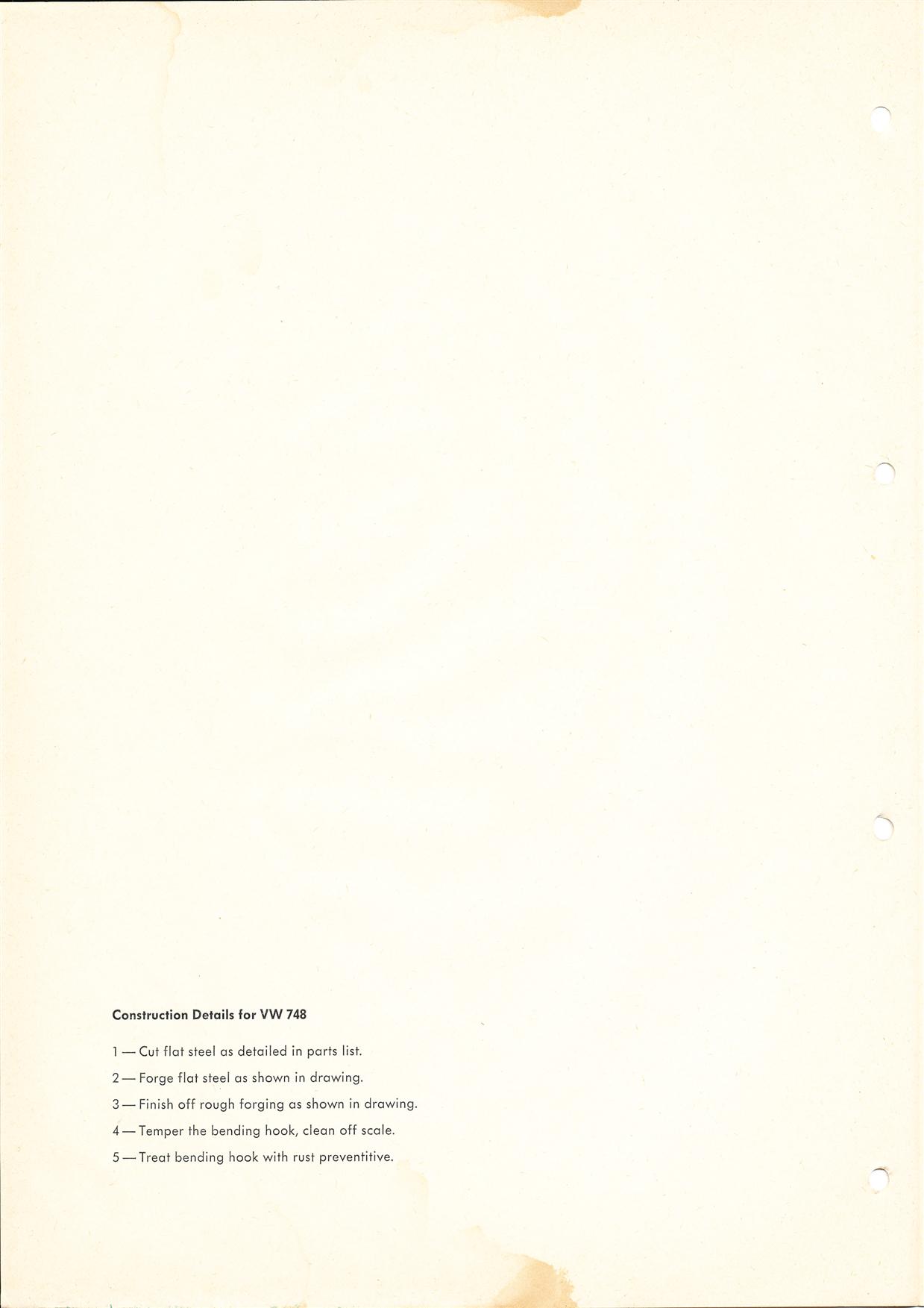

748Bending Hook - Straight
For body work on wheel housing on Karmann Ghia
749Bending Hook - Curved
For body work on Karmann Ghia

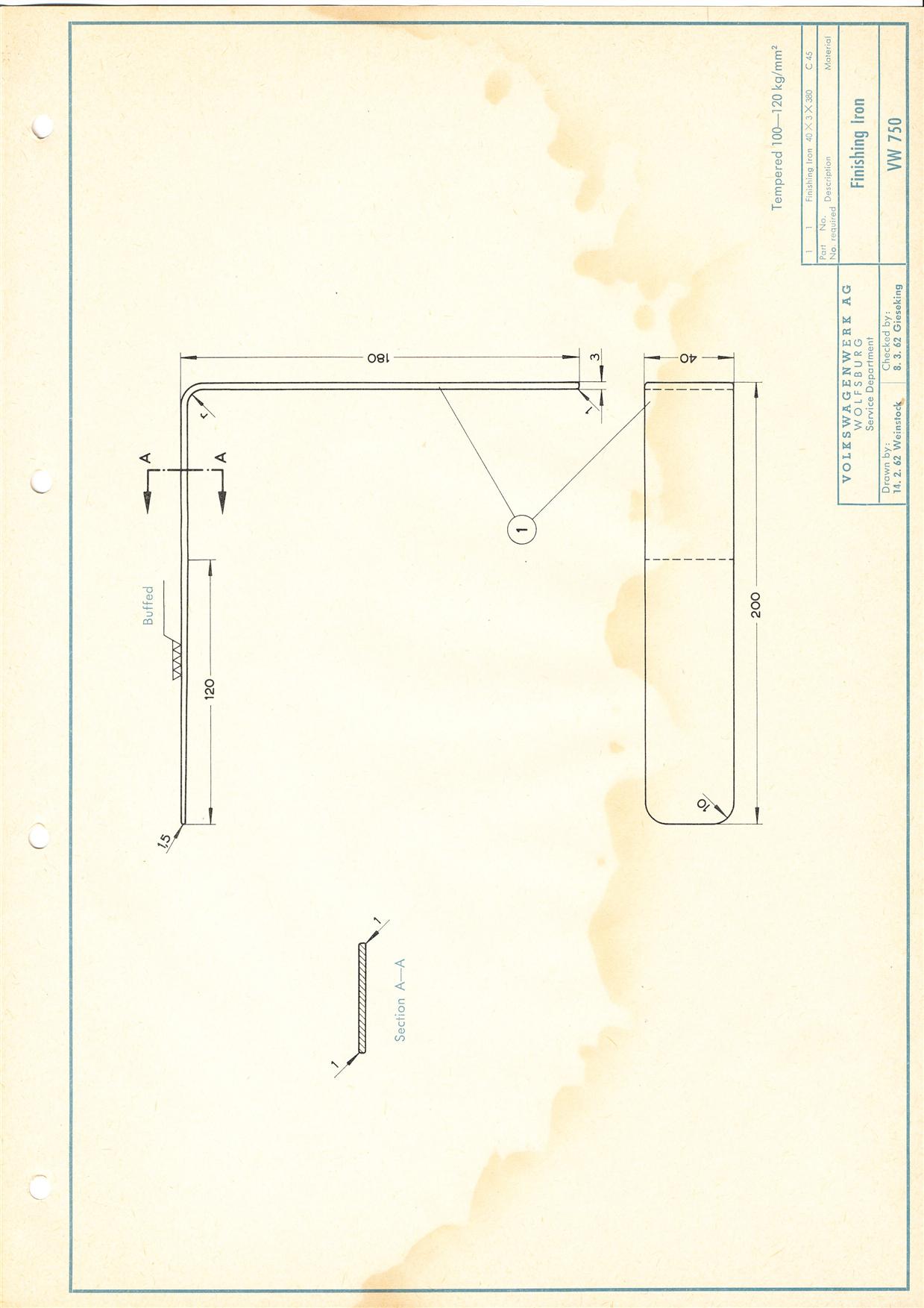

750Finishing Iron
For body work on painted surfaces on Types 1, 2, and 3

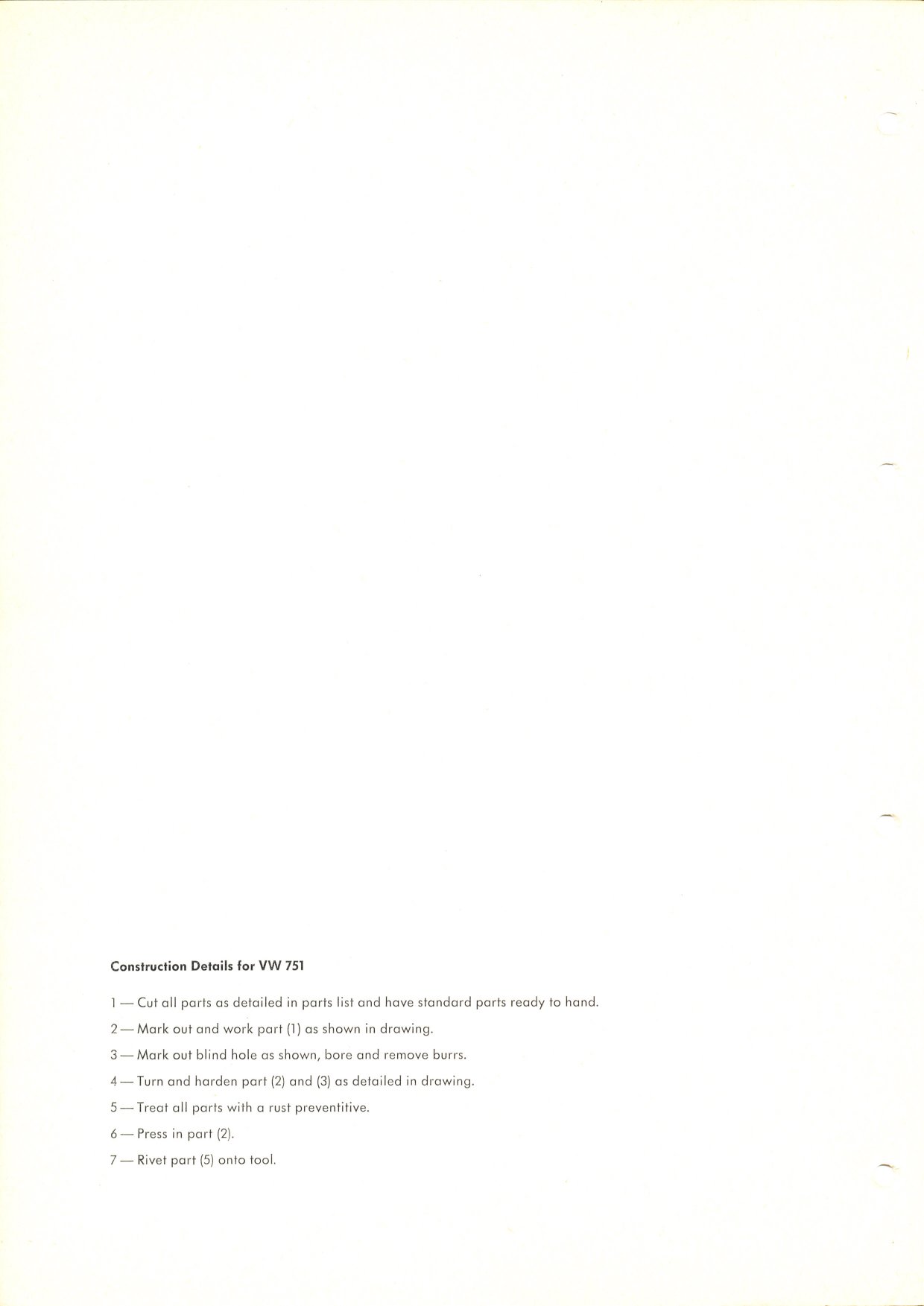

751Hinge Pin Removal and Installation Tool, Type 3
For removing and installed the door hinge pins

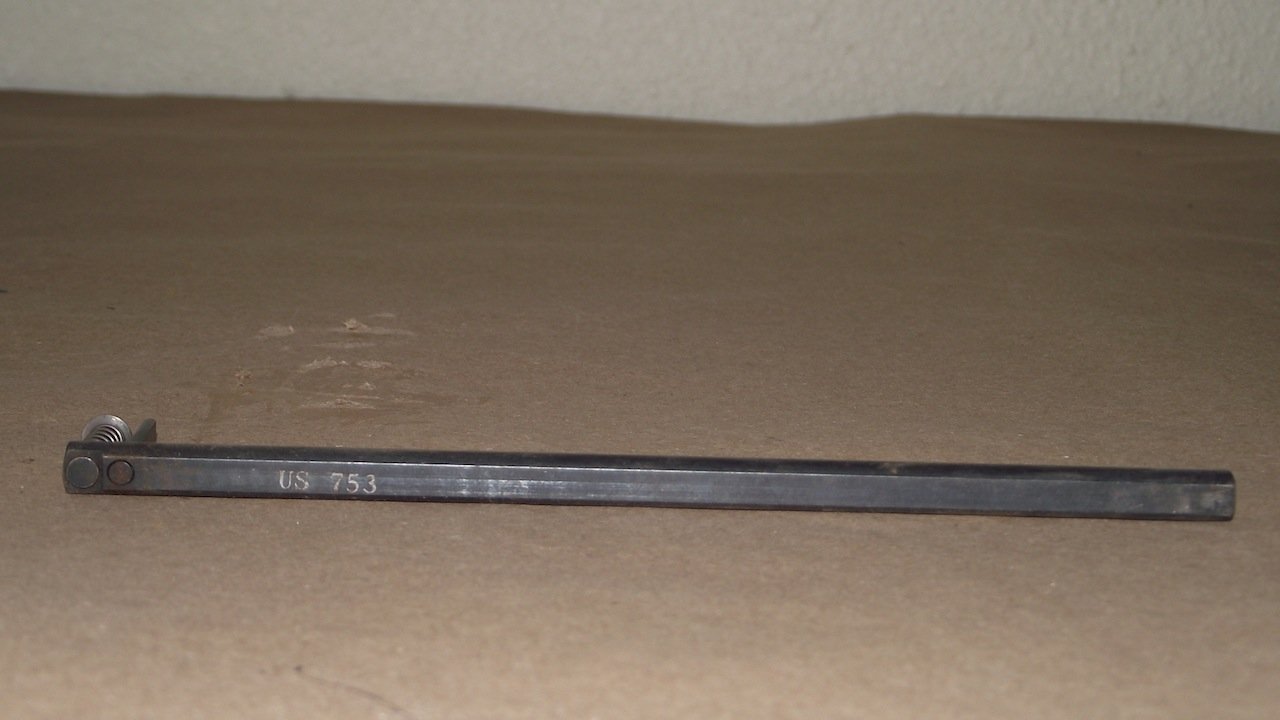

753Appliance for Checking Brake Lining Wear
Type 2 - Brake Drum 250 mm dia.
Type 3 - Brake Drum 248 mm dia.

For checking the thickness of the brake linings while assembled

754Headlamp Housing Jig, Type 3  (models 343 to 346)
For installing the headlamp housing on the Type 34

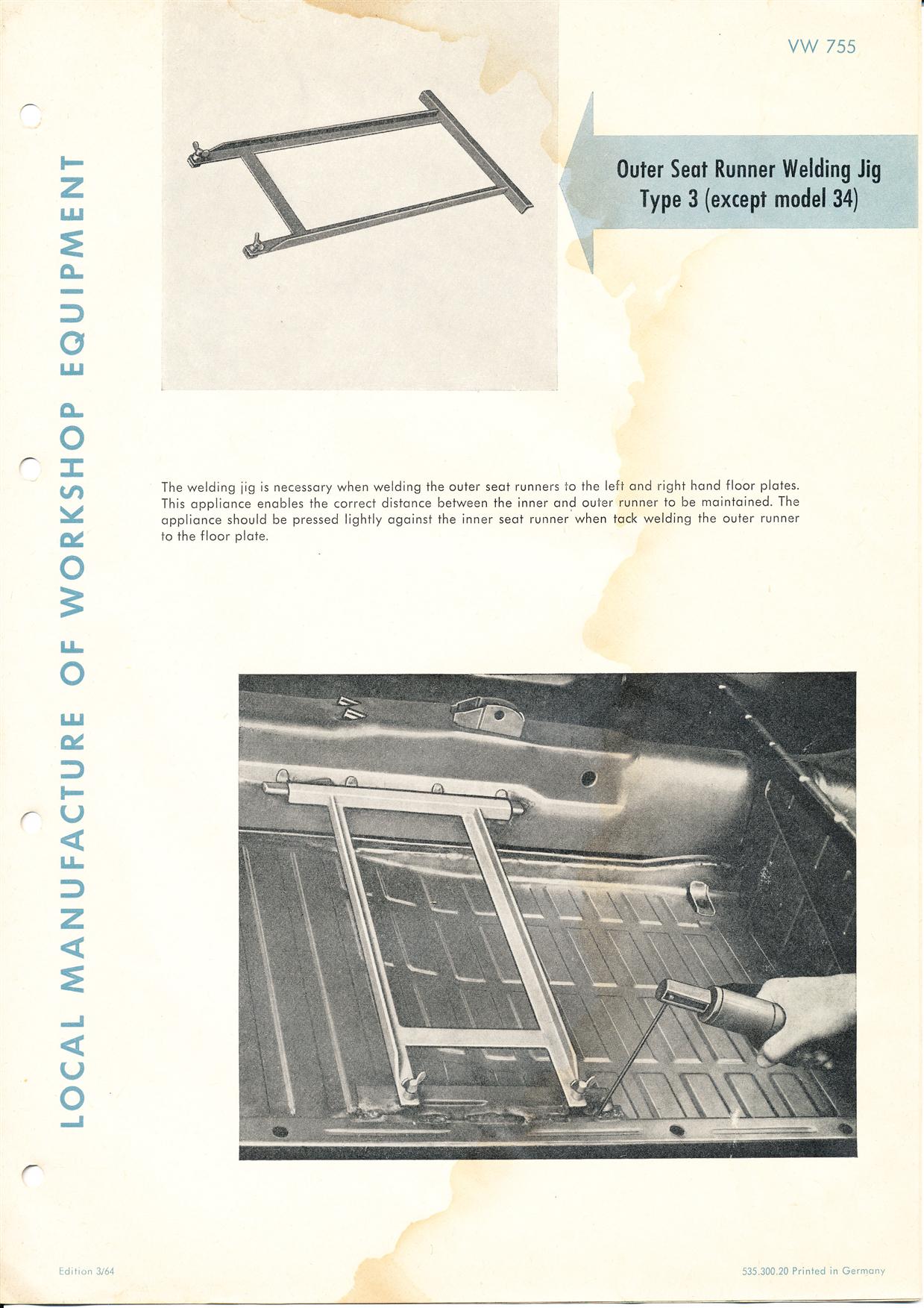

755Outer Seat Runner Welding Jig
For maintaining correct distance between seat runners on Type 3 except model 34
756Drift for DU Bearings and Needle Bearings, lower, Type 3
For installing the bearings into the front axle tube

757Drift for DU Bearings and Needle Bearings, upper, Type 3
For installing the bearings into the front axle tube

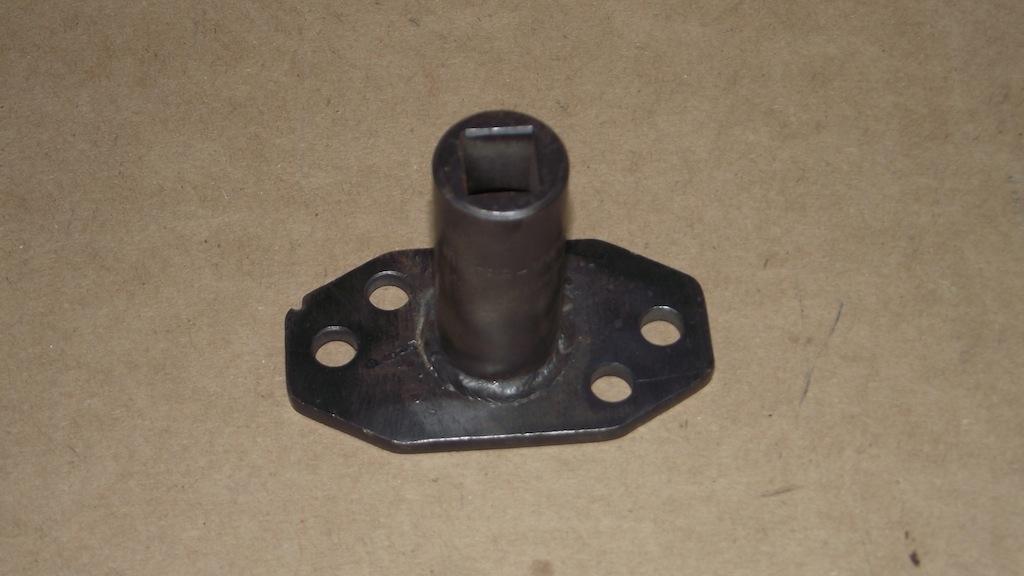

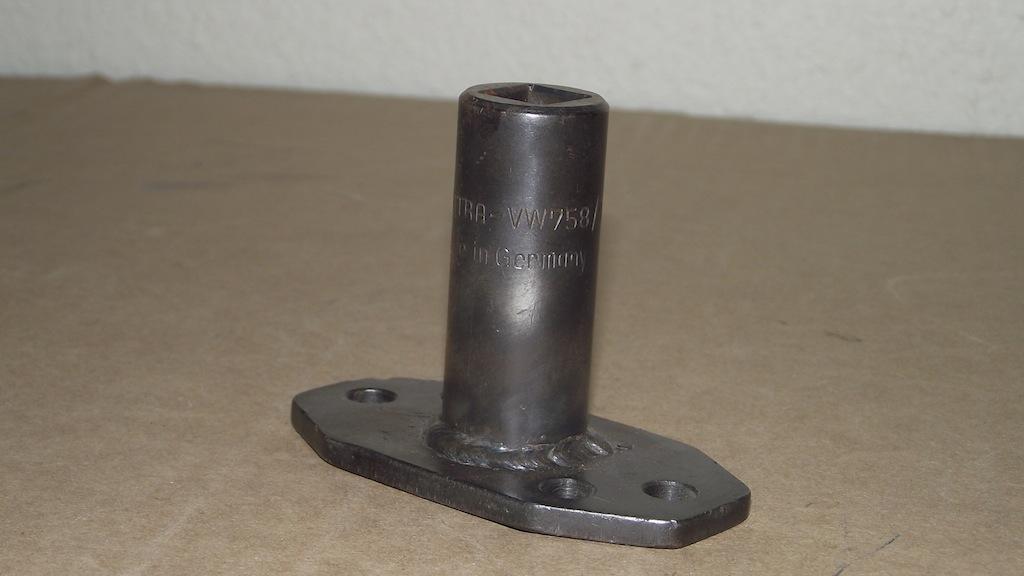

758/1Adapter for Steering Worm, Types 1, 2, 3
For making adjustments to the steering gear, in conjunction with a torque gauge

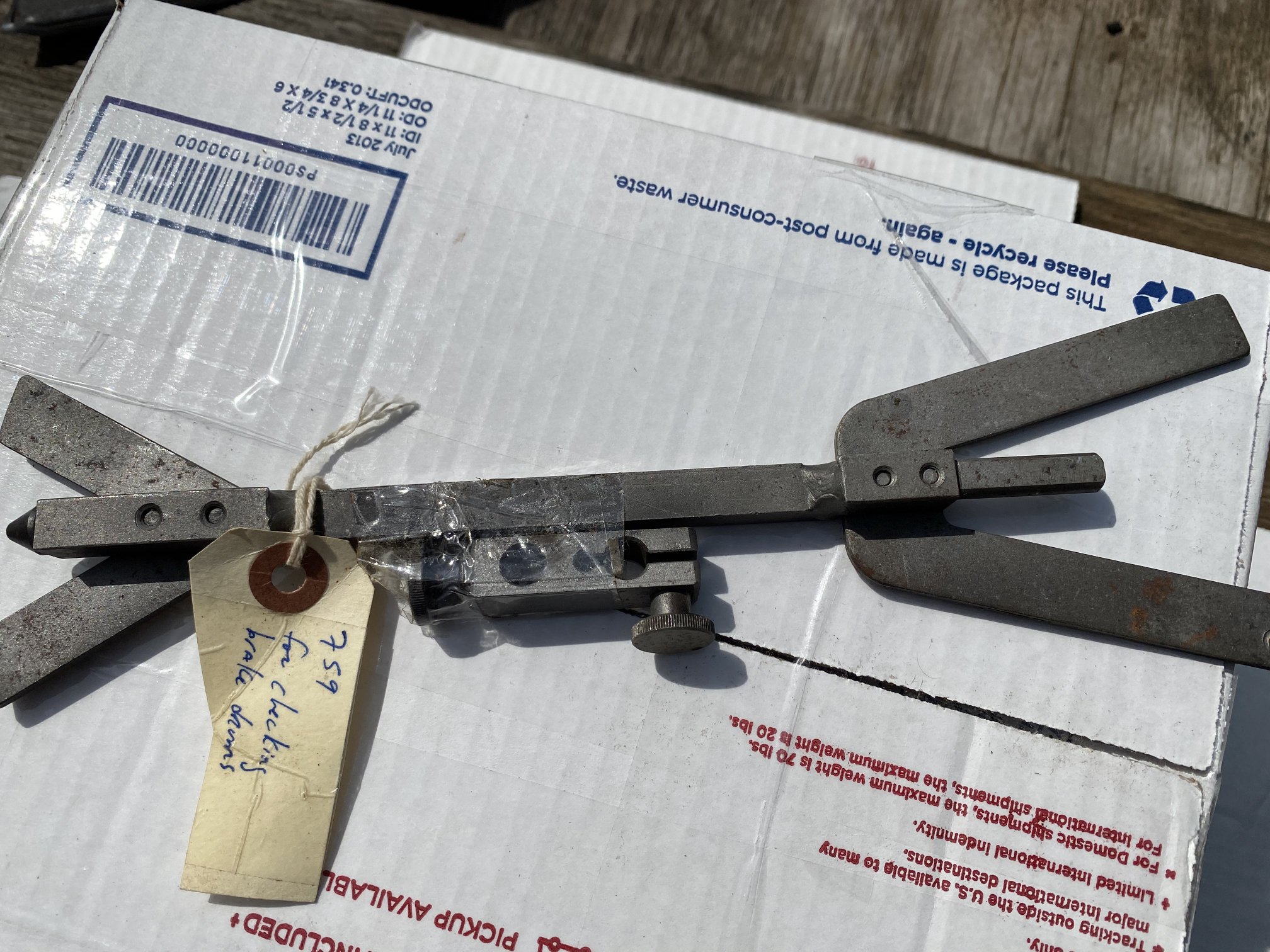

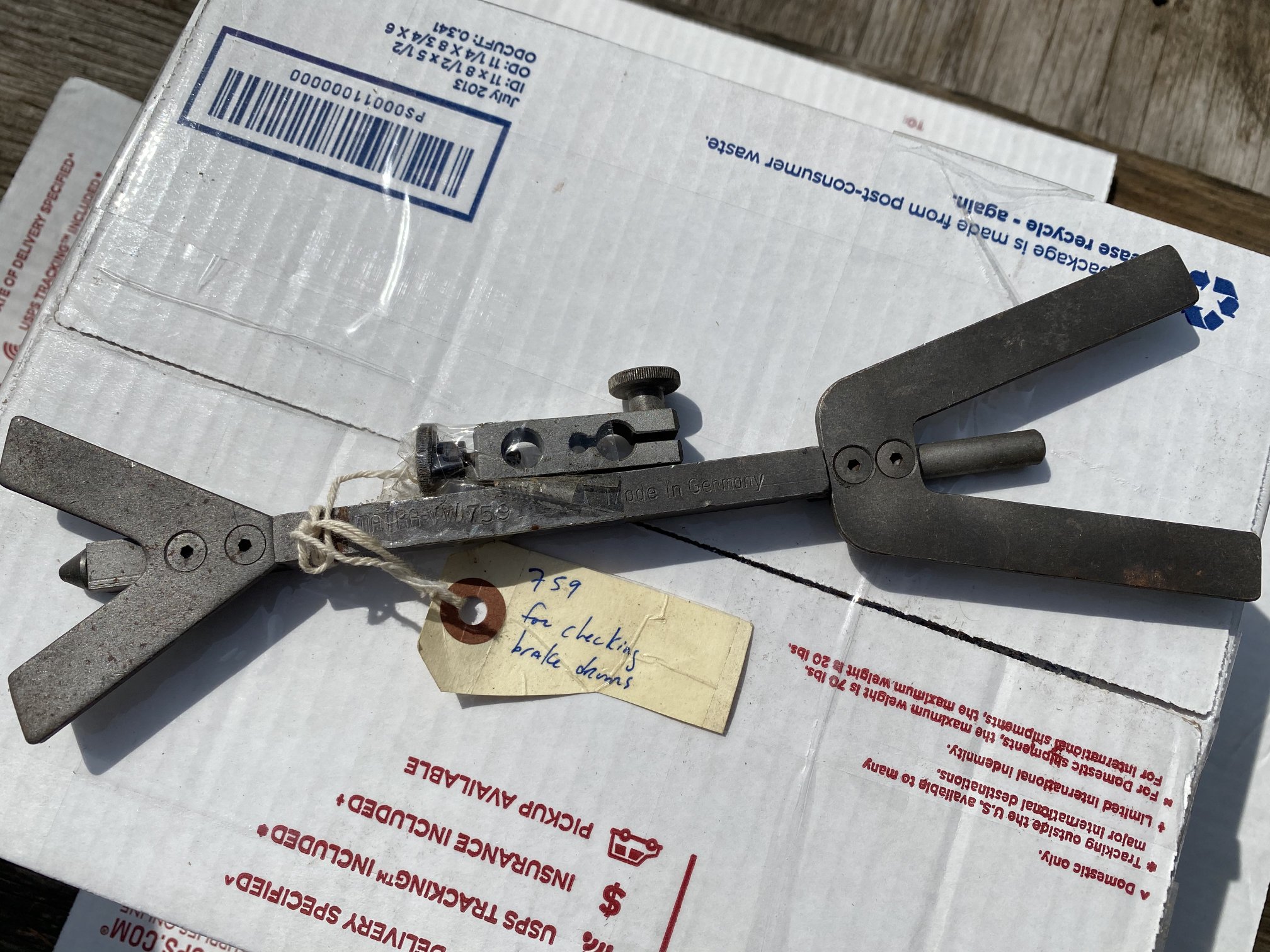

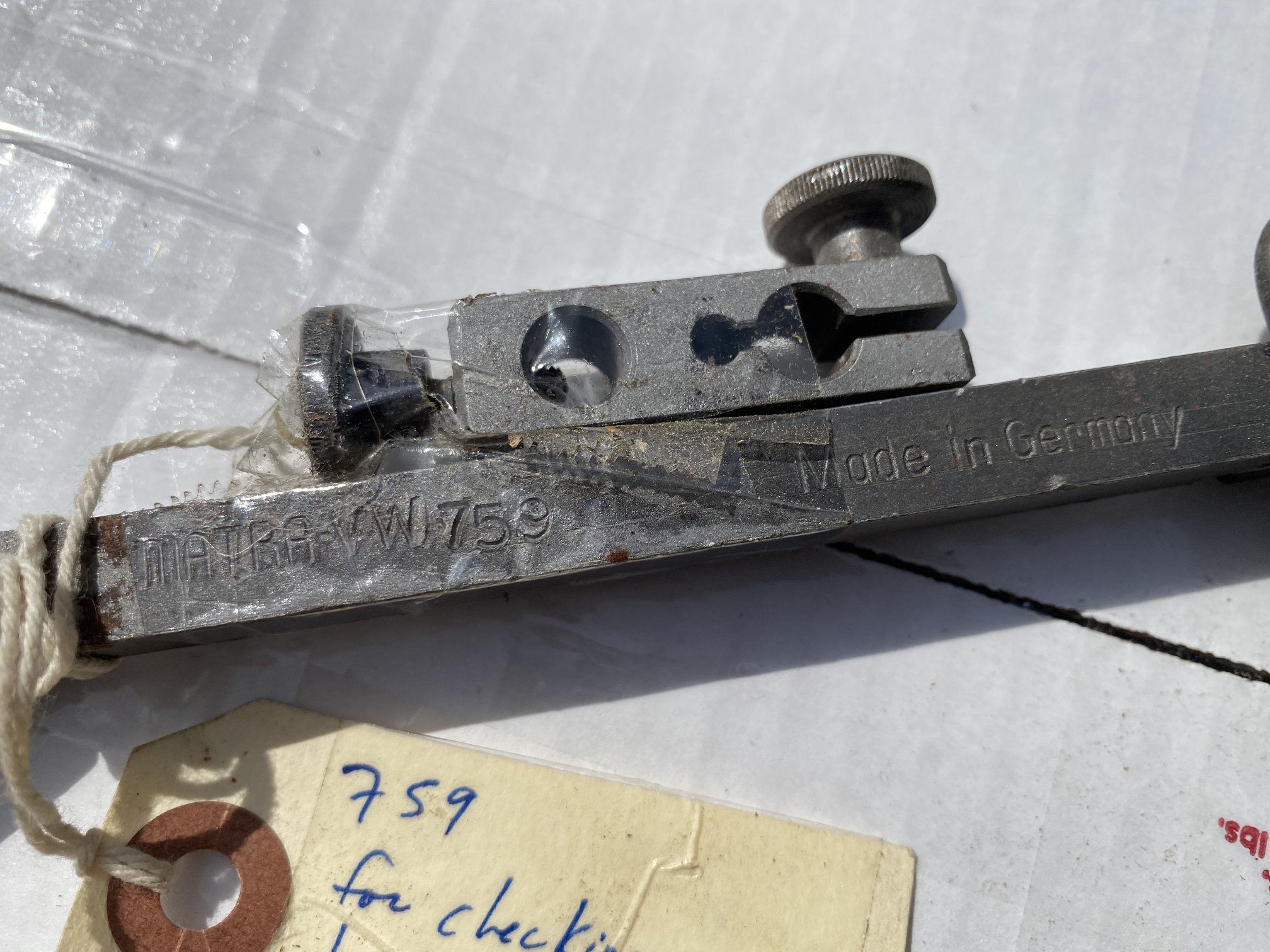

759Appliance for Checking Brake Drum Ovality, Types 1, 2, 3
For checking the ovality of the brake drum while still screwed to the wheel disc

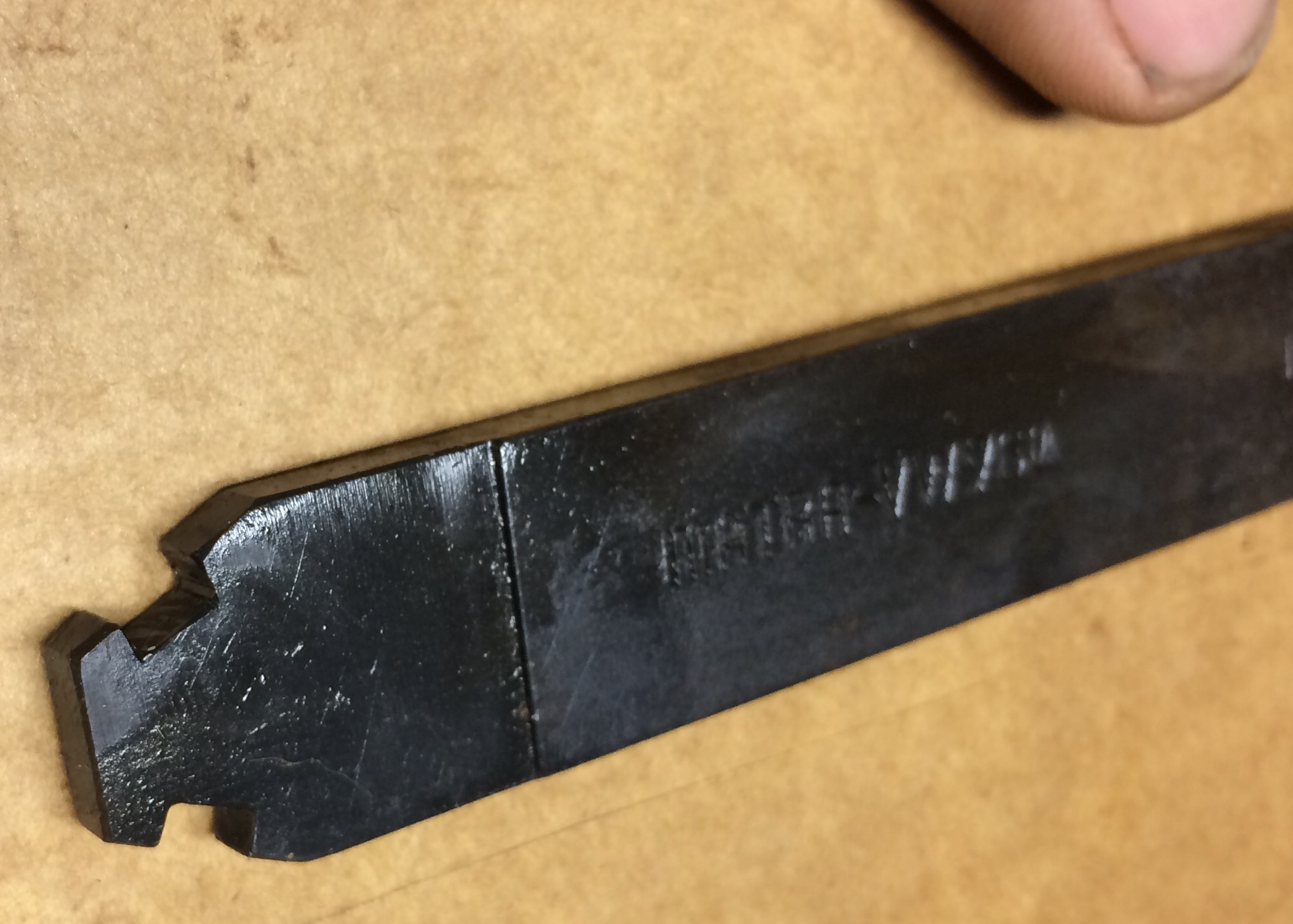

760King Pin Bush Slotting Tool, Type 1
For cutting out slots in upper king pin bushings

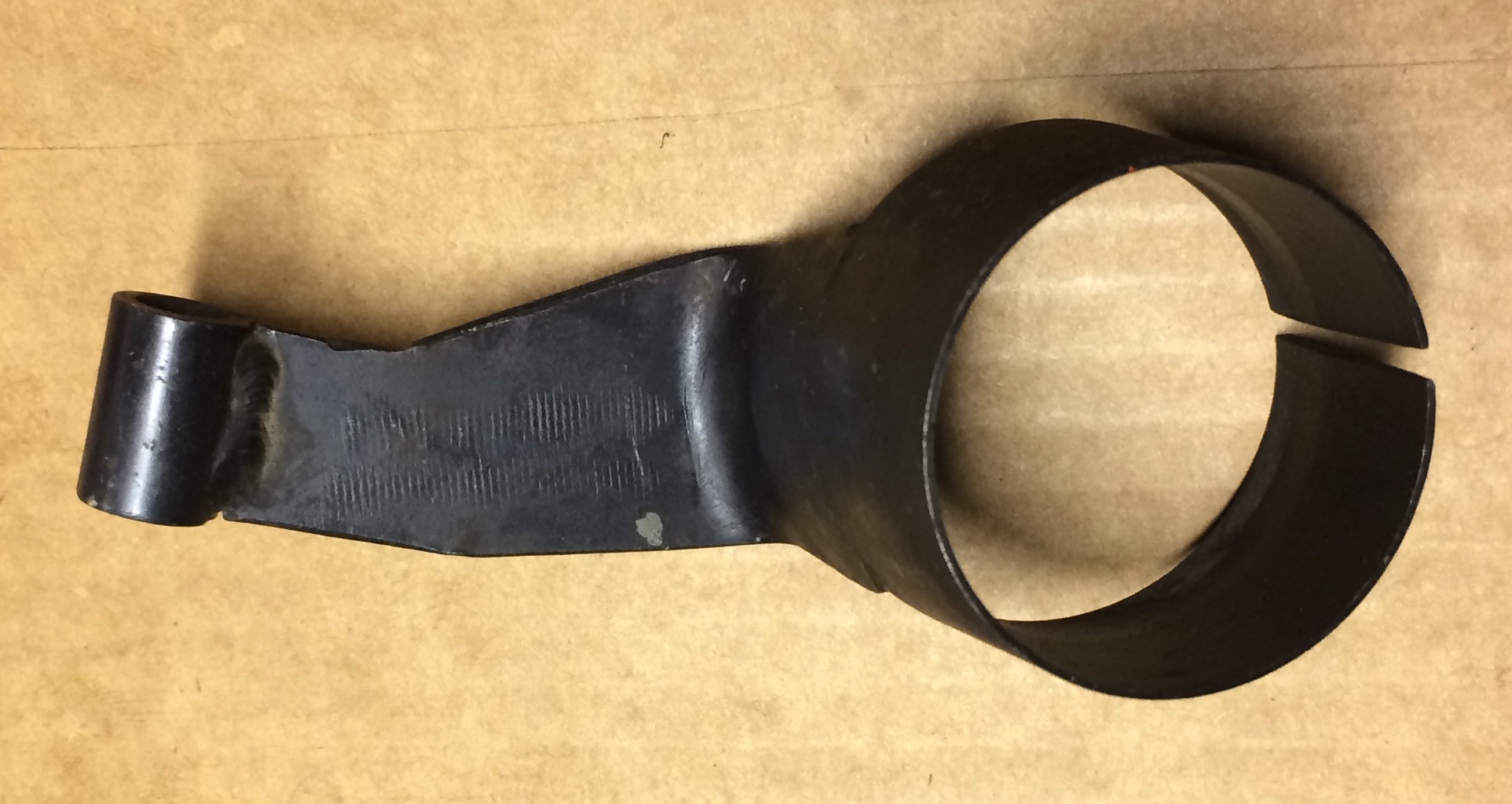

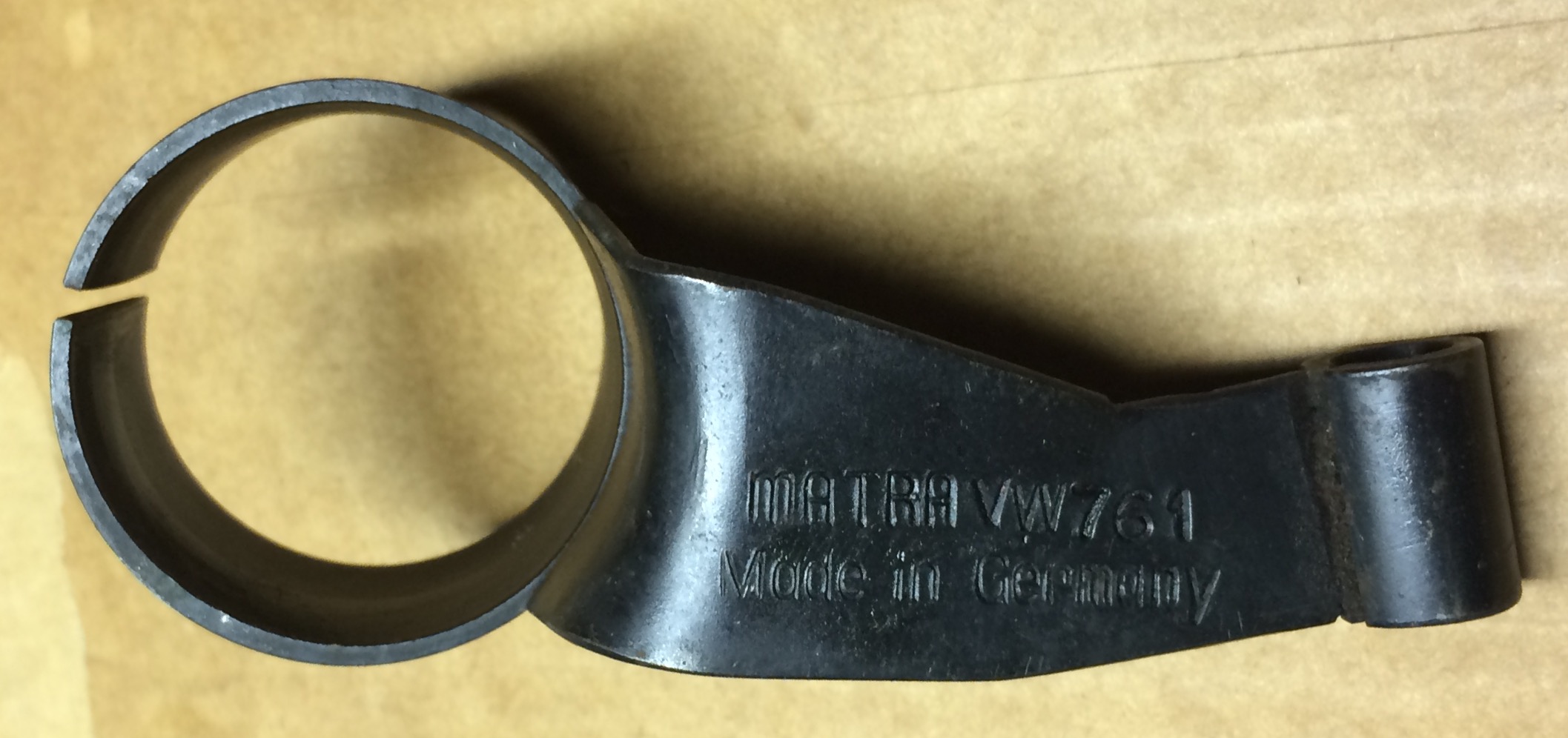

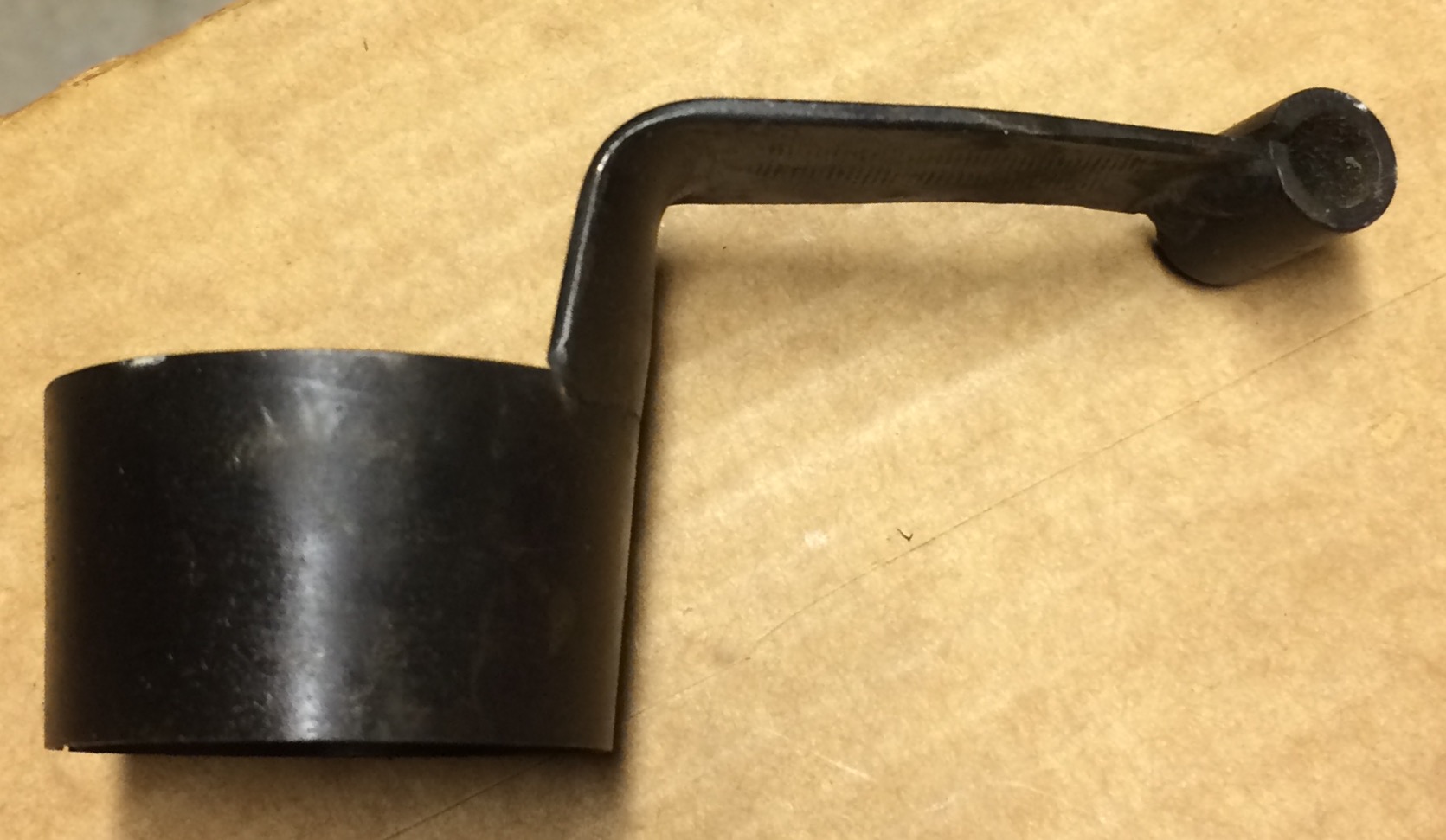

761Bracket for Dial Gauge When Checking Backlash
Type 1 - up to Chassis No. 3192 506
Type 2 - up to Chassis No. 469 505
For checking back lash with a dial gauge
763Vehicle locating guide for Types 1, 2 and 3
For locating wheels of vehicles when they are driven into the work bay

764Mounting sleeve for flexible quarter window, Type3/1600TL
For protecting the threads of the bolt when installing quarter window

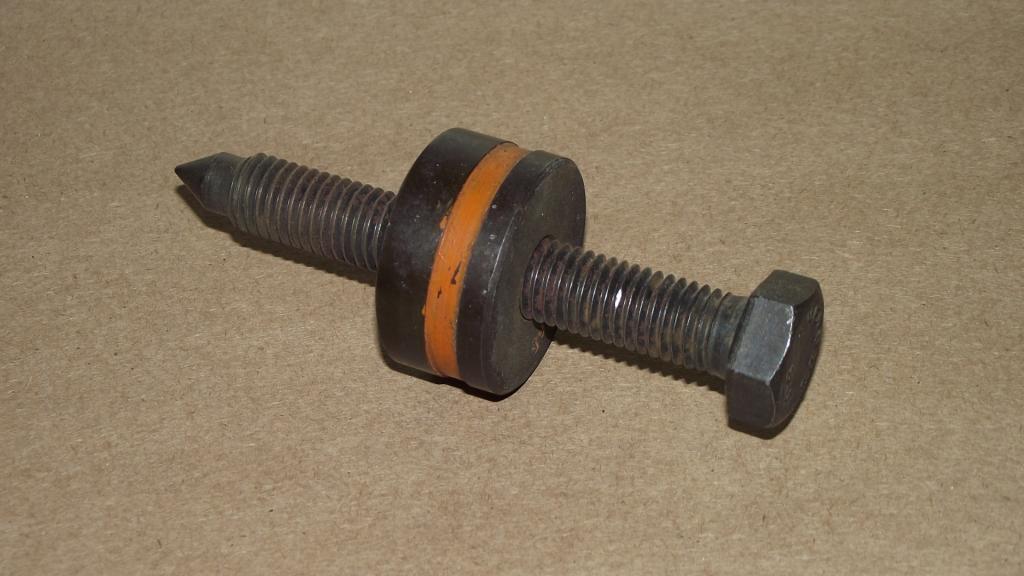

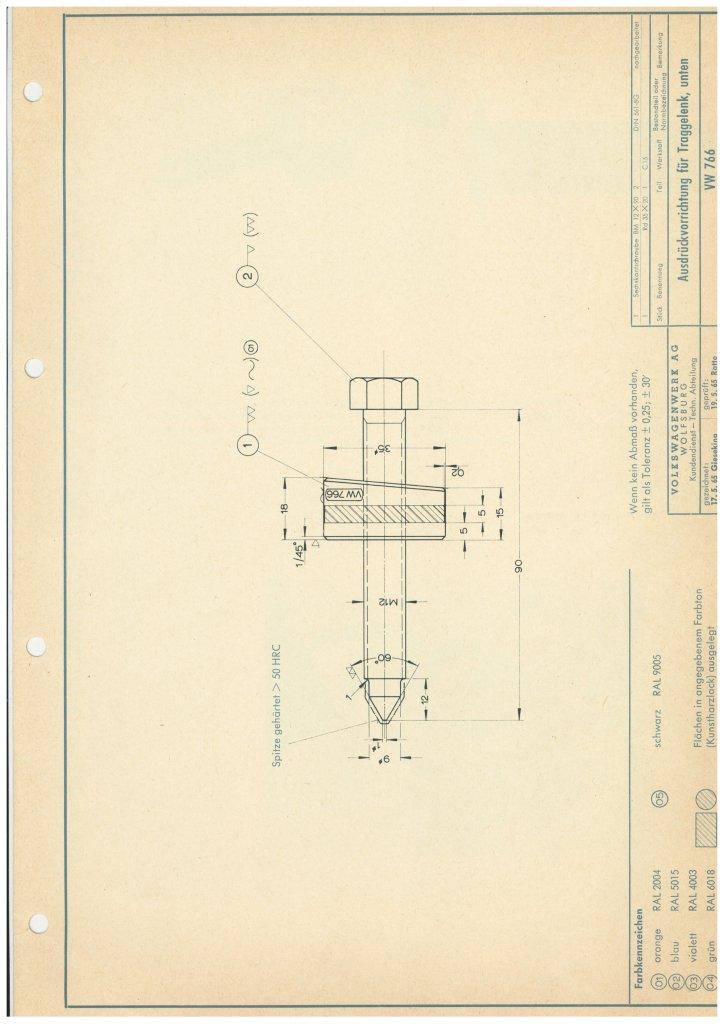

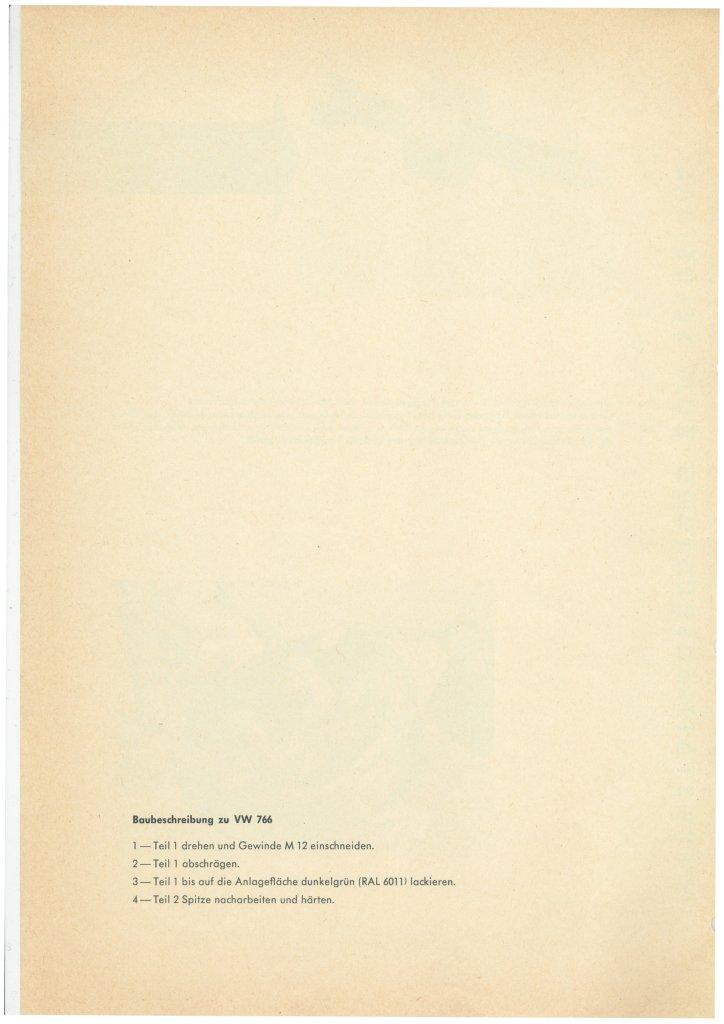

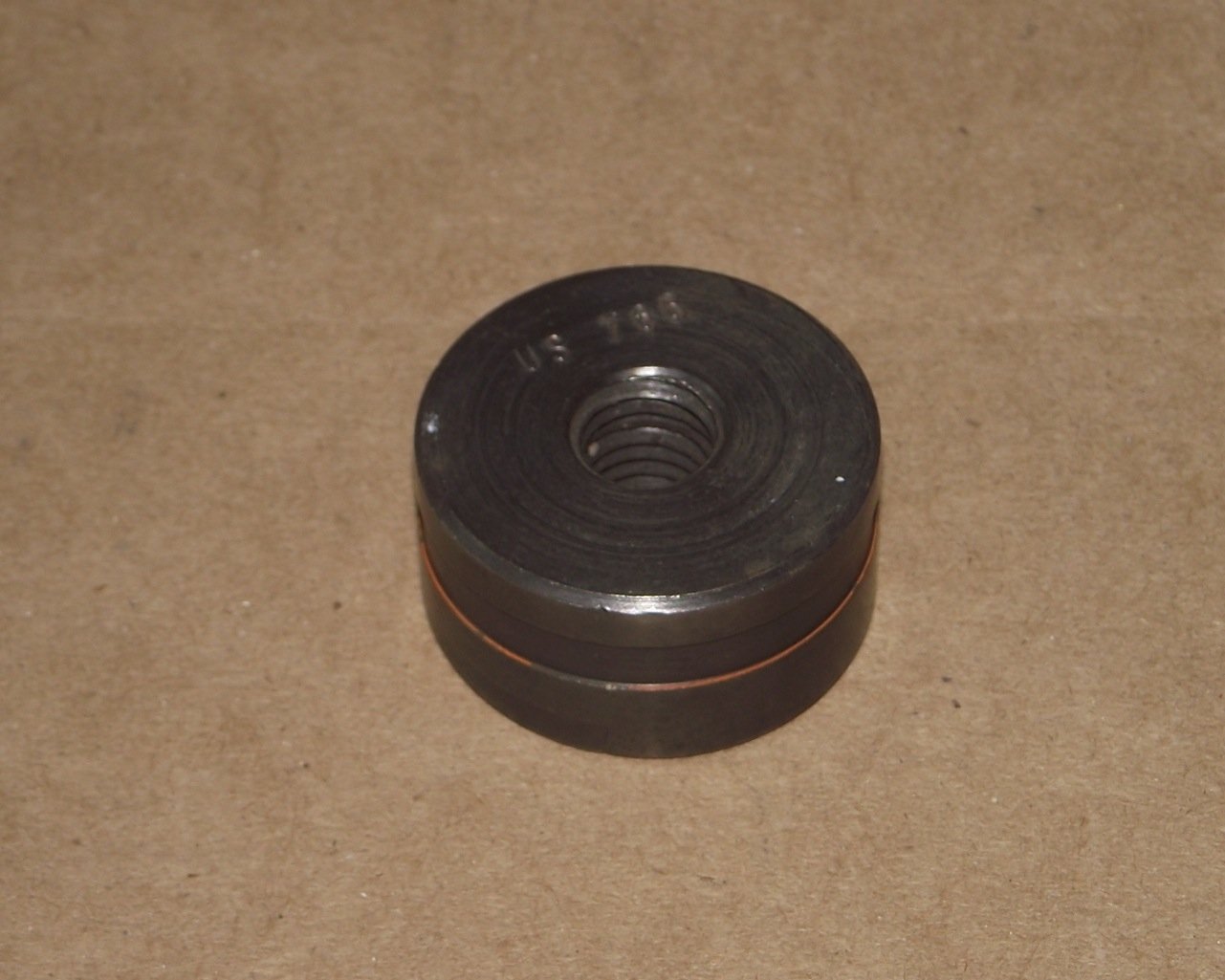

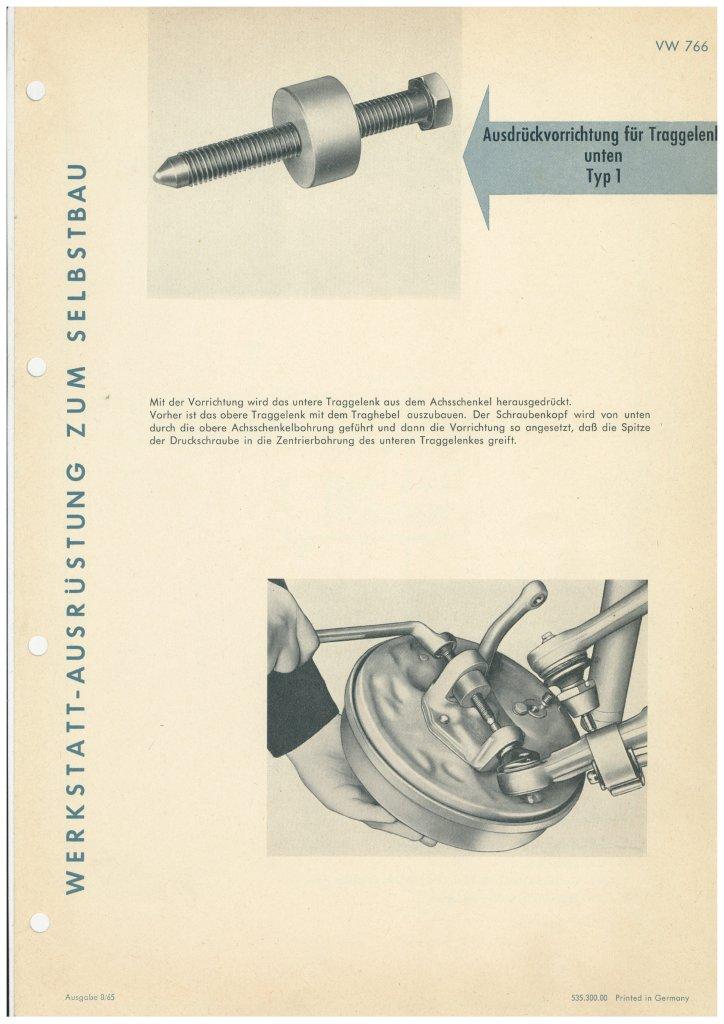

766Removal Appliance for lower ball joint, Type 1
For removing lower ball joint from steering knuckle

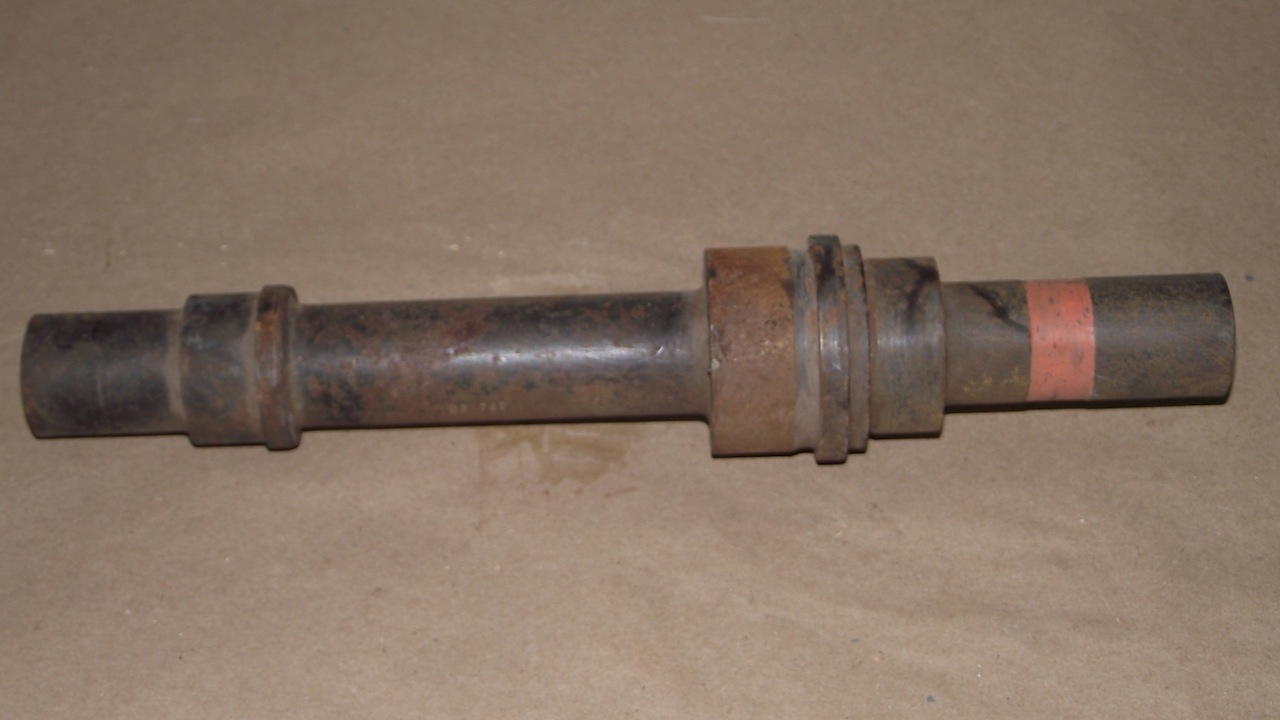

767Drift for DU Bearings and Needle Bearing, Lower, Type 1
For driving lower DU and needle bearing into front axle tube

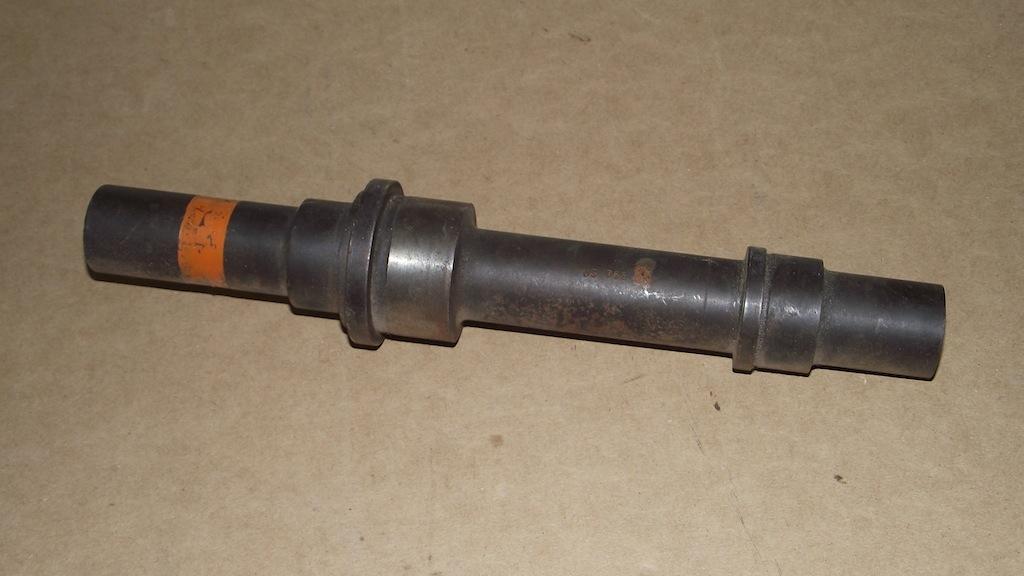

768Drift for DU Bearings and Needle Bearing, Upper, Type 1
For driving upper DU and needle bearing into front axle tube

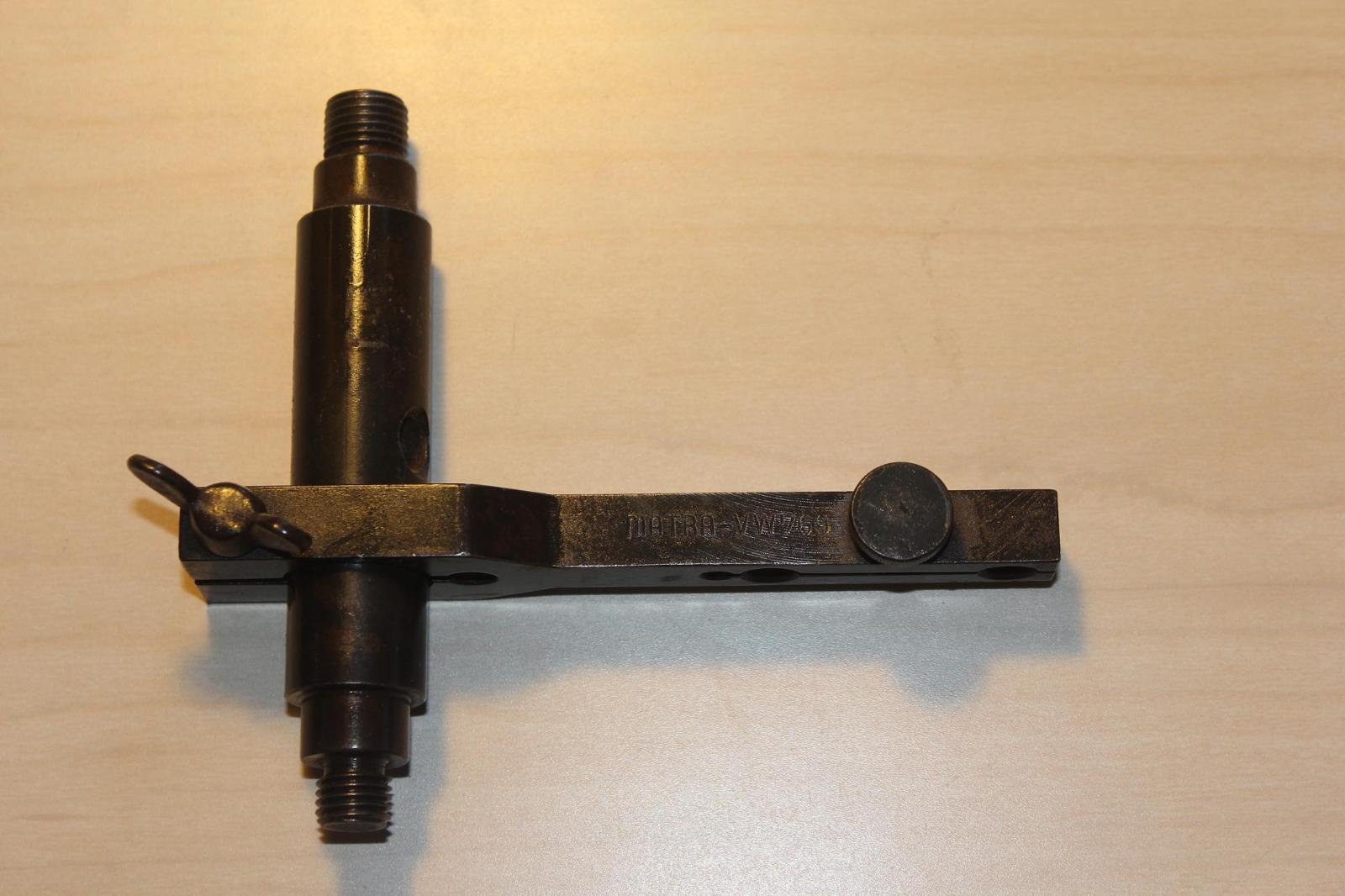

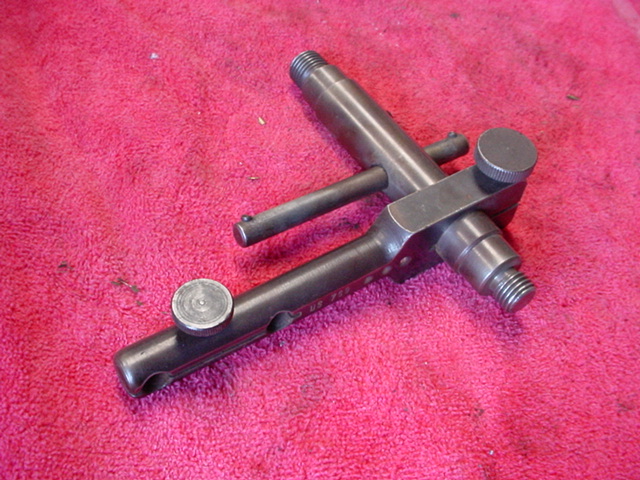

769Dial Gauge Bracket for use when Adjusting Wheel Bearing Play, Types 1, 2 and 3
For checking and setting outer wheel bearing play, front axle, with dial gauge
770Assembly Bench, Types 1, 2, 3, 122, 124, 126
For holding the engine, rear axle complete with transmission, and front axle

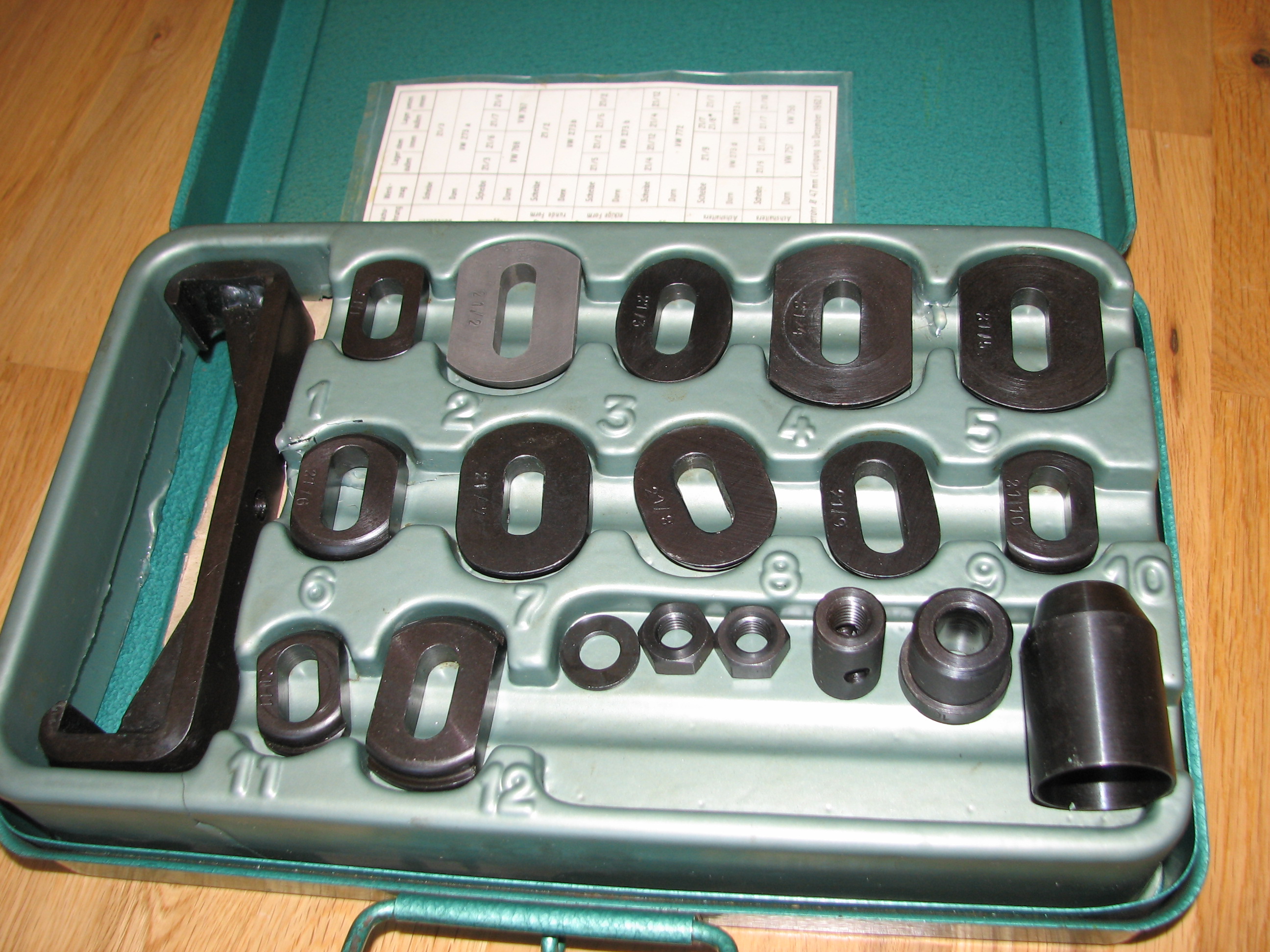

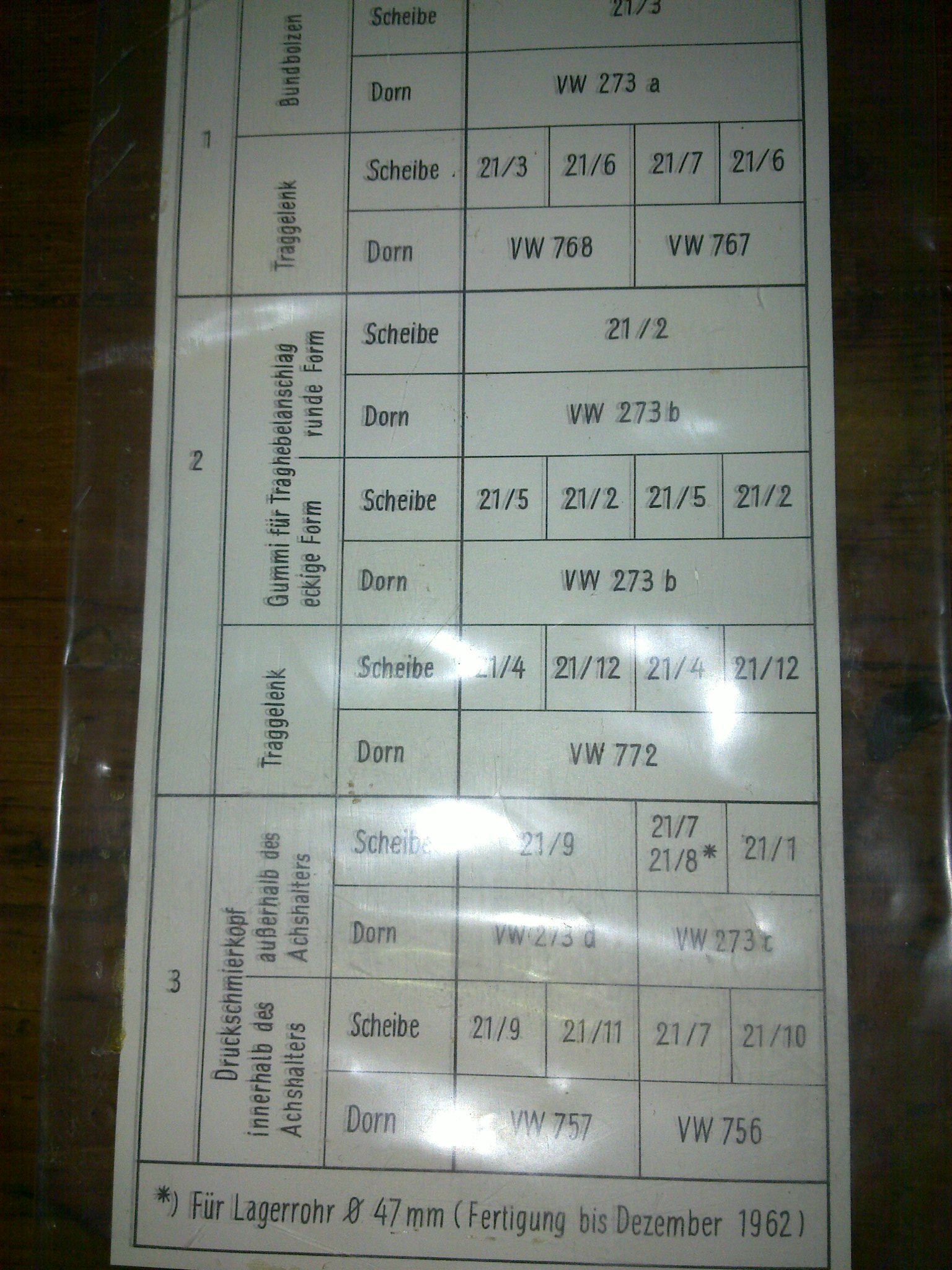

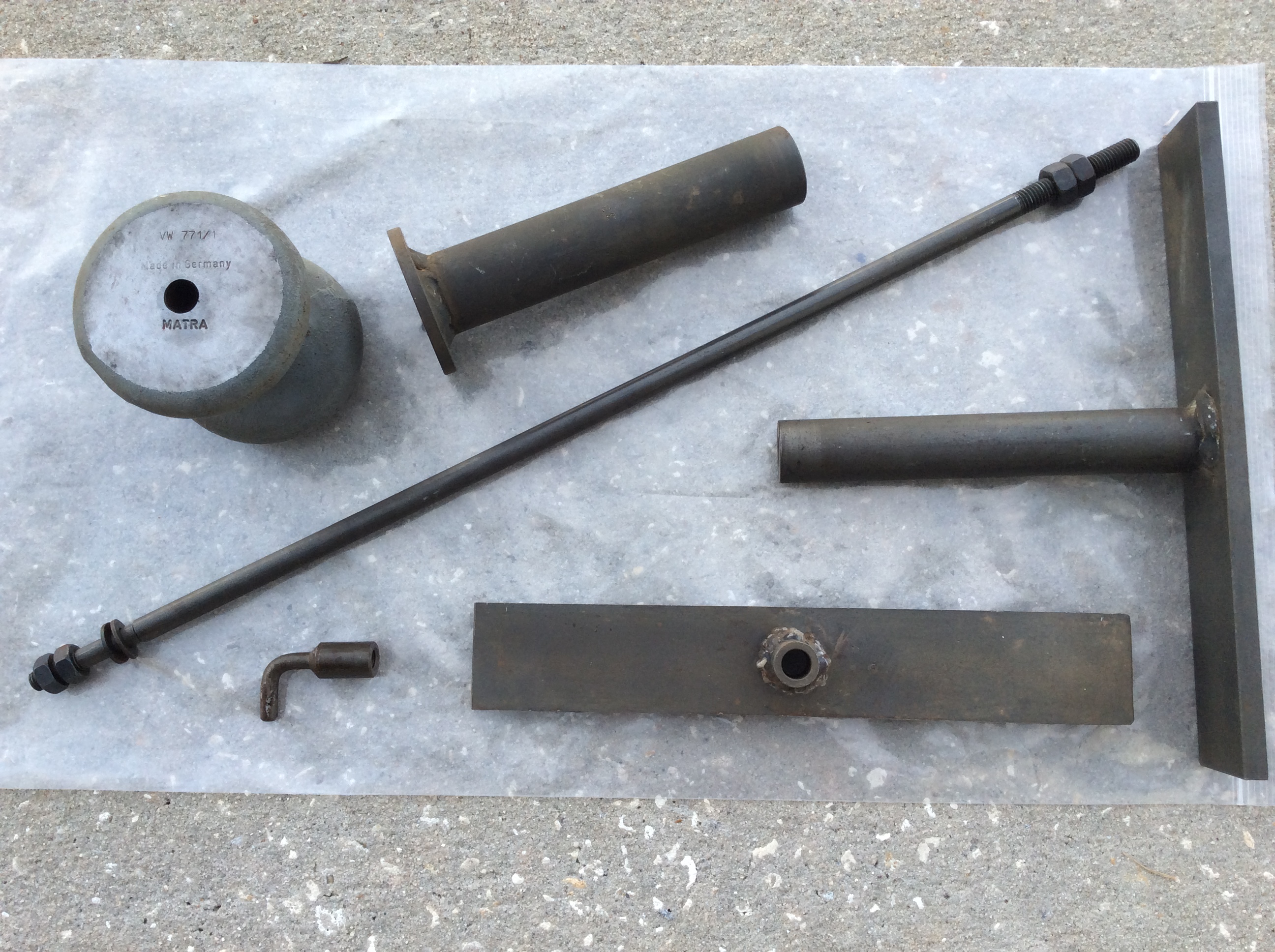

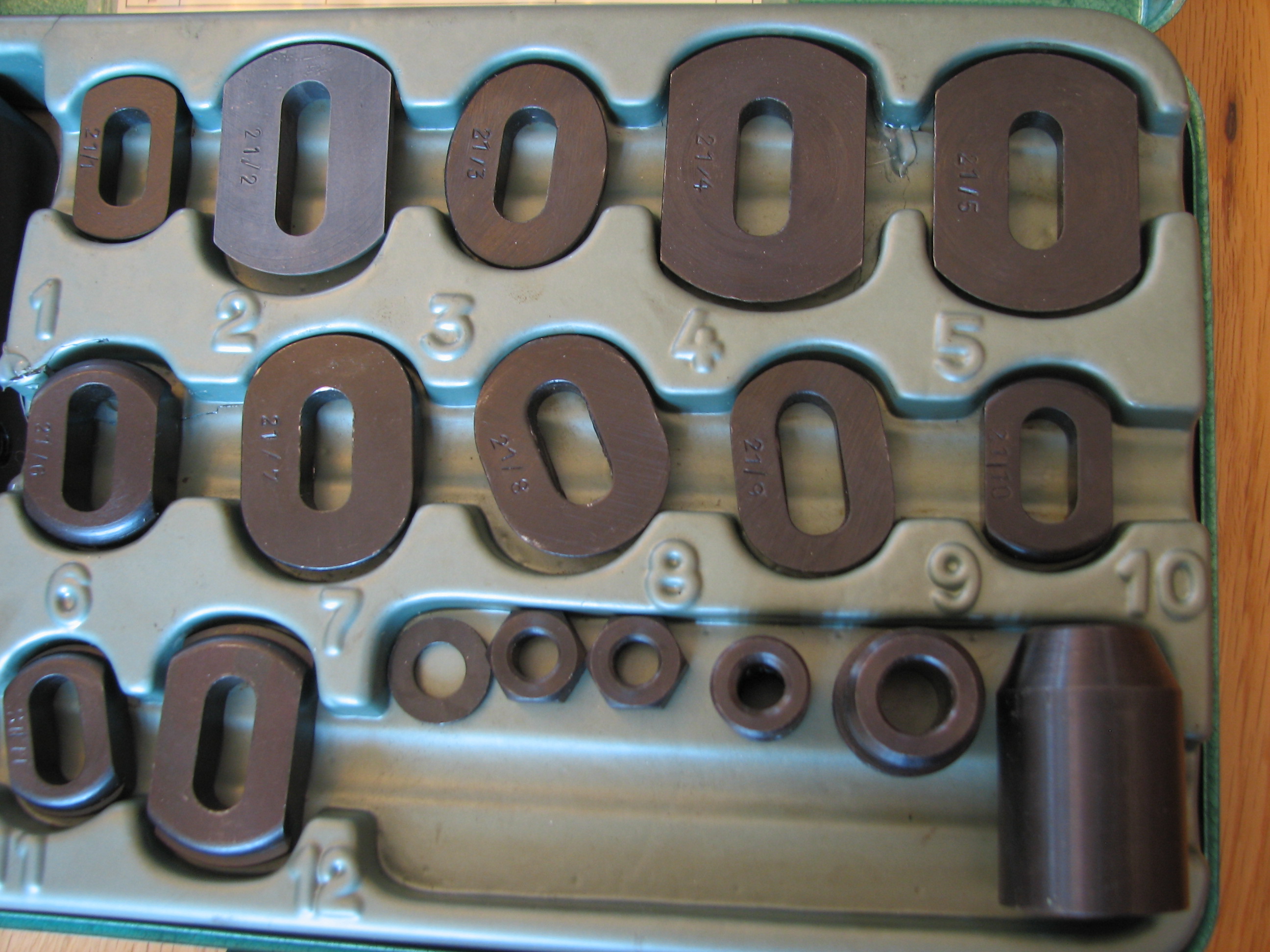

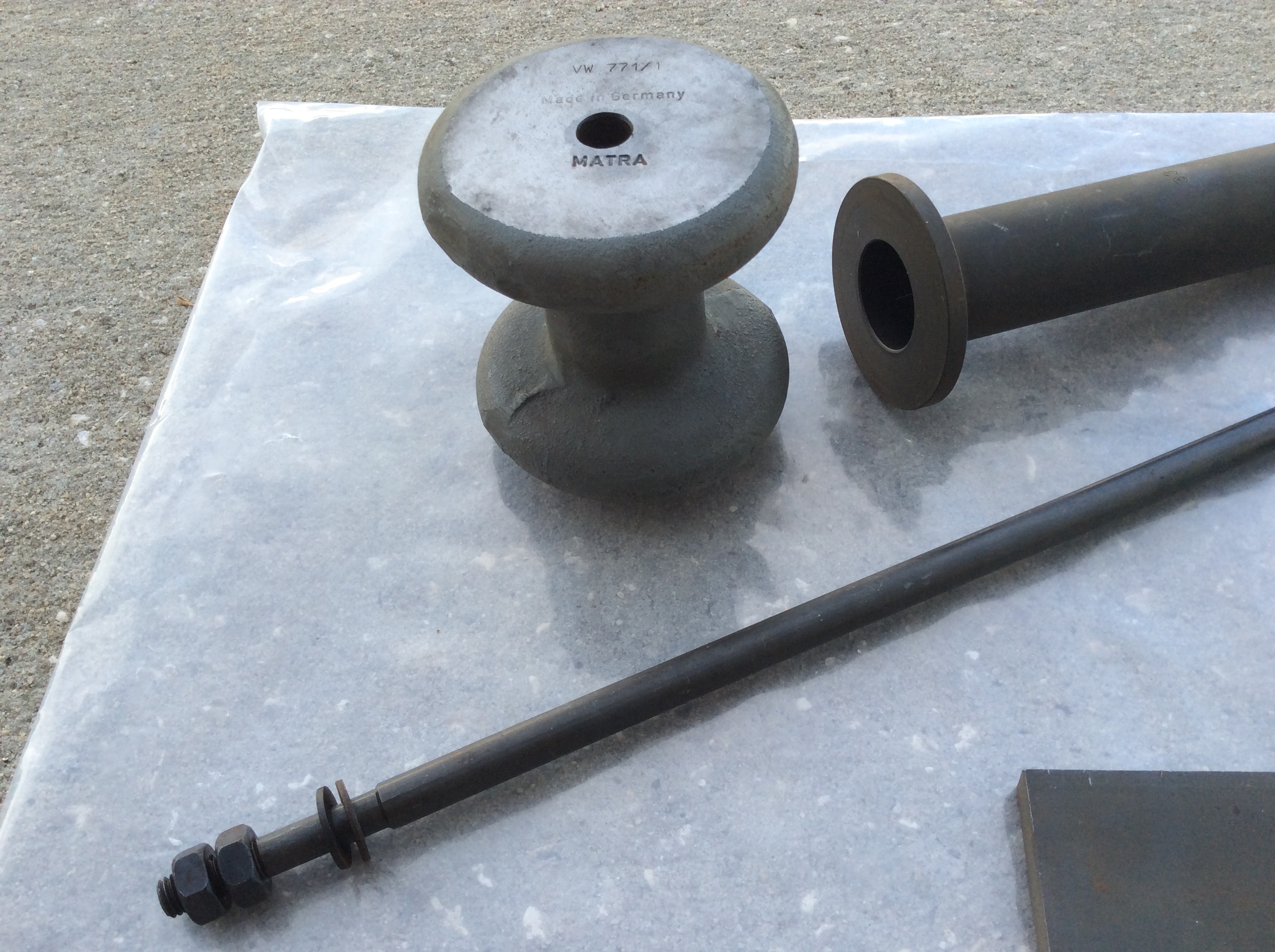

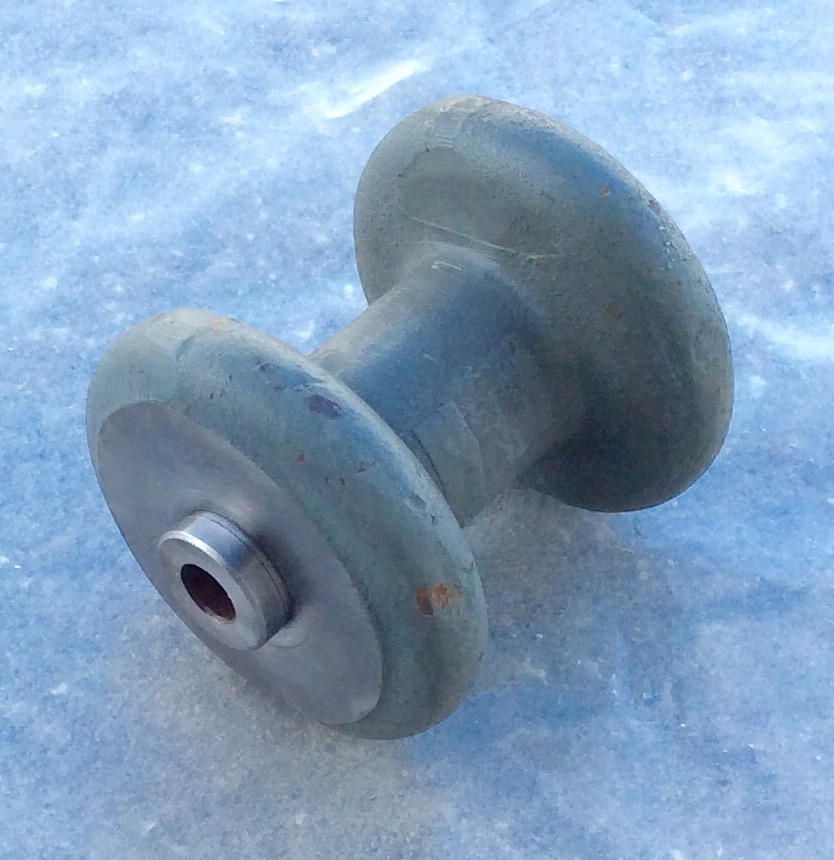

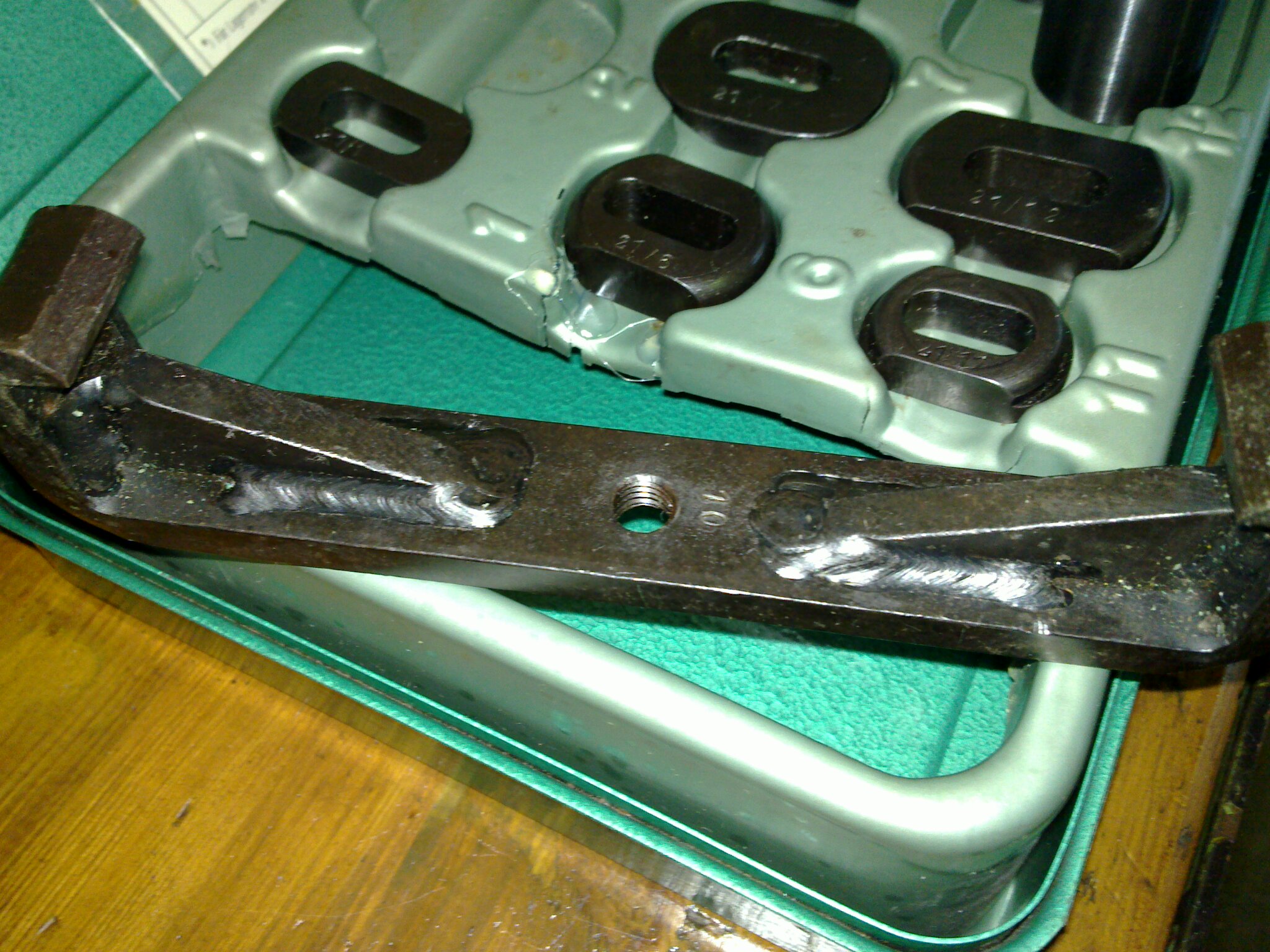

771Multi-purpose Tool
Ausziehscheiben für Nadellager / Buchsen am Vorderachskörper

(Pull-out discs for needle bearing / sockets in the front axle)


Slide hammer and misc. parts

771-21/1 bis 771-21/12 und 771-10, 771-14, 771-15, 771-16 von Matra
US 771-22Bracket for VW 771 for removal of transmission side covers, automatic only. Type 1 & 3
772Drift for Installing DU Bushes and Needle Bearing, Upper and Lower, Type 2
For driving upper and lower DU bushes and needles bearings into axle beam

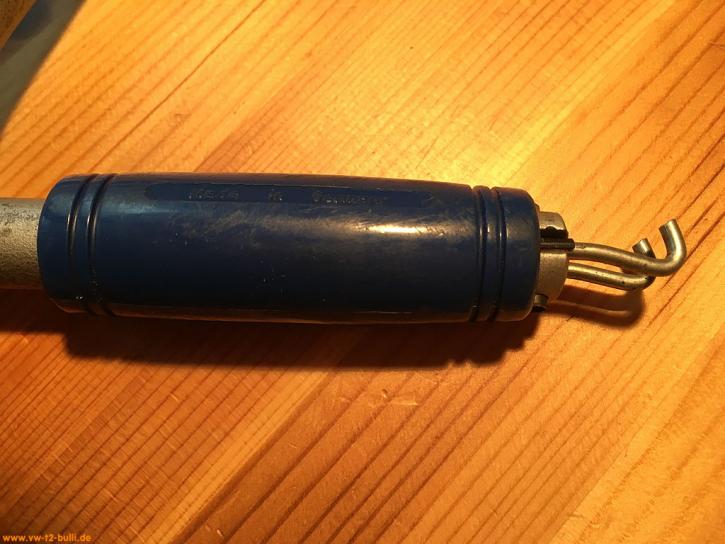

773
Hazet
Wheel and hubcap tool
774Tool for Checking Disc Brake Pad Wear, Type 3
For checking the thickness of the front brake pads with the front wheels fitted

775Puller for wheel caps From Zelenda VW Special Tools Catalog

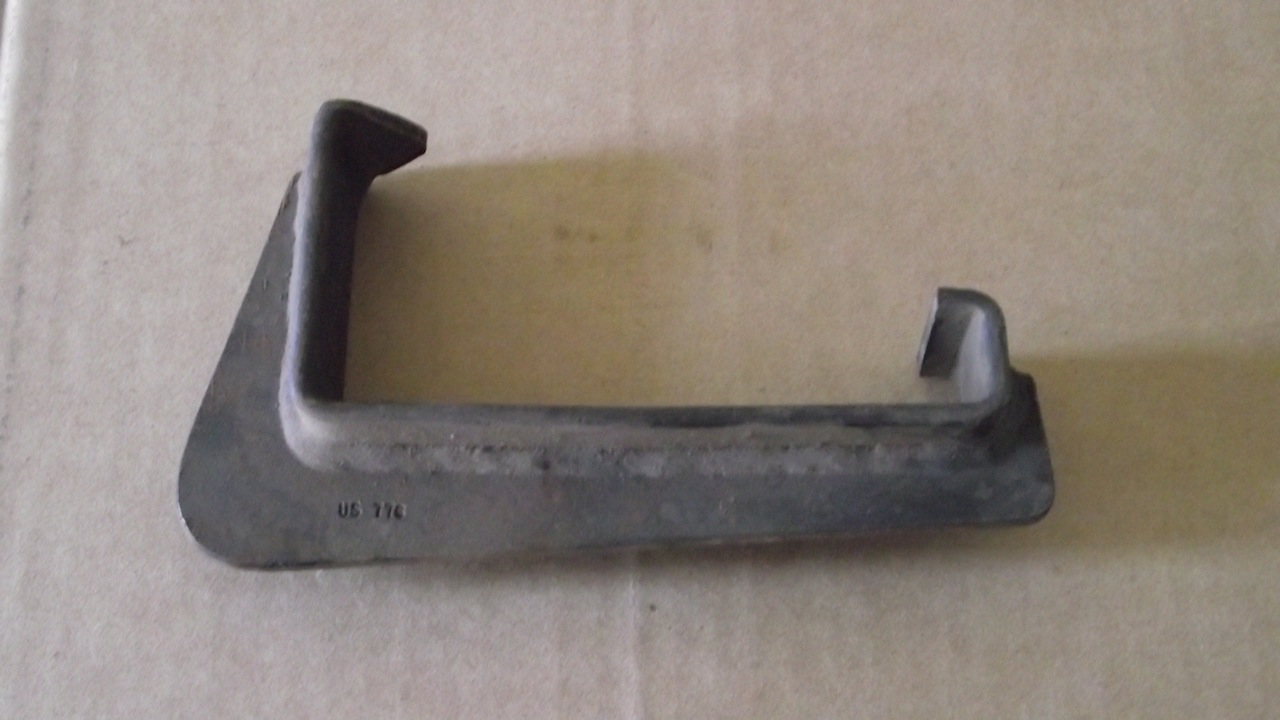

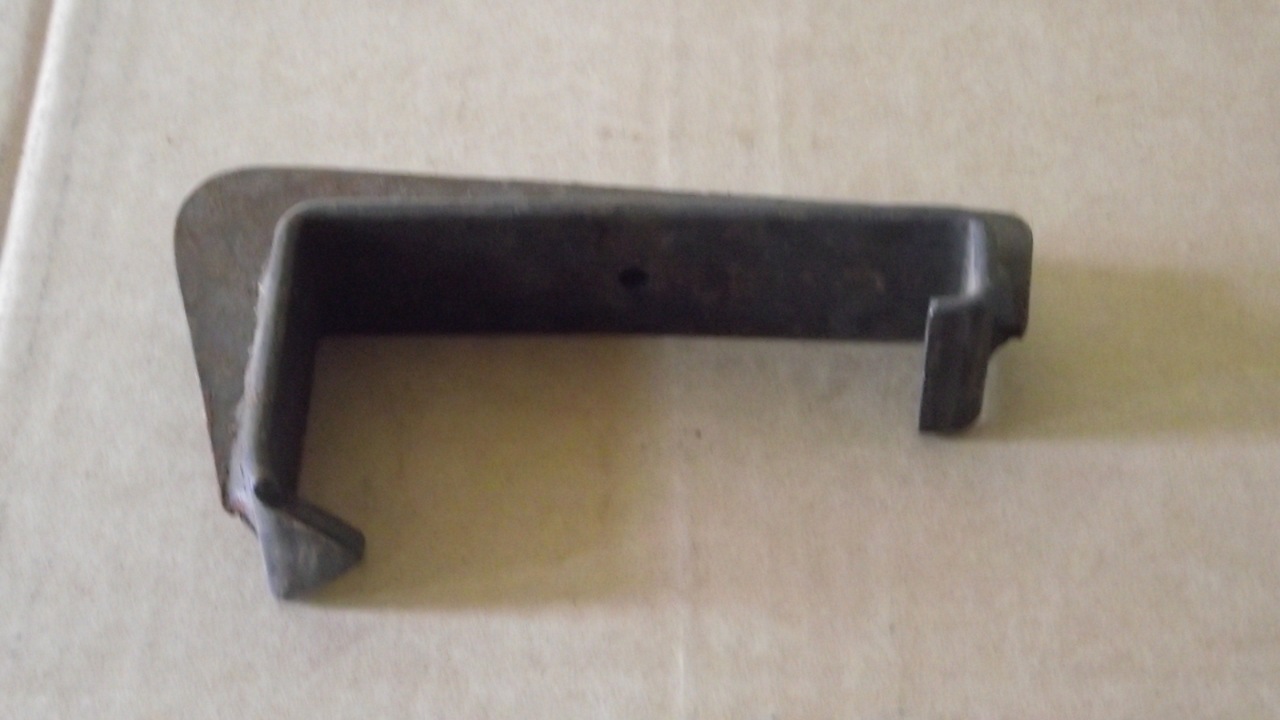

776Retaining Bracket for Lower Torsion Arm, Type 3
For checking axial play of upper torsion arms
778Master Cylinder Rebuild Tool
For installing the piston seals

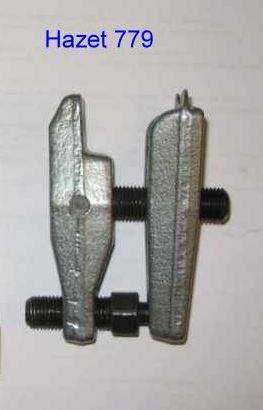

779
Hazet
Tie rod separator
780-1Ball Joint Boot Retaining Ring Installer
Bus

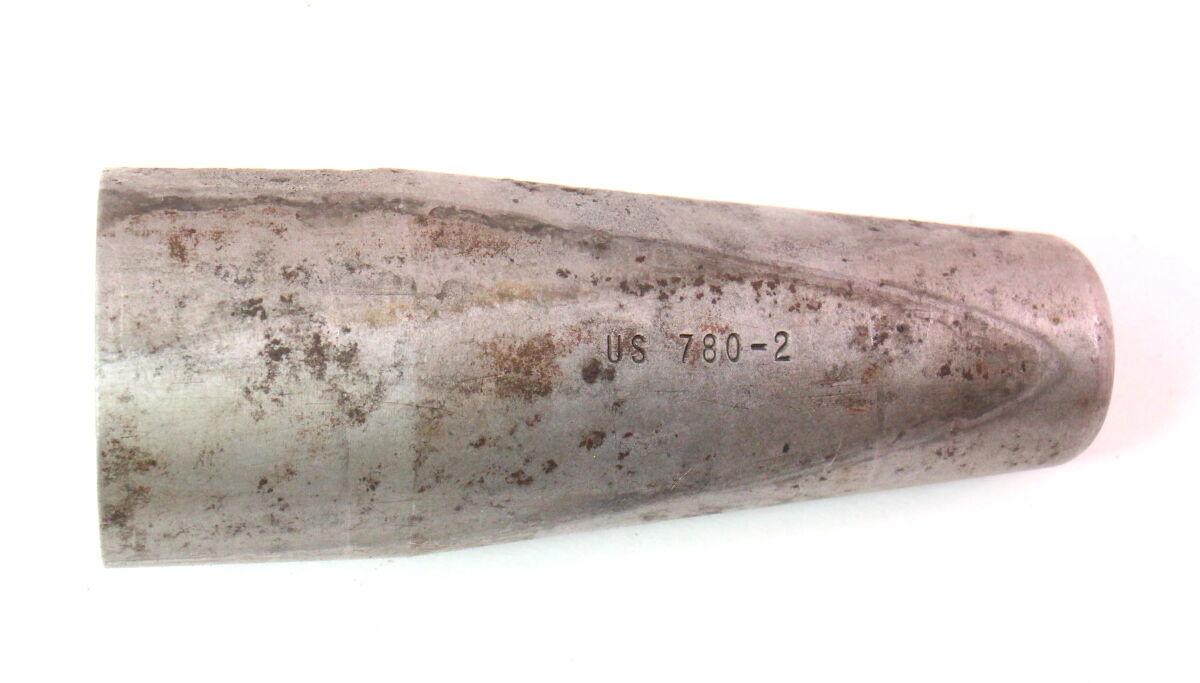

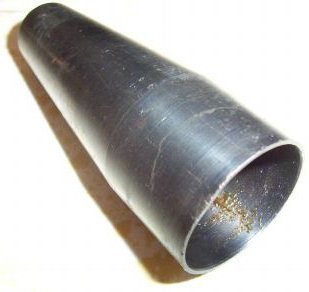

780-2Ball Joint Boot Retaining Ring Installer
Beetle, Ghia, and Type 3

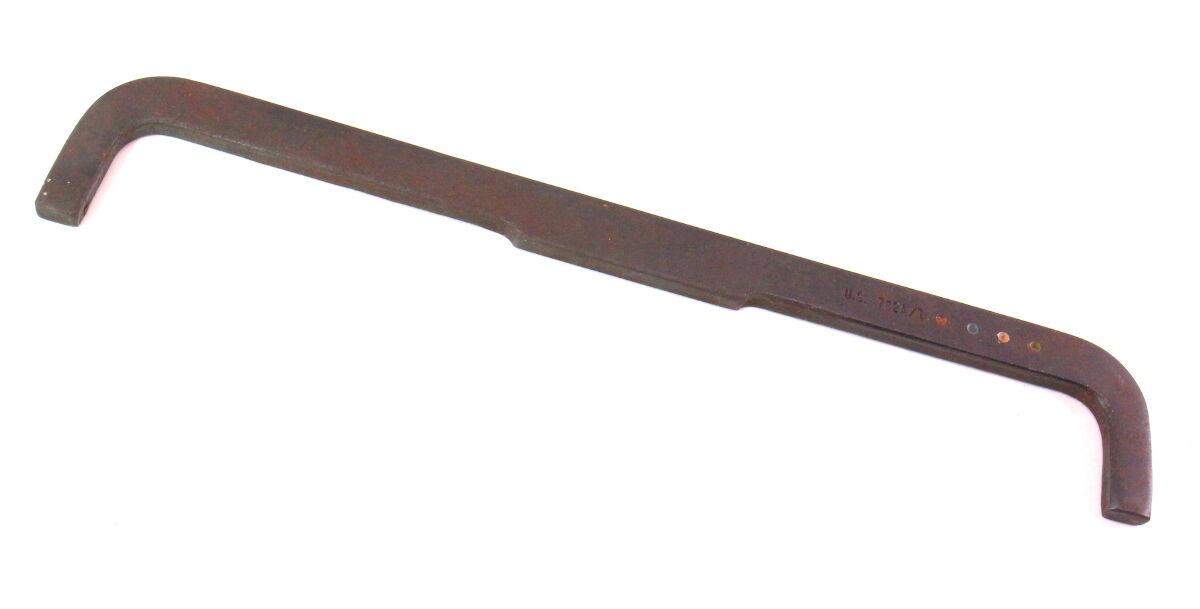

782/1Measuring Bridge and Clutch Cranking Handle, Types 1, 2, 3, 122, 124, 126
Used in conjunction with VW 659/2 and dial gauge for checking and adjusting the clutch release plate
784Support for Transmission, Type 2
For holding the transmission in position when engine is removed

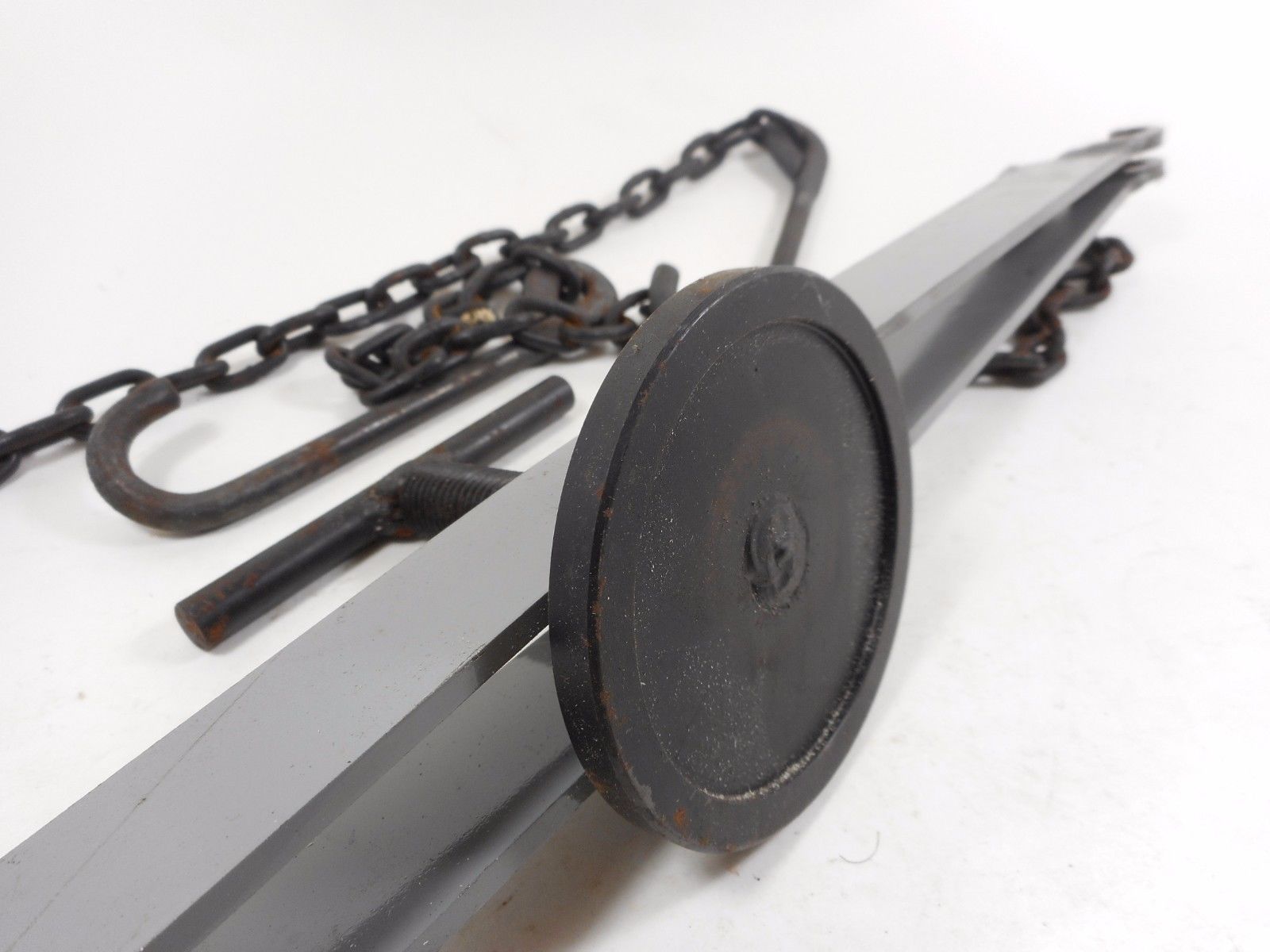

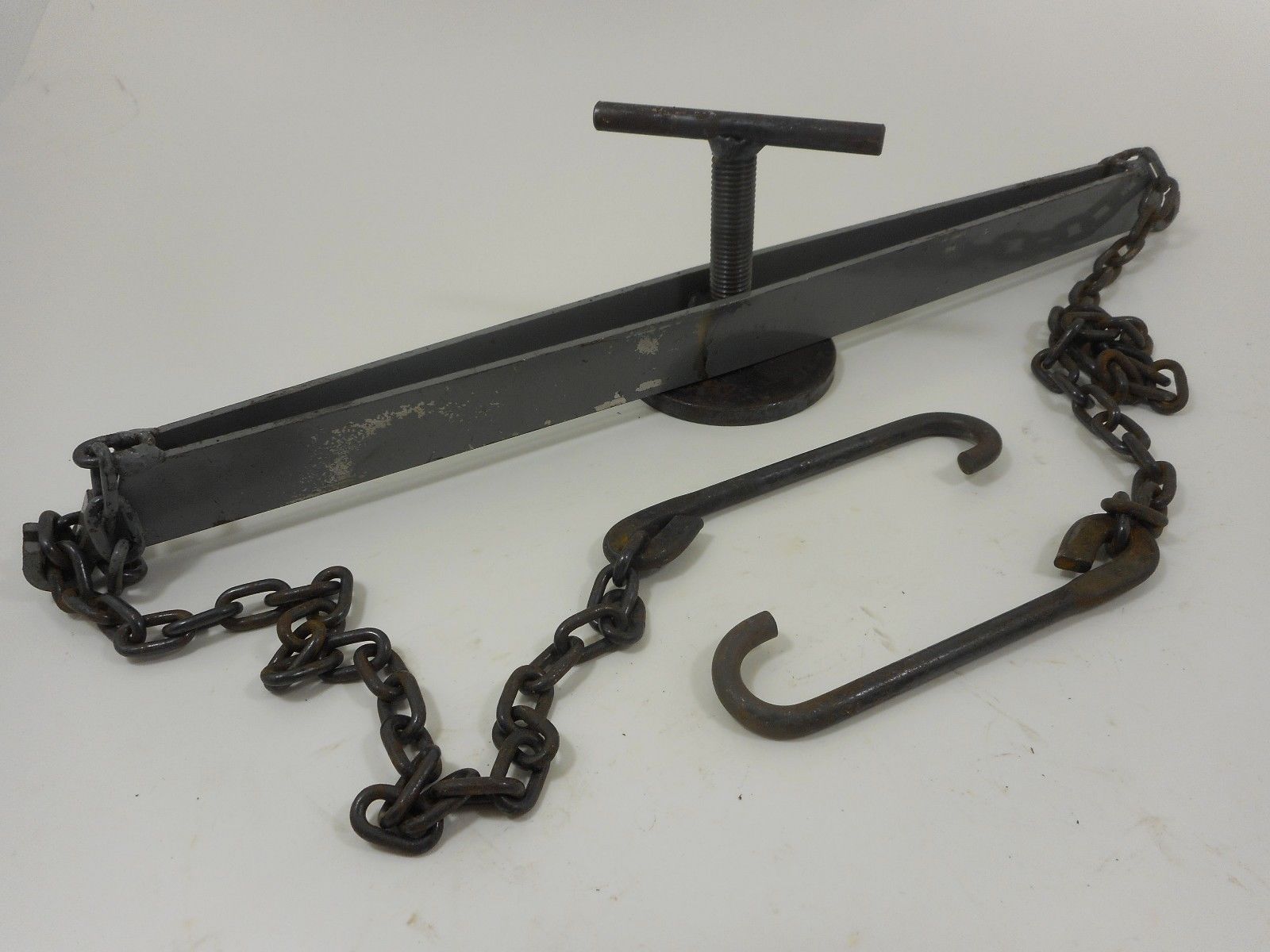

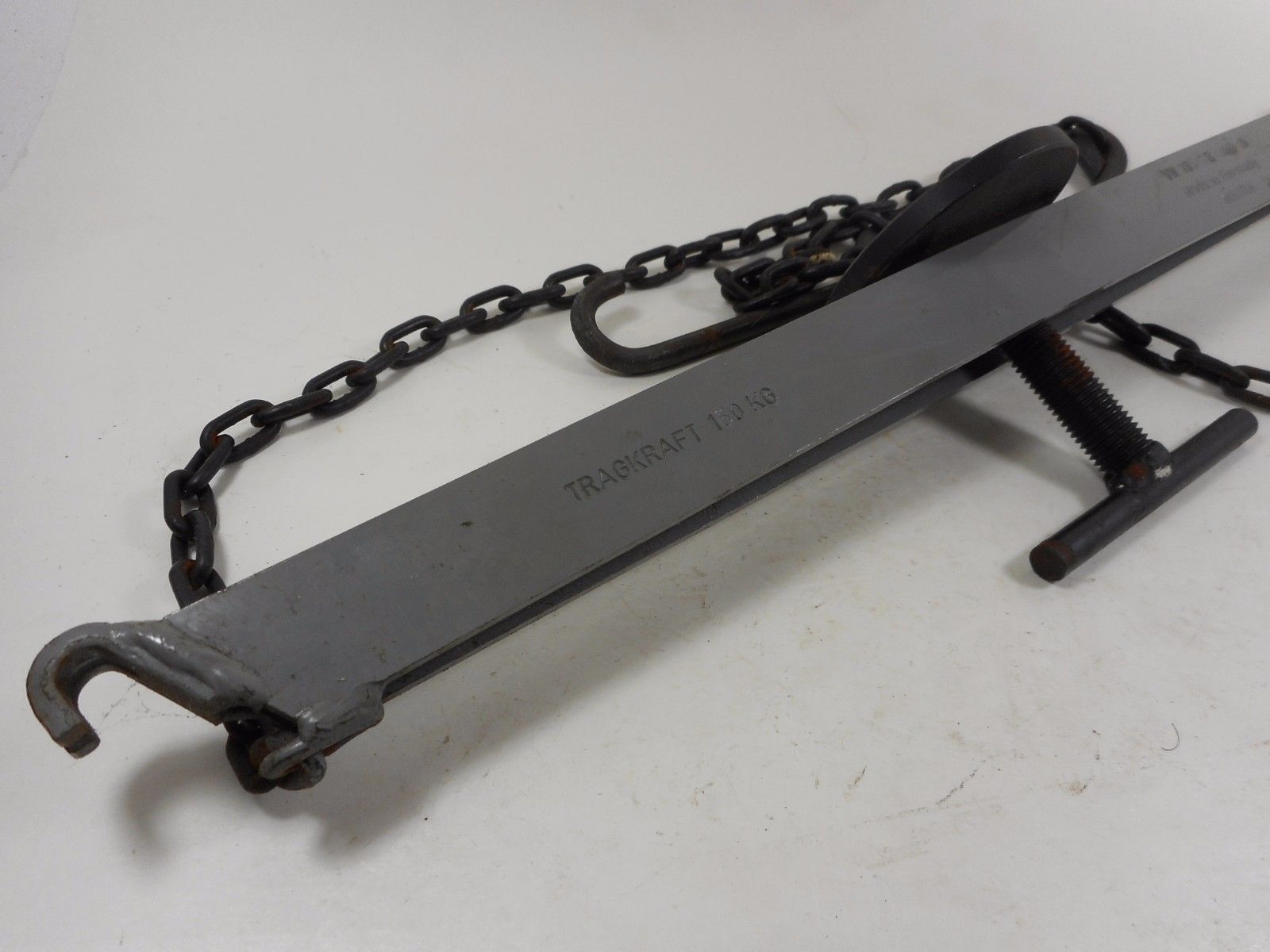

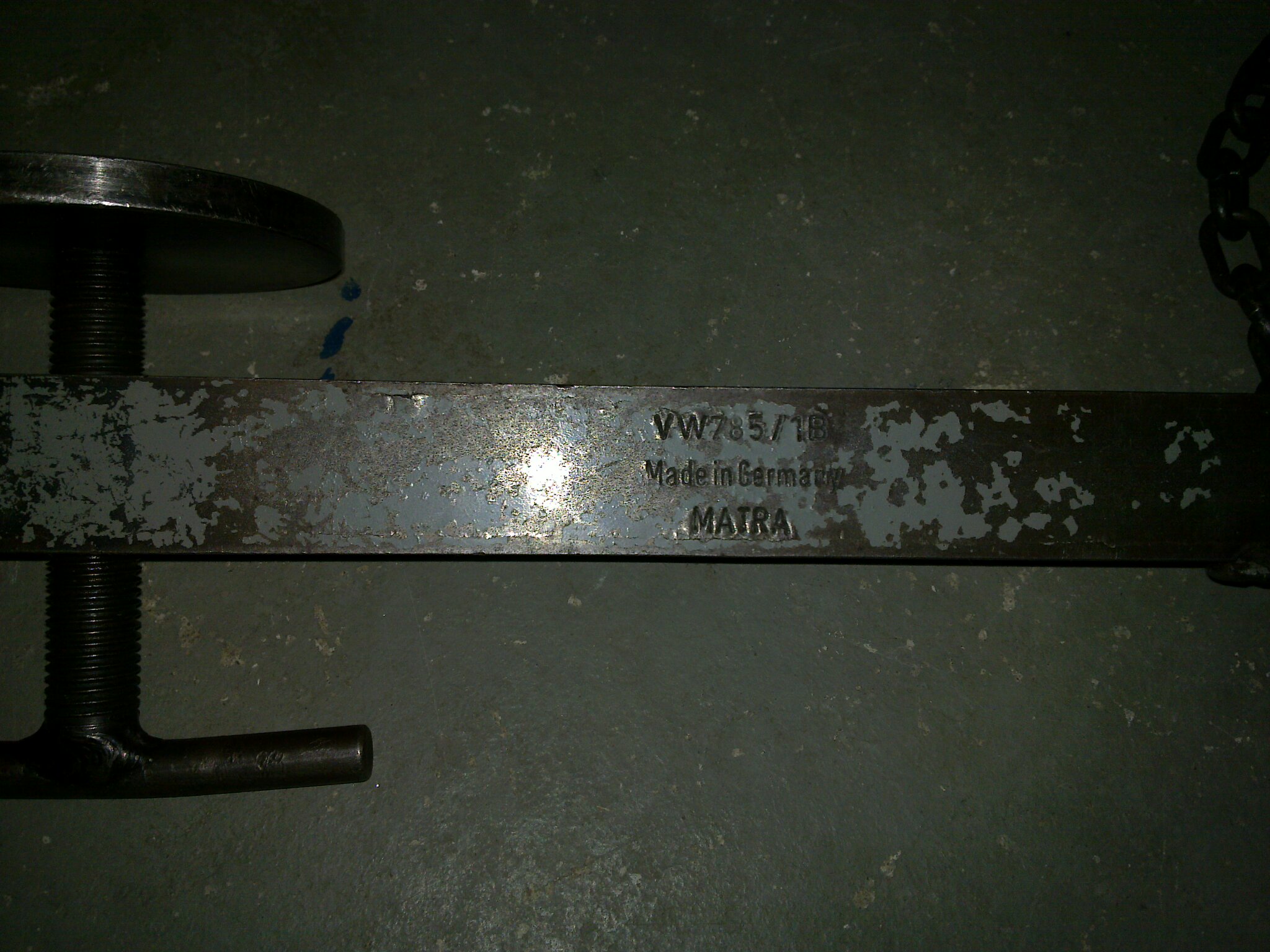

785Transmission Support, Type 3 - Automatic - VW 1600
Haltevorrichtung für Getriebe
For holding the transmission in position when engine is removed
/1B

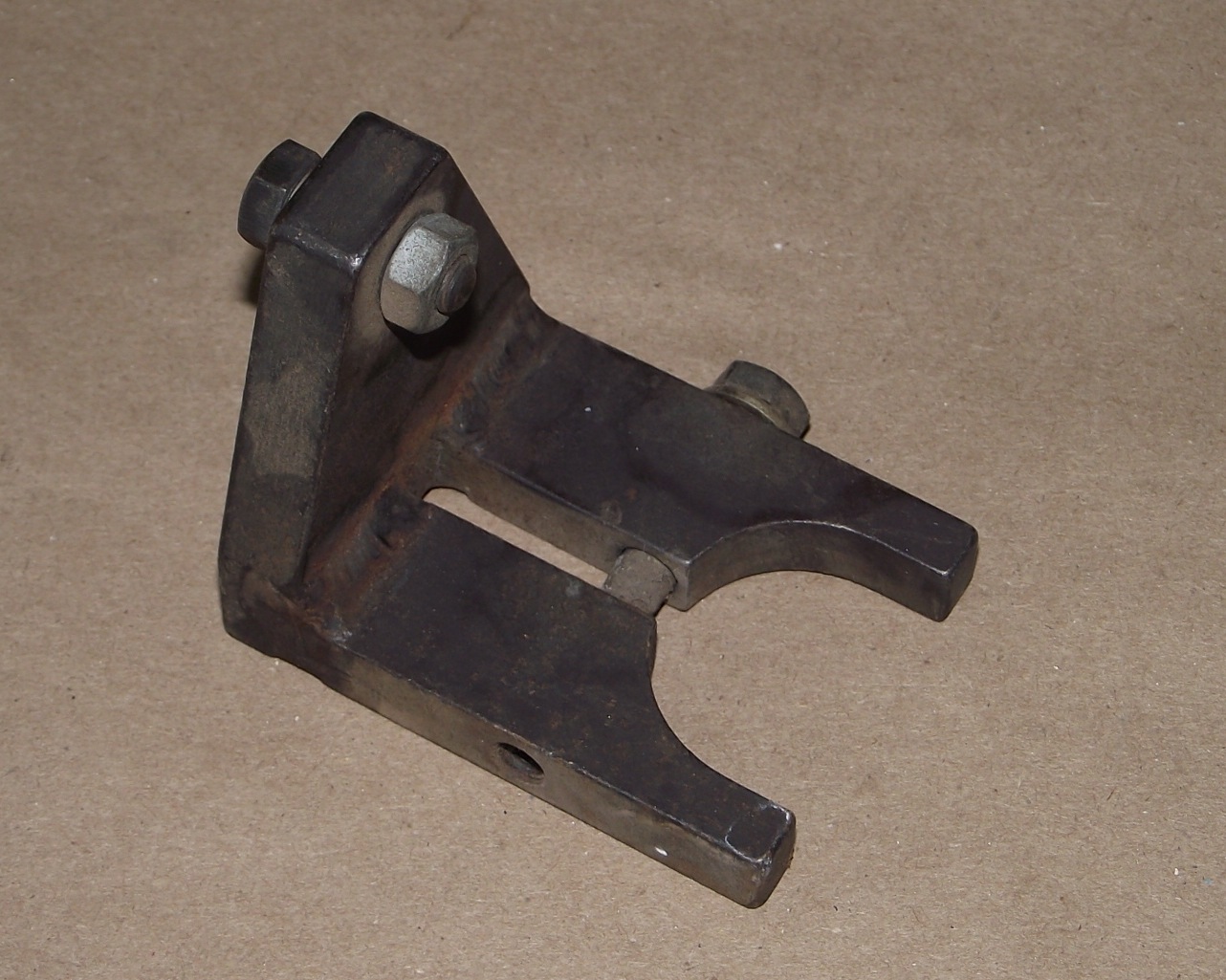

786Retaining bracket for pinion
- Type 3, Type 4
From Baum Tools catalog

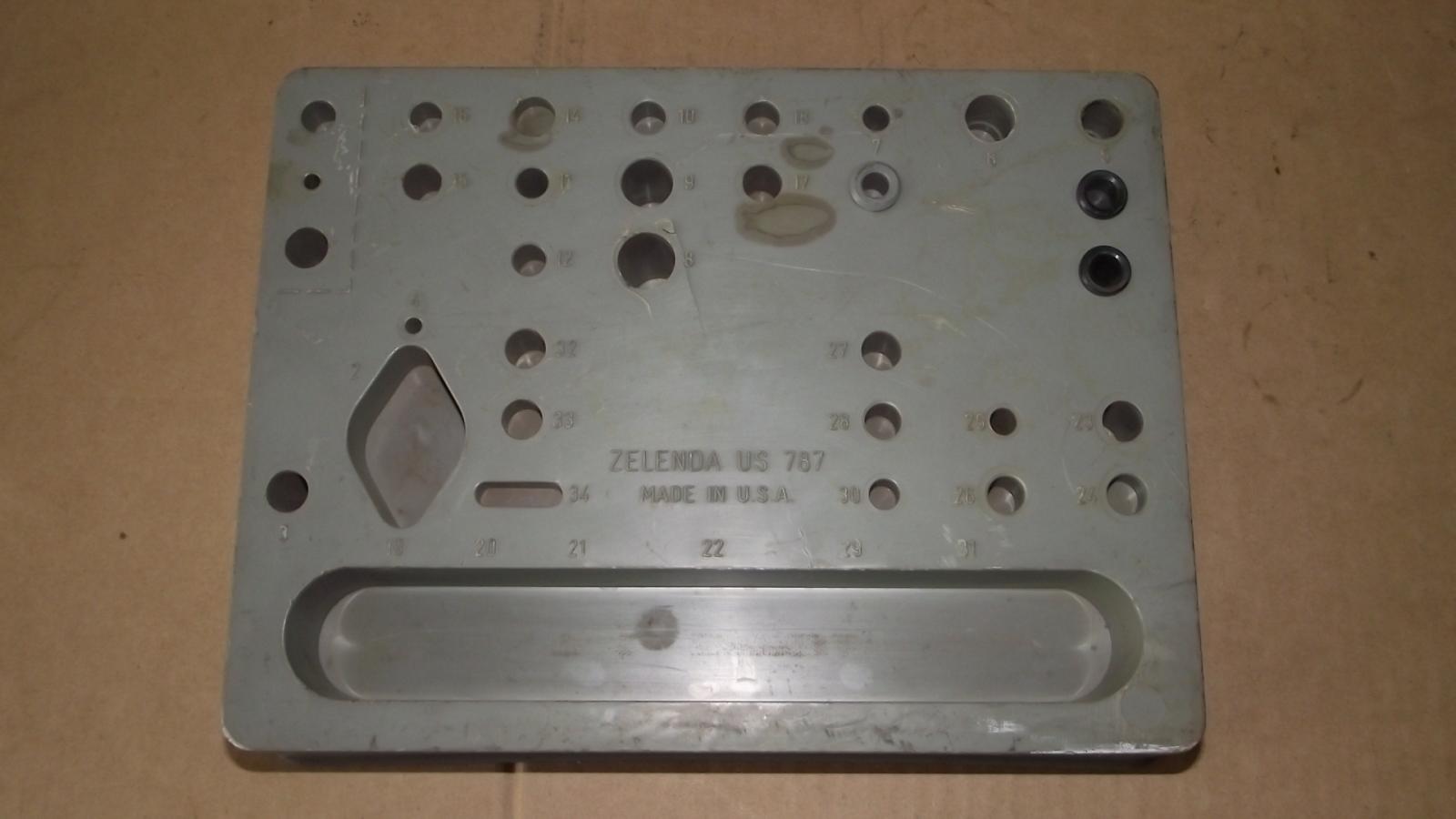

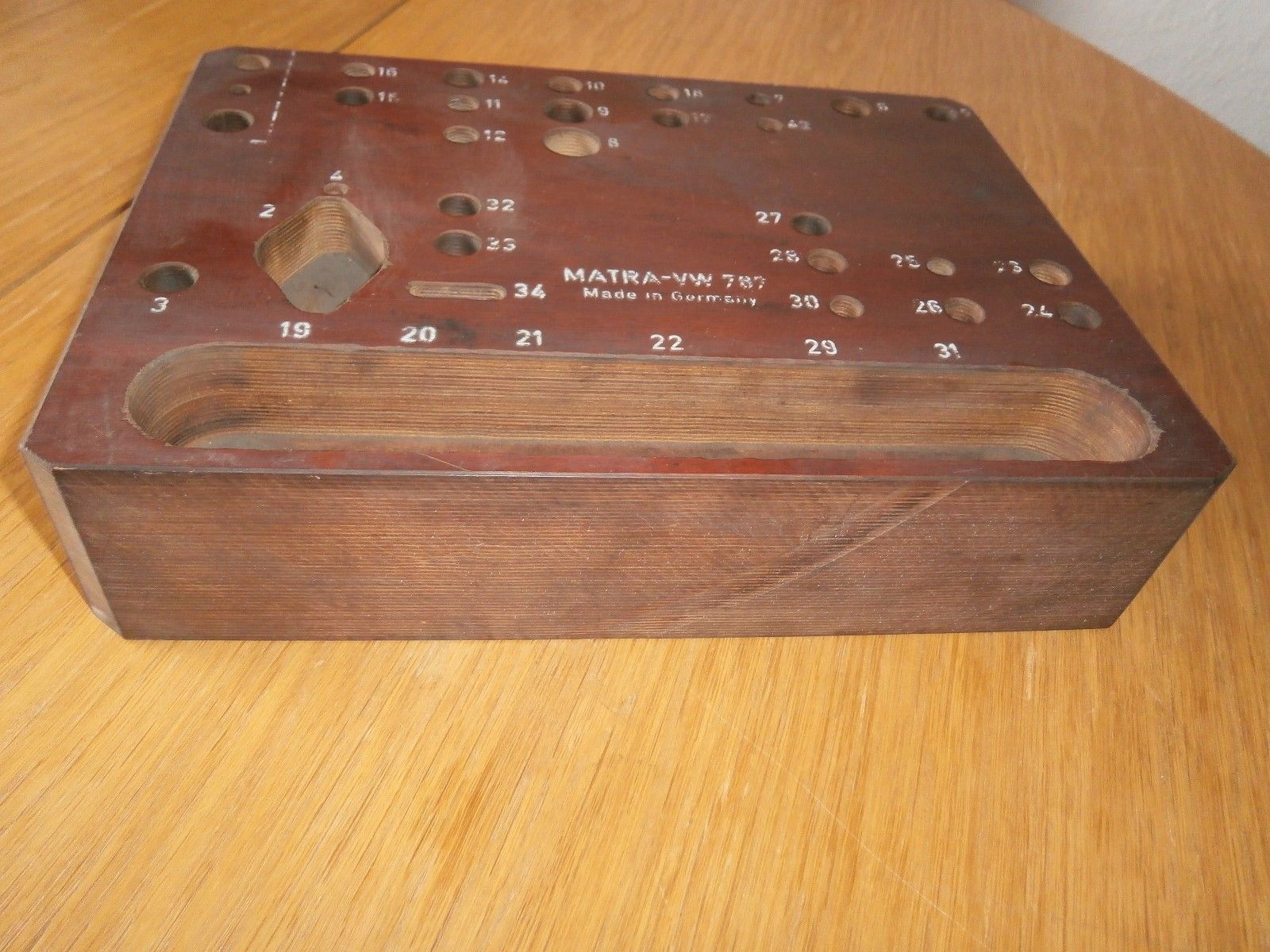

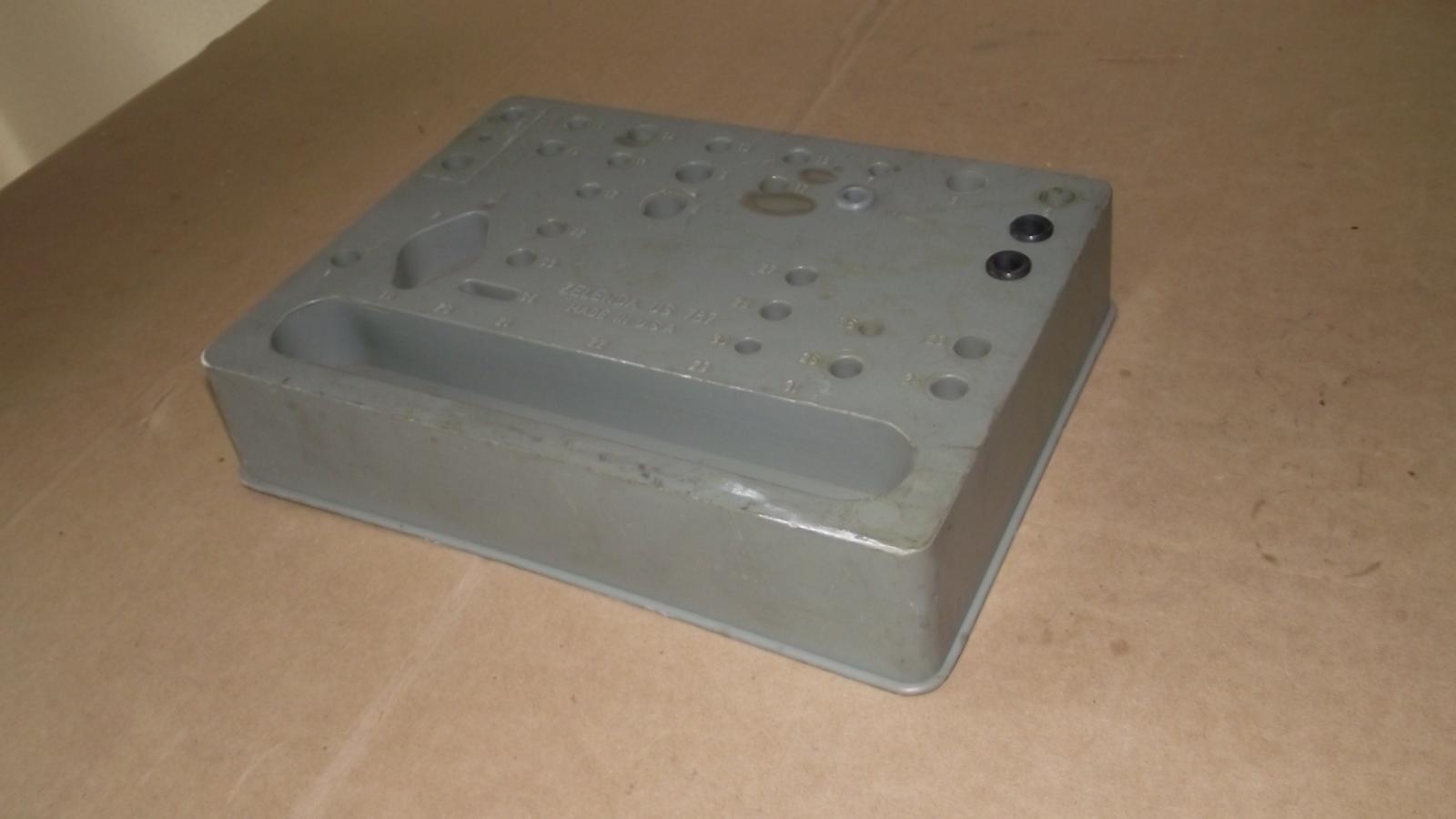

787Tray for Parts of the Automatic Transmission,  Type 3 - Automatic - VW 1600
For storing valves, springs and screws after they have been removed from the transmission control

789Plastic Knob Removing Tool for Type 1 and 3 Vehicles
For removing fresh air regulation, glove box lid, or back rest lock knobs

790Engine Turning Lever, Type 3 Automatic
For turning the engine when checking and adjusting the valve clearance on automatic transmissions

791Universal Joint-Socket for Turning Engine, Type 1 Automatic
For turning over the engine on vehicles with automatic transmissions

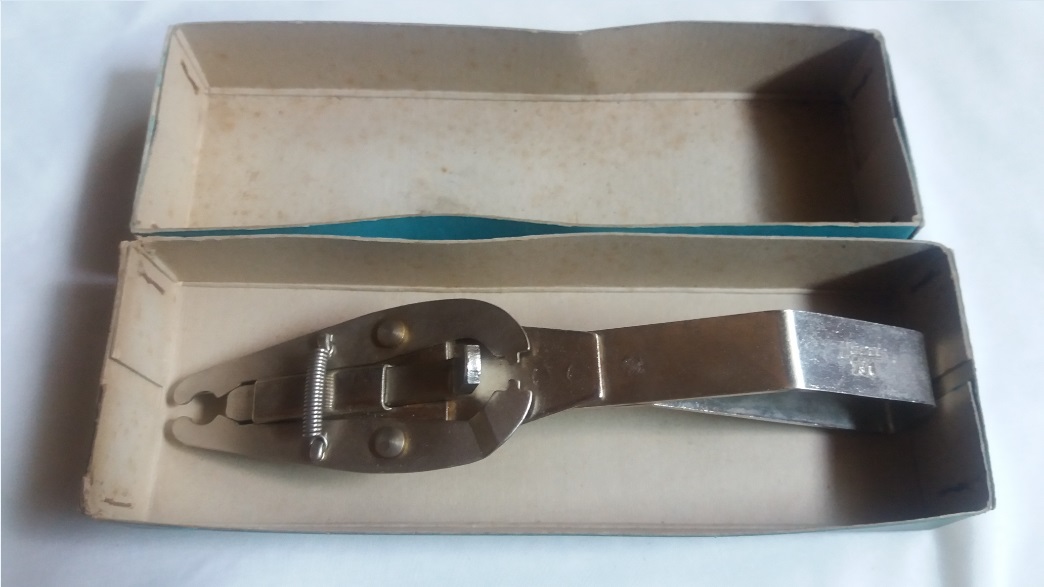

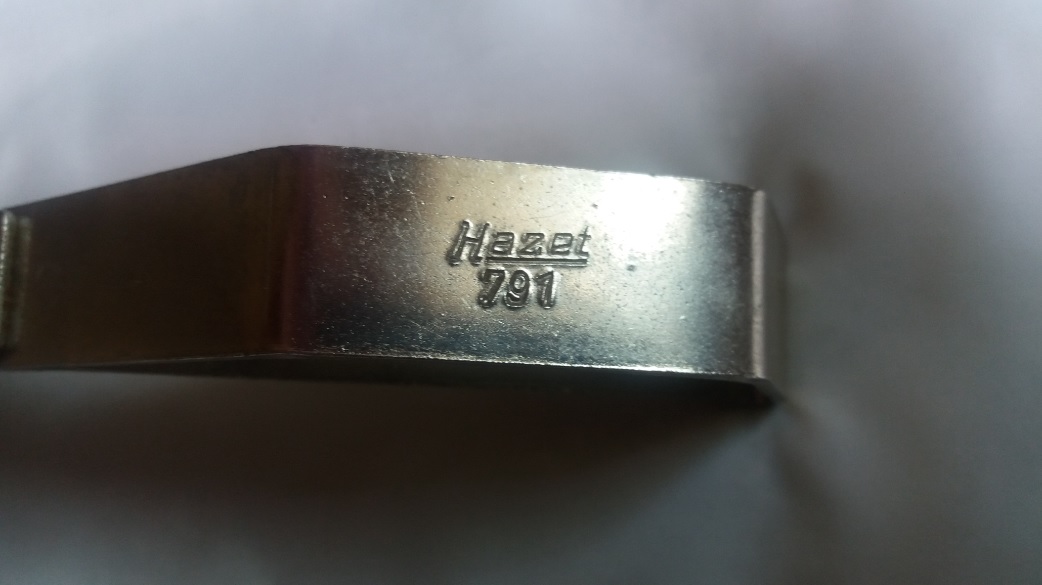

791
Hazet
Valve Retaining Ring Pliers
792Kit for pressing seal in semi-automatic transmission
- Puller, sleeve, and bracket
From Baum Tools catalog

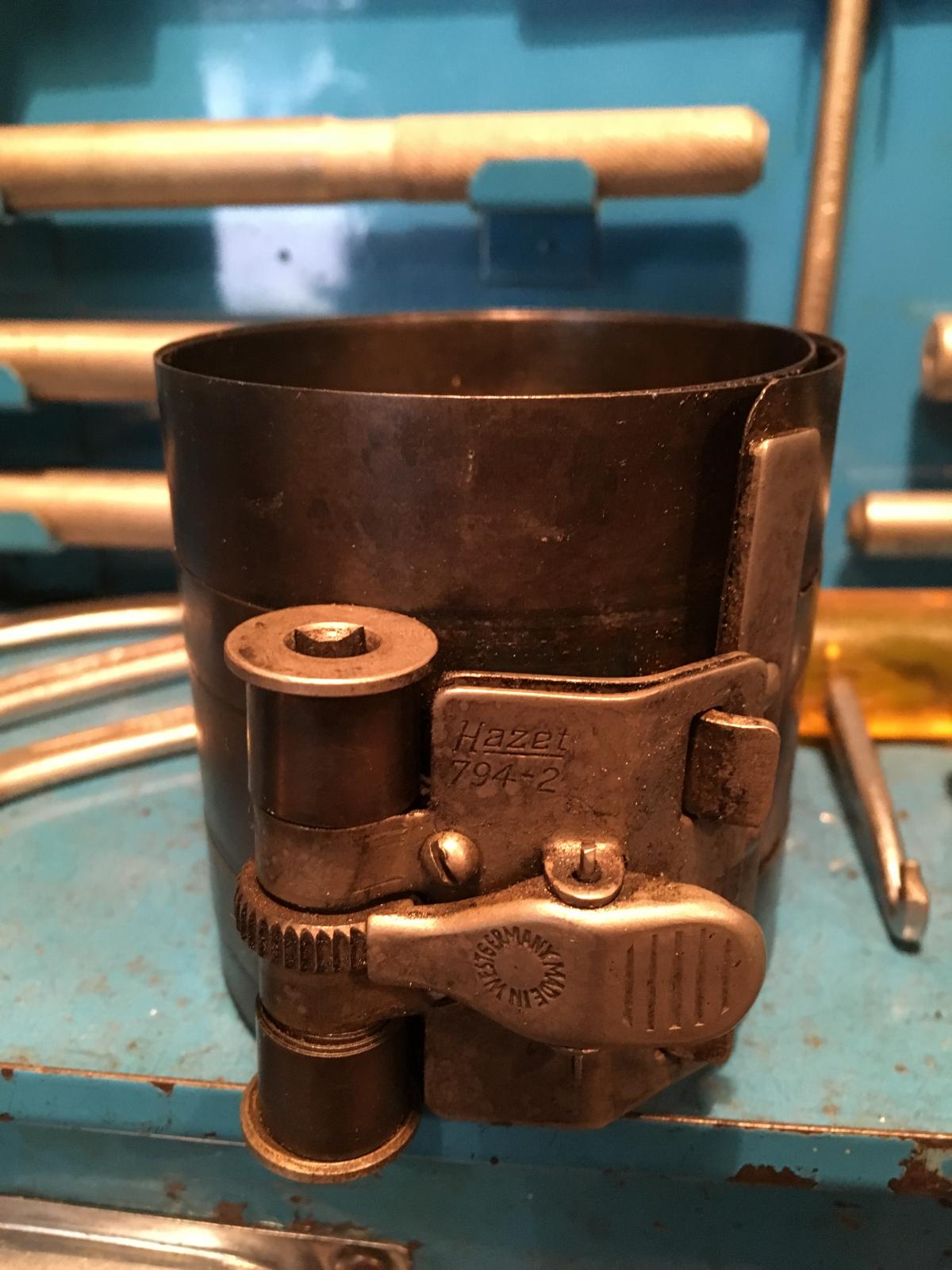

794-2
Hazet
Piston Ring Compressor
796Flex Wrench - Main shaft
797/1Assembly appliance for fuel pump
For 25 & 30 bhp engines
Type 1, 2
From Zelenda VW Special Tools Catalog
797/2Assembly appliance for fuel pump
For 34 - 54 bhp engines
Type 2, 3
From Zelenda VW Special Tools Catalog
797/3Assembly appliance for fuel pump
For 68 bhp engine
Type 4
From Zelenda VW Special Tools Catalog

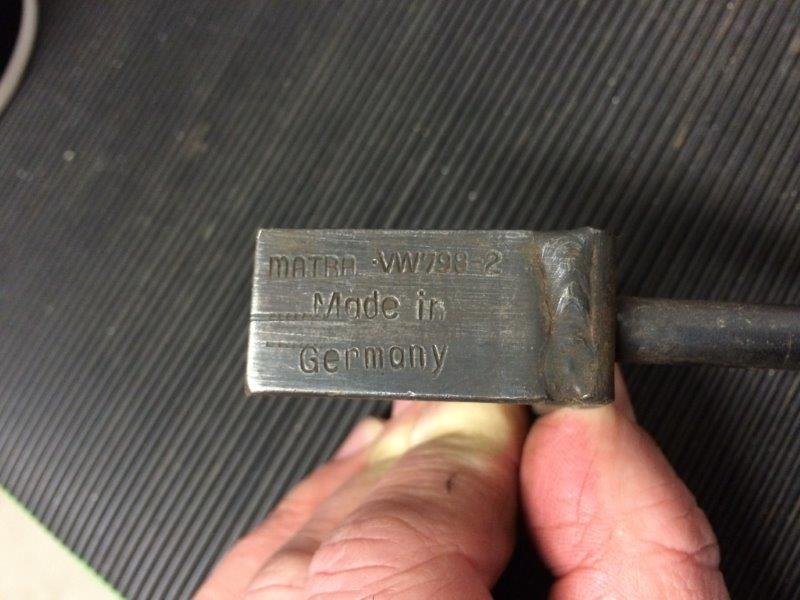

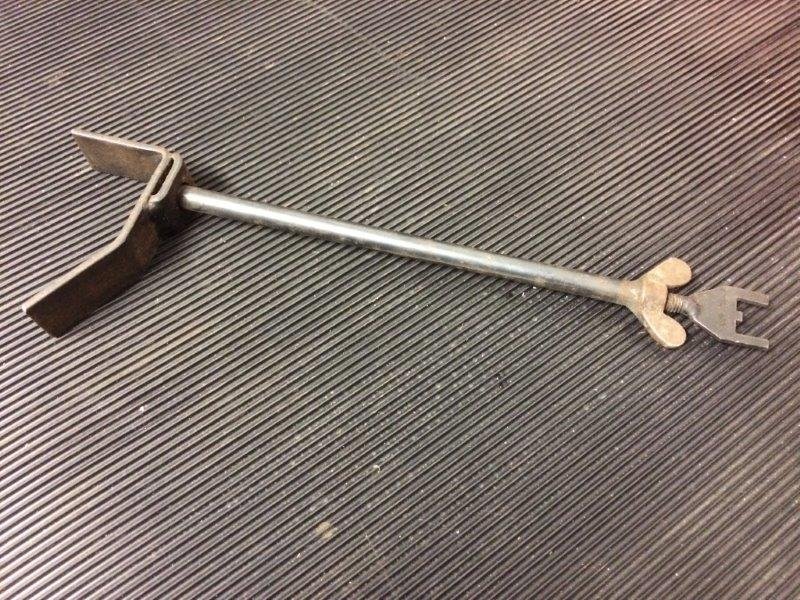

798/2Actuating device for throttle(?)
799Door Spring Plier
Range 210mm for removing and installing of door and window handle - Hazet
From Zelenda VW Special Tools Catalog

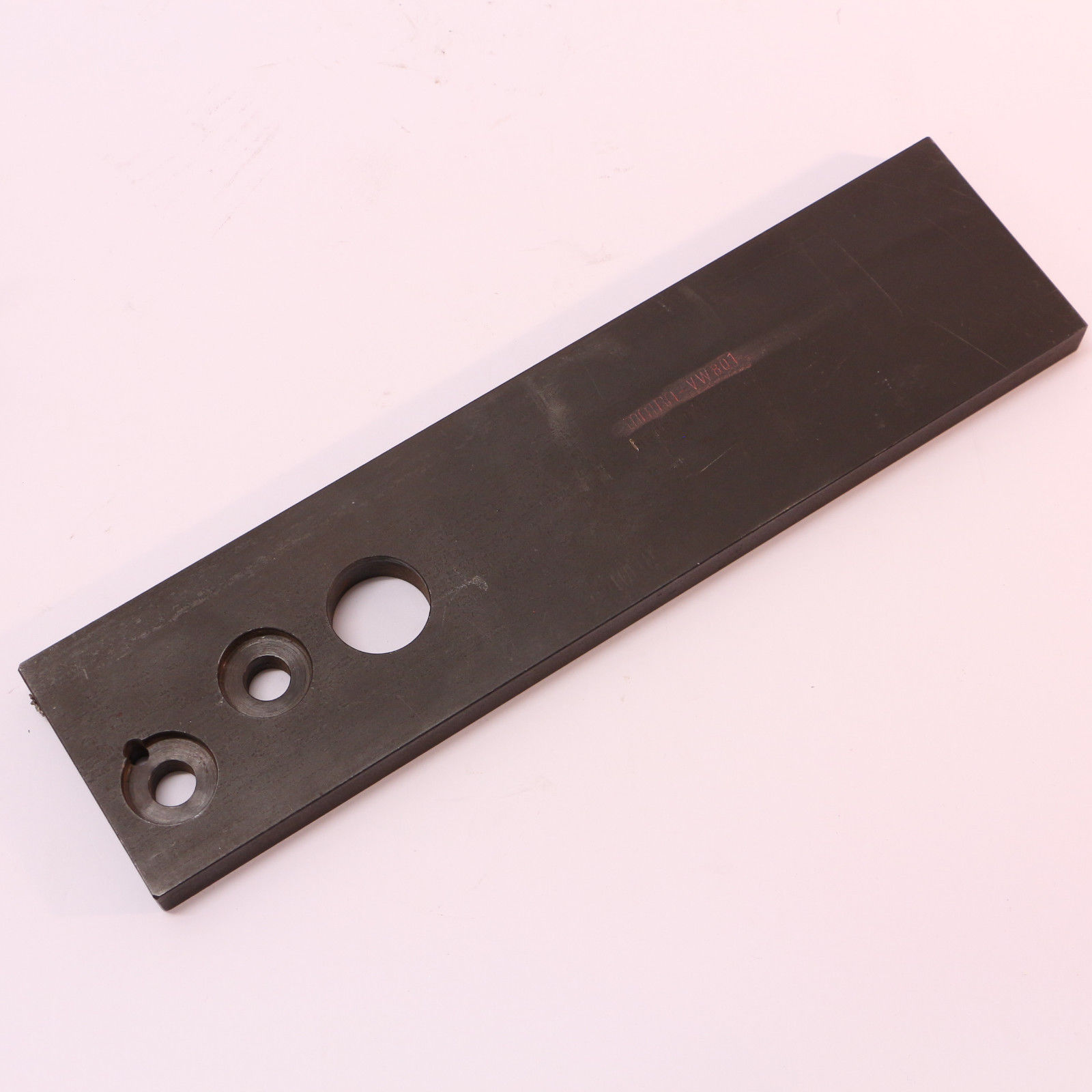

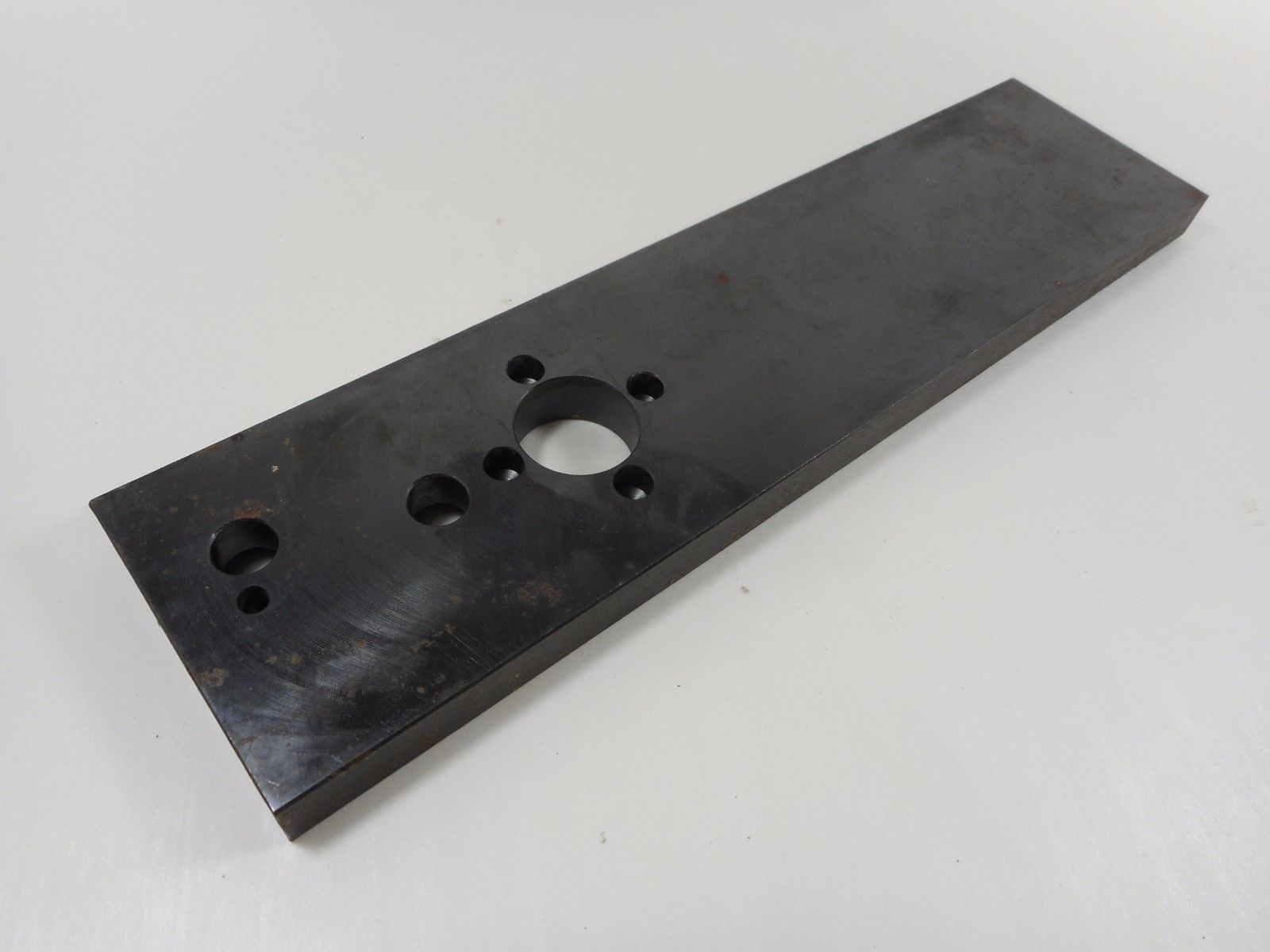

801Crankshaft holder
- Type 1, 2, 3, 4, and 914
Also see Tool 310a
From Baum Tools catalog

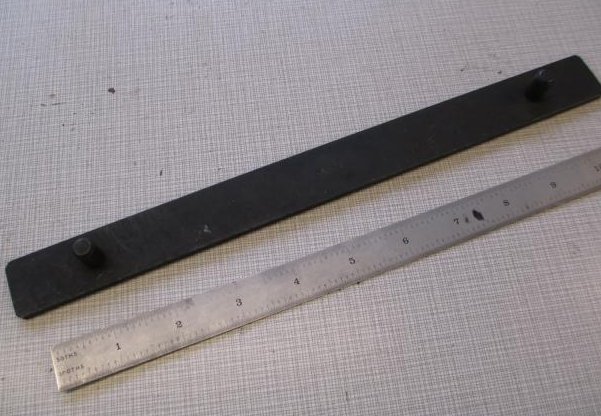

802Torque converter stop bar
From Baum Tools catalog

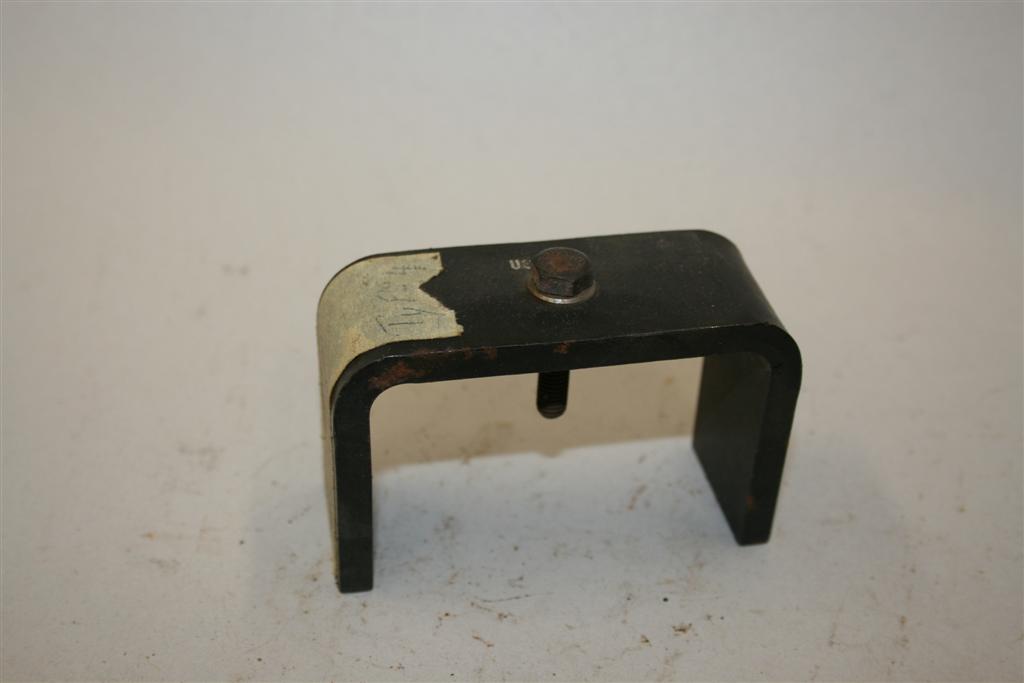

803Oil Pump Removal Tool
Type 411
911-2.5mm2.5mm DIN 911 Hex Key
Type 3
From Zelenda VW Special Tools Catalog
911-6mm6mm DIN 911 Hex Key From Zelenda VW Special Tools Catalog
911-10Set of hex keys - 10 piece set
1.5 - 12mm
Type 1, 2, 3
From Zelenda VW Special Tools Catalog

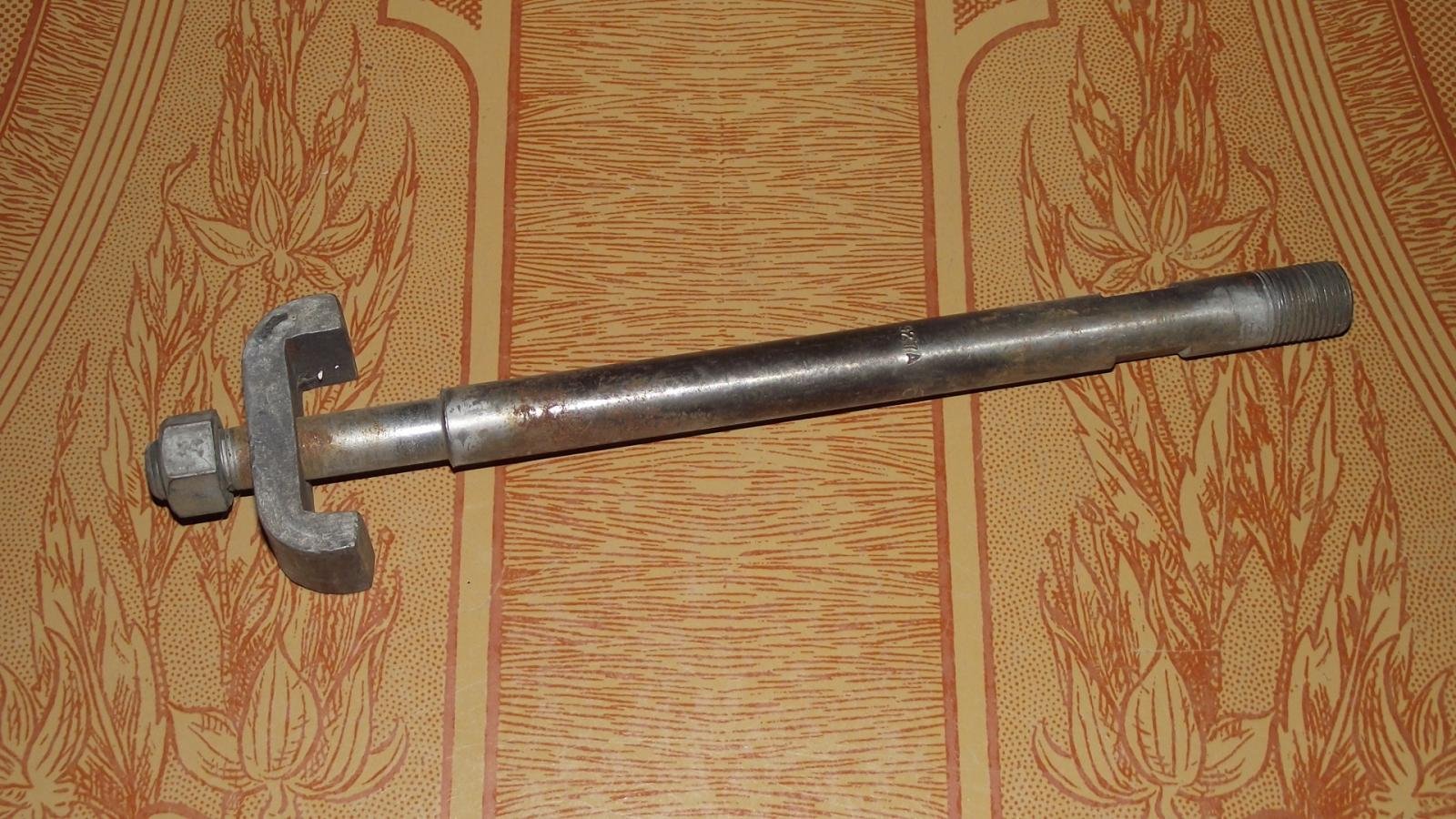

927aUnknown
