Cleanest radio install

GArBa · Posted: Sun Jan 25, 2015 3:28 pm Post subject: Cleanest radio install

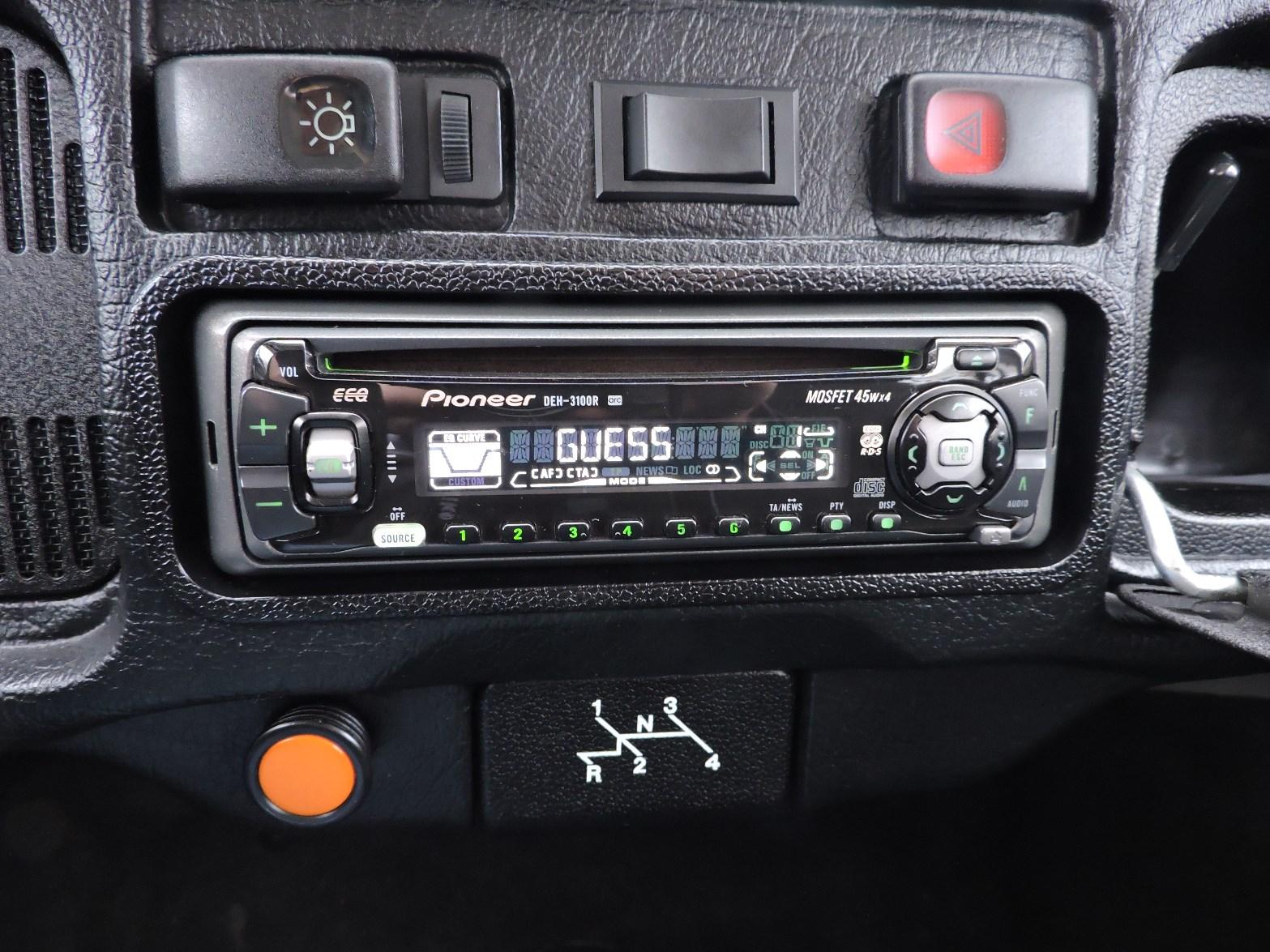

So, as some of you may remember, my mexi bug came with a early '90s pioneer stereo, the kind you were supposed to pull out of the car and bring along with you as you left the vehicle unattended.

Image may have been reduced in size. Click image to view fullscreen.

now, even though I had cleaned and refurbished it and it worked pretty good, I still was unsatisfied. not with the head unit itself, rather with the fact that I only had one speaker, mounted in the stock location on the left of the steering wheel. So my stereo actually was a mono, and I often found myself listening just to the left channel of a song.

I ruled out early the option of installing a proper set of speakers as the car is totally unmolested and even drilling little holes for speaker wires bothered me.

So I was about to buy the retrosound twin-coil speaker... then I saw the light while casually browsing the net.

...enter the blaupunkt casablanca 2012:

a din-sized head unit with AM-FM tuner, usb and aux in... with built in (albeit low power) stereo speakers.

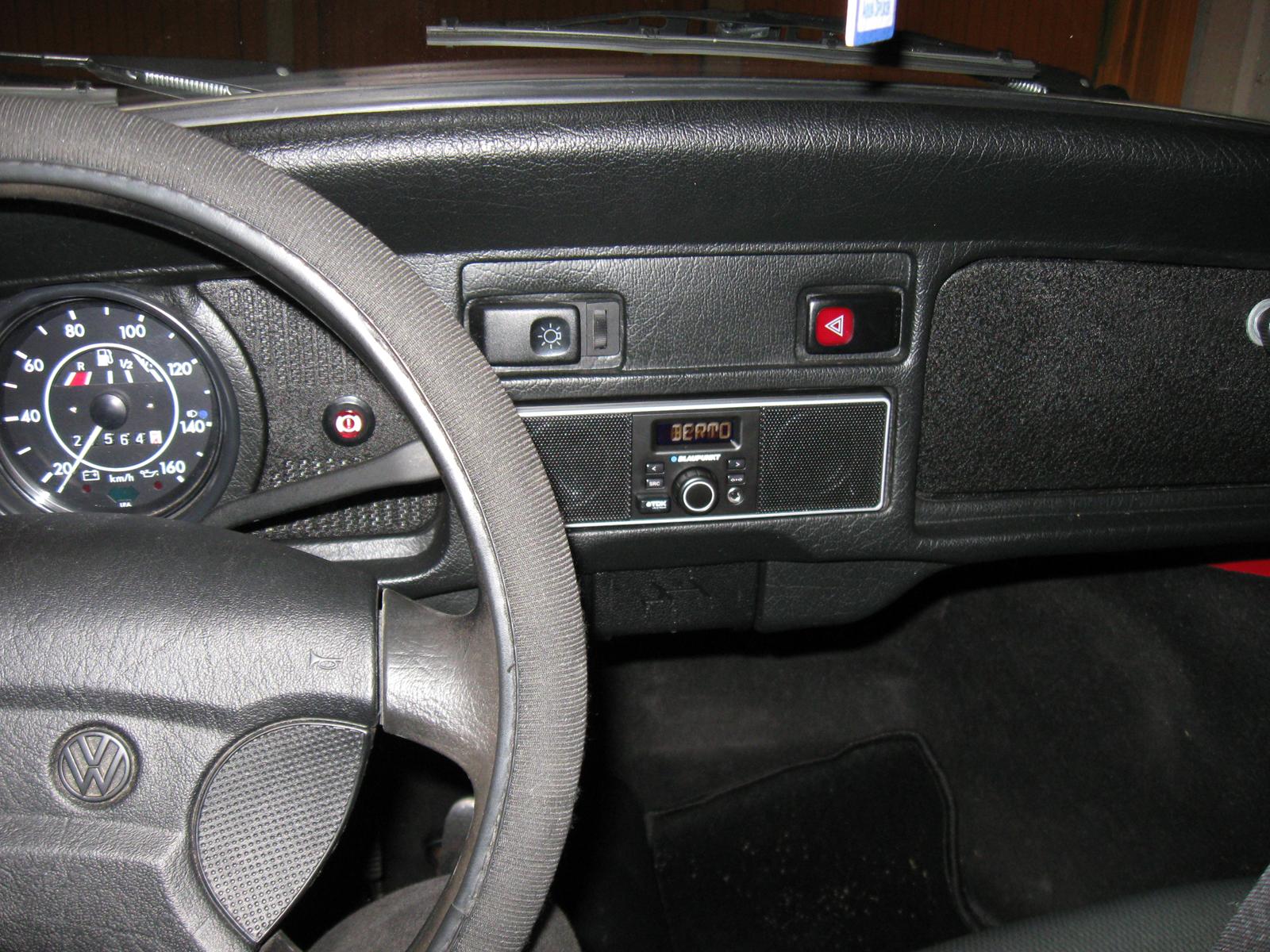

the unit itself is not that much expensive, and more importantly it allows for the cleanest radio install ever. It mounts using a din cage (I'm still going to build some rear support for it just to avoid the risk of having it bouncing around), and it just has four wires to connect: battery positive, ignition, ground and powered antenna, of which of course I only needed the first three.

(the antenna cable needs a jack-to-iso adaptor)

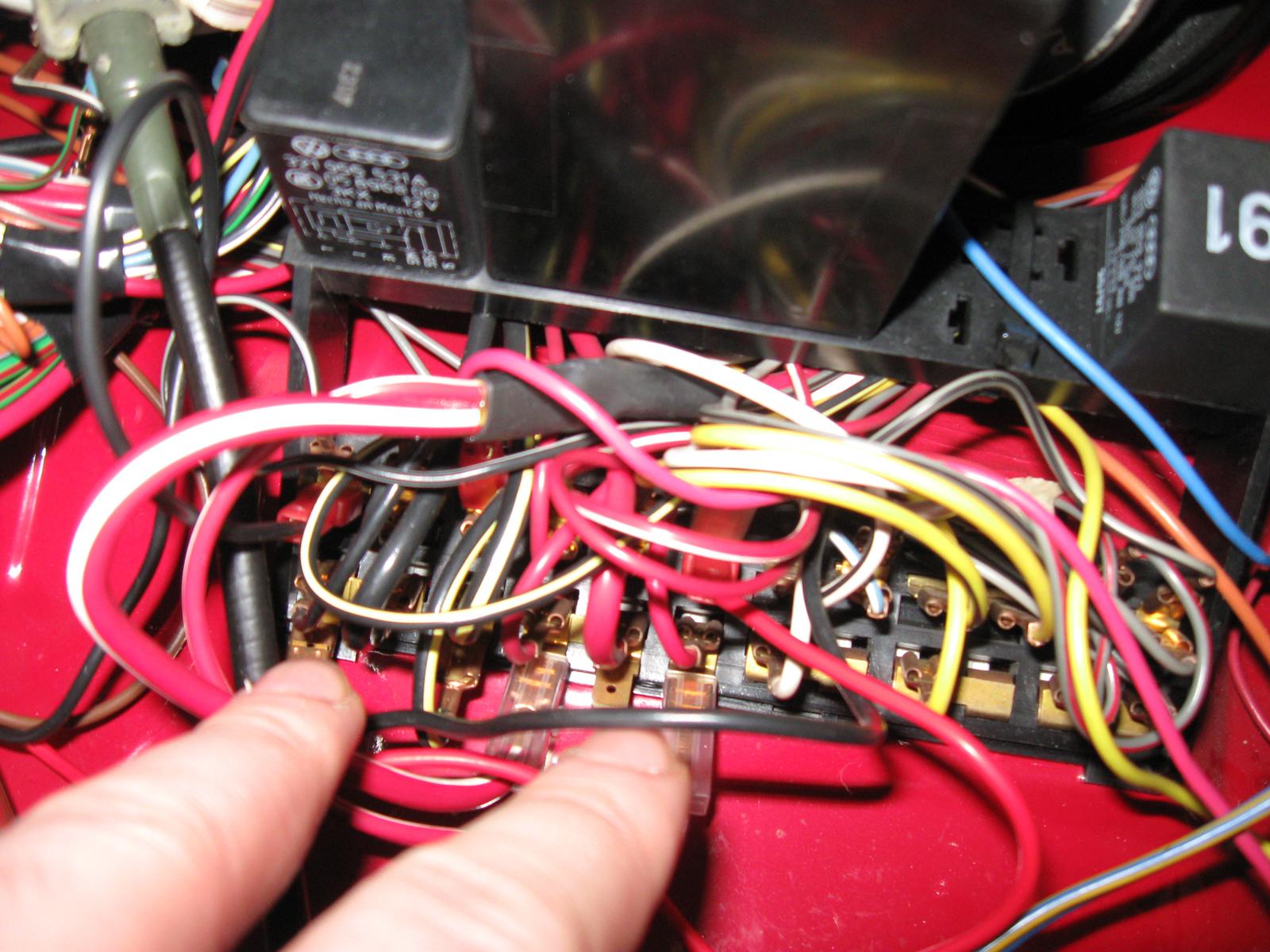

I made some extension leads using vw colour coded wires (red, black and brown), then I hooked them to fuses #7 and #12 and to the front ground point as per mexi beetle radio wiring specifications.
Put in a low-profile usb drive and... bang! good stereo sound in 30 minutes of work (most of them spent making and neatly rounting the leads). It even could pick up FM stations while parked in the garage at the 5th underground floor.

Now, this is not going to satisfy lovers of hi-fidelity sound, but it is enough to allow me to properly listen to my tunes without having to use the cassette adapter to plug in a digital player and with no signal loss, and it requires literally no modifications at all to the car.

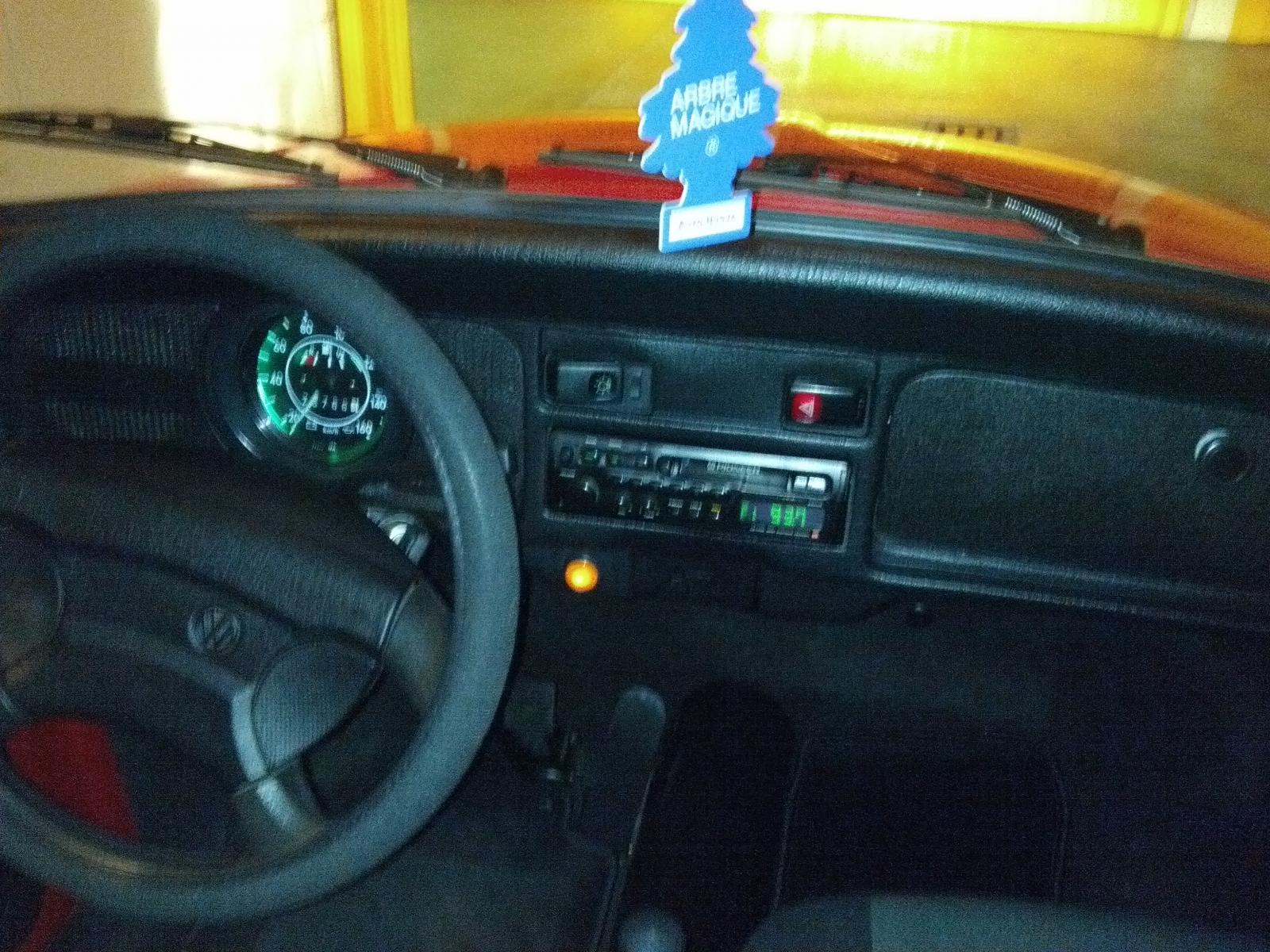

one last shot of it in the dash playing some '80s italian music Cool

:

_________________
cars:
'97 type 1 1600i
~~'14 type AA Seat Mii~~ (sadly dead after 270.000 km)
'22 type C1 T-Cross
'23 type AC3 Hyundai I10 (VW no longer makes small cars!)
-------------------------
moped:
'82 Benelli Magnum 3v

Dodgy · Posted: Mon Jan 26, 2015 1:03 am Post subject:

Cool find - and kudos on the clean install!
_________________
'75 1303 (current project) owned since 1989!
'72 Squareback - full resto completed 2008 - now sold
356 Speedster kit, completed 2005 - now sold

[email protected] · Posted: Mon Jan 26, 2015 1:43 am Post subject:

I am replying to this post, just so I can find it again. I really like it. Both the looks and the Stereo.

avw1973 · Posted: Mon Jan 26, 2015 4:58 am Post subject: Blaupunkt 2012

Looks great! I hate to cut holes or add boxes. Where in the US can these be purchased?

vamram · Posted: Mon Jan 26, 2015 5:04 am Post subject:

Bravissimo!!
_________________
"Men are qualified for civil liberty in exact proportion to their disposition
to put moral chains upon their own appetites. -Edmund Burke

'74 Super 9/16 - present, in refurb process.
'73 Super - 6/18 - Present - Daily Driver!
'75 Super Le Grande...we hardly knew ye. Sold 2025 for peanuts.
Click to view image
Save the Supers!!

toddb_67 · Posted: Mon Jan 26, 2015 7:29 am Post subject:

I'm curios, how does it sound while travelling at highway speeds? Can you hear it? I like the idea of not having to cut holes for speakers but wonder how practical this unit is for everyday use.
_________________
1970 Pastel White Westfalia
1971 Super Beetle Convertible (sold) http://www.thesamba.com/vw/forum/viewtopic.php?t=582365&highlight=
1970 Squareback "Savanna" (sold)
https://www.thesamba.com/vw/forum/viewtopic.php?t=714683
1974 Karmann Ghia- current project, 1967cc engine. https://www.thesamba.com/vw/forum/viewtopic.php?t=775207
“I have never in my life learned anything from any man who agreed with me.” - Dudley Field Malone

Q-Dog · Posted: Mon Jan 26, 2015 7:39 am Post subject:

Nice. And unlike so many modern units, it looks like it belongs there.
_________________
Brian

'69 Dune Buggy
'69 Beetle Convertible
'70 Beetle

torsionbar · Posted: Mon Jan 26, 2015 11:35 am Post subject:

i've never heard of this model of blaupunkt before. i don't think it was ever available in the us. it looks great in your mexi beetle!

vintage cars like a beetle are so noisy inside the cabin, at least as compared with a modern vehicle, that it seems foolish to invest in any sort of hi-fi audio equipment. it simply isnt worth it with all road noise, engine noise, etc.

in these old cars, you need only a simple way to get some music playing, and this looks like it fits the bill perfectly. very nice!
_________________

GArBa · Posted: Mon Jan 26, 2015 11:44 am Post subject:

GArBa · Posted: Sat Jan 31, 2015 2:16 pm Post subject:

in the first post I pointed out how this stereo does not come with the usual screw/post at the back of the unit used to secure it.

Once installed using the din cage the unit felt robust, but I did not want to risk having it bouncing when driving and putting stress on the dash sheet metal only.

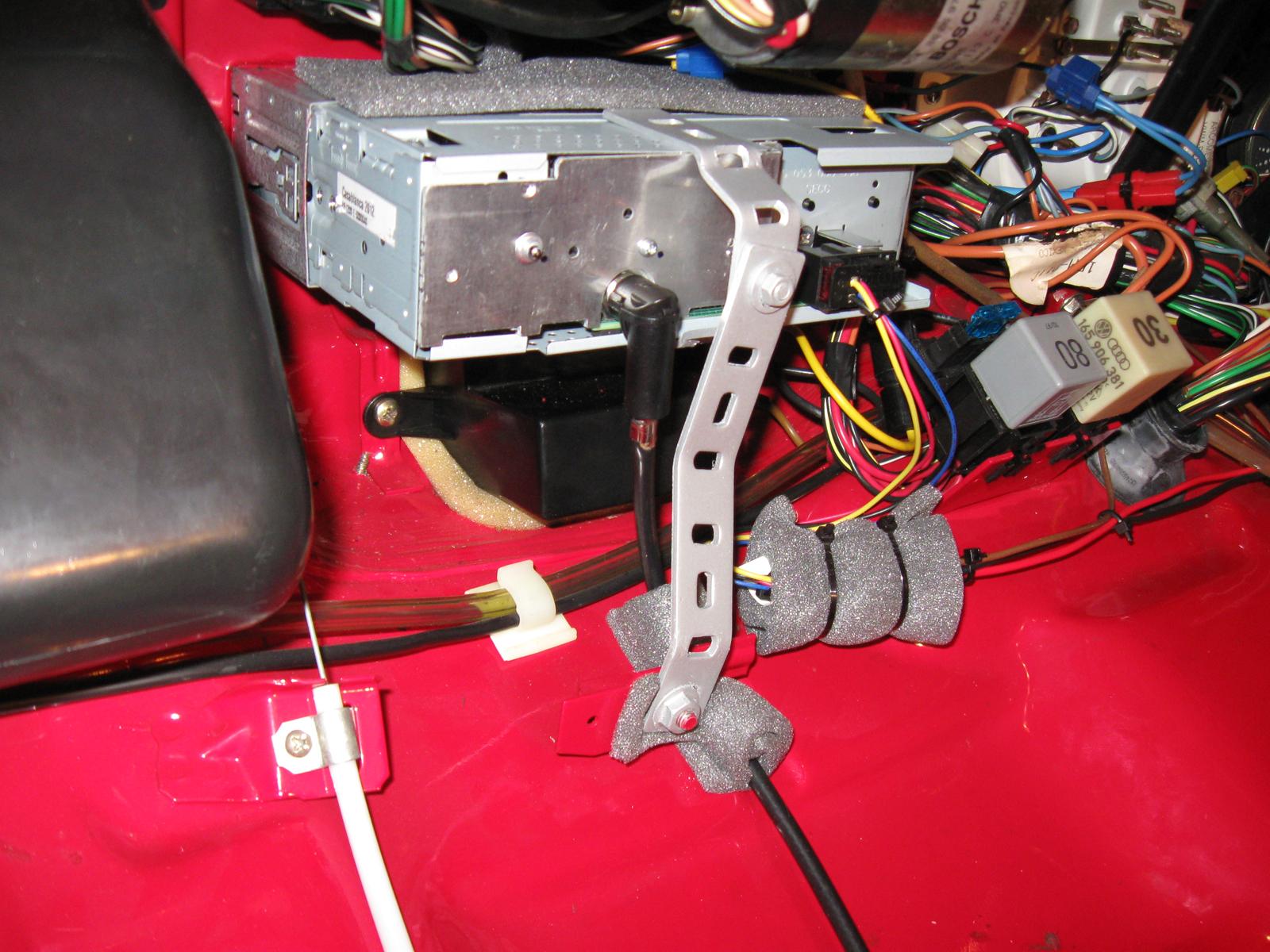

so I bought a couple of perforated steel bars, took some measurements and came up with this:

that's a "u" clamp that slides over the unit providing a mount at the back.

then took some more measurements, and made this other piece:

(the bars were nickel plated but the bending took away the plating so I painted them and all the associated hardware with some zinc primer)

aand... job done. now the stereo is supported at the back just as the old head unit was.

once sure that everything was working properly, I finally removed the now useless mono speaker. funny thing, between the speaker and the grille were a couple of dead bugs. Surprised

funnier thing, I discovered the speaker itself was of the wrong size and whoever installed it secured it with just one nut and bolt and a lot of twist tie wire... Laughing

_________________
cars:
'97 type 1 1600i
~~'14 type AA Seat Mii~~ (sadly dead after 270.000 km)
'22 type C1 T-Cross
'23 type AC3 Hyundai I10 (VW no longer makes small cars!)
-------------------------
moped:
'82 Benelli Magnum 3v

sb001 · Posted: Sat Jan 31, 2015 8:40 pm Post subject:

I really, REALLY like this- I always had the idea of installing a true 4 speaker with subwoofer system in mine, but this has me rethinking the whole prospect.

You can get these from BlaupunktDirect UK,

http://www.blaupunktdirect.co.uk/car-audio/oem-radios/casablanca-speaker-inside.html

They will ship worldwide. I don't know how the radio bands match up though.
_________________
I'm the humblest guy on this board.

1969 autostick sedan, family owned since new
1600 SP engine
Solex 30 PICT 3 carburetor
Bosch 113905205AE autostick distributor

GArBa · Posted: Sun Feb 01, 2015 11:18 am Post subject:

GArBa · Posted: Tue Apr 28, 2015 2:49 am Post subject:

To wrap the thread, I've finally ventured on the autostrada and I can say that at 120 km/h with the window open you can quite clearly listen to the radio even without turning the volume up to max. Actually, the listening is better than my previous set up since the speaker on the left of the wheel got quite disturbed by the airflow from the window or quarter vent at speed.
_________________
cars:
'97 type 1 1600i
~~'14 type AA Seat Mii~~ (sadly dead after 270.000 km)
'22 type C1 T-Cross
'23 type AC3 Hyundai I10 (VW no longer makes small cars!)
-------------------------
moped:
'82 Benelli Magnum 3v

Ryanqzqz · Posted: Tue Apr 28, 2015 5:30 am Post subject:

This is the best radio install I've seen yet for that dash. Now I'm googling.... Smile

_________________
- '71 Super Beetle, Cal look
- '73 Std. Beetle, donor car.

TheAmazingDave · Posted: Tue Apr 28, 2015 9:57 am Post subject:

Very nice!

Does it have any sort of audio output?
_________________
Just call me Big D. (formerly xBigDx408x)
TheAmazingDave.net
Deutschland Dubs 2015 at Presidio Trust

hopkin · Posted: Tue Apr 28, 2015 10:13 am Post subject:

GArBa · Posted: Tue Apr 28, 2015 1:17 pm Post subject:

bravo1616 · Posted: Tue Apr 28, 2015 1:53 pm Post subject:

very nice.
_________________
'69 Beetle, 1600 DP

hopkin · Posted: Tue Apr 28, 2015 7:10 pm Post subject:

Did you change your ashtray to the newer style?
