 Posted: Fri Apr 26, 2019 10:40 am Post subject: Outrigger design |
 |
|
I think I came across this discussion somewhen, but couldn‘t find the topic anymore. My outriggers were replaced in the past, but not really nicely, so I‘ll have to do them again. The parts from KF and Autocraft are all the same design (flat with a hole for water), but the WW one looks differently. But they have only the rear once in this embossed design.
http://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=211703131
Can anybody tell me what is correct for a 67 bus? Were all 4 the same or front and rear differently? I‘d like to make it as correct as possible. Thanks!
_________________
Recent pics from my SO-42 rebuild: https://www.instagram.com/anni_vintage_bus/ |
|
| Back to top |
|
 |
easy e
Samba Member
Joined: May 28, 2008
Posts: 3939
Location: 1 hr north of Santa Barbara
|
| Posted: Fri Apr 26, 2019 11:58 am Post subject: Re: Outrigger design |
|
|
The one you have linked is correct for the rear... it has the creased water drain.
The front has a hole: http://www.wolfsburgwest.com/cart/DetailsList.cfm?ID=211703125
Since you are doing outriggers... you're probably doing jack points.
The closest to original looking aftermarket jack points are VW Brasil.
They have the extra vertical pressing on the side that was introduced on May 18, 1965.
Read this thread about the
late jack points.
Stay away from the jack points that are thin... and have spot welded flanges at the lifting plate and attachment to the "U" shaped piece.
The VW Brasil jack points have a slightly thinner lifting plate than original and are missing a few die cut notches, and they have an extra bar welded to the lower surface.
If you replace the flat lifting surface and grind off the bar... they'd be pretty much indistinguishable from original. They have sharper bends on top and welds (instead of spot welds).
https://en.hoffmann-speedster.com/bus/bus-t1/repai...ront-right
https://en.hoffmann-speedster.com/bus/bus-t1/repai...front-left
I didn't find a link to the Brazilian rears for you.
_________________
aka: Evan
Spreadsheet for Bus RPM, based on gearing & tire size (Excel format)
Searchable, click-navigable 1958 Bus Parts List
“They are about as worthless as the tits on the boars that live in the woods behind their junk yard.” -Weatherly |
|
| Back to top |
|
|
Culito
11010101
Joined: December 07, 2006
Posts: 5878
Location: Columbia Missourah
|
| Posted: Fri Apr 26, 2019 12:29 pm Post subject: Re: Outrigger design |
|
|
In my experience the WW outriggers (which are actually Autocraft) are much nicer and beefier than KF.
_________________
© CJ Industries, Inc.
'64 standard w/2.0L type 4
'62 bug
| johnnypan wrote: |
| ...dont pay no attention to Culito,he's a cornhole.. |
|
|
| Back to top |
|
|
mdege
Samba Member
Joined: January 16, 2018
Posts: 1054
Location: Niederkruechten, Germany
|
|
| Back to top |
|
|
easy e
Samba Member
Joined: May 28, 2008
Posts: 3939
Location: 1 hr north of Santa Barbara
|
| Posted: Fri Apr 26, 2019 12:53 pm Post subject: Re: Outrigger design |
|
|
| mdege wrote: |
| Unfortunately the Hoffmann Speedster Jackpoints I got ended up being the Brazil junk. I gave them back and payed almost twice the amount for decent ones from BUS-OK. |
There’s definitely good and bad stuff from Brazil. VWdoB is better than random Brazilian aftermarket. The orange jack points... and the spot welded ones are junk.
_________________
aka: Evan
Spreadsheet for Bus RPM, based on gearing & tire size (Excel format)
Searchable, click-navigable 1958 Bus Parts List
“They are about as worthless as the tits on the boars that live in the woods behind their junk yard.” -Weatherly |
|
| Back to top |
|
|
swiss_bulli
Samba Member
Joined: February 17, 2017
Posts: 123
Location: Switzerland
|
| Posted: Fri May 17, 2019 3:29 am Post subject: Re: Outrigger design |
|
|

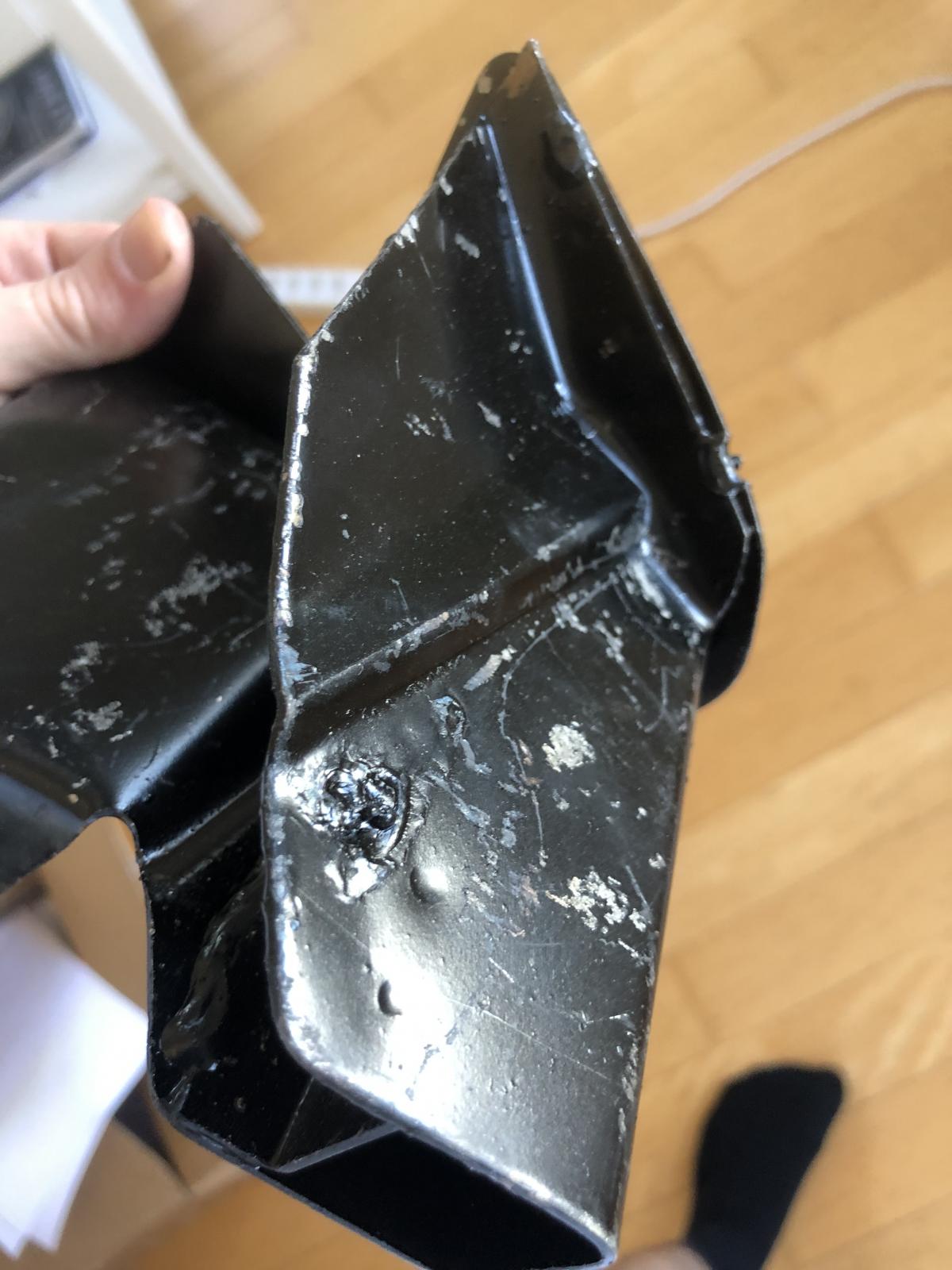

Michael, I should have listened to your experience. That is what they delivered to me.
And I figured out, that other shops with the correctly pictured Brazilian part, actually do sell other stuff instead of the pictured one...
_________________
Recent pics from my SO-42 rebuild: https://www.instagram.com/anni_vintage_bus/ |
|
| Back to top |
|
|
crukab
Samba Chef
Joined: December 13, 2002
Posts: 6130
Location: Vermont
|
| Posted: Sat Feb 08, 2025 1:51 pm Post subject: Re: Outrigger design |
|
|
Bringing up this older thread, my outrigger, Pass. side rear is shot. I bought a Wolfsburg west outrigger, my jack point is fine, does the WW outrigger go through the jack point ? For some reason I thought the KF outrigger went TO the jack point, not into it, I did the other ones 15+ years ago, and don't remember. Do I need to buy a new WW jack point too?
_________________
Tom
My Pops:
http://www.thesamba.com/vw/forum/viewtopic.php?t=604100&highlight=
I know you will always be with me, rest in peace with no more pain. 8/13/14.....
In the yard right now:
'51 Dodge 5 window truck
'65 Bug
'66 Singlecab
'82 Rabbit Truck Diesel from CALI
'86 Doublecab W/T
'91 Vanagon carat/wolfsbrg.Tiico
'88 Dodge Ram pickup
'11 Jetta Wagon |
|
| Back to top |
|
|
Buggeee
Samba Member
Joined: December 22, 2016
Posts: 4919
Location: Stuck in Ohio
|
| Posted: Sat Feb 08, 2025 3:59 pm Post subject: Re: Outrigger design |
|
|
| crukab wrote: |
Bringing up this older thread, my outrigger, Pass. side rear is shot. I bought a Wolfsburg west outrigger, my jack point is fine, does the WW outrigger go through the jack point ? For some reason I thought the KF outrigger went TO the jack point, not into it, I did the other ones 15+ years ago, and don't remember. Do I need to buy a new WW jack point too?
|
I am waiting for my outriggers to arrive, and ordered jackpoints as well. The threads I researched said the outriggers are installed first, and then the jack point goes over the outrigger. Timely topic for me to see.
_________________
Big Time 1988 Vanagon Westy
Release the Krankenwagen! 1966 Sportsmobile Camper
