PostPosted: Wed Apr 07, 2021 1:58 am    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

I'm pondering where to break the roof white. At the crease a few inches above the rain gutter or take it all the way down to the gutter? Curious to see what you wind up doing and how it looks.

If the Rustoleum--good choice by the way--seems too white, you can get a free squirt of brown at the local paint store if you buy one of their empty quart tins. Use very little as it's powerful stuff. A sample in a paper cup will give you an idea of how much to add. The paint experts at the Sherwin Williams local store told me all paint store color agents are compatible with all types of paint, latex, oil, acrylic and marine. This is wahat i did when I needed to create my own color for boat work.

D
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 27224
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Wed Apr 07, 2021 3:59 am    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

I've already decided this.

There is a seam at gutter height in the front. The seam is also the top of the windshield rubber height.

This is my front break. I can't see value in masking an artificial horizontal paint line above the glass.

In the rear it will be the lift gate gap and gutter height. There is a seam at gutter height but I ponder if I should do the lift gate to the glass top or not.
It is easy to to later so I'll hold off.

If it looks "goofy"....... I'll revisit it. I do have an insanely expensive quart of Bordeaux Red on hand! Laughing Shocked


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert


Last edited by djkeev on Wed Apr 07, 2021 5:46 am; edited 3 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 27224
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Wed Apr 07, 2021 4:11 am    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

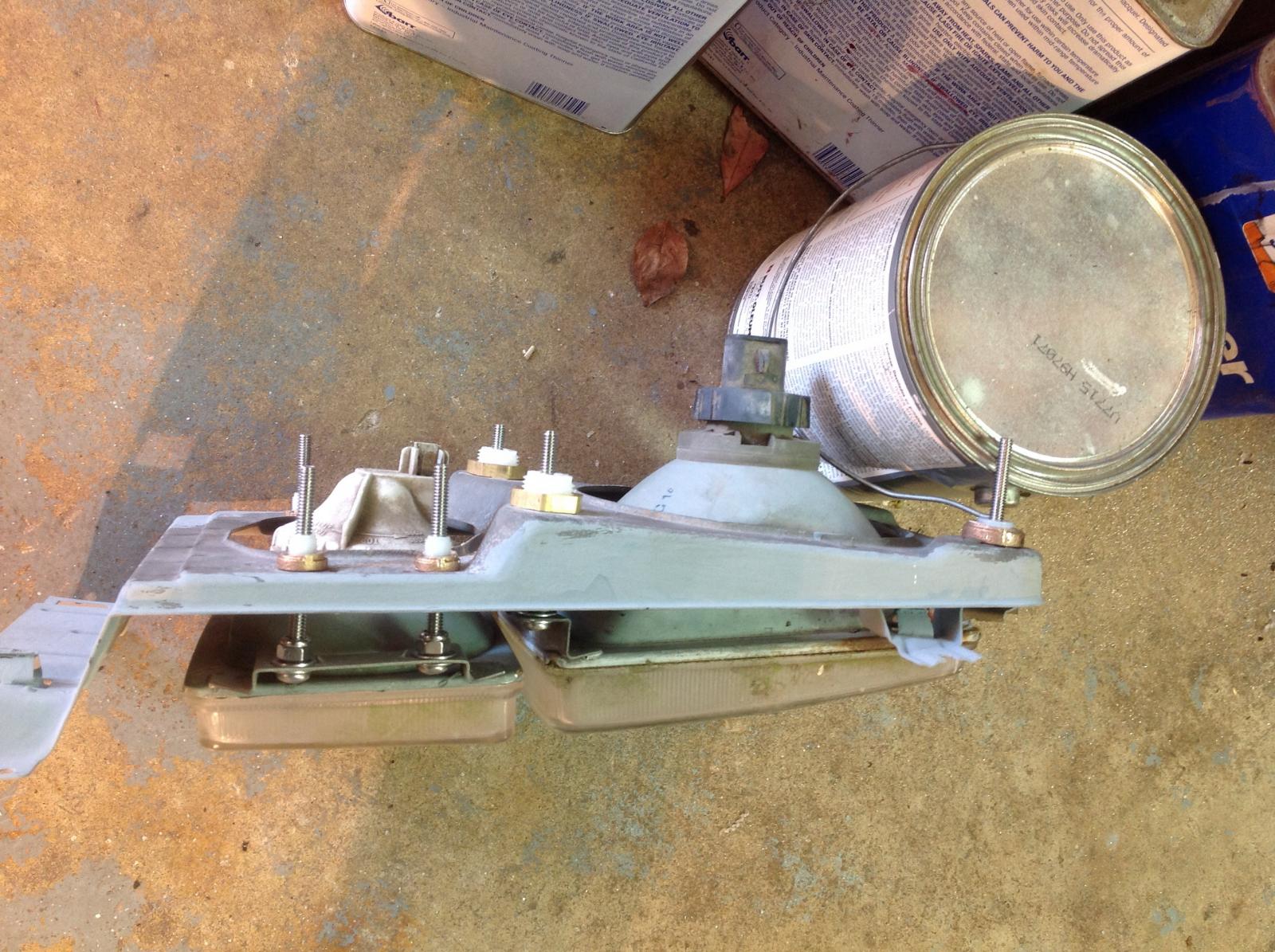

Here is my headlight adjuster fix. This is from my 86 build.

The final product ....... the screws were too long hence the various lengths this time.......


Image may have been reduced in size. Click image to view fullscreen.


Entire procedure found here.........

https://www.thesamba.com/vw/forum/posting.php?mode=quote&p=6914933

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 27224
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Wed Apr 07, 2021 8:55 am    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

Wow!

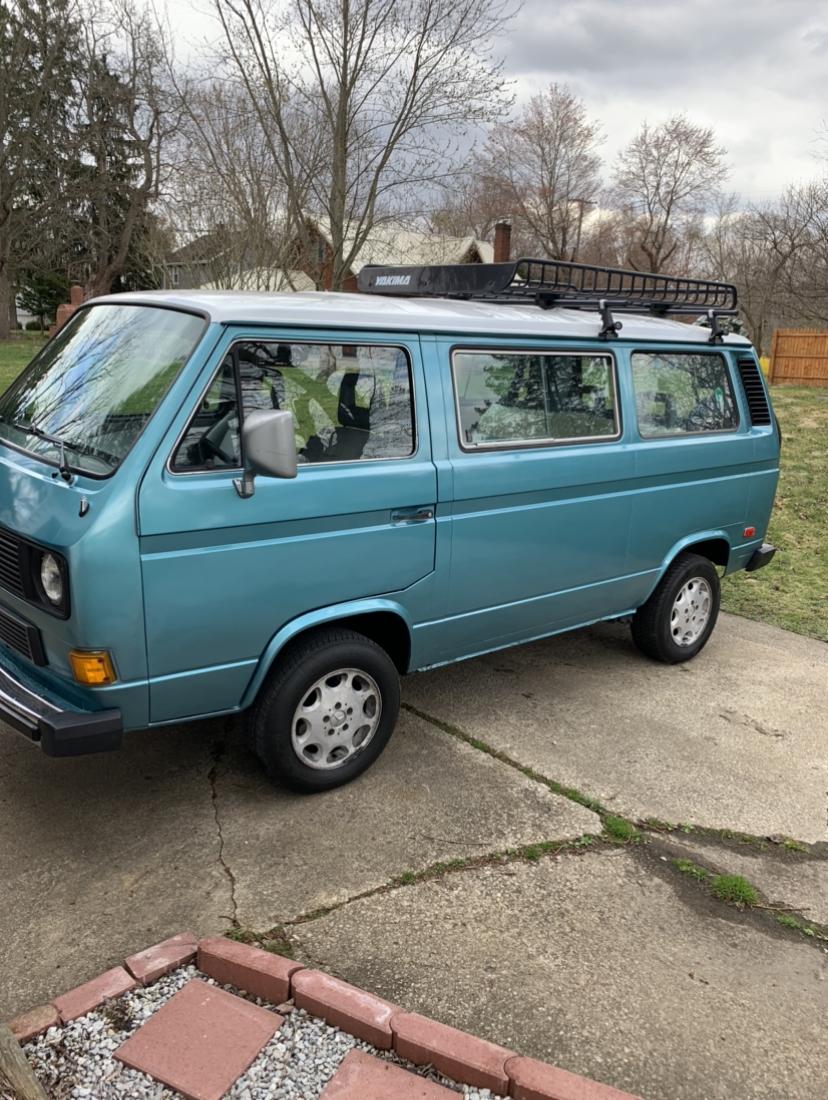

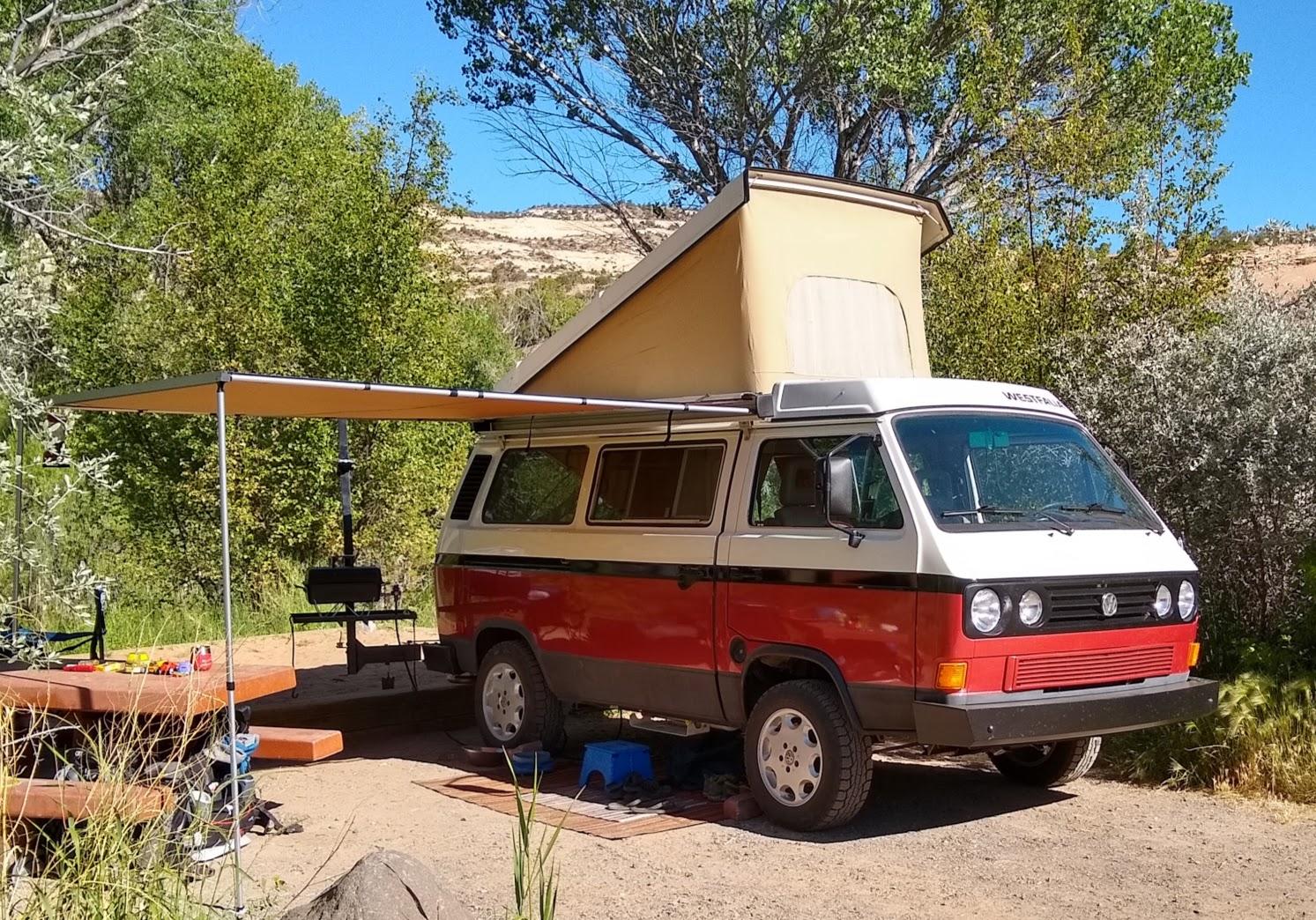

Just saw this, I'm going with a white roof to cut heat gain, this New Mexico rig went with black to increase it!

Not a fan of the black to white transition choice.........


Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
4Gears4Tires
Samba Member


Joined: October 08, 2018
Posts: 1959
Location: MD
4Gears4Tires is offline

PostPosted: Wed Apr 07, 2021 1:35 pm    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

White? That looks like light green to me. Cool
_________________
'87 Syncro
Ferric Oxyhydroxide Superleggera Edition
Back to top
View user's profile Send private message Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 27224
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Wed Apr 07, 2021 2:01 pm    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

White, very Light Green? Whatever, it's the black roof!

Anyway.......

Paint lines .......

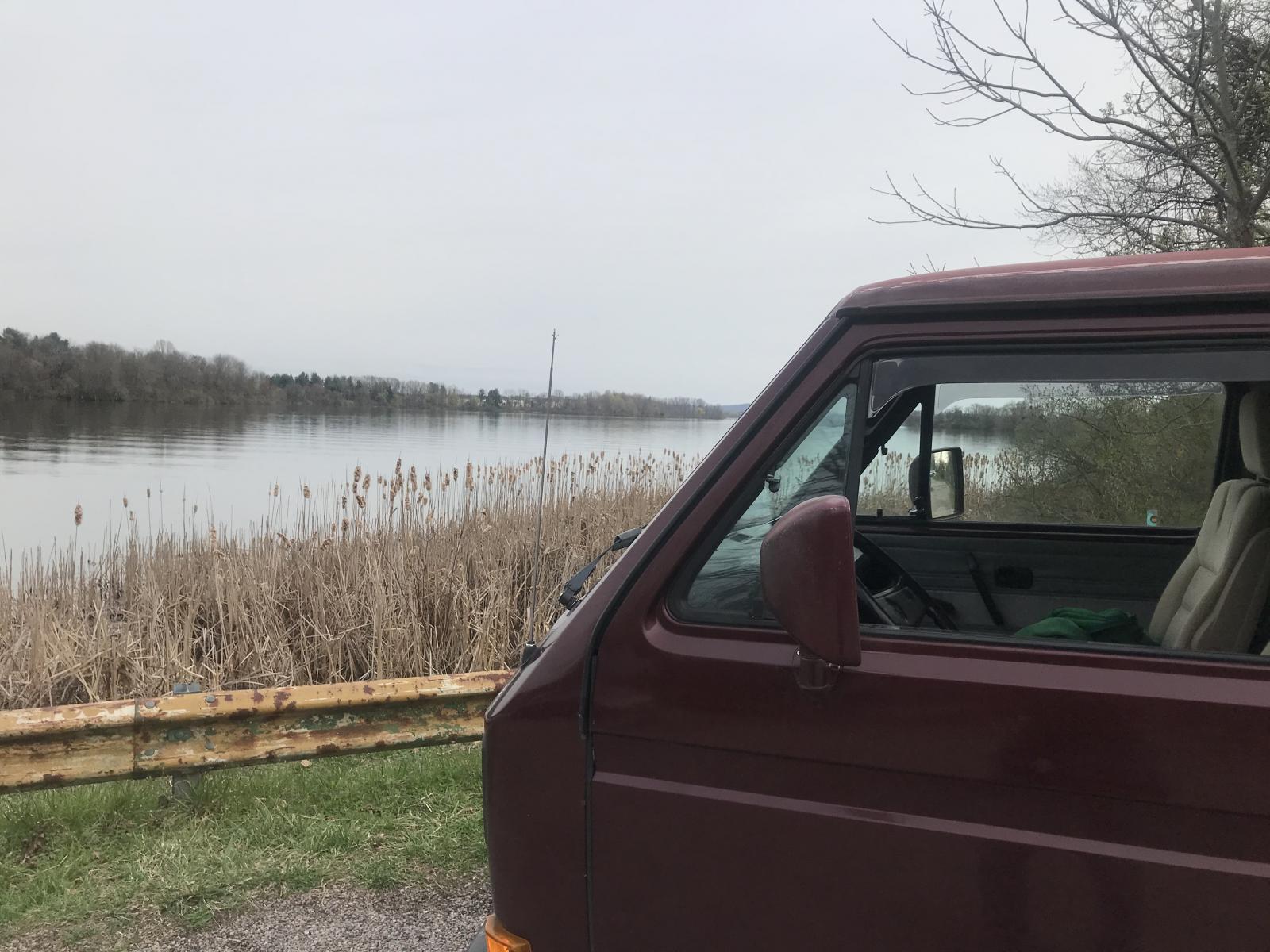

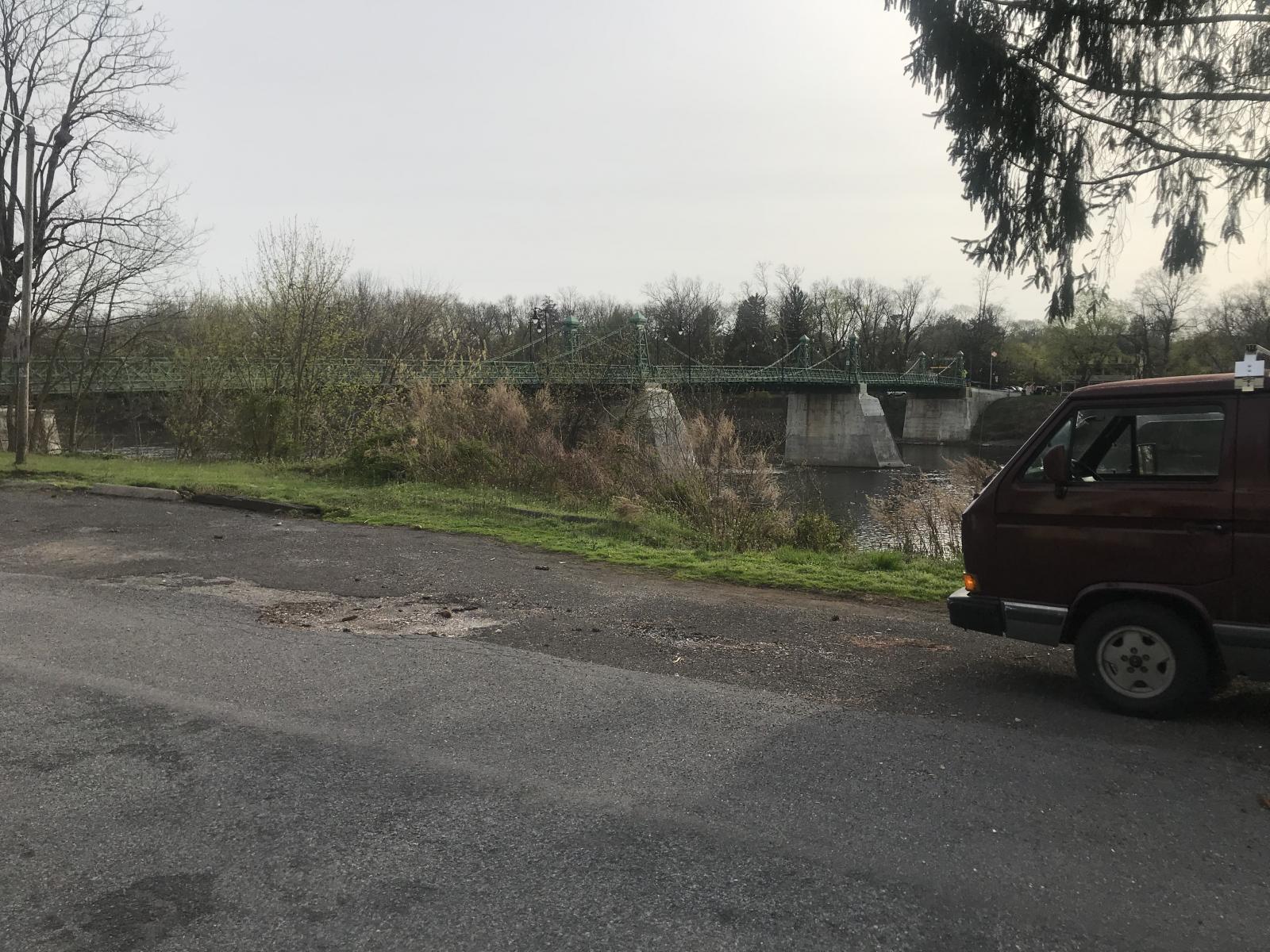

Photos of the gutter seam front and rear......

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

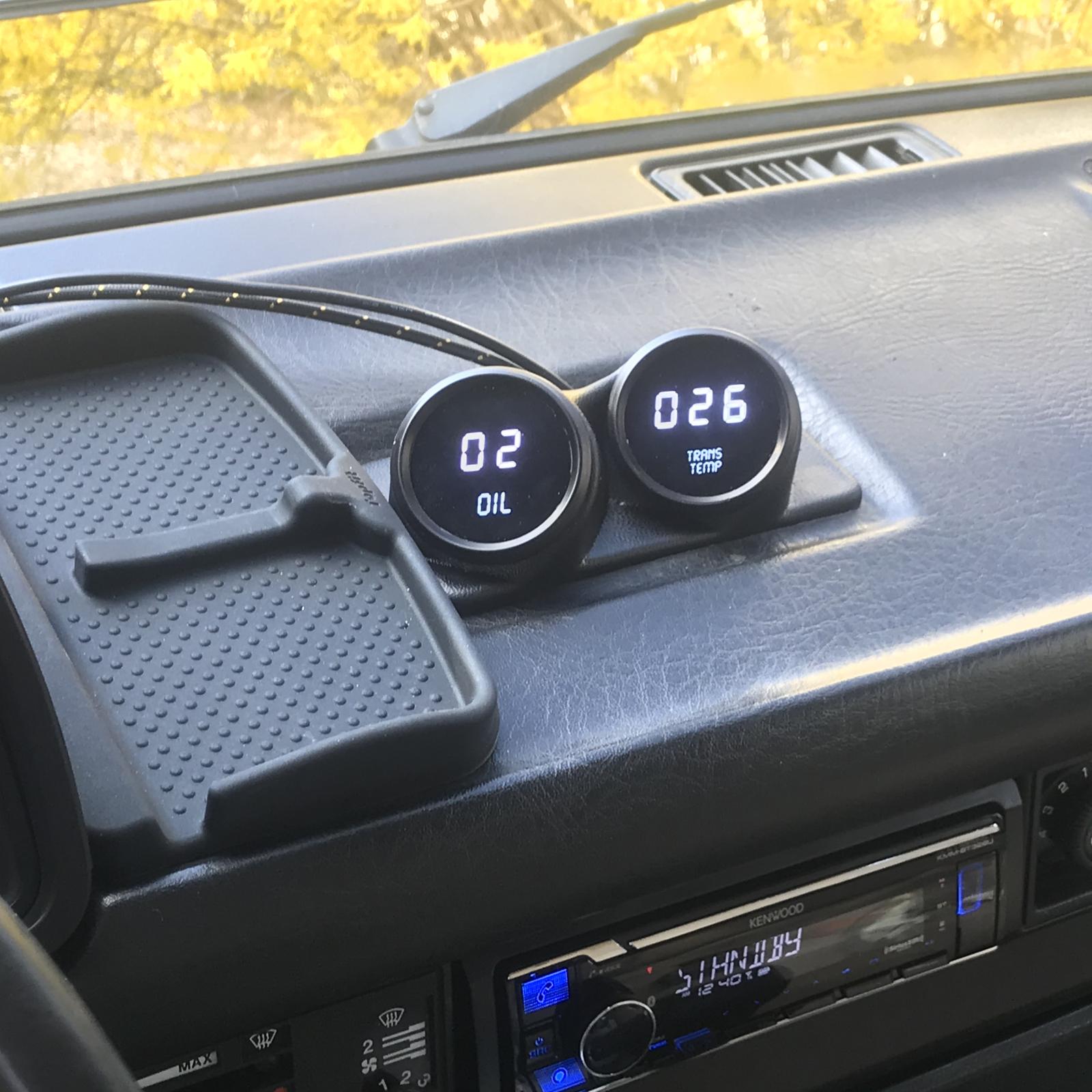

I installed my JEGS digital gauges. The Oil Pressure gauge is hooked up and works, the Auto Trans Temperature gauge is awaiting connection though it is powered.
I need to run the wire and I need to put a bung in the oil pan.

The digital gauge is SO NICE to have! No more guessing on oil pressure readings at the low squished end of a 100 lb scale!

First power up! Notice the USB cables to power the GPS and charge my phone coming out of the back of the gauge cluster. I just filed a small slot for them.

Cold Oil Pressure....... 10w40 Dino
Image may have been reduced in size. Click image to view fullscreen.


After a reasonably long drive ...... hot idle, about 900 rpm ......

Image may have been reduced in size. Click image to view fullscreen.


And you wonder why the Auto Trans temperature gauge doesn't work?

Image may have been reduced in size. Click image to view fullscreen.


I didn't like the angle the gauges sat at.
I didn't want to mar the black finished surfaces so my bathroom chrome fixture wrench to the rescue!

Image may have been reduced in size. Click image to view fullscreen.


Much more visually pleasing! Engine off, the gauge seems to like 02 psi.

Image may have been reduced in size. Click image to view fullscreen.


The worst part of this gauge installation?
I had to remove the radio, it forgot EVERYTHING!
There goes an hour of my life setting the time
Setting the display colors
Recognizing my phone
Removing the demonstration mode
Setting speaker balance
Setting vehicle type
Setting the equalizer settings
Etc
Etc
Etc ........

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dabaron
Samba Member


Joined: June 21, 2018
Posts: 1930
Location: Philly, mang
dabaron is offline

PostPosted: Wed Apr 07, 2021 7:03 pm    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

get the kenwood app for your phone. wait, do you have a smart phone Wink
_________________
1991 Vanagon GL Camper
1968 Beetle *pending*
i had no idea i wanted to be a mechanic
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 27224
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Thu Apr 08, 2021 3:37 pm    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

So yesterday I pulled the radio and properly installed my gauges and the gauge Pod.

Everything is back together, I programmed the radio again and started cleaning up and organizing in the garage.

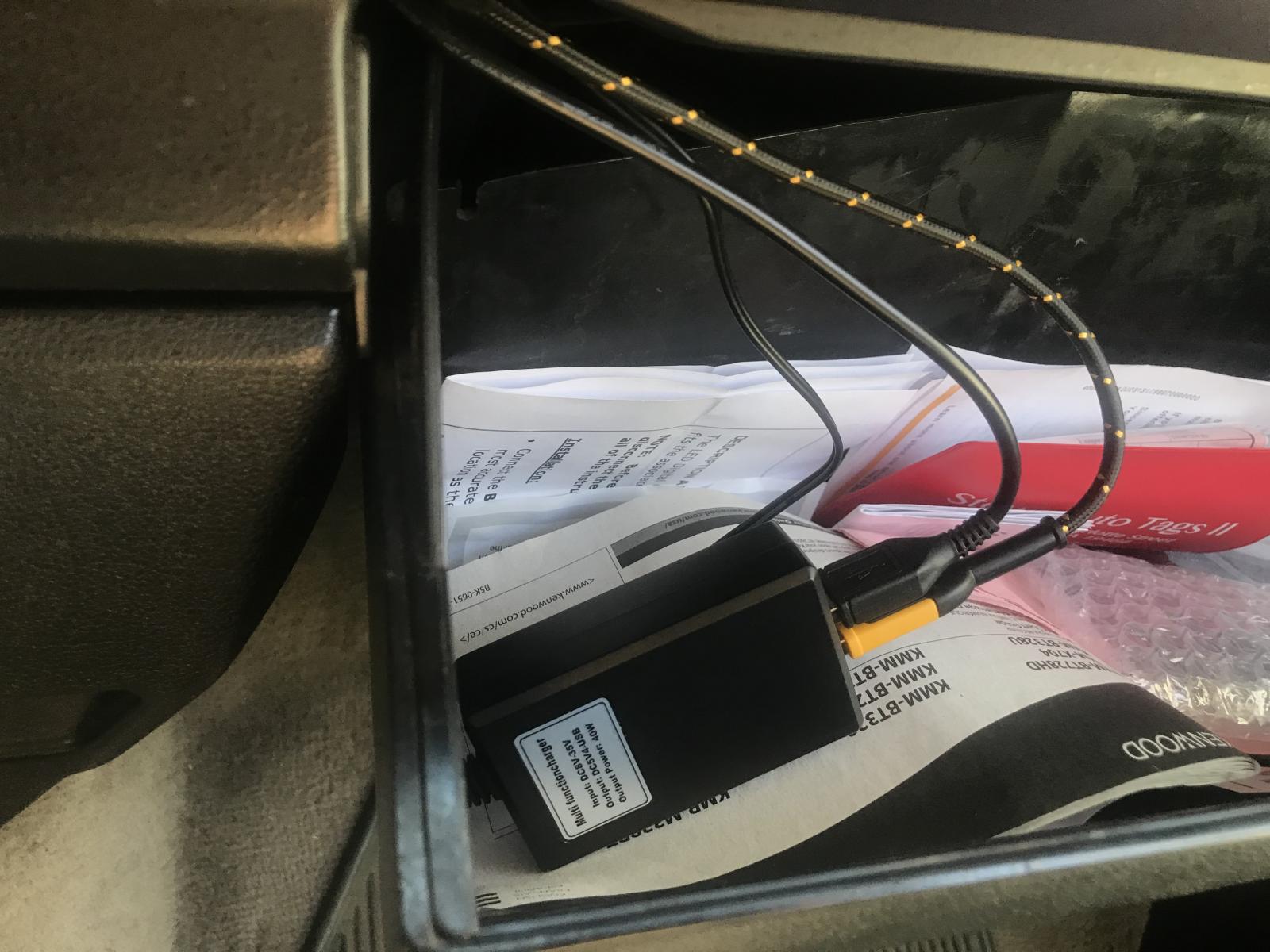

In a little box I find my USB multi plug box!

Well...... what idiot forgot to wire this in while the dash was torn open?

Image may have been reduced in size. Click image to view fullscreen.


Honestly, it really wasn't that difficult to tap into the ignition 12 volts and ground.
Now my wires are tucked away out of sight in the glove box.

Image may have been reduced in size. Click image to view fullscreen.


I did stumble across my old Beetle mats. These have been in every VW I've ever owned since the late 60s. These mats are probably older than most of you reading this!
Very well made, no wear that I noticed and the plastic is still soft and pliable.

Image may have been reduced in size. Click image to view fullscreen.


I also discovered if you leave the key on for a bit, the oil pressure does drop from reading 02 to reading 00

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 27224
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Thu Apr 08, 2021 5:12 pm    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

Okay!

KaChing!
More money spent!

I'm pretty sure my cruising speed rumble is the rear wheel bearings.

With all of the controversy swirling around this item such as short life after replacement, "magic" undisclosed installation solutions, conflict, arguments, edited threads, etc .
I'm a tad afraid to do this! Laughing

Anyway I'm pretty sure I chased the rear bearing demons away and sought the clear truth about rear axle bearings. I even talked to the demon himself.
There is no preload, there is only proper procedure and quality parts.

Proper procedure is the easy part!
Press them out (not hammer and bash), measure and examine the housing for wear.
Examine the spacer for damage, signs of being loose and spinning.
Grease well,
Press them in (again no hammers)
Reassemble
Torque properly.

The quality parts angle is the big stumbling block.
I just spent an enormous sum of money (in comparison to "lesser" brands) on Genuine Timken Bearings.

6207 (207K) ball bearing open ball inners. 35mm bore, 72mm OD, 17mm wide Readily available, about $30 each. 6950 lbs dynamic 3459 lbs static.

They make a 207W too, it handles almost twice the weight. Maybe You overloaders should check into these. 9000 lbs dynamic, 5100 lbs static.
These are also over $80 each.

RW111 outer roller bearings. I'm told Timken ceased production of these, I found a few available and spent over $100 for the pair.

I am hoping that I get what I paid for and will never do this job again!

I'm using a Quality grease and I'm adding a grease fitting for future grease refreshing.

Price doesn't always equate quality but in this case..... I think or ..... I'm hoping that it does.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 27224
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Fri Apr 09, 2021 4:48 pm    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

Today I changed the ATF yet again. This was a big drop, almost three qts!
The van was at a tilt with the LR low, I must have been leaving a quart in the pan previously!

I changed the engine oil too. It has been about 800/900 miles I guess?
The Odometer/Speedometer was inoperative for at least 250 miles I'm guessing.
At that point I got the GPS and that's up to 540 miles. The Speedometer is now fixed too.

After the engine "refresh" ...... new rod bearings and rings, I put in Dino 10w40 as a break in oil.

I replaced the 10w40 with Shell Rotella 15w40 for the Summer ahead.

That led to much higher oil pressures.......
https://www.thesamba.com/vw/forum/viewtopic.php?t=752583

I also put the proper oil pressure sender unit on the GlowShift plate. I had been using the one for the analog gauge.

My rubbing sound is the LF brake.
I hope it goes away when I install the new brake rotors.

I went to the local FLAPS to get oil and things.
As I parked and got out a young guy came up and said
"That's a really nice ride!"

My first compliment!! Laughing Cool

My 10 paint efforts must be working!

I think I'm going to add an engine oil temperature sender in the GlowShift plate and via a selector switch share the transmission temperature gauge. In theory I could add a coolant temp sender too and share the same gauge.
I picked up a 25 roll of trailer wire today. I'll run that front to rear so I have the wires I need.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DuncanS
Samba Member


Joined: October 17, 2013
Posts: 1344
Location: New Hampshire
DuncanS is offline

PostPosted: Sat Apr 10, 2021 3:12 am    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

Painterd my roof a couple of days ago. Took an hour and half sanding, washing, masking and painting. Used Interlux Hatteras Off White with Penetrol as it was sunny and hot with a hot blue roof. Paint flowed and leveled perfectly and completely covered the blue with a single application. An hour later my wife needed a lift to the garage to pick up her car. Oops. Turned out by then the paint was dry to the touch and no problem other than a few bugs which had committed suicide as I was painting. Discovered long ago, let them stay until dry and then brush them away. leaves almost no trace and you can't see the roof anyway.

Lost my phone and will send pics when it turns up.

Go for it. Not a big deal. Why did it take 8 years to get around to it.

Duncan
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 27224
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sat Apr 10, 2021 4:26 am    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

That's great about the Interlux.
Encouraging.

Not a today project but I was driving along looking at me tan seats and red doors with grey door cards.......

Image may have been reduced in size. Click image to view fullscreen.


And thinking, I like my tan seats.
Any sports car painted a dark red with a Tan interior is a head tuner.

Why don't I just change the interior color?
Up front its just door cards. Maybe carpet but not really needed.
A link to carpet dye.....

https://americolordyes.com/automotive-carpet-dye/

Thread on dying carpet....

https://www.thesamba.com/vw/forum/viewtopic.php?t=740774

In back I'd need to recover the folding bench seat and do the rear door cards.
I wonder......... hmmmmm........

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert


Last edited by djkeev on Sun Apr 11, 2021 9:46 am; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
DuncanS
Samba Member


Joined: October 17, 2013
Posts: 1344
Location: New Hampshire
DuncanS is offline

PostPosted: Sat Apr 10, 2021 5:39 am    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

Agree-agree-agree. Had an '82 and loved the brown----tan? Wel, dark tan. Like that better than the grey.
Image may have been reduced in size. Click image to view fullscreen.


When Uncle Harry dies and I come into his inheritance, I'll have someone do my car with the tan interior of an '88 Jag.

Problem............ No Uncle Harry.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 27224
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sat Apr 10, 2021 5:45 am    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

Ha!

I've no inheritance coming!
But
I do have a Niece in Denver who married into one of, if not the wealthiest families in town, the Country actually......
they spend it doing stupid stuff like The Children's Hospital, the Museum, etc....

I've reminisced ....... I should have been nicer to her as a kid! Laughing Laughing

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert


Last edited by djkeev on Sat Apr 10, 2021 5:54 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 27224
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sat Apr 10, 2021 5:48 am    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

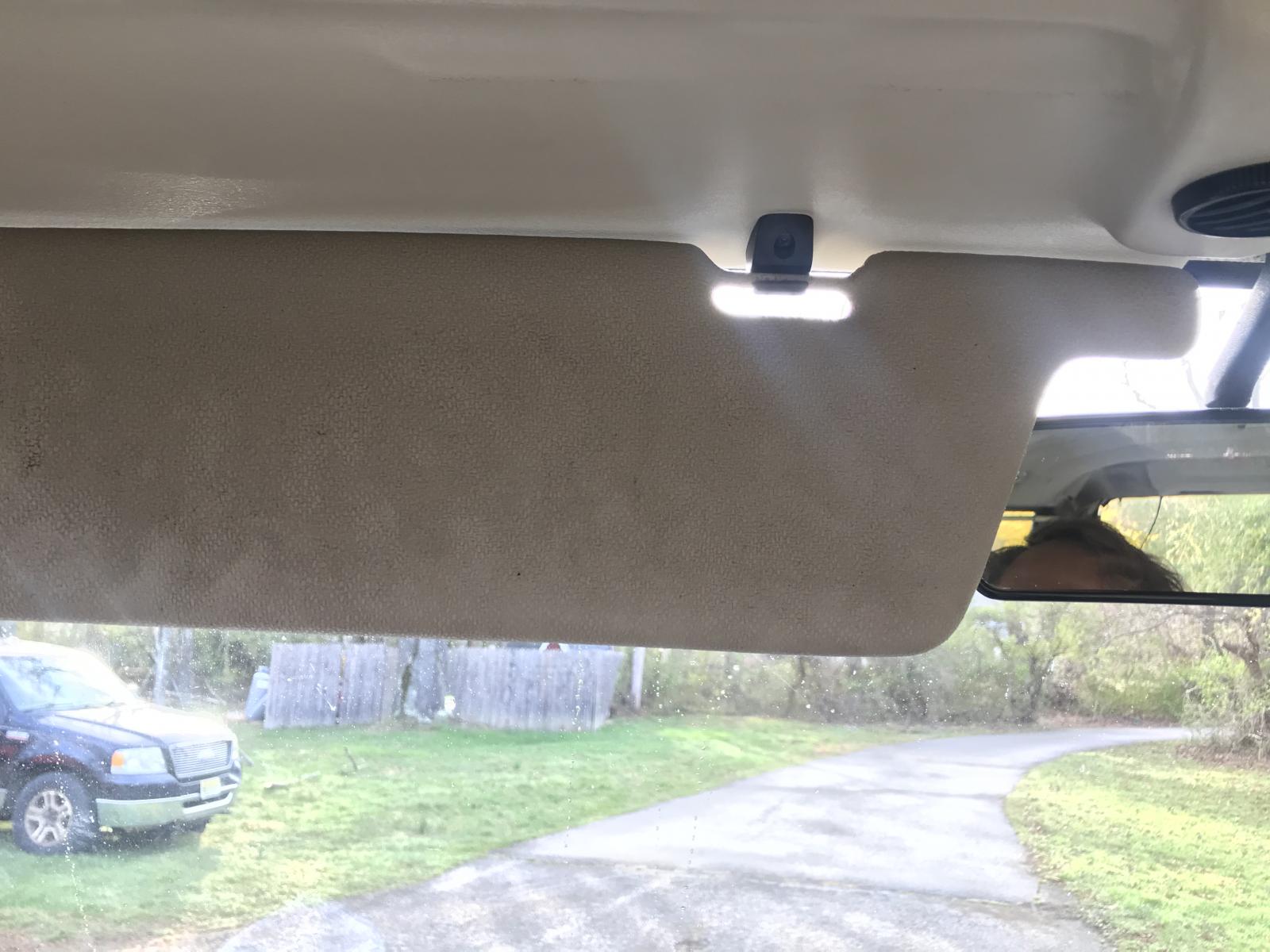

So what clever designer thought that it would be good to put a GIANT hole in the SunVisor?!

And then God goes and puts the Sun right there to blind you anyway!

Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 27224
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sat Apr 10, 2021 5:43 pm    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

I made a trip out to Pennsylvania today.
There was some furniture my Daughter wanted.

Driving home I realized as I crossed the Delaware into Jersey that NJ has a really bad reputation.

I'll be the first to admit, some of it is well deserved and rightfully placed.
But
As with most things, you can't paint the entire palate with but one brush.

There are areas of the State I simply avoid if at all possible.
Most of this area is included in what I call the 287 loop. A semi-circle around NYC.
My Co-Workers know...... if it is inside the loop, I'd rather not go there!

The other area isn't as well defined but the Camden/Trenton/Greater Philly area. I'm not as familiar with thus area but I totally love going to Philly in contrast to dire dread crossing the Hudson into New York!

Anyway....... my journey almost always enters the State at Riegelsville Pa into Riegelsville NJ.
You of course cross the Roebling suspension bridge called the Riegelsville Bridge.
It is a unique multispan design.
If you come over the bridge into Jersey and turn left (North) you will find my favorite road in the State. If you know where to turn you can follow the Delaware River to New York State. A mix of narrow paved roads hugging rocky cliffs and almost on the railroad tracks as well. Gravel roads and even sone muddy Dirt. Sometimes you tower high above the River, others times your tires are almost wet.

Many opportunities to pull over and enjoy the river.
There is a bit of history along this path. Old mines, smelting furnaces, docks, canals, farms, old taverns and abandoned farms,

Sure you come upon an occasional busy spot but these are at major road intersections, I-78, I-80, US 22 etc.

Image may have been reduced in size. Click image to view fullscreen.


I've mentioned how well this Van pulls Jugtown Mountain..... Jugtown has a history behind its name ...... it also has a State Park with miles of hiking trails to the real summit.

Image may have been reduced in size. Click image to view fullscreen.


I stopped at a few spots on the journey to Morris County to show that the State is much more than the Turnpike, asphalt, concrete and shopping centers!

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


A one lane bridge over a railroad, no matter which way you travel, you CANNOT see the other side upon approach.
It relies on common courtesy if you meet head on.

Image may have been reduced in size. Click image to view fullscreen.


Most people probably aren't aware that high on a remote peak New Jersey has an observatory....

Image may have been reduced in size. Click image to view fullscreen.


In Chester there used to be a large "Ma Bell" training facility back when there was a Ma Bell.
It changed names a few times after the Government broke up Ma Bell.

Fortunately the property ended up in the hands of Chester Township and much of it is a park now.

They used to test telephone pole treatments for preventing pole decay.
There is an entire field of short telephone poles still there.....

Image may have been reduced in size. Click image to view fullscreen.


I stopped along the Black River, not far from my house. The name "River" is a bit overstated, more like a small brook wandering through a huge swampy wetlands!
There are old dams as it meanders where farmers made ponds where they settled along it.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Don't get me wrong, Jersey is heavily populated without the wide open miles of grandeur that other States enjoy.
But if you wander and look, there is a lot of beauty heavily mixed in with early US history

On this trip today, my 2.1 automatic gave me 17.7 mpg. Mostly hilly backroad driving, no highway..... Can't really complain about that.

Dave .
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
dobryan Premium Member
Samba Member


Joined: March 24, 2006
Posts: 13452
Location: Brookeville, MD
dobryan is offline

PostPosted: Sat Apr 10, 2021 6:37 pm    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

Thanks for the tour Dave. Glad all is well and glad you are back in the saddle. Very Happy Very Happy
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The West Coast Westy
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 27224
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sun Apr 11, 2021 6:10 am    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

Duncan, did you find your phone yet?

I can call you so you hear it ringing! Laughing Laughing

Anxious to see photos of your roof paint.
I plan on putting mine in the garage and do it next week.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
djkeev Premium Member
Samba Moderator


Joined: September 30, 2007
Posts: 27224
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sun Apr 11, 2021 6:41 am    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

I was searching for images of red Vans with a white top.

This old thread popped up.
It looks like I've changed my tune on color contrast! 😂

https://www.thesamba.com/vw/forum/viewtopic.php?p=8228038#8228038

Image may have been reduced in size. Click image to view fullscreen.


I saw a Ford Flex yesterday, a dark Burgundy with a White top, it looked nice. (Considering the platform)

I've also seen red Toyota FJ's with a white roof.

Red isn't a color that you can slightly tint the white with to soften the harsh contrast.
White with a tiny bit of red = PINK!
My four year old Granddaughter would love it though! She is big into "Barbie Pink"!

I've also unearthed some concepts that aren't at all bad but they just don't appeal to me...... two tone is such a matter of personal taste.
Looking at photos, the same color breaks look quite good when different colors are involved.
I quite like an orange or baby blue Vanagon painted white above the belt line. The Burgundy/White just has too much contrast to do this.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


This one is tastefully done! Two thumbs up!

Image may have been reduced in size. Click image to view fullscreen.


Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert


Last edited by djkeev on Wed Apr 21, 2021 4:09 am; edited 3 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Tbob
Samba Member


Joined: May 26, 2007
Posts: 404
Location: Pensacola, Fl.
Tbob is offline

PostPosted: Sun Apr 11, 2021 7:45 am    Post subject: Re: HERE WE GO!! .... 1990 Tintop! Reply with quote

How about silver for the roof? Might have less contrast in timbre of finish than the white? And still be pretty good at reflecting the sun.
_________________
1969 Deluxe, owned since 1973
1973 Westfalia, owned since 1983
1980 Westfalia, watercooled conversion
1985 Westfalia, stock!
1986 Westfakia, Audi I-4 conversion
A couple of trucks and a couple of Jeeps
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3 ... 24, 25, 26 ... 33, 34, 35  Next
Jump to:
Page 25 of 35


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
