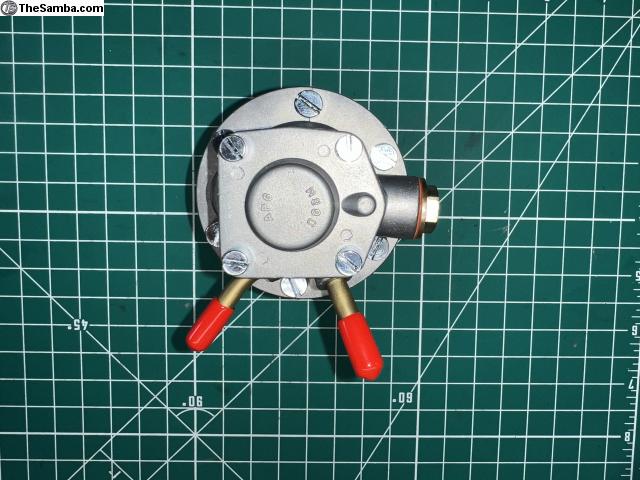

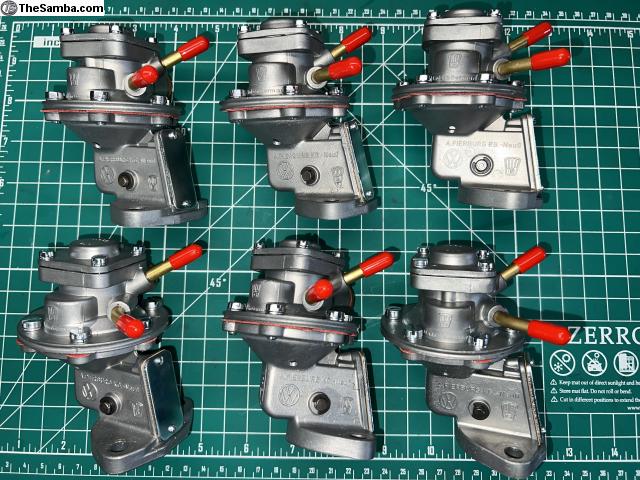

Restored German Pierburg square top fuel pumps Price: $185 ea
|

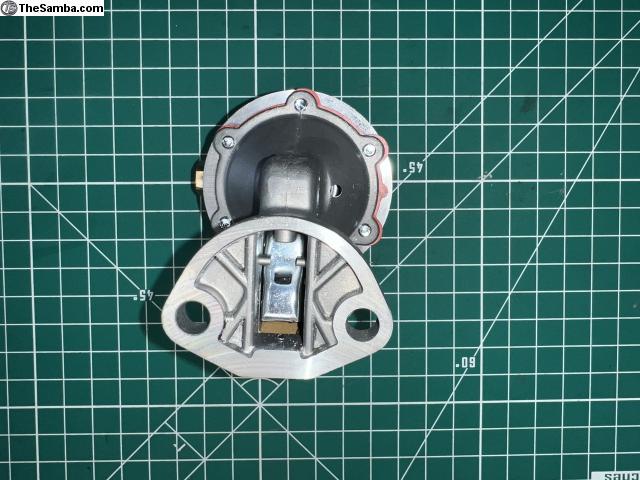

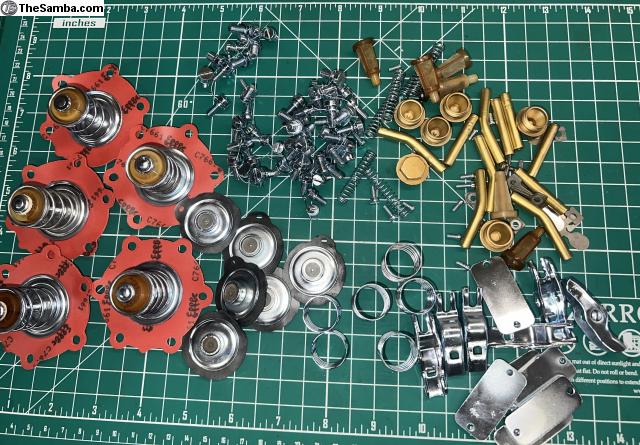

These German Pierburg Square top fuel pumps are fully rebuilt/restored. All the pumps steel hard parts are inspected for wear. Any worn part is replaced. They are then stripped of their old zinc plating. These parts are then re bright zinc plated. The fuel pumps castings are mounted on fixtures and the mating/sealing surfaces are leveled on a milling machine. The valves are checked and reseated. The fuel pumps castings are vapor blasted to remove oxidation and stains and makes the finish look new. New OEM Effbe diaphragms rated for ethanol are installed on the original Pierburg assemblies. The lower main diaphragm assembly's are pre-loaded to spec during assembly using the original factory VW tool. These pumps post restoration are basically new and will last for decades if the engine is run regularly.
Here's a link to my website where I show the rebuild process-
https://www.sparxwerks.com/fuel-pump-rebuild-process

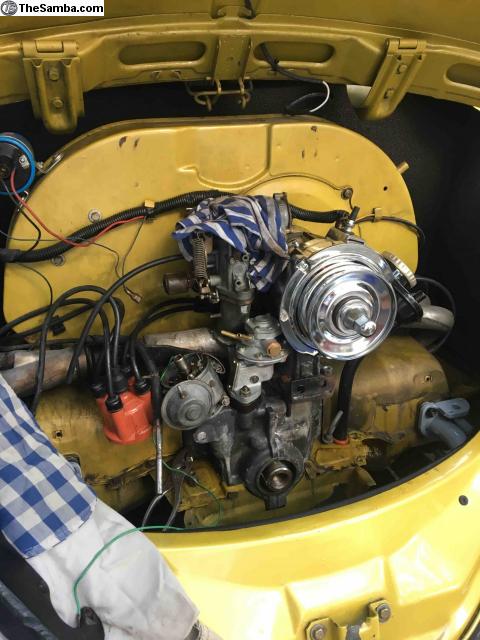

These Pierburg square top fuel pumps were originally installed from 1966 through 1971 on bugs, Ghias and some Type 3's running generators. They are used to replace the non-rebuildable fuel pumps on 1972-1975 VW's. They are the best fuel pumps for our VW's. They put out the correct 3 PSI fuel pressure. They have internal fuel filters. There is a fuel shut off diaphragm built in. The rocker pins are secured w/"C" clips so they don't back out like many of the new fuel pumps sold today, leaving you on the side of the road. I've sold many square top fuel pumps to folks running alternators. So, they fit. You may have to lift the carb up slightly so the front carb mounting stud is out of the way if that stud is too long. See attached pictures. Everyone states it only takes a couple of minutes to mount these square tops with their alternator equipped engines.
A big issue with many of the new fuel pumps sold today is the wild variance in fuel pressure they put out depending on brand. Everyone who bolts a fuel pump on their engine should check the fuel pressure. Many new fuel pumps put out 6 psi or more. This creates all sorts of issues with the carb/carbs.

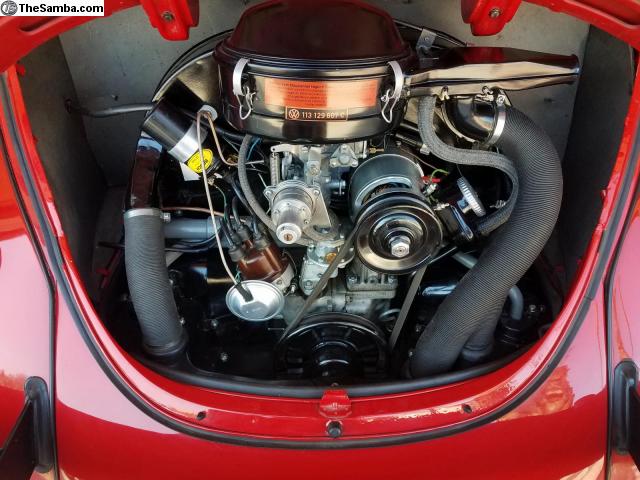

These original German Pierburg pumps are miles ahead in quality of any new fuel pump pump sold today. They can last for decades. They also make our VW engines look factory correct. See the restored engine photo.
I offer a two year warranty on these fuel pump rebuilds.
You can purchase direct from my website- https://www.sparxwerks.com/product/german-pierburg-square-top-fuel-pump/1?cs=true&cst=custom
This is an ongoing add as I have a few of these pumps for sale.
**Need a rebuilt/restored German Pierburg fuel pump for a 36HP, type 1, 2 or 4 fuel pump? I have most in stock or I can rebuild yours.**
See this link from my website https://www.sparxwerks.com/fuel-pump-rebuild-process
**Need a restored German Bosch distributor? I have most models in stock or I can rebuild yours as well.**
See this link- https://www.sparxwerks.com/distributor-restorations
Contact me at [email protected]
My sellers feedback thread-
http://www.thesamba.com/vw/forum/viewtopic.php?t=651285&highlight=warbirdwf+hotmail
**See my ads for restored German Bosch distributors**
_________________
www.sparxwerks.com
Follow me on instagram- @sparxwerksllc
40 years of VW and VW parts restoration experience.
The Samba member since 2004
I invoice through Square up which you can quickly pay with a credit card. I also accept Paypal or Venmo. All listed pricing is plus shipping & add 4% for paypal fees.
**I ship worldwide**
